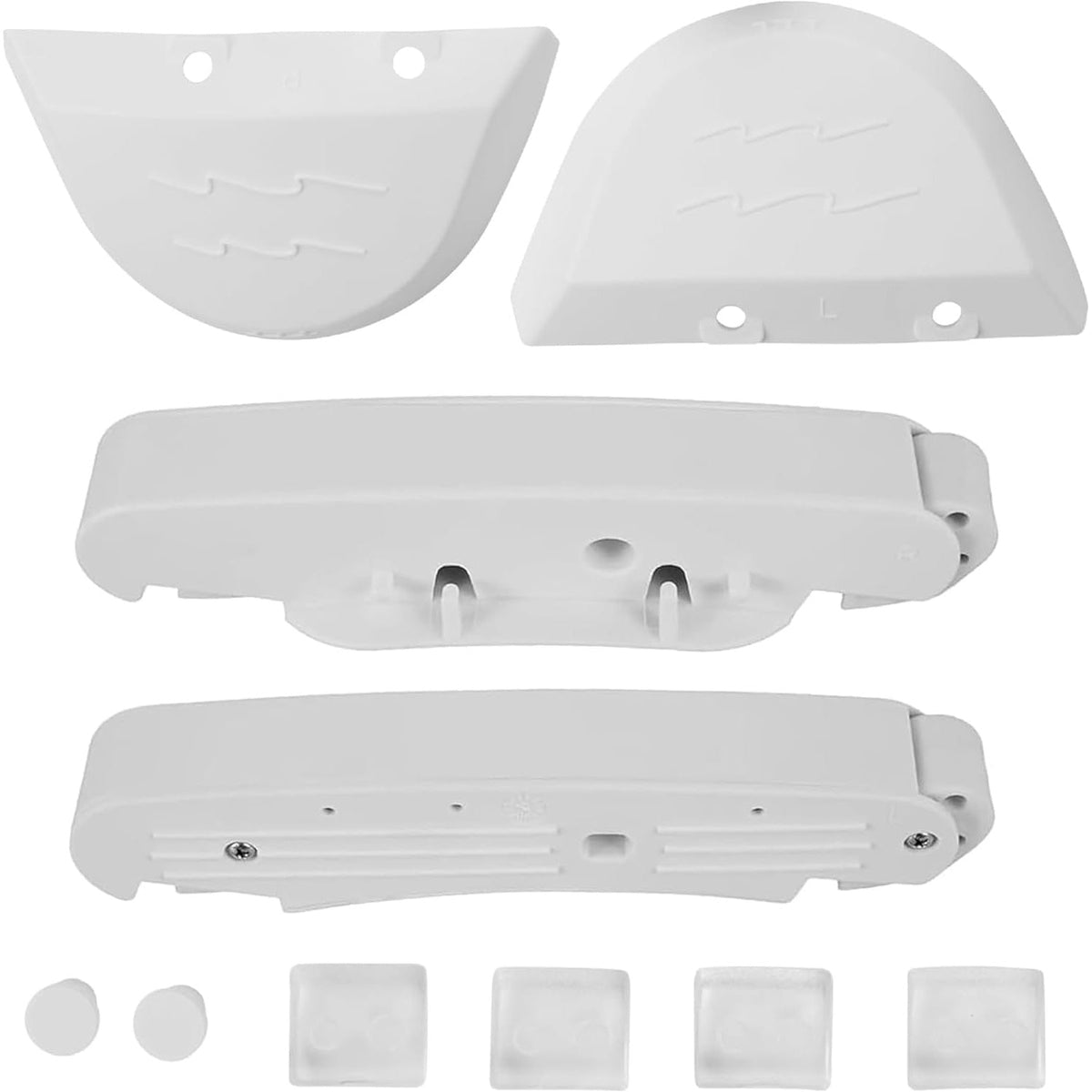

AXV417WHP pool cleaner pod swing kit components including white plastic pods, swing arms, and small mounting hardware.

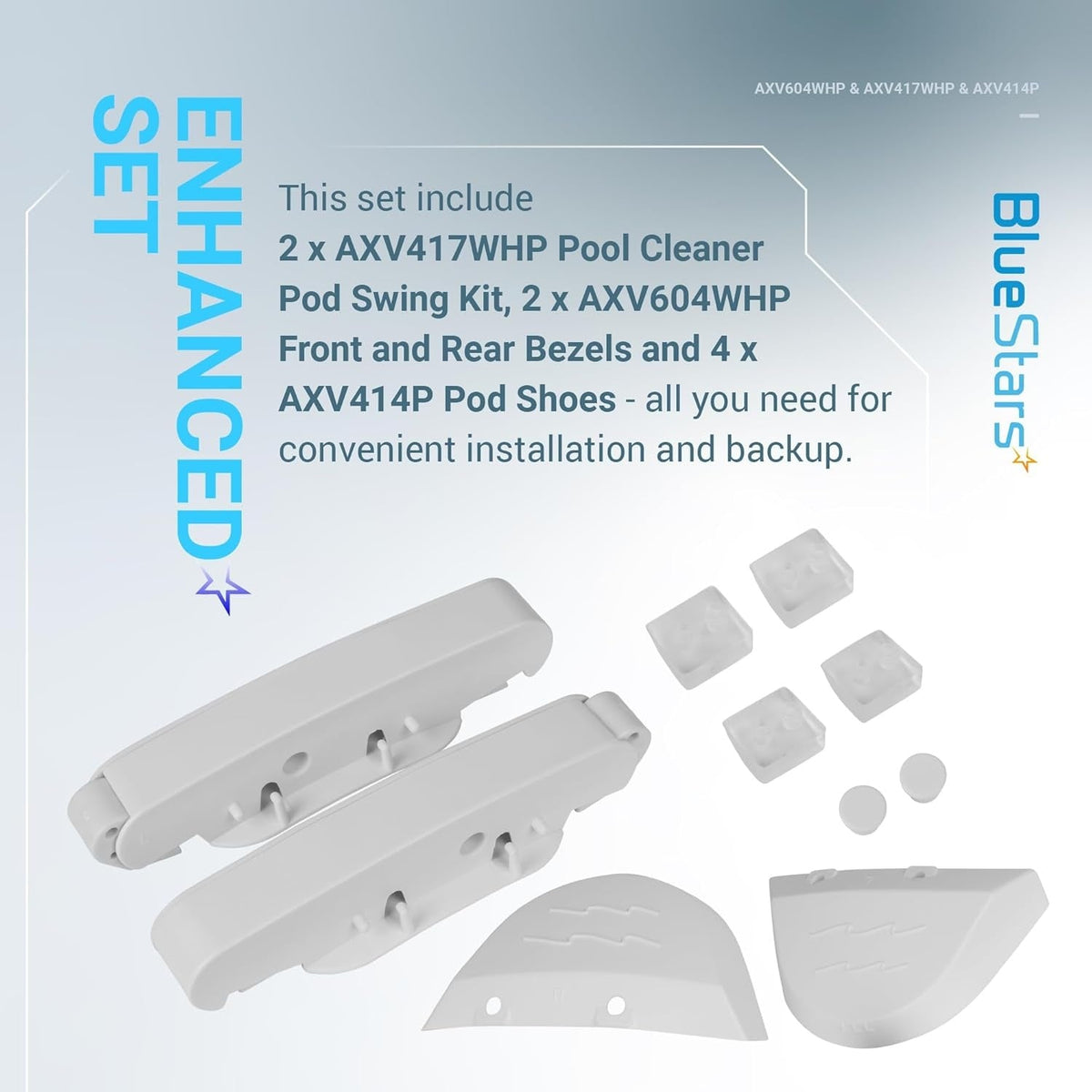

AXV417WHP pool cleaner pod swing kit, front and rear bezels, and pod shoes replacement set.

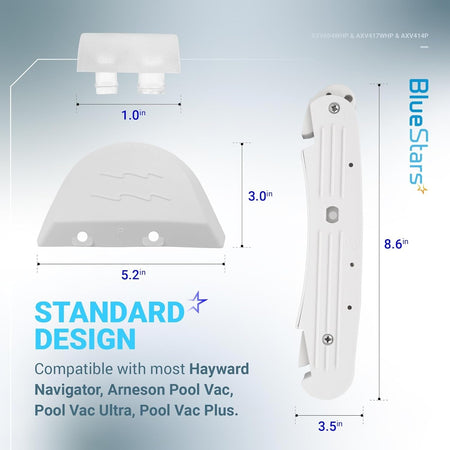

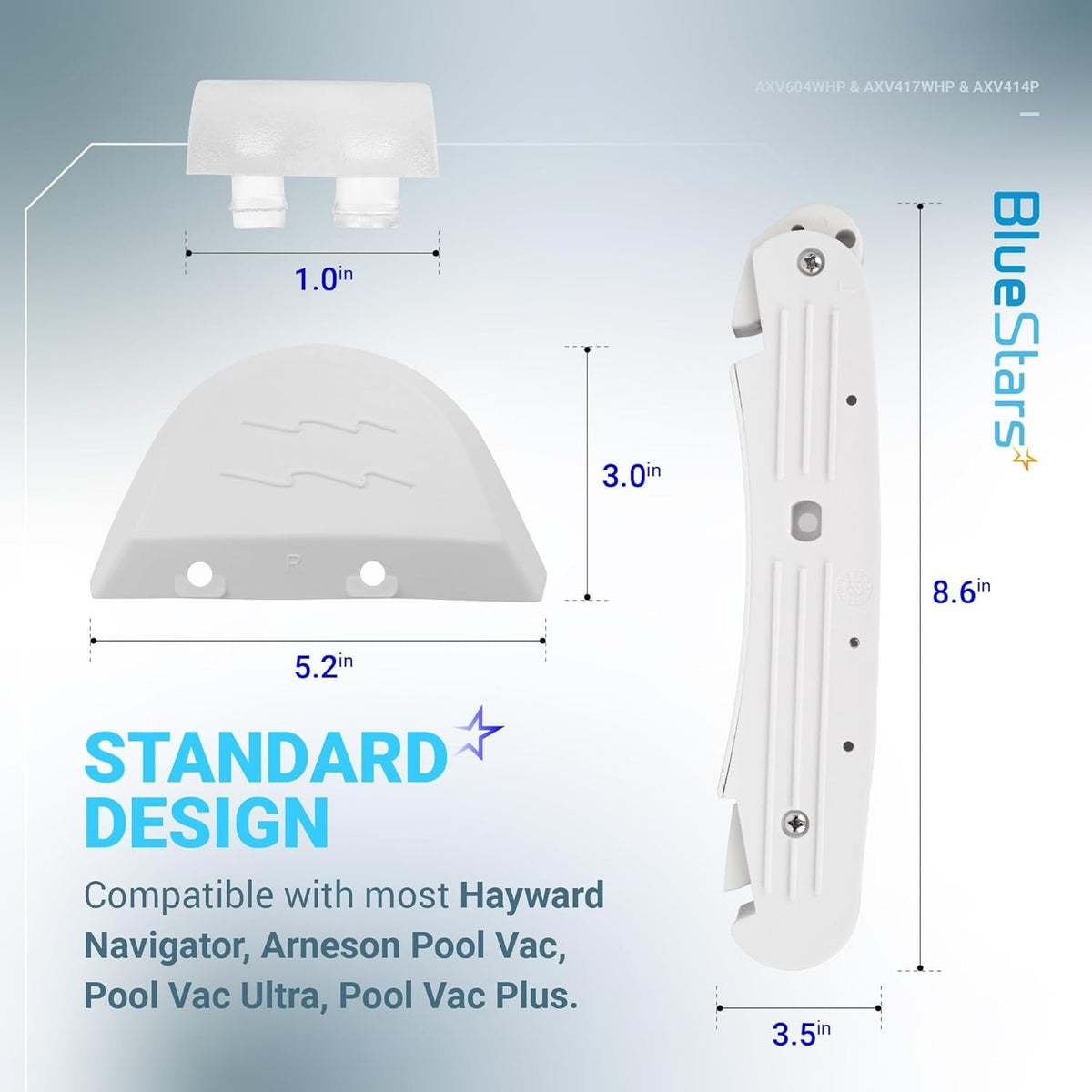

AXV417WHP pool cleaner pod swing kit components with dimensions for Hayward Navigator and Pool Vac models.

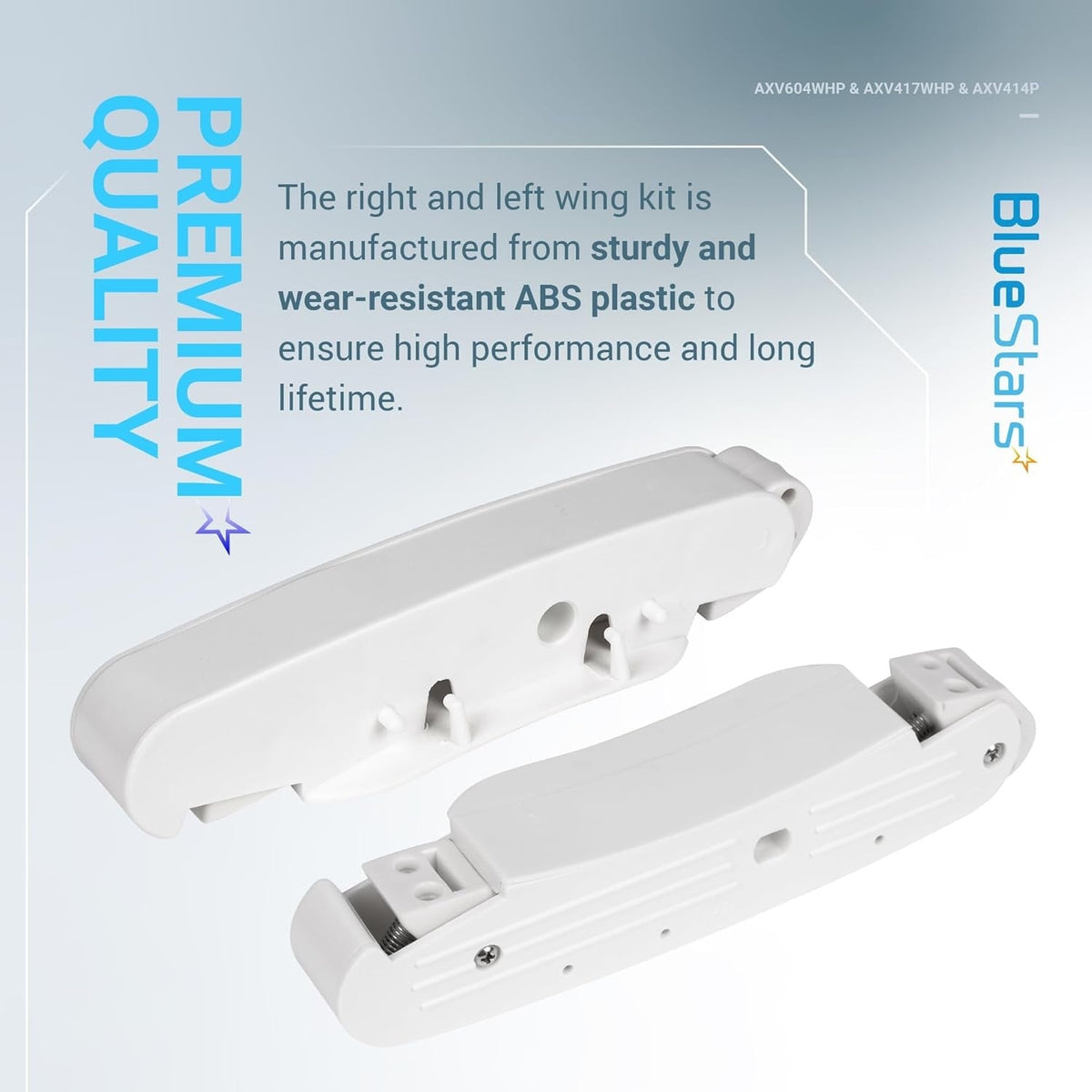

White ABS plastic left and right wing kit for AXV417WHP pool cleaner pod swing assembly.

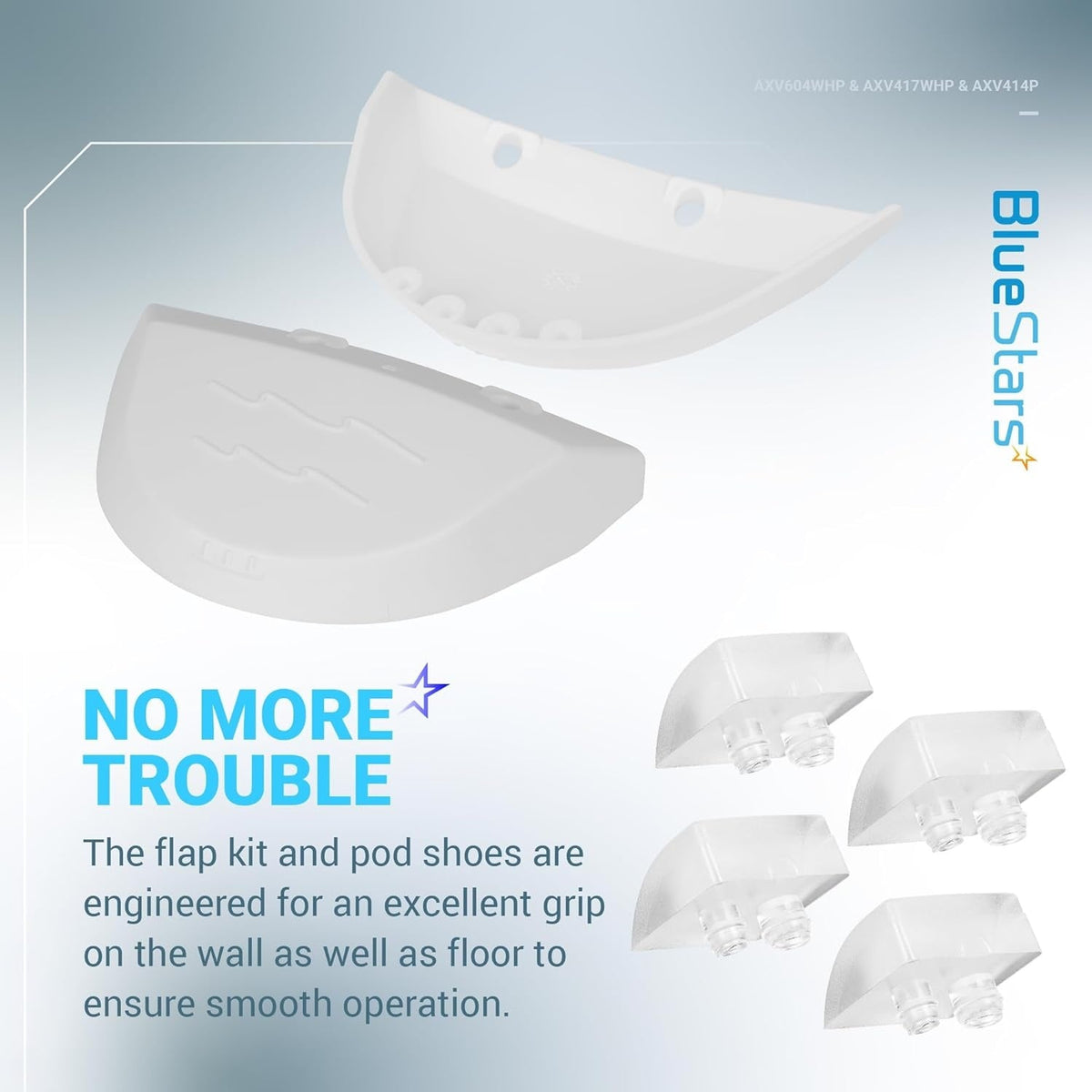

AXV417WHP pool cleaner pod swing kit including white replacement pod shoes and flaps for improved surface grip.
Replacement pod for AXV417WHP pool cleaner swing kit shown in close-up detail.
White AXV417WHP pool cleaner pod swing kit replacement part shown against a pool background.
AXV417WHP pool cleaner pod swing kit components including white plastic pods, swing arms, and small mounting hardware.
AXV417WHP pool cleaner pod swing kit, front and rear bezels, and pod shoes replacement set.
AXV417WHP pool cleaner pod swing kit components with dimensions for Hayward Navigator and Pool Vac models.
White ABS plastic left and right wing kit for AXV417WHP pool cleaner pod swing assembly.
AXV417WHP pool cleaner pod swing kit including white replacement pod shoes and flaps for improved surface grip.
Replacement pod for AXV417WHP pool cleaner swing kit shown in close-up detail.
White AXV417WHP pool cleaner pod swing kit replacement part shown against a pool background.
Lifetime Warranty

[Lifetime Warranty] AXV417WHP Pool Cleaner Pod Swing Kit, AXV604WHP Front and Rear Bezels and AXV414P Pod Shoes Replacement

Save 13%
0.00
$39.24
$45.13
$39.24
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

Pool Cleaner Rebuild Kit for Suction Sweepers

Key Features

  • Complete rebuild kit to restore cleaner movement and efficiency.
  • Durable construction meets or exceeds original equipment specifications.
  • Improves cleaner traction on pool surfaces for comprehensive coverage.
  • Kit includes one left pod, one right pod, and four pod shoes.

Replaces / Cross-Reference Part Numbers

  • Pod Swing Kit: AXV417WHP
  • Front and Rear Bezels: AXV604WHP
  • Pod Shoes: AXV414P, AXV014P, HWN115

Compatibility & Fitment

  • Fits Hayward automatic pool cleaner models including Navigator, Pool Vac, Pool Vac Ultra, and AquaBug.
  • Designed for use in concrete and gunite in-ground swimming pools.

When to Replace

  • Cleaner becomes stuck or moves in repetitive patterns.
  • Visible wear, cracks, or damage to existing pods or shoes.
  • Reduced suction power and poor debris collection.
  • Cleaner fails to climb pool walls or navigate inclines effectively.

Installation Tips

  • Ensure the pool pump is turned off before servicing the cleaner.
  • Remove the cleaner from the pool and place it on a stable surface.
  • Press the new shoes firmly onto the bottom of each pod before attaching the pods to the cleaner's A-frame.
  • Confirm that left and right pods are installed on the correct sides for proper operation.
Product image
Product image
Product image
EASY INSTALLATION

EASY INSTALLATION

This kit is designed for easy installation, allowing pool owners to quickly replace worn or damaged parts without the need for professional help
HIGH-GRADE MATERIALS

HIGH-GRADE MATERIALS

The use of high-quality and durable materials not only extends the life of your pool cleaner but also enhances its cleaning performance. The robust construction withstands the rigors of regular use, maintaining the cleaner's efficiency.
THE KEY TO YOUR POOL'S LONGEVITY

THE KEY TO YOUR POOL'S LONGEVITY

BlueStars pool replacement parts offer strict quality control to give you the best experience, backed by our enduring commitment to excellence!

FAQ

The AXV417WHP pod swing kit is commonly listed for Hayward automatic pool cleaner models in the Navigator and Pool Vac Ultra families. Some listings also reference Pool Vac Plus and certain Arneson-labeled variants. Because pool cleaner revisions can vary, the safest match is to confirm your cleaner's parts diagram or existing part number before ordering.
This kit is identified by part number AXV417WHP. Related parts that are often replaced during the same service include AXV414P pod shoes, AXV604WHP front and rear bezels, and AXV434WHP flap, but those are separate components unless specifically included in the kit you are purchasing.
A bad pod swing assembly can cause the cleaner to steer poorly, move unevenly, hang up more often, or lose its normal crawling pattern. You may also notice excessive play in the pod area, inconsistent directional changes, or reduced cleaning coverage even when suction is otherwise normal.
Installation is usually a moderate maintenance job on this style of suction-side pool cleaner. In many cases, basic hand tools are enough, such as a screwdriver and small pliers, depending on how far you disassemble the cleaner body. If you are already familiar with Hayward Navigator or Pool Vac style cleaners, the job may take about 15 to 30 minutes. First-time repairs can take longer if you also inspect shoes, bezels, or internal linkage.
Before installing the new AXV417WHP kit, inspect the pod shoes, bezels, flap, turbine movement, hose condition, and overall suction performance. Worn pod shoes or damaged bezels can make the cleaner behave badly even after the pod swing is replaced. It is also worth checking for debris in the cleaner body and confirming the pool system is delivering proper suction.
These parts wear from normal pivoting motion, friction against surrounding components, and constant exposure to chlorinated water, debris, and sunlight during service. Performance problems can show up sooner if the cleaner runs with worn pod shoes, gets jammed by grit or small pebbles, or operates with poor water flow that causes irregular movement.
