[Lifetime Warranty] 12001656 Oven Temperature Sensor - Compatible with Whirlpool Kenmore Ovens - Replaces AP4009009 74004943 PS1570174 12001554 12001656VP 7430P003-60 WB21X5301 - Pack of 2
Save 13%
0.00
Regular price
$28.24
Regular price
$32.48
Sale price
$28.24
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

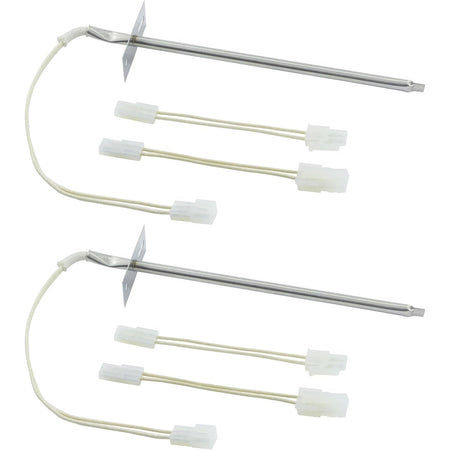

12001656 Oven Temperature Sensor - Pack of 2
Key Features
- Precision RTD (Resistance Temperature Detector) probe designed to monitor internal oven cavity temperatures.
- High-accuracy thermal response to ensure consistent baking, roasting, and broiling performance.
- Stainless steel probe housing provides resistance to corrosion and high-heat oxidation.

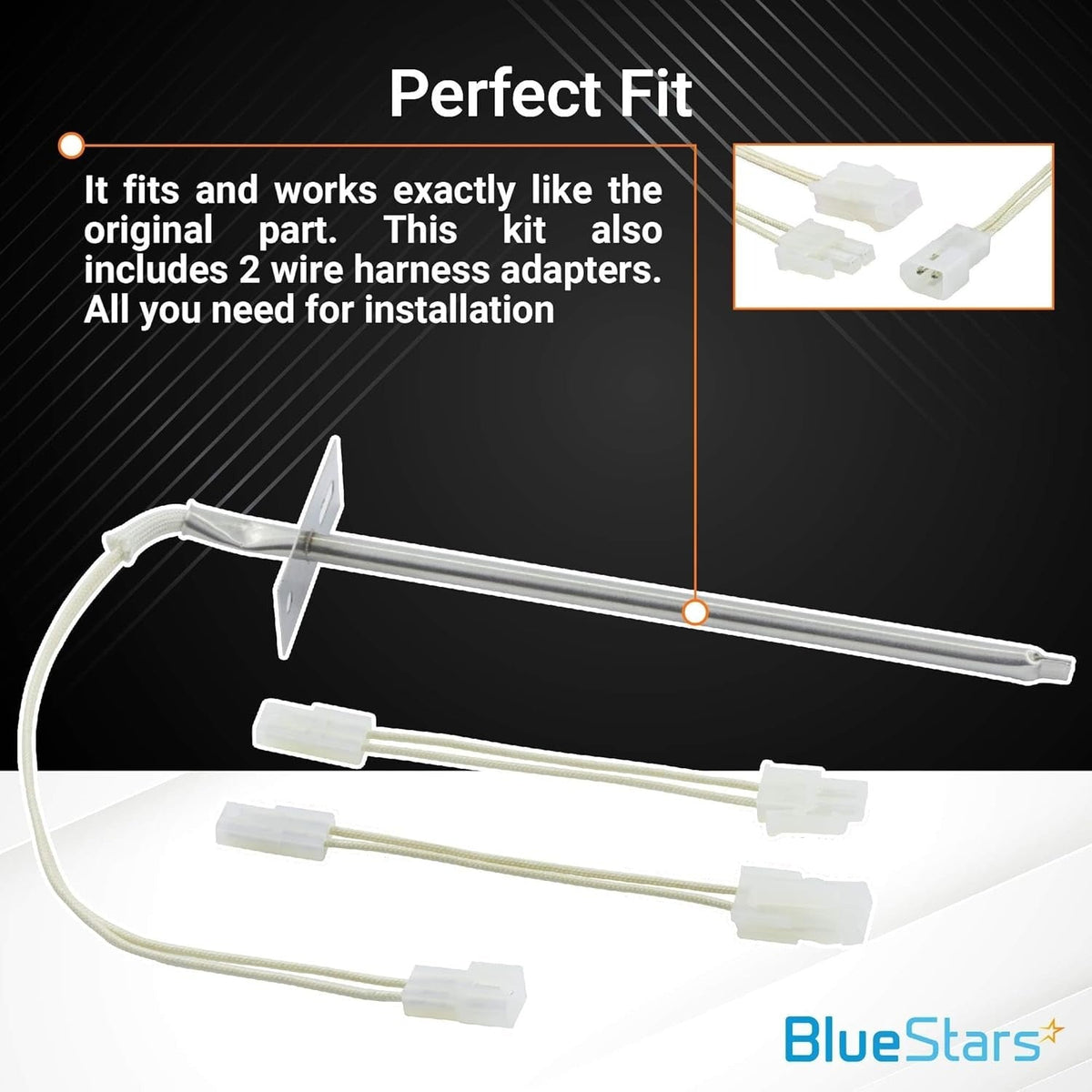

- Includes two styles of plug-and-play wiring harnesses to ensure compatibility with varying manufacturer connector types.
- Designed to maintain a standard resistance of approximately 1080 ohms at room temperature (75°F).
Replaces / Cross-Reference Part Numbers
- AP4009009
- PS1570174
- 74004943
- 12001554
- 12001357
- 74003390
- 7430P003-60
- 12001656VP
- AH1570174
- W10127323

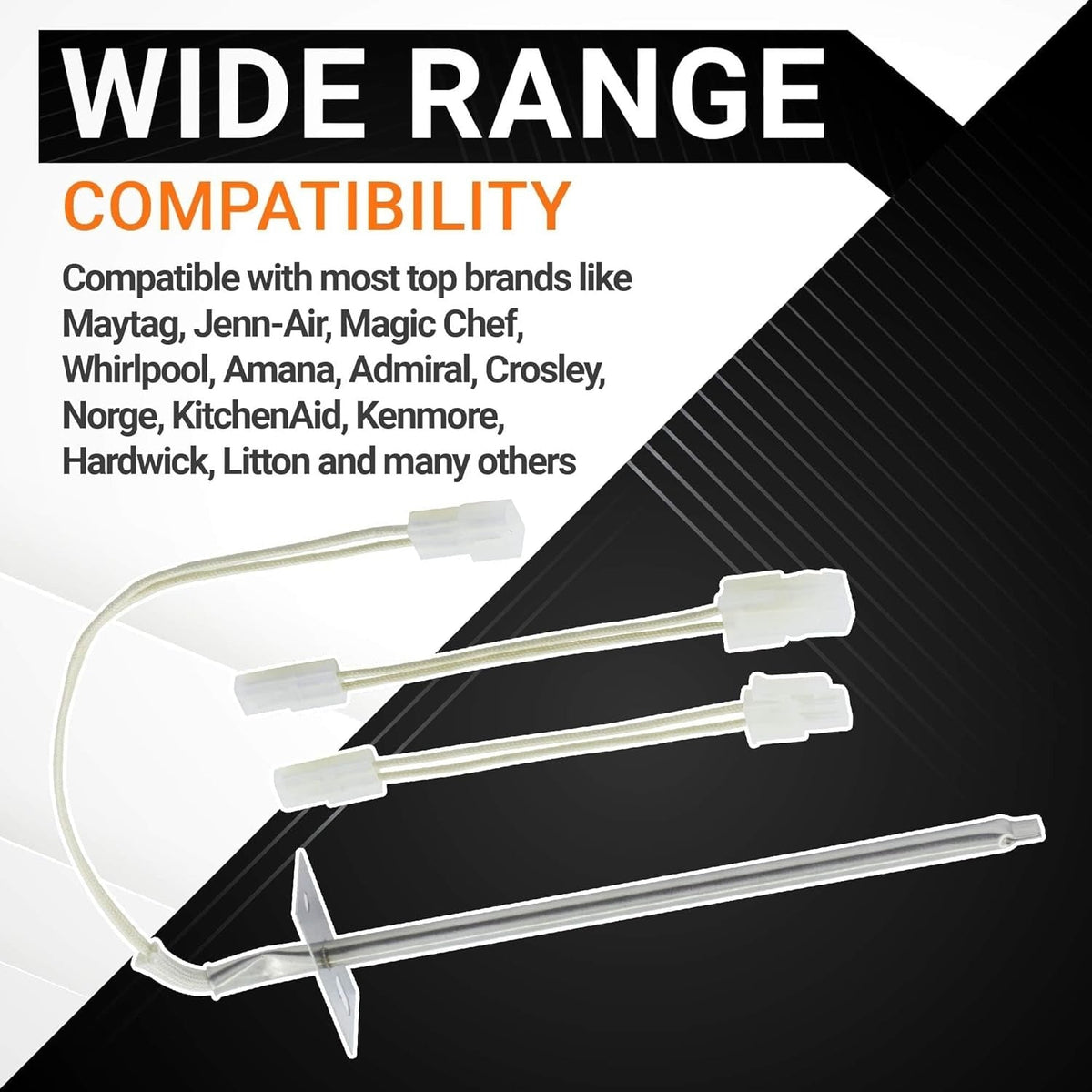

Compatibility & Fitment
- Whirlpool: WFE, WFG, and RBS series ranges and wall ovens.
- Kenmore / Sears: Models starting with 664, 665, 911, and 564 prefixes.
- Maytag: MER, MGR, and MEW series.
- Jenn-Air, Amana, Admiral, Magic Chef, and Roper: Various electric and gas oven models.
When to Replace
- Inaccurate Temperatures: Oven runs significantly hotter or cooler than the digital display indicates.
- Error Codes: Control panel displays "F3" or "F4" fault codes (common for sensor circuit issues).
- Uneven Cooking: Food is consistently undercooked or burnt despite following standard recipes.
- Sensor Failure: The probe shows "Open" or "Short" circuit results when tested with an ohmmeter.
- Physical Damage: The metal probe is bent, cracked, or showing signs of severe pitting.
Installation Tips
- Disconnect the appliance from the electrical power supply before attempting any service.
- Access the sensor from inside the oven cavity by removing the two mounting screws located at the rear of the oven wall.
- Gently pull the sensor forward until the wiring plastic disconnect is visible; take care not to let the wires slip back through the hole into the insulation.
- If the provided connector does not match, use the included ceramic wire nuts to splice the new sensor onto the existing oven wire harness.
- Ensure the probe does not touch the interior oven walls or the heating elements, as this will result in false temperature readings.
-
FIXING SYMPTOMS
Oven temperature unpredictable or uncontrollable | No heat or Too hot | Not correspond to the LED readout temp | Error code displayed C-20 -

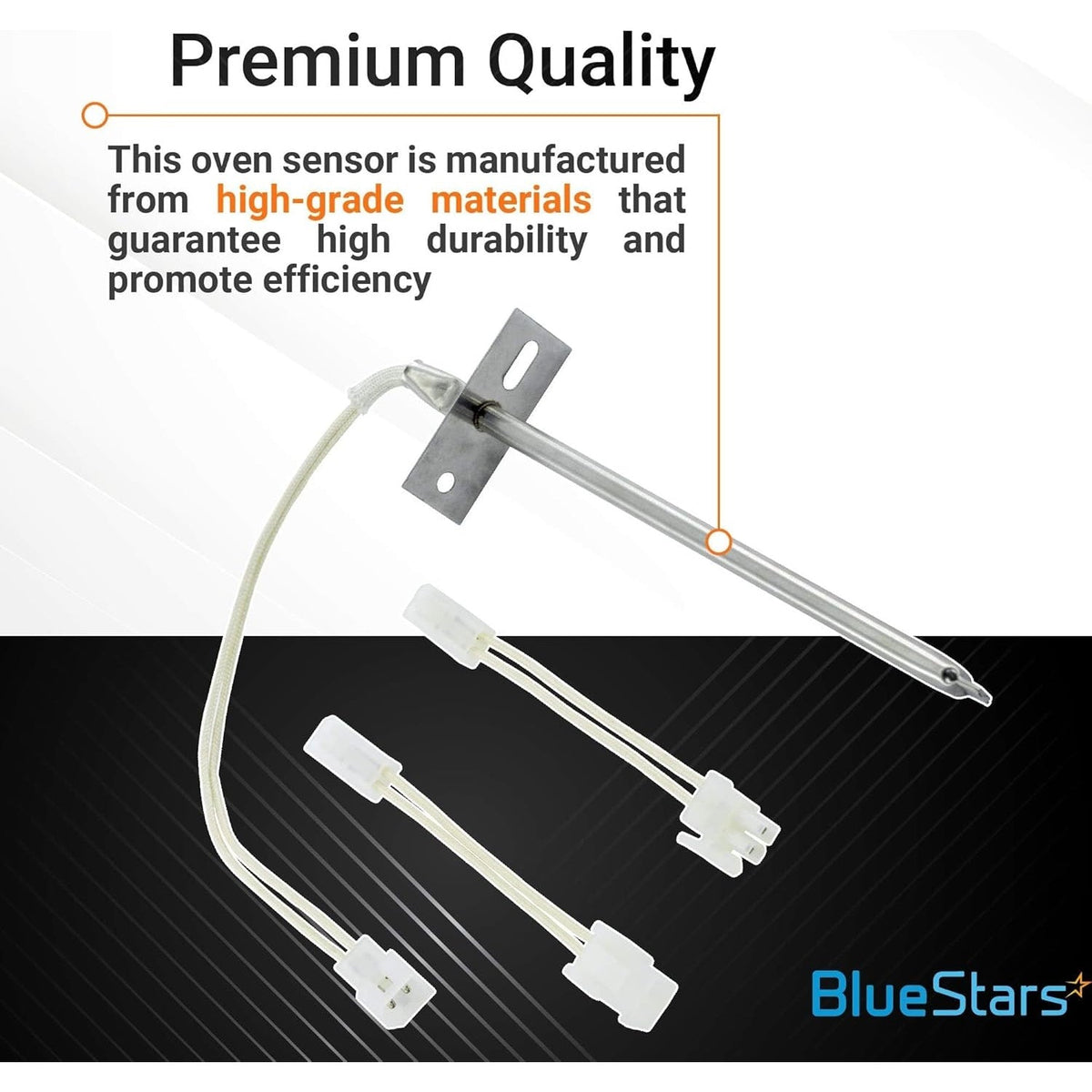

PREMIUM QUALITY
BlueStars 12001656 Temperature Sensor is made of high-grade materials ensuring long-lasting operation. -
SAVING SOLUTION
Great feeling when your oven is repaired and works efficiently - BlueStars brings DIY solutions to help you deal with any trouble. -
SIMPLE INSTALLATION
You will need these tools in advance: 1 x small flat-blade screwdriver; 2 x Phillips screwdriver; 1 x locking pliers; 1 x needle nose pliers.
IDEAL DESIGN
Well-designed with 304 stainless steel and sturdy braided fiber wire material to withstand extreme heat
PRECISE TEMP CONTROL
The sensitive thermistor sensor chip will allow for precise temperature control, allowing you to set and maintain the desired temperature.
ENJOY YOUR LIFE WITH OUR PART INSIDE!
BlueStars - #1 source of high-quality replacement parts
| Brand | Model Number |
|---|---|
| Replaces | 04000052, 04100258, 12001357, 12001554, 12001656VP, 12500029, 1364, 7-4657, 704657, 71003083, 74003390, 74004471, 74004943, 74005193, 7430P003-60, 7430P005-60, 7430P008-60, 7430P008-60K, 7430P010-60, 7430P042-60, 8189679, 879368, AH1570174, AP4009009, EA1570174, PS1570174, W10127323, Y04000052, Y04100258, Y704657 |
| Admiral | A3875XRA, A3875XRW, A3878XRA, A3878XRB, A3878XRW, A3888VRA, A3888VRV, A3888XRA, A3888XRB, A3888XRW, A5892XRS, A5898VRV, A5898XRB, A59F-5TXW-R, A59F-5TXWM-R, A59FN-5TVW-R, A59FN-5TVWM-R, A59G-5TXW-R, A59GN-5TVW-R, A6892XRS, A6898VRV, A6898XRB, A9875VRV, A9875XRB, A9895VRV, A9895XRB, CFEA500ACE, CHEA700BCB, CHEA700BCE |
| Amana | ACB6260AB, ACB6260AS, ACB6260AW, AER4311AAW, AER5511AAB, AER5511AAQ, AER5511AAW, AER5511ACB, AER5511ACW, AER5511BAB, AER5511BAQ, AER5511BAW, AER5515QAQ, AER5515QAW, AER5515QCW, AER5515RCW, AER5710BAH, AER5712AAQ, AER5712AAS, AER5712AAW, AER5712AAZ, AER5712ACW, AER5712ACZ, AER5712BAB, AER5712BAW, AER5712BAZ, AER5715QAQ, AER5715QAW, AER5715QCB, AER5715QCS, AER5715QCW, AER5715RCB, AER5715RCS, AER5715RCW, AER5722BAQ, AER5722BAS, AER5722BAW, AER5722CAS, AER5725QAF, AER5725QAN, AER5725QAQ, AER5725QAW, AER5735QAB, AER5735QAF, AER5735QAN, AER5735QAQ, AER5735QAS, AER5735QAW, AER5815RCB, AER5815RCS, AER5815RCW, AER5845QAB, AER5845QAN, AER5845QAS, AER5845RAB, AER5845RAW, AES1350BAW, AES3540BAW, AES3760BAB, AES3760BAQ, AES3760BAS, AES3760BAW, AES3760BCB, AES3760BCS, AES3760BCS16, AES3760BCW, AES5730BAB, AES5730BAF, AES5730BAN, AES5730BAS |
| Amana | AEW3530DDB, AEW3530DDS, AEW3530DDW, AEW3630DDB, AEW3630DDS, AEW3630DDW, AEW4630DDB, AEW4630DDQ, AEW4630DDS, AEW4630DDW, DCF4115AC, DCF4115AW, DCF4205BK, DCF4205BT, DCF4215AW |
| Crosley | CC35111BCV, CC38700ACV, CC3872XRA, CC3872XRW, CC3872XVA, CC3872XVW, CC3878VVV, CC3878VYV, CE35110BCV, CE35400AAQ, CE35400AAV, CE35400ACV, CE38300AAV, CE38300BAB, CE38300BAQ, CE38300BAT, CE38300BAV, CE38300BAW, CE38300BCV, CE38600AAB, CE38600AAQ, CE38600ACV, CE38700AAD, CE38700AAQ, CE38700AAV, CE38700BAQ, CE38700BAT, CE38700BAW, CE38700BCV, CE3875XRA, CE3875XRW, CE3878VVA, CE3878VVD, CE3878VVV, CE3878VVW, CE38800AAQ, CE38800AAS, CE38800AAV, CE38800ACS, CE38800ACV, CE38800BAS, CE6898VVA, CE6898VVV, CEA4D59TDV, CEA4D59TSV, CEW4D59TDV, CEW4D59TSV |
| Hardwick | EPF9-71KA669A, EPF9-71KW669A, EPG9-77(*)589GF, EPG9-77A589GF, EPG9-77W589GF, H3875XRA, H3875XRW, H3878XRA, H3878XRW, H3878XVA, H3878XVB, H3878XVW |
| Ikea | ISE630VS11, ISE630WS00, ISE630WS01, YISE630VS11, YISE630VS12, YISE630WS00, YISE630WS01 |
| Jenn-Air | D156W, FCE10500A, FCE10500B, FCE10500W, FCE10500WC, FCE10501WC, FCE10510A, FCE10510B, FCE10510W, FCE10610A, FCE10610B, FCE10610W, FCE10610WC, FCE2010B, FCE2010W, FCE2011B, FCE2011W, FCE2012B, FCE2012W, FCE30500A, FCE30500B, FCE30500W, JDR8880RDB, JDR8880RDB10, JDR8880RDS, JDR8880RDS1, JDR8880RDS10, JDR8880RDW, JDR8880RDW1, JDR8880RDW10, JDR8895AAW, JDR8895ACB, JDR8895ACW, JDR8895BAB13, JDR8895BAS13, JDR8895BAW13, JDR8895BCB13, JDR8895BCS13, JDR8895BCW13 |
| Jenn-Air | JDS8850AAB, JDS8850AAQ, JDS8850AAW, JDS8850AAS, JDS8850ACS, JDS8850ACW, JDS8850CDB01, JDS8850CDR00, JDS8850CDW00, JDS8850CDW01, JDS8850CDS00, JDS8850CDS01, JDS8850CDS02, JDS9861AAP, JDS9865BDP, JDS9865BDP22, JDS9865BDP23, JEB8860ADB, JEB8860ADS, JEB8860ADW |
| Jenn-Air | JER8500AAA, JER8500AAW, JER8530AAQ, JER8530AAW, JER8550AAA, JER8550AAB, JER8550AAW, JER8550ACB, JER8550ACW, JER8650AAA, JER8650AAB, JER8650AAW, JER8750AAA, JER8750AAB, JER8750AAQ, JER8750AAW, JER8750ACB, JER8750ACW, JER8750BAB, JER8750BAQ, JER8750BAW, JER8785QAB, JER8785QAF, JER8785QAN, JER8785QAS, JER8785RAB, JER8785RAF, JER8785RAS, JER8849BCQ, JER8849BCW, JER8854BCS, JER8855AAS, JER8855BAS, JER8850AAA, JER8850AAB, JER8850AAQ, JER8850AAW, JER8850ACB, JER8850ACW, JER8850BAB, JER8850BAQ, JER8850BAW |
| Jenn-Air | JER8885QAB, JER8885QAF, JER8885QAS, JER8885QCB, JER8885QCS, JER8885RAB, JER8885RAF, JER8885RAS, JER8885RCB, JER8885RCB1, JER8885RCS, JER8885RCS1, JER8885RCW, JER8885RCW1, JER8895BAS10, JER8895BAS11, JER8895BAS12 |
| Jenn-Air | JES8750AAB, JES8750AAW, JES8750BAB, JES8750BAB16, JES8750BAF, JES8750BAF16, JES8750BAS, JES8750BAS17, JES8750CAB00, JES8750CAS00, JES8750CAS01, JES8850AAQ, JES8850ACS, JES8850ACW, JES8850BAB, JES8850BAB19, JES8850BAF, JES8850BAF19, JES8850BAQ, JES8850BCB, JES8850BCB20, JES8850BCW, JES8850CAB00, JES8850CAB01, JES8850CAF00, JES8850CAF01, JES8850CAS00, JES8850CAS01, JES8850CAS02, JES8860CAB00, JES8860CAS00, JES8860CAW00, JES8860CCB00, JES8860CCS00, JES8860CCS01, JES8860CCS02, JES8860CCW00 |
| Jenn-Air | JES9750AAS, JES9750CAB00, JES9750CAS00, JES9750CAS02, JES9750CAW00, JES9800BAB, JES9860AAW, JES9860ACB, JES9860ACS, JES9860BCB, JES9860BCS, JES9860BCW, JES9860CCB00, JES9860CCS00, JES9860CCS01, JES9860CCS02, JES9860CCW00, JES9900BAB, JES9900BAS, JES9900BCB, JES9900BCB20, JES9900BCW, JES9900BCW20, JES9900CCB00, JES9900CCB01, JES9900CCS00, JES9900CCS01, JES9900CCS02, JES9900CCW00, JES9900CCW01, JESS8860CCS01 |
| Jenn-Air | JEW8527AAB, JEW8527AAW, JEW8530AAB, JEW8530AAW, JEW8530ACB, JEW8530ACW, JEW8627AAB, JEW8627AAW, JEW8630AAB, JEW8630AAW, JEW9527AAB, JEW9527AAS, JEW9527AAW, JEW9530AAB, JEW9530AAS, JEW9530AAW, JEW9530ACB, JEW9530ACW, JEW9627AAB, JEW9627AAS, JEW9627AAW, JEW9630AAB, JEW9630AAS, JEW9630AAW, JEW9630ACB, JEW9630ACW |
| Jenn-Air | JJW8127AAB, JJW8127AAW, JJW8130AAB, JJW8130AAW, JJW8130DDB, JJW8130DDS, JJW8130DDW, JJW8227AAB, JJW8227AAW, JJW8230AAB, JJW8230AAW, JJW8230DDB, JJW8230DDS, JJW8230DDW, JJW8330DDB, JJW8330DDB13, JJW8330DDS, JJW8330DDS13, JJW8330DDW, JJW8330DDW13, JJW8430DDB, JJW8430DDB13, JJW8430DDS, JJW8430DDS13, JJW8430DDW, JJW8430DDW13, JJW8527AAB, JJW8527AAW, JJW8527BAB, JJW8527BAW, JJW8527CAB, JJW8527CAS, JJW8527CAW, JJW8627AAB, JJW8627BAB, JJW8627BAW, JJW8627CAB, JJW8627CAS, JJW8627CAW, JJW8630AAB, JJW8630BAB, JJW8630BAW, JJW8630CAB, JJW8630CAS, JJW8630CAW |
| Jenn-Air | JJW9130DDB, JJW9130DDS, JJW9130DDW, JJW9230DDB, JJW9230DDS, JJW9230DDW, JJW9327DDB11, JJW9327DDS11, JJW9330DDB13, JJW9330DDW, JJW9330DDW13, JJW9427DDB11, JJW9427DDS11, JJW9430DDB, JJW9430DDB13, JJW9430DDS, JJW9430DDS13, JJW9430DDW, JJW9430DDW13, JJW9527AAB, JJW9527AAQ, JJW9527AAS, JJW9527AAW, JJW9527BAB, JJW9527BAQ, JJW9527BAS, JJW9527CAB, JJW9527CAQ, JJW9527CAS, JJW9527CAW, JJW9530AAB, JJW9530AAQ, JJW9530AAW, JJW9530ACB, JJW9530ACW, JJW9530BAB, JJW9530BAQ, JJW9530BAS, JJW9530BAW, JJW9530BCB, JJW9530BCW, JJW9530CAB, JJW9530CAQ, JJW9530CAS, JJW9530CAW, JJW9530CCB, JJW9530CCS, JJW9530CCW, JJW9630AAB, JJW9630AAQ, JJW9630AAS, JJW9630ACB, JJW9630ACW, JJW9630BAQ, JJW9630BAS, JJW9630CAB, JJW9630CAQ, JJW9630CAS, JJW9630CAW, JJW9630CAS |
| Jenn-Air | JMC1000ADR00, JMC1000ADB00, JMC1000ADW00, JMW9527CAB, JMW9527CAS, JMW9527CAW, JMW9530CAB, JMW9530CAS, JMW9530CAW, SCE30600W, SCE30600WC, SVE47100W, SVE47100WC, SVE47600B, SVE47600BC, SVE47600W, SVE47600WC, SVE87600B, W131B, W131B-C, W156B, W156W, W256, W256B, W256B-C, W256W-C, W27200W, W27200WC, W277W, WM277W, WW2780B, WW30430W |
| Kenmore | 6294576, 62945765690, 62945765790, 62945766790, 62945769790, 62946775690, 62946775790, 62946776790, 62946779790, 62946796, 6294697, 62946975, 62946979, 62960002606, 62960008606, 62960009606 |
| Magic Chef | 38HA-3TXW-ON, 38HK-6TXW, 38HN-36TX-ON, 3867VVV, 3867VVD, 3868XVA, 5898VVV, 6892VRA, 6898XVB, 7858XVA, 7898VAD, 7898VAV, 7898VRA, 7898VRV, 7898VVV, 7898XRA, 7898XRW, 7898XVA, 9825VUV, 9845VUV, 9845VVV, 9845XVB, 9875VRV, 9875VVV, 9875VYV, 9875XRB, 9875XVB, 9875XYB, 9895VRV, 9895XRB, B38HA-3TXW-ON, B38HA-42TXW, B38HA-4TXW, B38HA-5TVW, B38HK-5TXW, B38HN-3TXW-ON, B38HN-42TVW-EV, B38HN-42TXW, B38HN-4TXW, B38HN-5TVW, B59FN-5TVW, C3523WVA, C3523WVV, C3862VYV, C3862XYB, C3868VYV, C3882VRV, C3882XRA, C3882XRW, C3888VRV, C3888VVV, C3888XRA, C3888XRW, C3888XVA, C3888XVW, CER3520AAH, CER3525AAW, CER3765AAC, CEP3540AAA, CEP3540AAQ, CEP3540AAW, CEP3760AAA, CEP3760AAB, CEP3760AAQ, CEP3760AAW, CES1350AAH, CES3540AAC, CES3540AAW, CES3540ACC, CES3540ACW, CES3759BCB, CES3759BCS, CES3759BCW, CES3760AAA, CES3760AAB, CES3760AAQ, CES3760AAW, CEW3330AAB, CEW3330AAW, CEW3330ACB, CEW3330ACW, DF454670, DF454676, DF454677, DF456570, DF456577 |
| Maytag | BCRE805, BCRE905, BCRE955, CHE9000ACB, CHE9000BCB, CHE9000BCE, CHE9800ACB, CHE9800ACE, CHE9800BCB, CHE9800BCE, CHE9800BCM, CHE9830BCB, CHE9830BCE, CRE8600ACL, CRE8600ACW, CRE8600CCL, CRE8600CCM, CRE9400ACL, CRE9400ACW, CRE9400CCM, CWE4200ACB, CWE5200ACB, CWE7000ACB, CWE7000ACE, CWE7800ACB, CWE900, CWE9000BCB, CWE9000BCE, CWE9000BCM, CWE9000BDB, CWE9000CDB, CWE9000DDB, CWE9000DDE, CWE9030BCB, CWE9030BCE, CWE9030BDB, CWE9030BDE, CWE9030DDB, CWE9030DDE, CWE9900, ECWE900 |
| Maytag | G3862XRA, G3862XRW, GA3872XUW, GA3878XUW, MER4351AAB, MER4351AAQ, MER4351AAW, MER4351AGW, MER5511BAW, MER5530AAH, MER5550AAA, MER5550AAL, MER5550AAQ, MER5550AAT, MER5550AAW, MER5550BAB, MER5550BAQ, MER5551BAB, MER5551BAW, MER5552BAB, MER5555QAB, MER5555QAQ, MER5555QAW, MER5555QCB, MER5555QCW, MER5730BAW, MER5750BAW, MER5751AAQ, MER5751BAW, MER5752BAW, MER5754QAQ, MER5754QAW, MER5755QAB, MER5755QAQ, MER5755QAS, MER5755QAW, MER5755QCB, MER5755QCW, MER5765QAB, MER5765QAF, MER5765QAN, MER5765QAQ, MER5765QAW, MER5765RAB, MER5765RAB1, MER5770AAA, MER5770AAB, MER5775QAB, MER5775QAF, MER5775QAN, MER5775QAQ, MER5775QAS, MER5775QAW, MER5775QCB, MER5775QCF, MER5775QCQ, MER5775QCS, MER5775QCW, MER5775RAS, MER5775RAS1, MER5780BAW |
| Maytag | MER5875QAB, MER5875QAF, MER5875QAN, MER5875QAS, MER5875QCB, MER5875QCF, MER5875QCS, MER5875QCW, MER5875RAF, MER5875RAN, MER5880BAS, MERH752CAS, MERH865RAB1, MERH865RAB13, MERH865RAB15, MERL752BAW, MERD750BAF, MER6549BAW, MER6555AAW, MER6600ACL, MER6600ACQ, MER6741BAB, MER6741BAB17, MER6751AAS24, MER6755AAQ, MER6755AAQ25, MER6755ABW25, MER6755ACB, MER6755ACB24, MER6755ACS, MER6755ACS26, MER6755ACW, MER6770AAQ, MER6771AAB, MER6771AAC, MER6771AAQ, MER6775AAN, MER6775AAB, MER6775ACS, MER6775BAS18, MER6775BDS18, MER6870AAB, MER6872BAQ, MER6872BAW, MER6970AAB, MES5770AAB, MES5770AAW, MES5775BAS19, MES5870AAW, MEP5770AAB, MEP5770AAW, MEP5775BAB, MEP5775BAF, MEP5775BAB19, MEP5775BAF19 |
| Maytag | MEW5627BAB, MEW5627BAW, MEW5627DDB, MEW5627DDB16, MEW5627DDB17, MEW5627DDS10, MEW5627DDW, MEW5627DDW16, MEW5627DDW17, MEW5630BAW, MEW5630DDS10, MEW6527DDS18, MEW6530BAW, MEW6630DDS19, MGR6772BDB, PER5750LAQ, PER5750LAS, PER5750LAW, PER5750QAQ, PER5750QAS, PER5750QAW, PER5750QCQ, PER5750QCW, SVD48600P, SVD48600PC |
| Whirlpool | GGE350LWB00, GGE350LWQ00, GGE350LWS00, GY397LXUB0, GY397LXUB02, GY397LXUT0, GY397LXUT02, GY399LXUB0, GY399LXUB02, GY399LXUB03, GY399LXUB04, GY399LXUQ0, GY399LXUQ04, GY399LXUQ05, GY399LXUS0, GY399LXUS03, GY399LXUS04, GY399LXUT0, RB262PXYQ0, RY160LXTB02, RY160LXTS03, WDE150LVT01C |

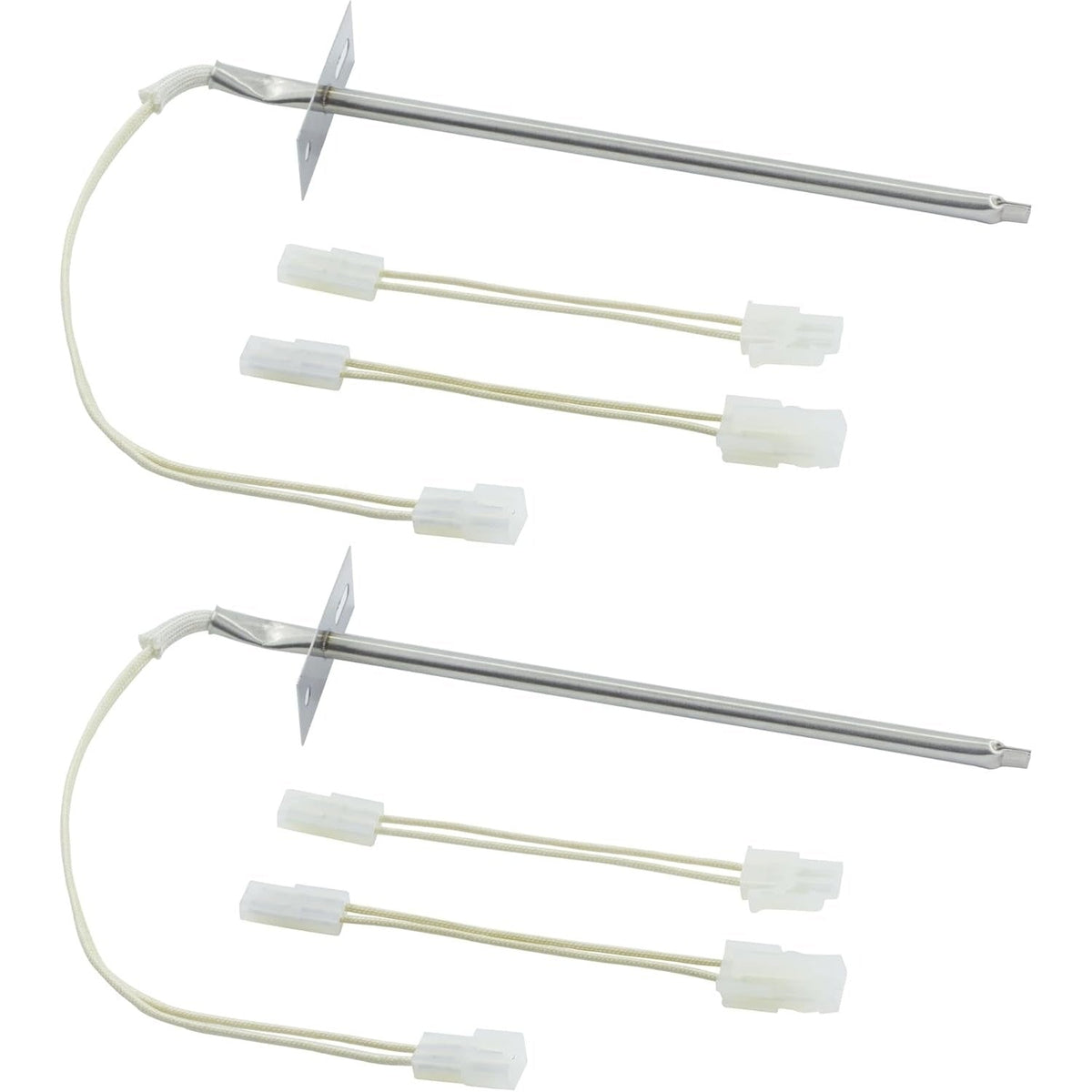

Includes
2× Sensor Probe + 4× Wire Harness Adapters
Probe Length
~7 inches
Resistance at Room Temp
~1090 – 1100 Ohms @ 70°F
Resistance at 350°F
~1654 Ohms
