DC96-00887A Dryer Assembly Bracket Thermostat

DC96-00887A Dryer Assembly Bracket Thermostat

Key Features

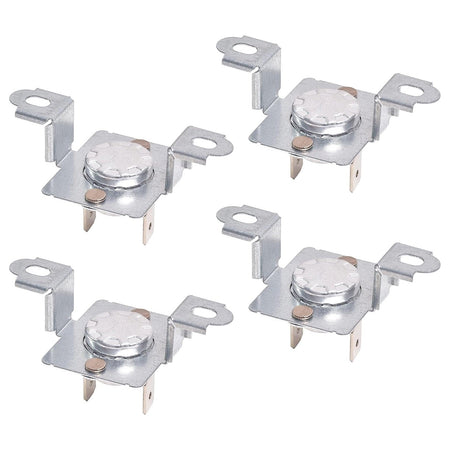

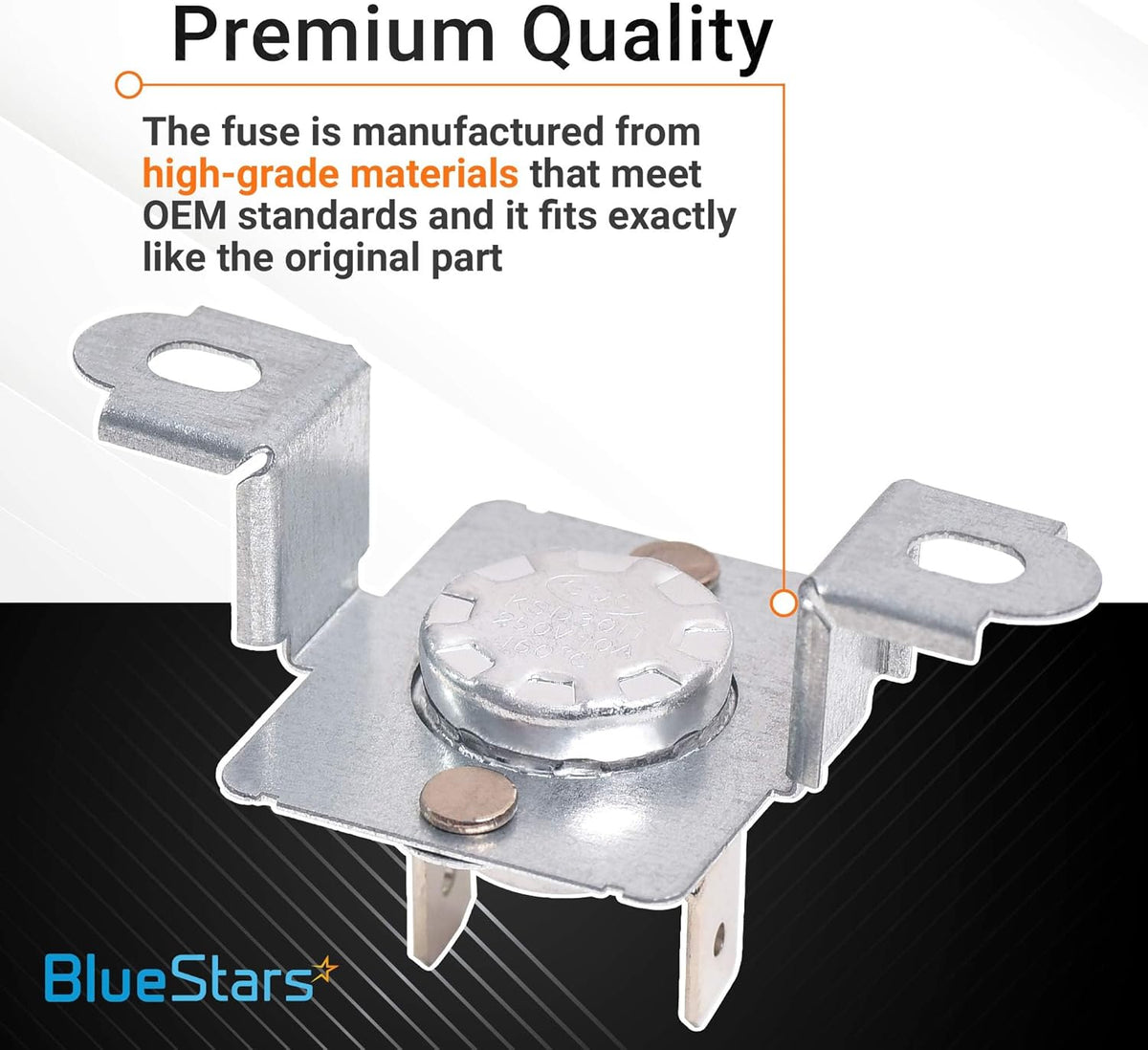

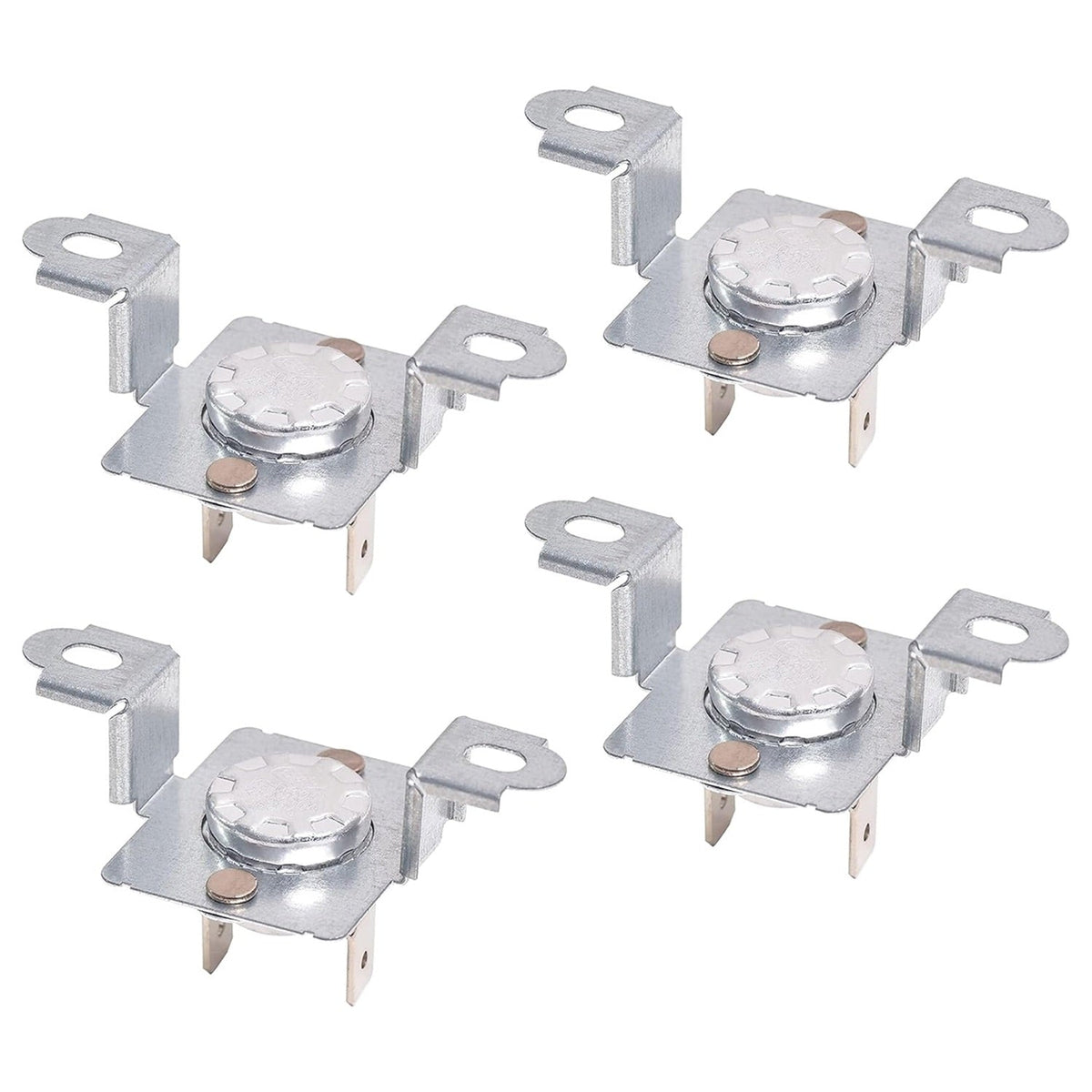

• Includes a high-limit thermostat and thermal cut-off fuse pre-mounted on a bracket.

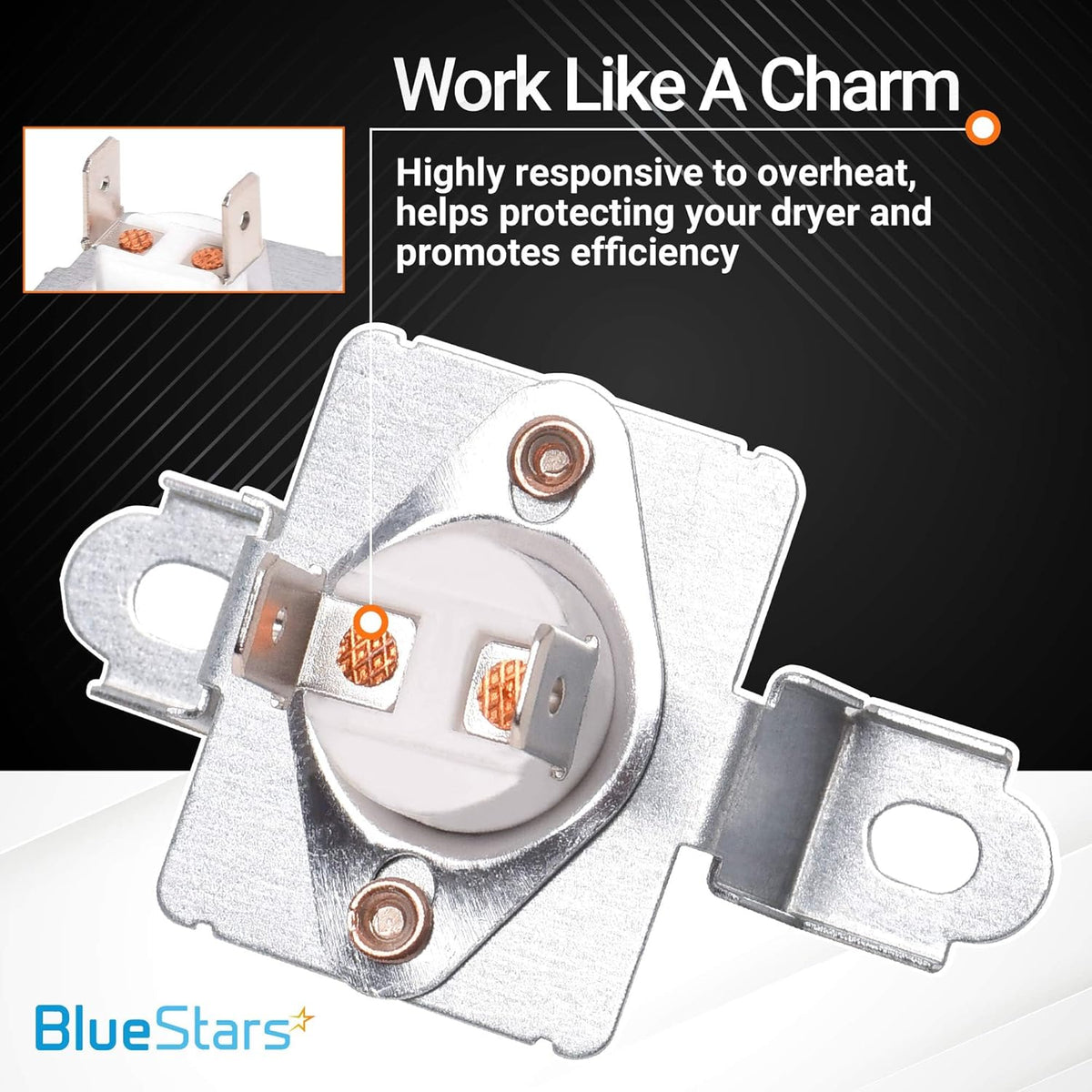

• Monitors and regulates temperature within the dryer to prevent overheating.
• Acts as a safety mechanism by cutting power to the heating element if the dryer exceeds a safe temperature.
• Direct-fit replacement part for specified models.

Replaces / Cross-Reference Part Numbers

• DC96-00887A
• DC96-00887C
• 2074129
• WP35001193
• AP4207819
• AP5966894
• PS4276292
• PS11741829

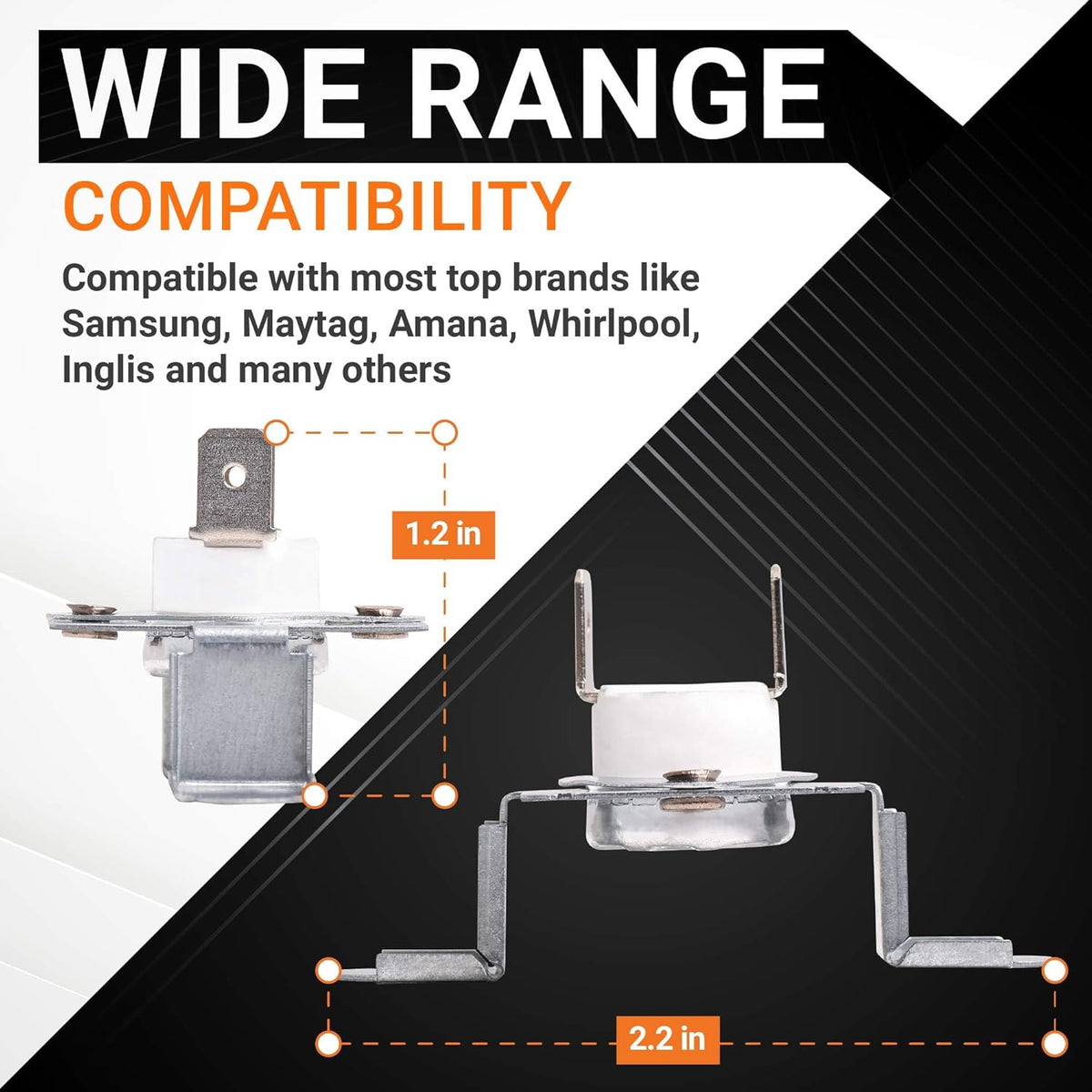

Compatibility & Fitment

• Designed primarily for Samsung brand clothes dryers.
• Compatible with select Kenmore and Whirlpool models.
• Example Samsung models include DVE45T3400V/A3 and DVE55A7700V/A3.
• Verify compatibility with your appliance's model number before ordering.

When to Replace

• Dryer is running but not producing heat.
• Dryer stops heating mid-cycle.
• Dryer will not start.
• The existing fuse fails a continuity test with a multimeter.

Installation Tips

• Disconnect the dryer from its power source and gas supply before beginning installation.
• The assembly is typically located on the heater box or element housing.
• Before installing the new part, inspect and thoroughly clean the dryer's lint screen, trap, and exhaust vent to resolve the root cause of overheating.
• A multimeter can be used to confirm the original fuse is faulty (a reading of infinity or O.L. indicates no continuity).
