3412D024-09 Gas Range Sealed Burner Head & Igniter

3412D024-09 Gas Range Sealed Burner Head & Igniter

Key Features

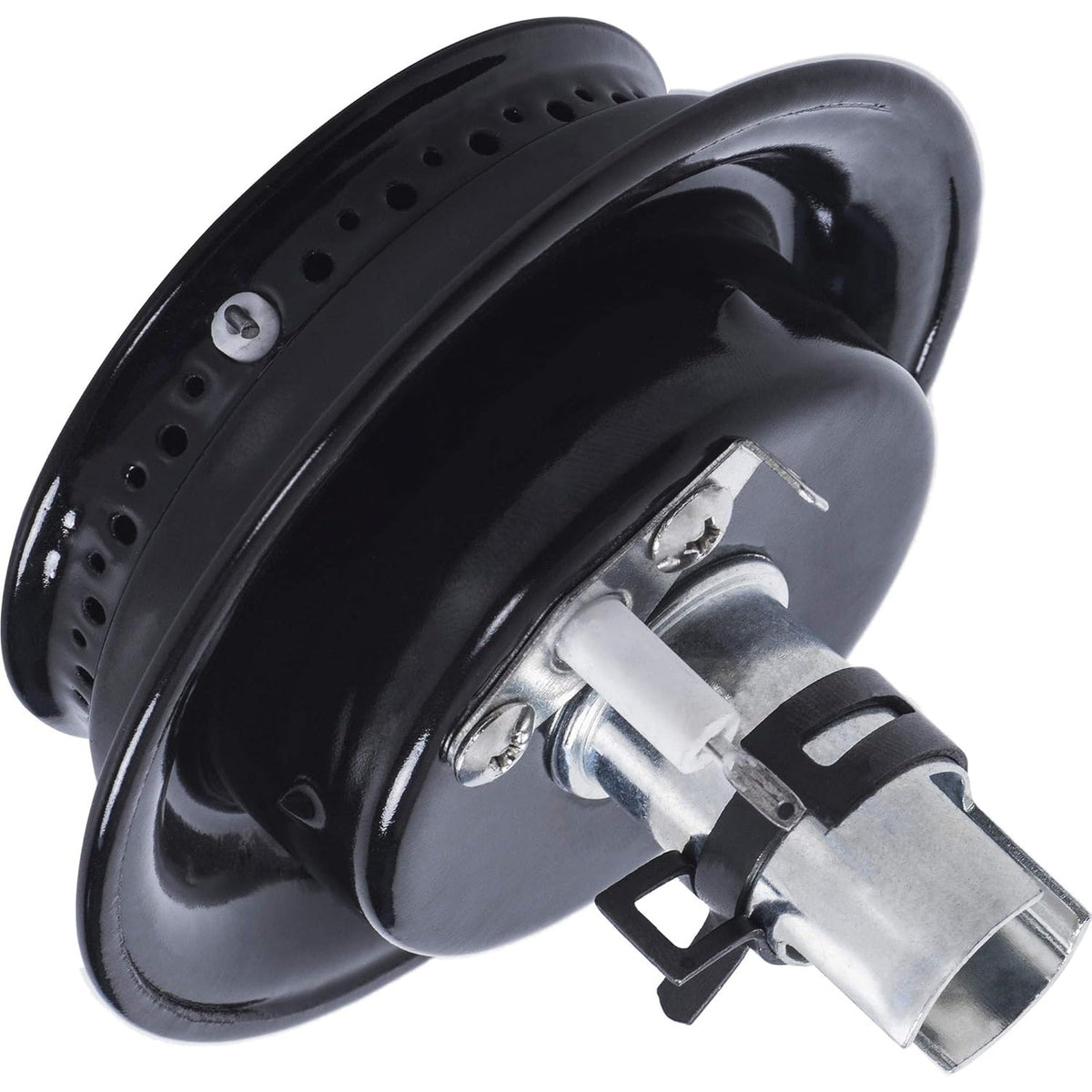

• Includes one sealed burner head and integrated igniter assembly.
• Directs and ignites gas flow for a surface cooktop burner.

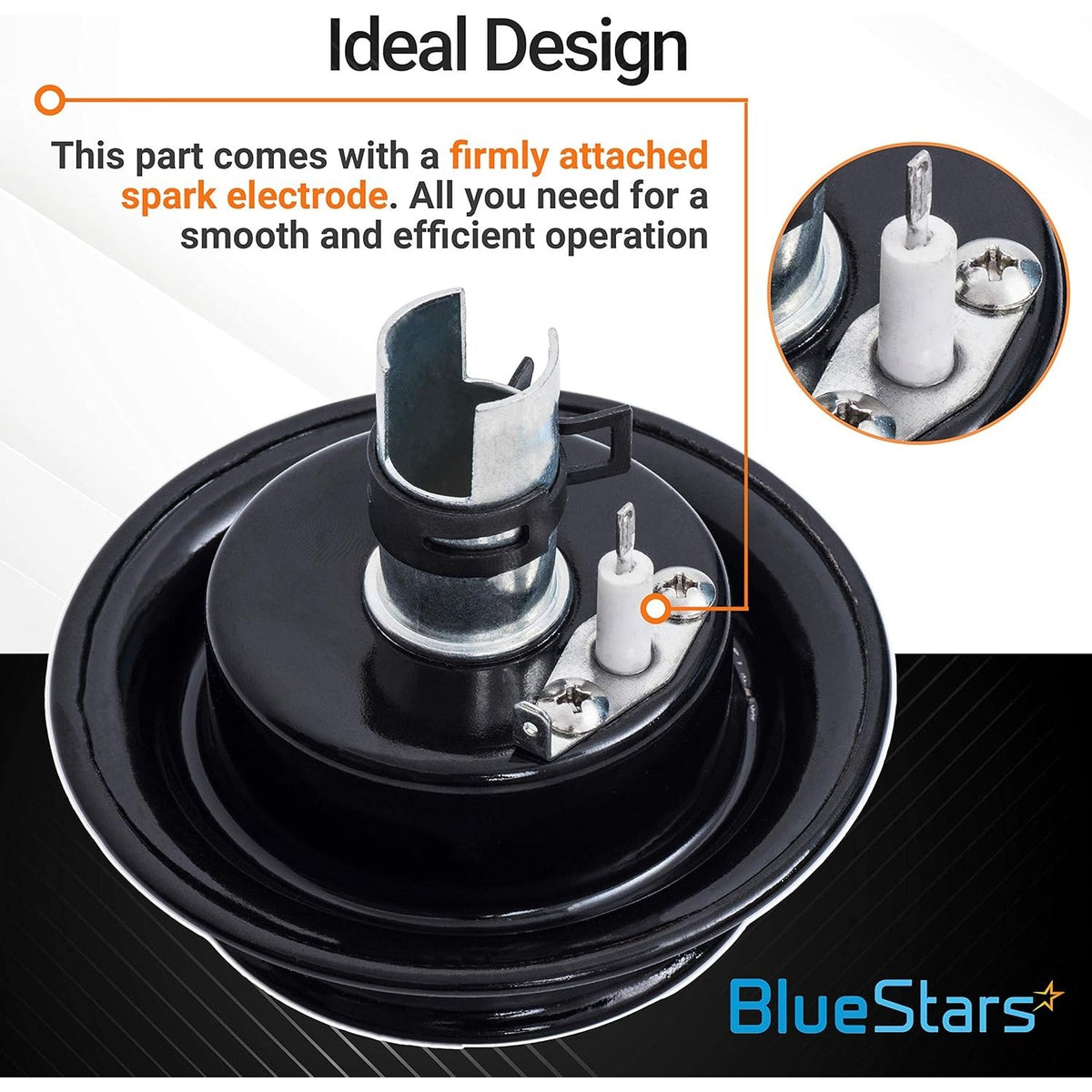

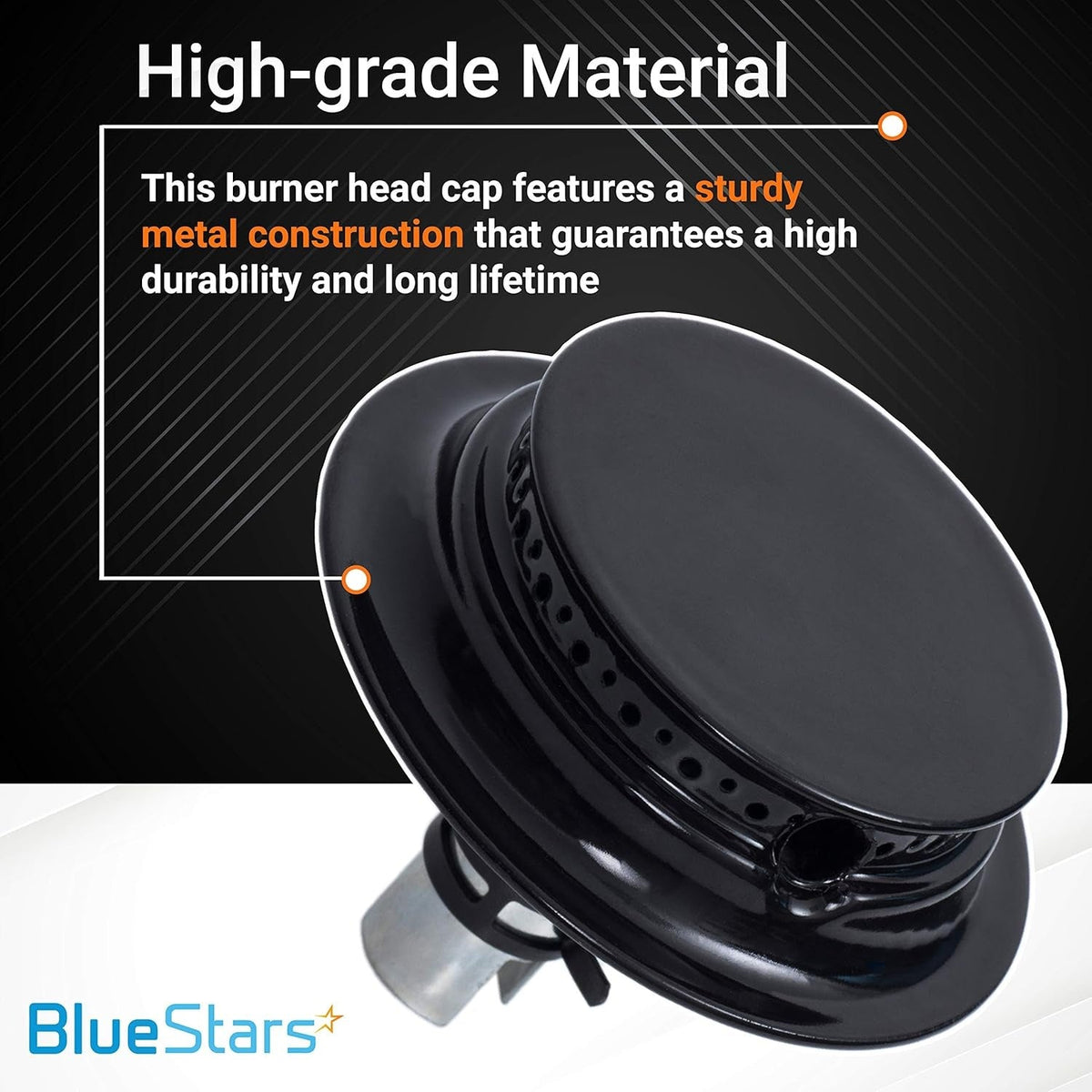

• Durable metal alloy construction with a ceramic igniter base.

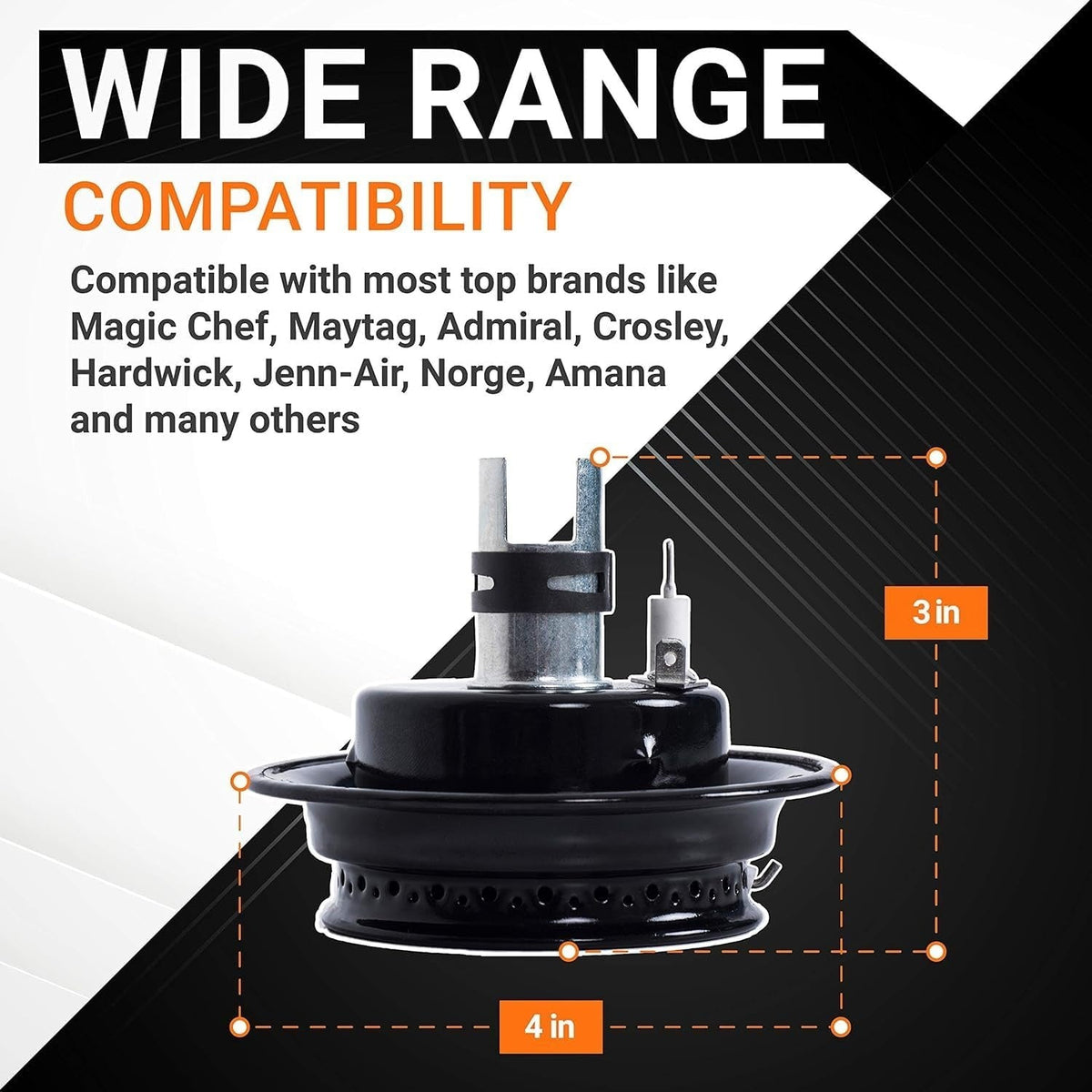

• Approximate Dimensions: 4-inch diameter, 3.25-inch length.

Replaces / Cross-Reference Part Numbers

• 3412D024-09
• WP3412D024-09
• 74003963
• 12500050

Compatibility & Fitment

• Designed for specific gas range models.
• Fits select models from brands including Maytag, Whirlpool, and Magic Chef.
• Confirm compatibility by matching your appliance's model number with the part number.

When to Replace

• Burner fails to light or has intermittent ignition.
• The ceramic portion of the igniter is visibly cracked or broken.
• The burner head is severely corroded, warped, or clogged.
• Flame is uneven, yellow, or lifting off the burner head.

Installation Tips

• Disconnect the range from its power source and shut off the gas supply before service.
• Remove the burner grate and cap to access the old burner head.
• Lift the old assembly straight up to remove it.
• Position the new assembly, ensuring the igniter tab aligns correctly and the part sits flush.
• After reassembly, restore power and gas, then test for proper ignition and check for leaks.
