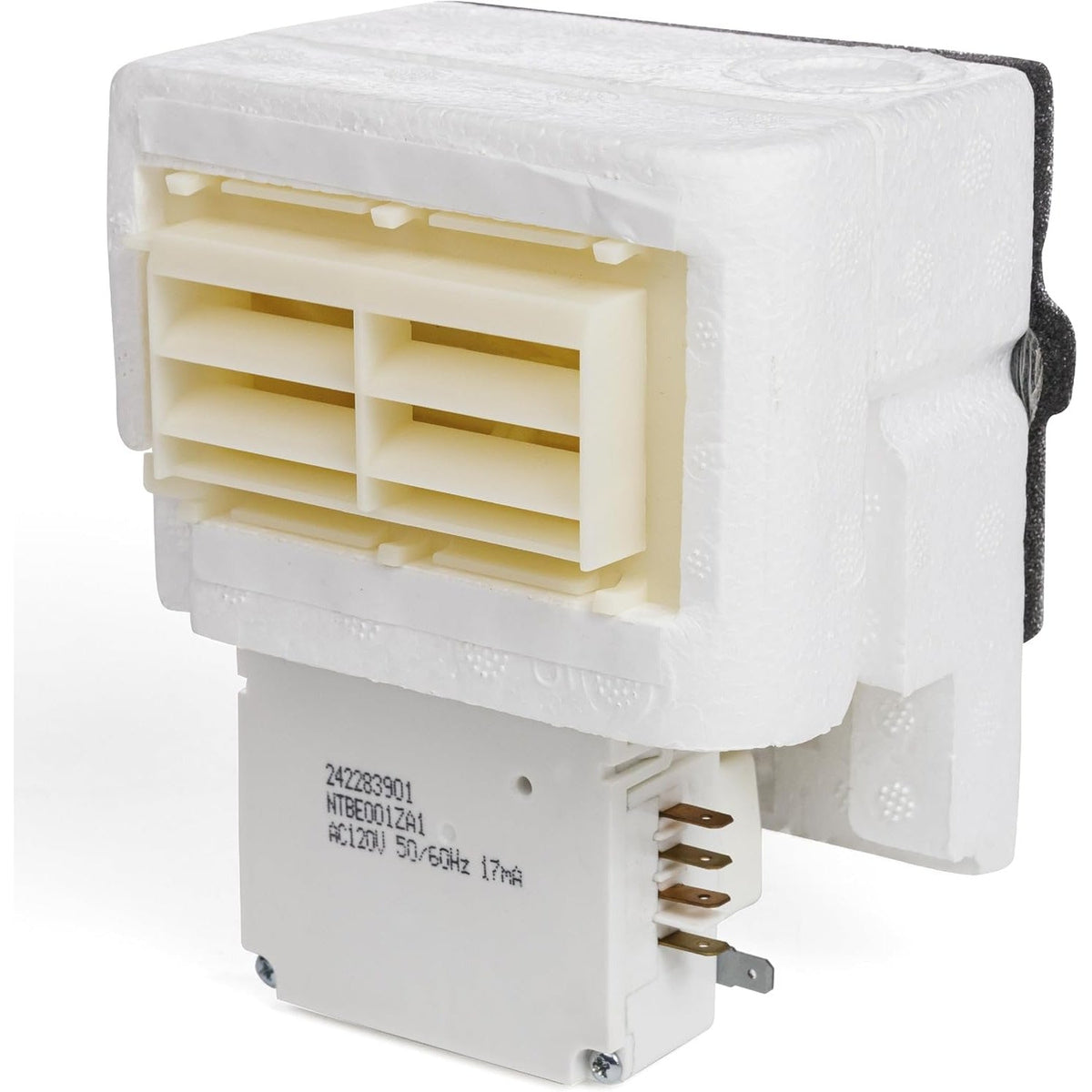

242303001 refrigerator air damper control assembly with white foam housing and electrical terminals.

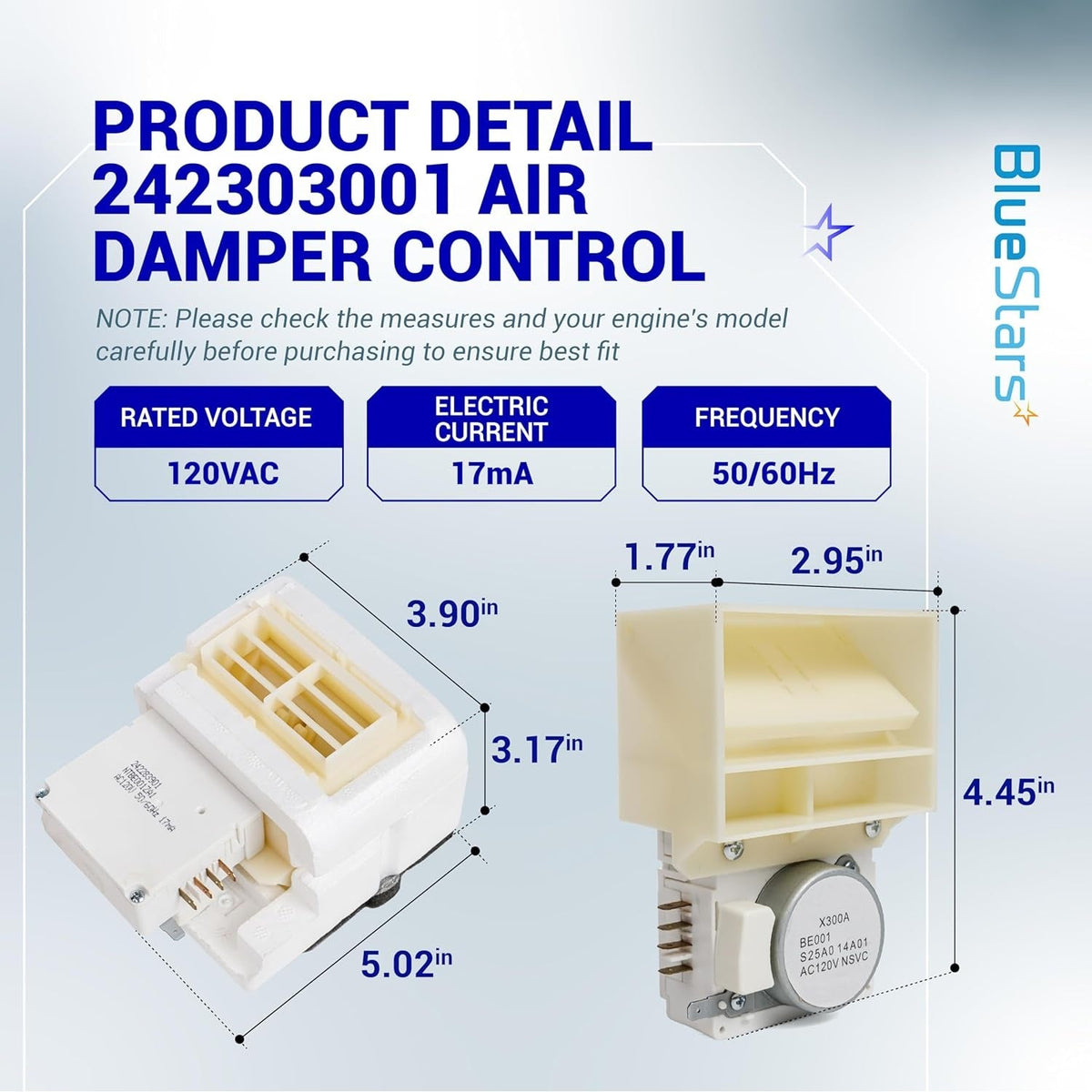

Technical diagram showing dimensions and specifications for the 242303001 refrigerator air damper control assembly.

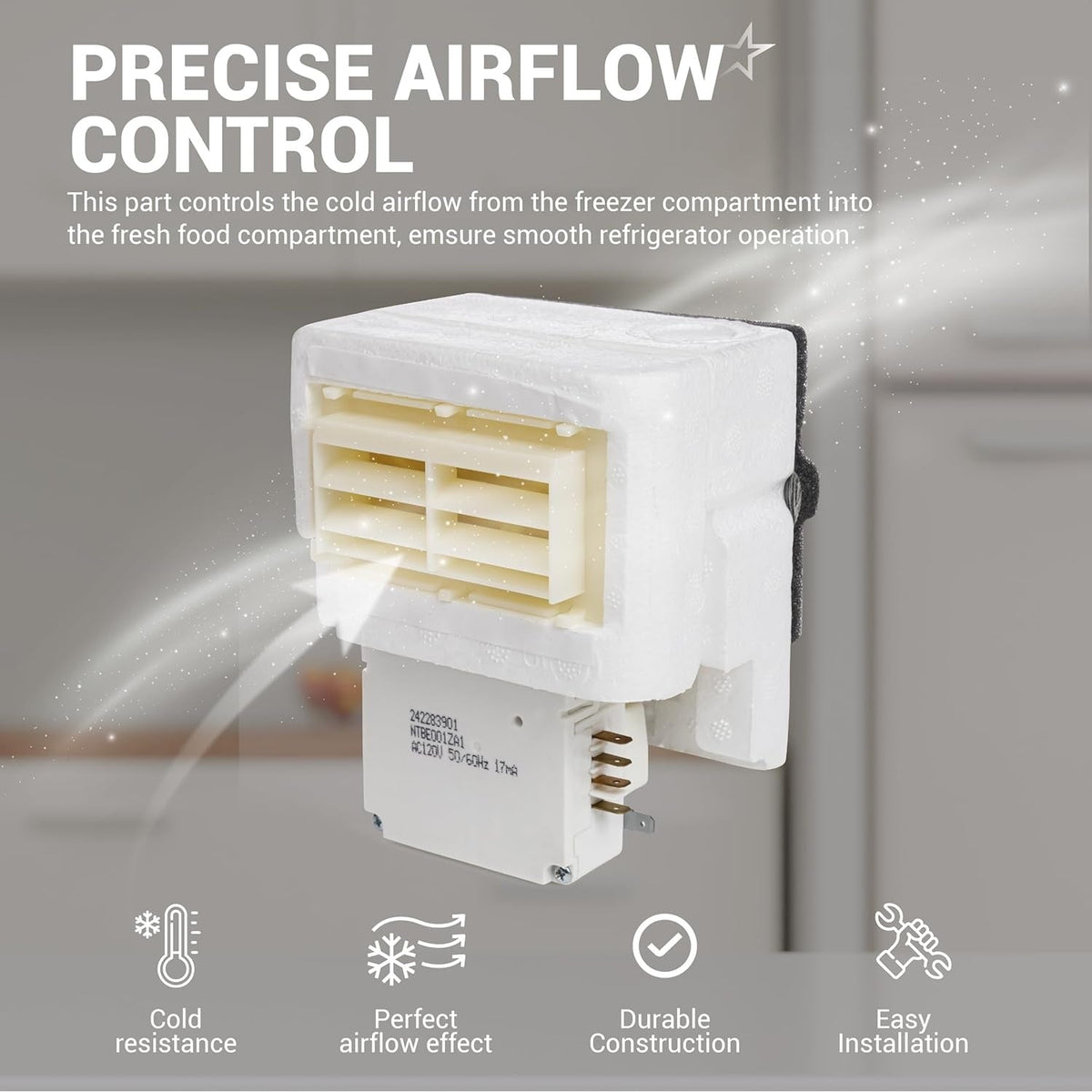

242303001 refrigerator air damper control assembly with airflow illustration and feature icons.

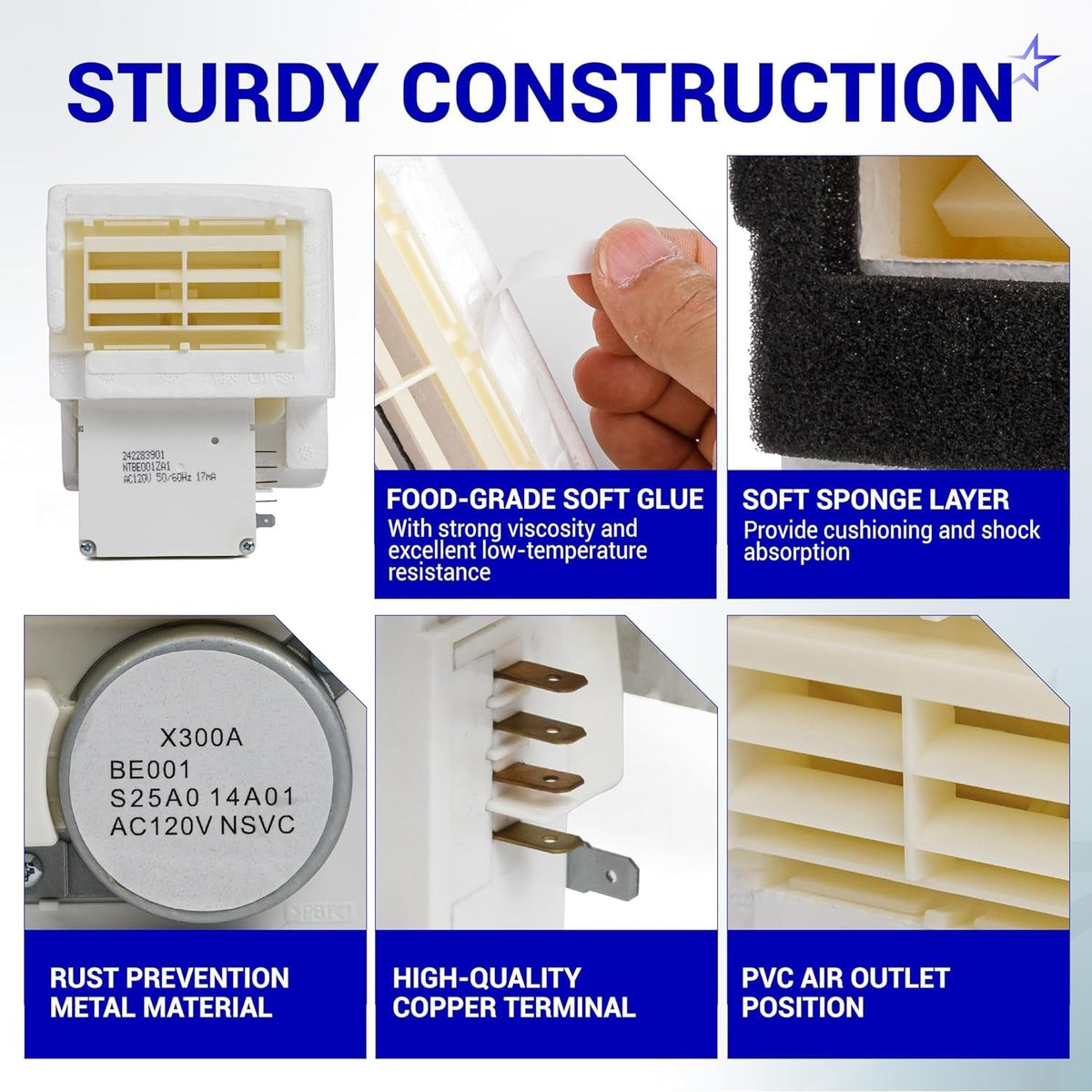

Infographic showing construction details of 242303001 refrigerator air damper control assembly components.

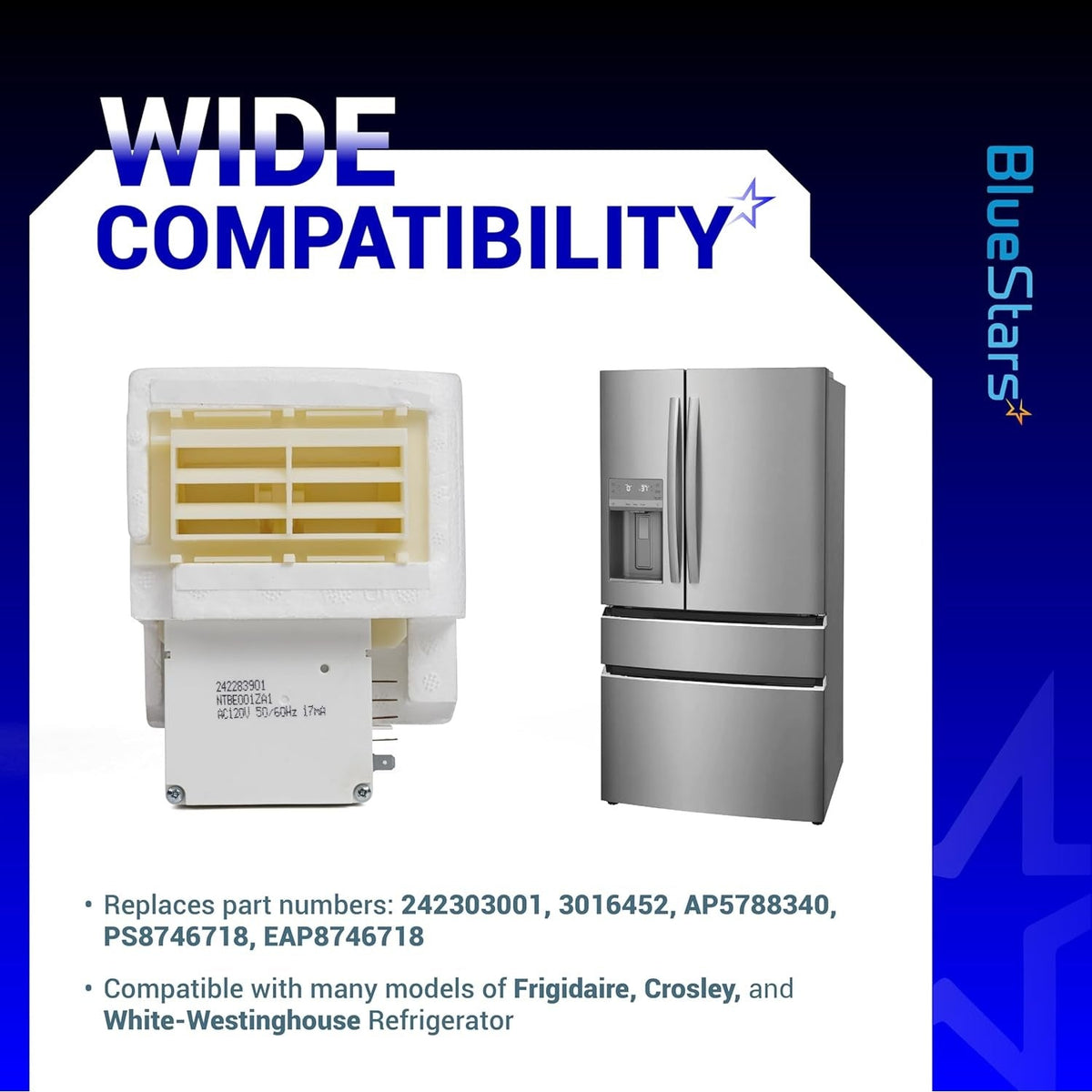

242303001 air damper control assembly for Frigidaire, Crosley, and White-Westinghouse refrigerators.

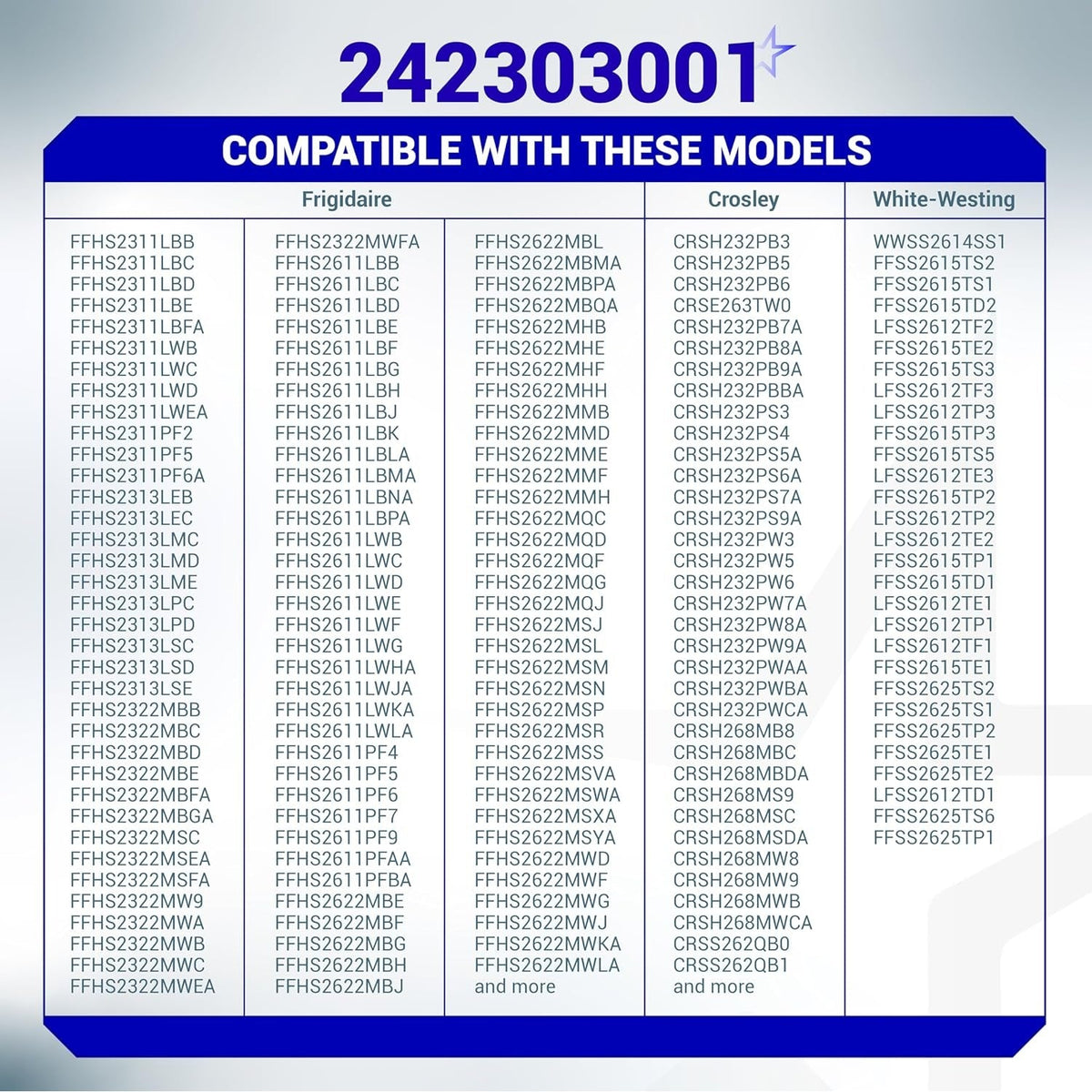

Compatibility chart for 242303001 air damper control assembly for Frigidaire, Crosley, and White-Westinghouse refrigerators.
242303001 refrigerator air damper control assembly showing symptoms fixed including cooling issues and error code H1.

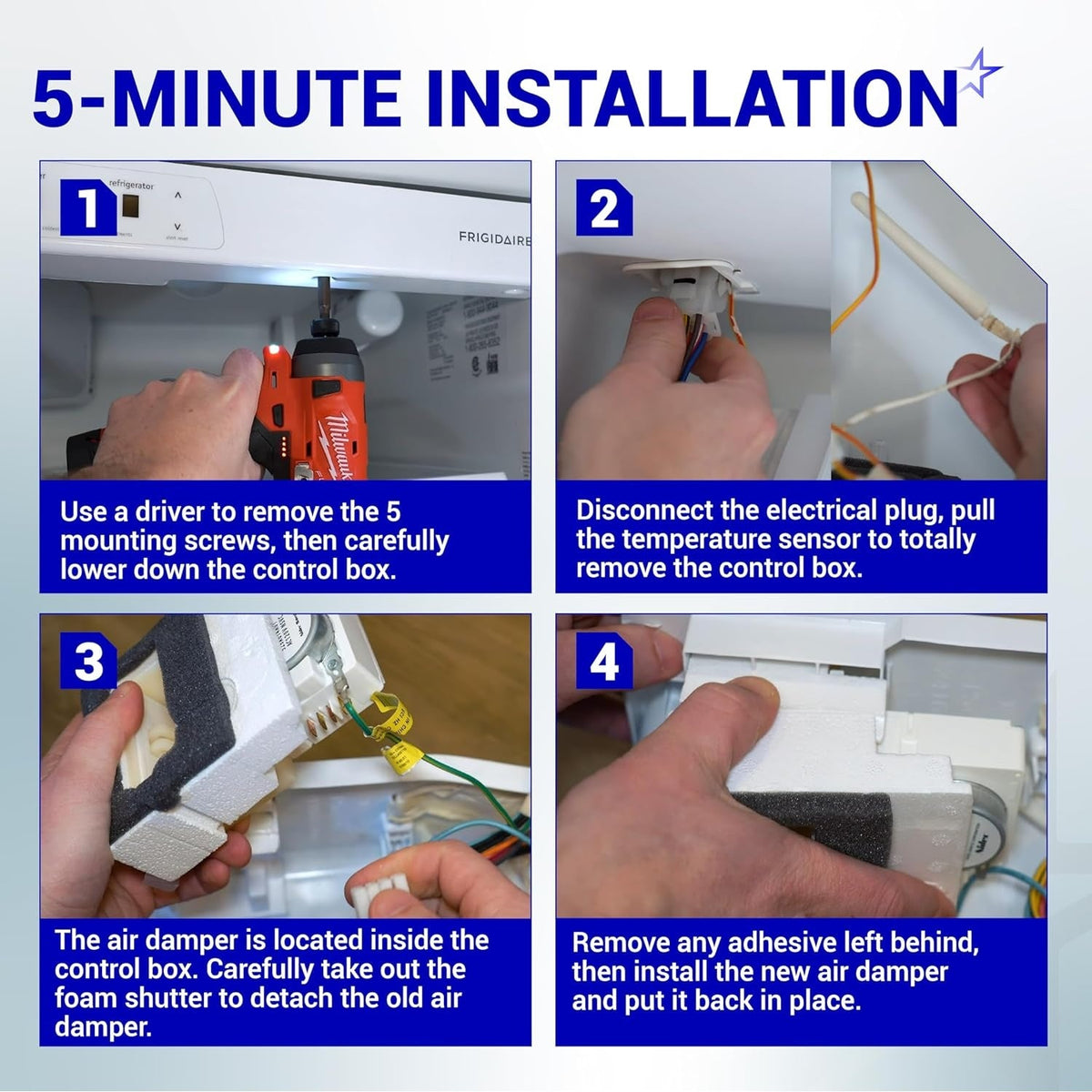

Four-step installation guide for 242303001 refrigerator air damper control assembly replacement.
242303001 refrigerator air damper control assembly with foam insulation housing.
242303001 refrigerator air damper control assembly with white foam housing and electrical terminals.
Technical diagram showing dimensions and specifications for the 242303001 refrigerator air damper control assembly.
242303001 refrigerator air damper control assembly with airflow illustration and feature icons.
Infographic showing construction details of 242303001 refrigerator air damper control assembly components.
242303001 air damper control assembly for Frigidaire, Crosley, and White-Westinghouse refrigerators.
Compatibility chart for 242303001 air damper control assembly for Frigidaire, Crosley, and White-Westinghouse refrigerators.
242303001 refrigerator air damper control assembly showing symptoms fixed including cooling issues and error code H1.
Four-step installation guide for 242303001 refrigerator air damper control assembly replacement.
242303001 refrigerator air damper control assembly with foam insulation housing.
Lifetime Warranty

[Lifetime Warranty] 242303001 Air Damper Control Assembly - For Frigidaire Crosley White-Westinghouse Refrigerator - Replaces AP5788340, PS8746718, EAP8746718, 3016452 Fits DFH, FFE, FFH, FFS, LFS

Save 13%
0.00
$51.95
$59.74
$51.95
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

242303001 Air Damper Control Assembly

Key Features

  • Controls cold airflow from the freezer to the refrigerator compartment.
  • Maintains consistent temperature in the fresh food section.
  • Electrical specification: 120V.
  • Direct-fit assembly for straightforward replacement.

Replaces / Cross-Reference Part Numbers

  • 242303001
  • 3016452
  • AP5788340
  • EAP8746718
  • PS8746718

Compatibility & Fitment

  • Primarily designed for specific Frigidaire refrigerator models.
  • May fit other refrigerator brands manufactured by Electrolux.
  • Verify fitment by matching your appliance's model number with the part number.

When to Replace

  • The refrigerator compartment is too warm, but the freezer is cold.
  • The refrigerator compartment is too cold, causing items to freeze.
  • Inconsistent or fluctuating temperatures in the fresh food section.
  • The damper motor is visibly damaged or fails to operate.

Installation Tips

  • Disconnect the appliance from its power source before starting the repair.
  • The assembly is located inside the refrigerator compartment, usually behind a panel.
  • Refer to the appliance's service manual for model-specific instructions.
  • Confirm the new damper door opens and closes correctly before finalizing reassembly.
Brand Model Number
Frigdaire FFHS2311LBB, FFHS2311LBC, FFHS2311LBD, FFHS2311LBE, FFHS2311LBFA, FFHS2311LWB, FFHS2311LWC, FFHS2311LWD, FFHS2311LWEA, FFHS2311PF2, FFHS2311PF5, FFHS2311PF6A, FFHS2313LEB, FFHS2313LEC, FFHS2313LMC, FFHS2313LMD, FFHS2313LME, FFHS2313LPC, FFHS2313LPD, FFHS2313LSC, FFHS2313LSD, FFHS2313LSE, FFHS2322MBB, FFHS2322MBC
White-Westing WWSS2614SS1, FFSS2615TS2, FFSS2615TS1, FFSS2615TD2, LFSS2612TF2, FFSS2615TE2, FFSS2615TS3, LFSS2612TF3, LFSS2612TP3, FFSS2615TP3, FFSS2615TS5, LFSS2612TE3, FFSS2615TP2, LFSS2612TP2, LFSS2612TE2, FFSS2615TP1, FFSS2615TD1, LFSS2612TE1, LFSS2612TP1, LFSS2612TF1, FFSS2615TE1, FFSS2625TS2, FFSS2625TS1, FFSS2625TP2
Crosley CRSH232PB3, CRSH232PB5, CRSH232PB6, CRSE263TW0, CRSH232PB7A, CRSH232PB8A, CRSH232PB9A, CRSH232PBBA, CRSH232PS3, CRSH232PS4, CRSH232PS5A, CRSH232PS6A, CRSH232PS7A, CRSH232PS9A, CRSH232PW3, CRSH232PW5, CRSH232PW6, CRSH232PW7A, CRSH232PW8A, CRSH232PW9A, CRSH232PWAA, CRSH232PWBA, CRSH232PWCA
Replaces 242303001, 3016452, AP5788340, PS8746718, EAP8746718

FAQ

The 242303001 air damper control assembly regulates the flow of cold air from the freezer compartment into the fresh-food section. When it opens and closes properly, it helps maintain correct refrigerator temperature without overcooling or warming the fridge side.
This part is used on select refrigerators from Frigidaire, Crosley, and White-Westinghouse. The listing also indicates fitment for model families beginning with DFH, FFE, FFH, FFS, and LFS. Because those prefixes cover multiple full model numbers, it is best to match your complete model number together with part number 242303001 before ordering.
This air damper control assembly is associated with part number 242303001 and replaces or cross-references 3016452, AP5788340, PS8746718, and EAP8746718.
Common symptoms include the refrigerator section being too warm while the freezer still seems normal, inconsistent fresh-food temperatures, freezing food in the refrigerator compartment, weak or no airflow from the damper area, or unusual clicking/binding from the damper mechanism. These symptoms can also overlap with airflow blockage or frost issues, so checking the vent area is a good first step.
On many compatible refrigerators, this is a moderate repair that usually takes about 20 to 45 minutes. Basic tools often include a screwdriver and possibly a nut driver, depending on the interior cover style. You typically need to remove shelving or an interior cover in the refrigerator section to access the damper housing. Always unplug the refrigerator before service.
Before replacing it, check for frost or ice buildup around the air passage, blocked vents from food packaging, and signs that the refrigerator door has not been sealing properly. Also confirm the evaporator fan is running, since poor airflow from the freezer can mimic a bad damper. If the damper door is physically broken, stuck, or not opening and closing correctly, replacement is more likely needed.
These parts can fail from repeated opening and closing of the damper door, plastic fatigue, binding from ice buildup, or wear in the control mechanism. In some cases, excess moisture from frequent door openings or warm air leaks can lead to frost formation that prevents the damper from moving freely.
