[Lifetime Warranty] W10524920 Dishwasher Rinse Aid Cap - Compatible with KitchenAid Whirlpool Dishwashers - Replaces W10482848, WPW10524920, PS11755939, AP6022605, PS6883851

Name: [Lifetime Warranty] W10524920 Dishwasher Rinse Aid Cap - Compatible with KitchenAid Whirlpool Dishwashers - Replaces W10482848, WPW10524920, PS11755939, AP6022605, PS6883851
Brand: BlueStarsParts
SKU: AZ0323478
Price: 15.01 USD
Availability: InStock

Save 12%

0.00

$15.01

~~$17.11~~

$15.01

In stock

Fast delivery

Secure and trusted checkout with

Contact for wholesale

🛠️

CONFIRM THE FIT FOR YOUR MODEL

Enter your model number

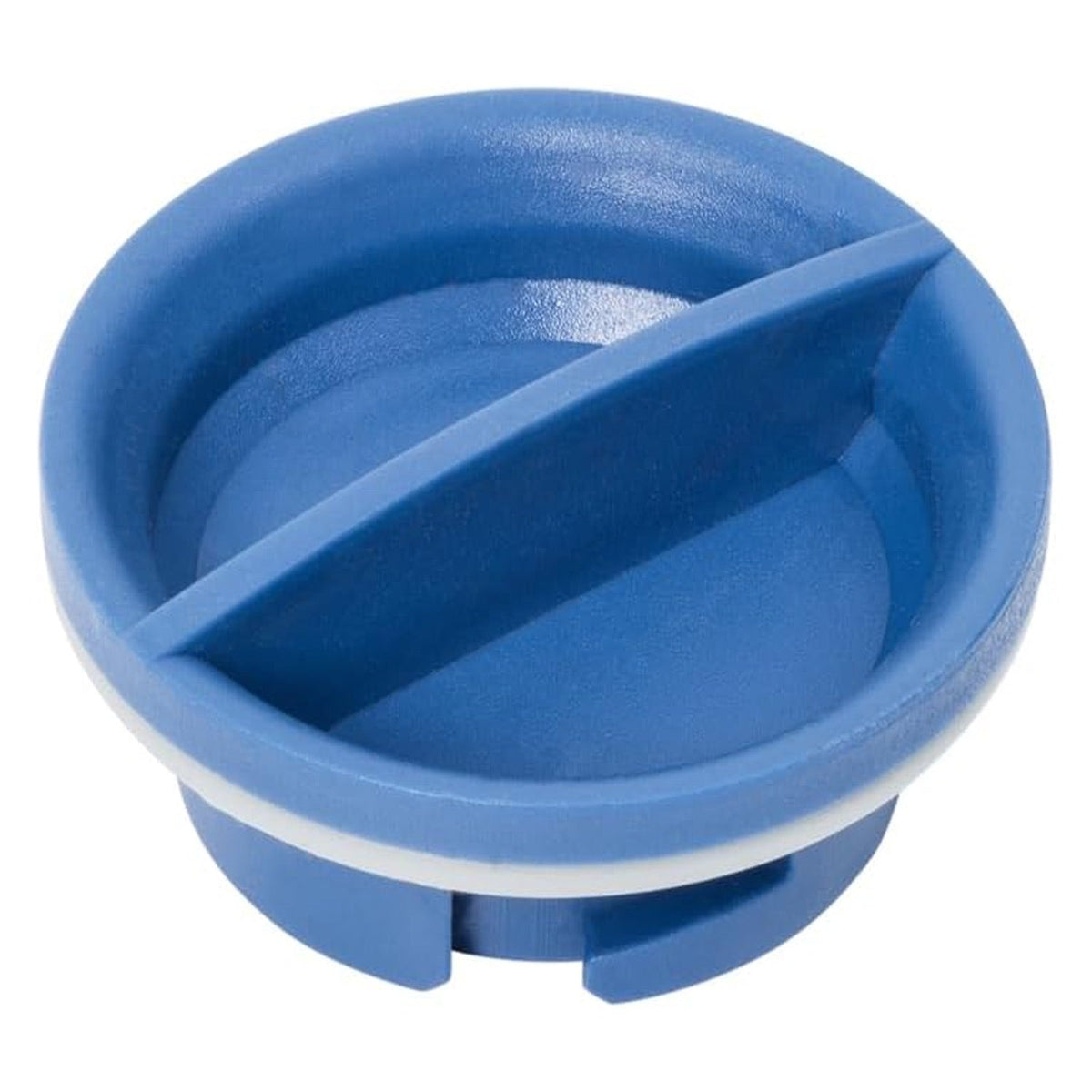

W10524920 Dishwasher Rinse Aid Dispenser Cap

Key Features

Airtight Seal: Features a high-quality rubber gasket designed to prevent rinse aid from leaking into the dishwasher tub prematurely, ensuring it is only released during the final rinse cycle.
Ergonomic Grip: The top surface is designed with a textured ridge or slot, making it easy to twist open and closed even with wet hands.

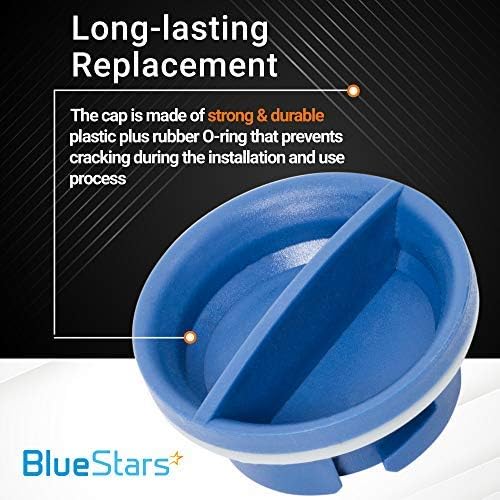

Chemical Resistance: Manufactured from food-grade, corrosion-resistant plastic that withstands constant exposure to rinse aid chemicals and high wash temperatures.
Snap-Lock Security: Engineered with precision locking tabs on the underside to ensure the cap remains seated during high-pressure spray cycles.

Replaces / Cross-Reference Part Numbers

W10524920
WPW10524920
W10482848
PS11755939
AP6022605
PS6883851
EAP11755939

Compatibility & Fitment

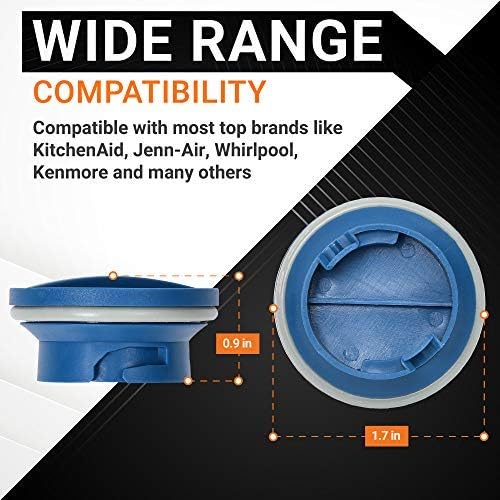

This rinse aid cap fits the dispenser assembly of most modern Whirlpool-built dishwashers. Key compatible brands and series include:

KitchenAid: Fits KDT, KDF, KUDE, and KUDL series (e.g., KDTM354ESS, KDTE104ESS).
Whirlpool: Compatible with WDT, WDF, and WDTA series (e.g., WDT720PADM, WDT970SAHZ).
Maytag: Fits MDB series models (e.g., MDB4949SDH, MDB8959SFZ).
Jenn-Air & Kenmore: Compatible with 665 series (Sears/Kenmore) and high-end Jenn-Air units utilizing the W10524920 dispenser style.

When to Replace

Missing Cap: The original cap has been lost or accidentally thrown away with food scraps.
Leaking Rinse Aid: You notice the rinse aid reservoir empties much faster than usual, or there are blue streaks on the inside of the door.
Broken Tabs: The plastic locking "ears" on the bottom of the cap have snapped off, preventing it from staying locked in the dispenser.
Damaged Gasket: The internal rubber seal is cracked, swollen, or missing, allowing water to enter the rinse aid chamber.
Stripped Slot: The top adjustment or removal slot is rounded out, making it impossible to turn the cap with a coin or thumb.

Installation Tips

Cleaning: Before installing the new cap, wipe away any dried rinse aid residue around the dispenser opening to ensure a flush seal.

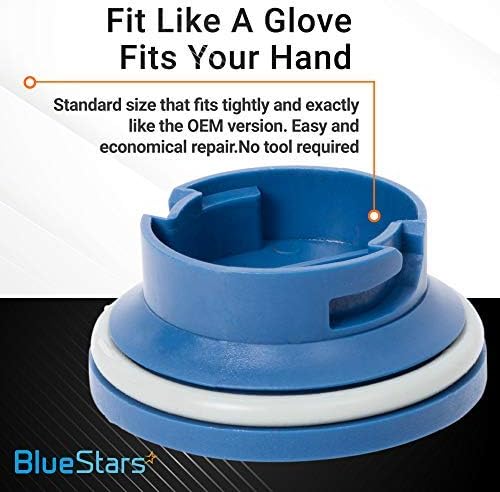

Alignment: Align the tabs on the bottom of the cap with the notches in the dispenser housing.
Locking: Insert the cap and turn it approximately 1/4 turn clockwise until it stops or the arrow on the cap aligns with the "Lock" icon on the dispenser.
Do Not Overtighten: The cap only needs to be snug to seal; using pliers or excessive force can crack the plastic dispenser housing.
Maintenance: If you struggle to turn the cap, a very small drop of vegetable oil on the rubber gasket can help it glide into place more easily.

Brand

Model Number

KitchenAid Dishwasher

KDFE454CSS0, KDFE454CSS1, KDFE454CSS2, KDFE454CSS3, KDTE554CSS0, KDTE554CSS1, KUDC10FBBL0, KUDC10FBSS0, KUDC10FBWH0, KUDC10FXBL6, KUDC10FXBL7, KUDC10FXSS6, KUDC10FXSS7, KUDC10FXWH6, KUDC10FXWH7, KUDC10IXBL8, KUDC10IXBL9, KUDC10IXSS8, KUDC10IXSS9, KUDC10IXWH8, KUDC10IXWH9, KUDE20FBBL0, KUDE20FBBL1, KUDE20FBSS0, KUDE20FBSS1, KUDE20FBWH0, KUDE20FBWH1, KUDE20IXSSA, KUDE40FXBL6, KUDE40FXBT6, KUDE40FXSS6, KUDE40FXWH6, KUDE48FXBL5, KUDE48FXBL6, KUDE48FXPA5, KUDE48FXPA6, KUDE48FXSP5, KUDE48FXSP6, KUDE48FXSS5, KUDE48FXSS6, KUDE48FXWH5, KUDE48FXWH6, KUDE50CXSS9, KUDE50FBSS0, KUDE60FXBL5, KUDE60FXSS5, KUDE60FXWH5, KUDE60HXSS5, KUDE60HXSS6, KUDE70FXBL5, KUDE70FXBL6, KUDE70FXPA3, KUDE70FXPA5, KUDE70FXPA6, KUDE70FXSS5, KUDE70FXSS6, KUDE70FXWH5, KUDE70FXWH6, KUDL15FXBL6, KUDL15FXSS6, KUDL15FXSS7, KUDL15FXWH6, KUDL15FXWH7, KUDS30CXBL7, KUDS30CXSS7, KUDS30CXWH7, KUDS30FBBL0, KUDS30FBBL1, KUDS30FBSS0, KUDS30FBSS1, KUDS30FBWH0, KUDS30FBWH1, KUDS30FXBL8, KUDS30FXBL9, KUDS30FXBLA, KUDS30FXPA8, KUDS30FXPA9, KUDS30FXPAA, KUDS30FXSS8, KUDS30FXSS9, KUDS30FXSSA, KUDS30FXWH8, KUDS30FXWH9, KUDS30FXWHA, KUDS30IXBL8, KUDS30IXBL9, KUDS30IXBLA, KUDS30IXBT8, KUDS30IXBT9, KUDS30IXBTA, KUDS30IXSS8, KUDS30IXSS9, KUDS30IXSSA, KUDS30IXWH8, KUDS30IXWH9, KUDS30IXWHA, KUDS30SXBL8, KUDS30SXSS8, KUDS30SXSS9, KUDS30SXWH8, KUDS35FBBL0, KUDS35FBBL1, KUDS35FBSS0, KUDS35FBSS1, KUDS35FBWH0, KUDS35FBWH1, KUDS35FXBL9, KUDS35FXBLA, KUDS35FXSS9, KUDS35FXSSA, KUDS35FXWH9

Whirlpool Dishwasher

WDF130PAHB1, WDF130PAHB2, WDF130PAHS1, WDF130PAHS2, WDF130PAHW1, WDF130PAHW2, WDF320PADB0, WDF320PADB1, WDF320PADB2, WDF320PADB3, WDF320PADD0, WDF320PADD1, WDF320PADD2, WDF320PADD3, WDF320PADS0, WDF320PADS1, WDF320PADS2, WDF320PADS3, WDF320PADT0, WDF320PADT1, WDF320PADT2, WDF320PADT3, WDF320PADW0, WDF320PADW1, WDF320PADW2, WDF320PADW3, WDF330PAHB0, WDF330PAHB1, WDF330PAHB2, WDF330PAHB3, WDF330PAHB4, WDF330PAHD0, WDF330PAHD1, WDF330PAHD2, WDF330PAHS0, WDF330PAHS1, WDF330PAHS2, WDF330PAHS3, WDF330PAHS4, WDF330PAHS5, WDF330PAHT0, WDF330PAHT1, WDF330PAHT2, WDF330PAHT3, WDF330PAHT4, WDF330PAHW0, WDF330PAHW1, WDF330PAHW2, WDF330PAHW3, WDF331PAHB0, WDF331PAHB1, WDF331PAHS0, WDF331PAHS1, WDF331PAHW0, WDF331PAHW1, WDF520PADB0, WDF520PADB2, WDF520PADB3, WDF520PADB5, WDF520PADB6, WDF520PADB7, WDF520PADB8, WDF520PADM0, WDF520PADM2, WDF520PADM3, WDF520PADM5, WDF520PADM6, WDF520PADM7, WDF520PADM8, WDF520PADW0, WDF520PADW2, WDF520PADW3, WDF520PADW5, WDF520PADW6, WDF520PADW7, WDF520PADW8, WDF520PADW9, WDF540PADB0, WDF540PADB1, WDF540PADB2, WDF540PADB3, WDF540PADM0, WDF540PADM1, WDF540PADM2, WDF540PADM3, WDF540PADT0, WDF540PADT1, WDF540PADT2, WDF540PADT3, WDF540PADW0, WDF540PADW1, WDF540PADW2, WDF540PADW3, WDF545PAFM0, WDF760SADB0, WDF760SADB1, WDF760SADM0, WDF760SADM1, WDF760SADT0, WDF760SADT1, WDF760SADW0, WDF760SADW1, WDP370PAHB0, WDP370PAHB1, WDP370PAHB2, WDP370PAHW0, WDP370PAHW1, WDP370PAHW2, WDT705PAKB0, WDT705PAKW0, WDT705PAKZ0, WDT710PAHB0, WDT710PAHB1, WDT710PAHW0, WDT710PAHW1, WDT710PAHZ0, WDT710PAHZ1, WDT780SAEM0, WDT920SADE0, WDT920SADE1, WDT920SADH0, WDT920SADH1, WDT920SADM0, WDT920SADM1, WDT720PADB0, WDT720PADB1, WDT720PADB2, WDT720PADB3, WDT720PADE0, WDT720PADE1, WDT720PADE2, WDT720PADE3, WDT720PADH0, WDT720PADH1, WDT720PADH2, WDT720PADH3, WDT720PADM0, WDT720PADM1, WDT720PADM2, WDT720PADM3, WDT720PADW0, WDT720PADW1, WDT720PADW2, WDT720PADW3
