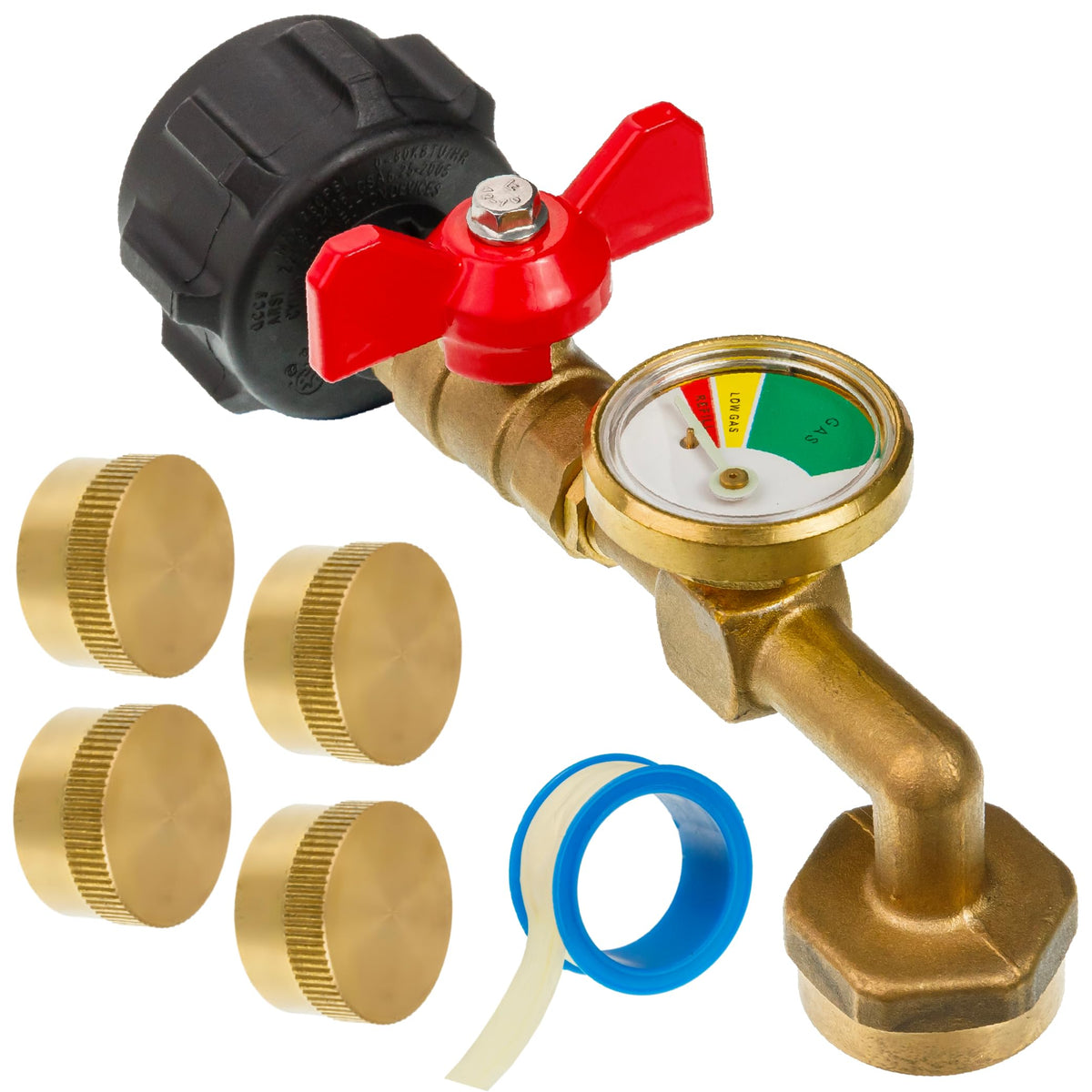

Solid brass propane refill elbow adapter with gauge, four brass caps, and thread seal tape for 1 lb. tanks.

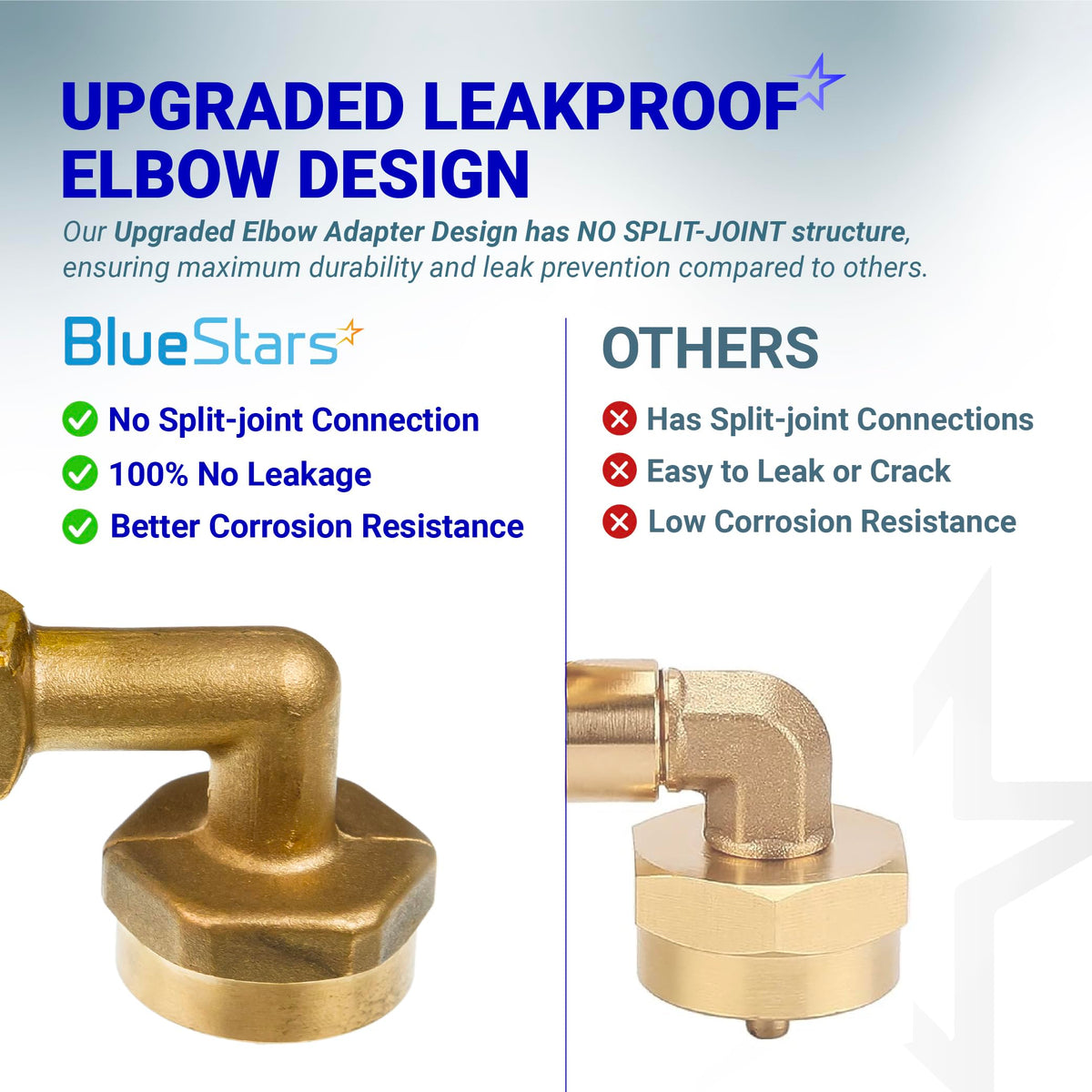

Comparison chart showing the solid brass propane refill elbow adapter with a leakproof no split-joint design.

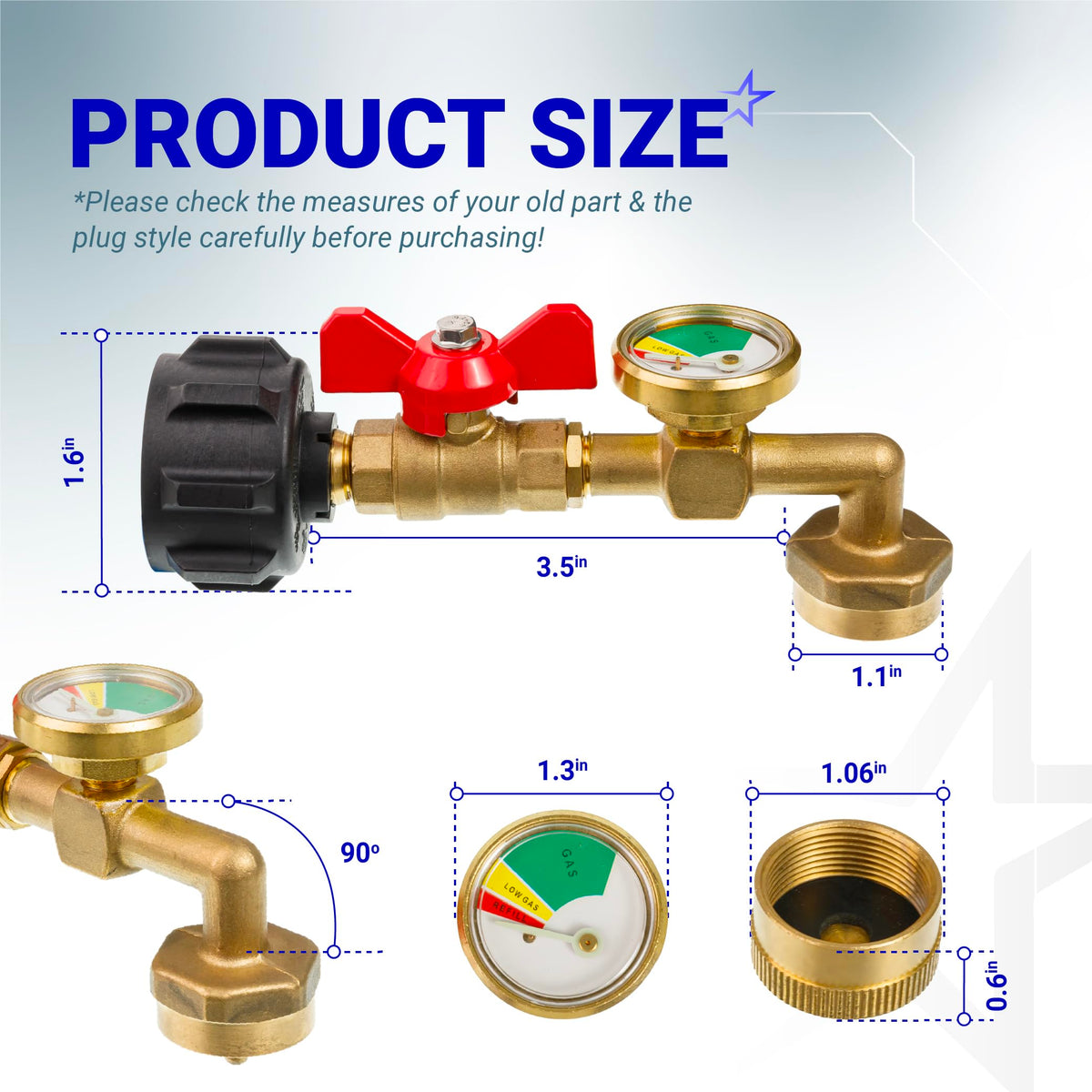

Dimensional diagram of solid brass propane refill adapter with gauge, showing measurements for 1 lb tank compatibility.
Propane refill adapter with gauge, control valve, and QCC1 connector showing detailed product features and connections.
Propane refill adapter with on/off valve and glow-in-the-dark 3-color gas level gauge for 1 lb tanks.

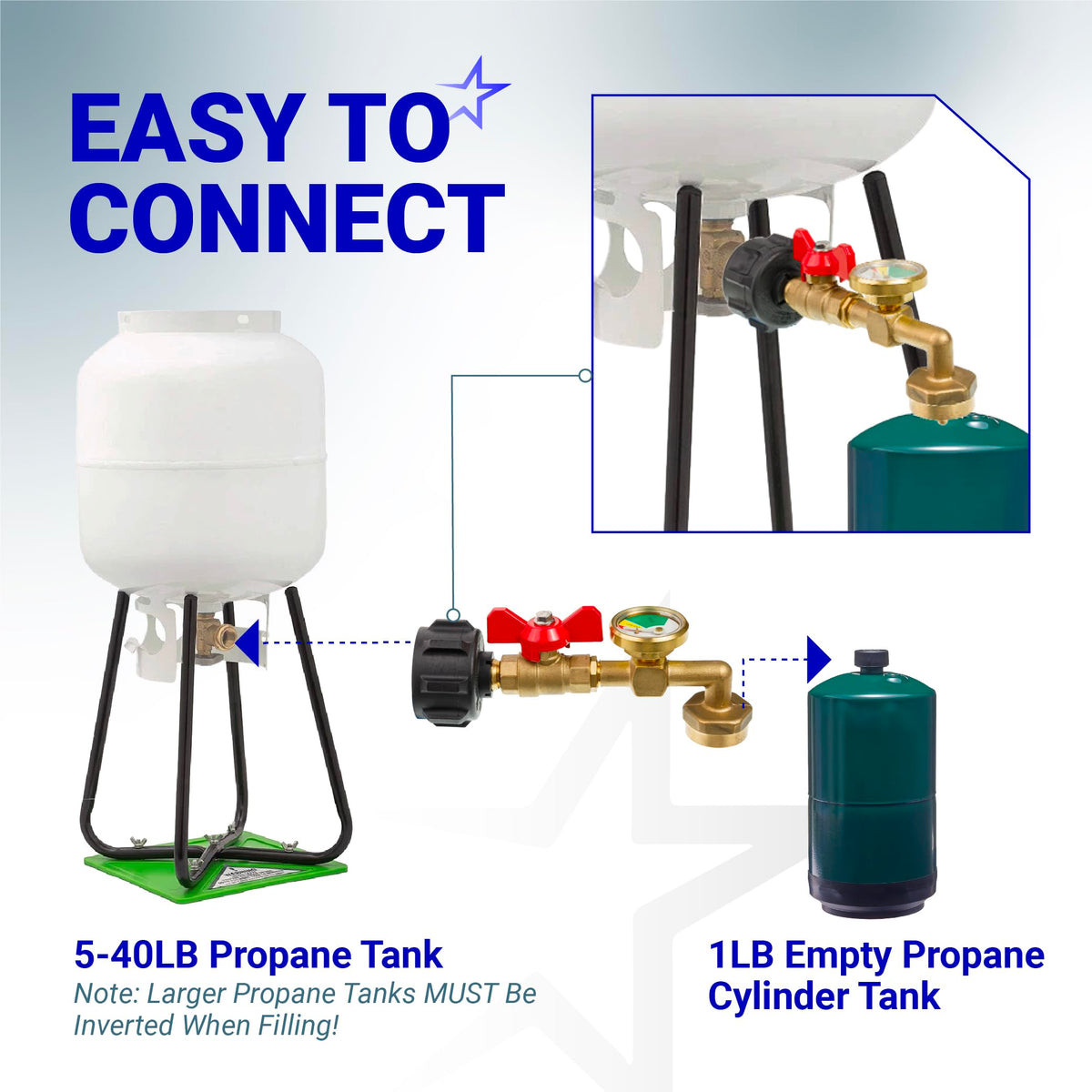

Diagram showing how to connect a solid brass propane refill adapter between a large tank and a 1lb cylinder.
Infographic showing four easy steps to use the solid brass propane refill adapter with gauge for 1 lb tanks.

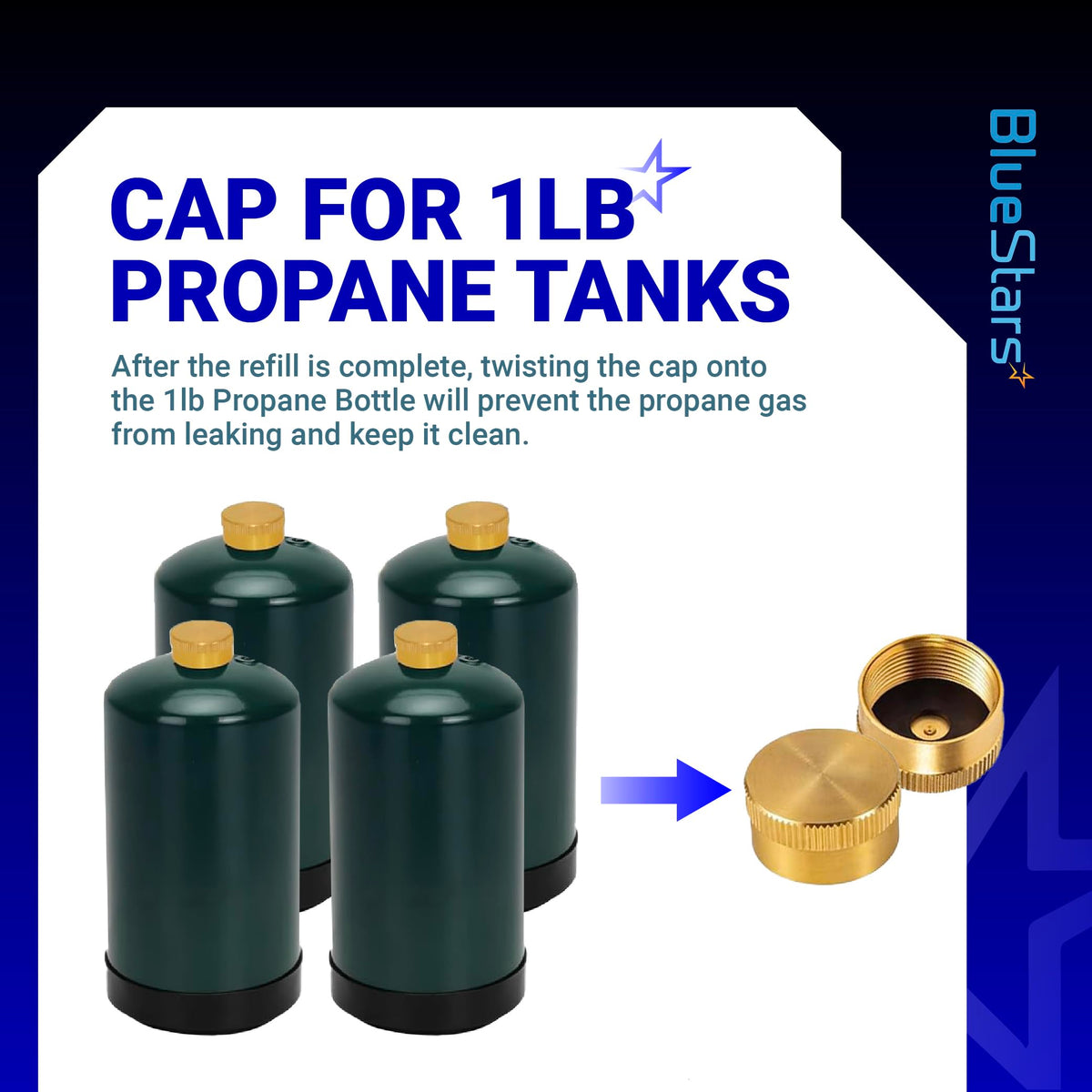

Solid brass protective caps for 1 lb propane tanks shown with green refillable cylinders.
Infographic showing propane refill adapter usage for heating, outdoor cooking, and camping with 1 lb tanks.
Solid brass propane refill elbow adapter with gauge, four brass caps, and thread seal tape for 1 lb. tanks.
Comparison chart showing the solid brass propane refill elbow adapter with a leakproof no split-joint design.
Dimensional diagram of solid brass propane refill adapter with gauge, showing measurements for 1 lb tank compatibility.
Propane refill adapter with gauge, control valve, and QCC1 connector showing detailed product features and connections.
Propane refill adapter with on/off valve and glow-in-the-dark 3-color gas level gauge for 1 lb tanks.
Diagram showing how to connect a solid brass propane refill adapter between a large tank and a 1lb cylinder.
Infographic showing four easy steps to use the solid brass propane refill adapter with gauge for 1 lb tanks.
Solid brass protective caps for 1 lb propane tanks shown with green refillable cylinders.
Infographic showing propane refill adapter usage for heating, outdoor cooking, and camping with 1 lb tanks.
Lifetime Warranty

[Lifetime Warranty] Propane Refill Adapter for 1 LB. Tanks - Solid Brass Propane Adapter 20lb to 1lb Converter with Gauge Valve - Propane Refill Elbow Adapter for BBQ Grill Stove Camping RV

Save 13%
0.00
$29.59
$34.03
$29.59
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

Propane Refill Elbow Adapter  for 1 LB. Tanks with Gauge & Valve

Key Features

  • 90-Degree Elbow Design: The specialized right-angle shape allows the 1lb cylinder to remain in a stable, upright position during the refill process, making it easier to manage and reducing strain on the connection.
  • Integrated Pressure Gauge: Features a color-coded dial that provides a real-time reading of the pressure in the supply tank, helping you monitor the transfer progress and detect potential leaks.
  • Built-in Control Valve: Equipped with a dedicated brass shut-off lever, allowing you to start and stop the flow of propane instantly without having to reach for the main tank valve.
  • Solid Brass Construction: Manufactured from 100% heavy-duty brass for maximum durability, corrosion resistance, and spark-free operation in outdoor environments.
  • High-Pressure Safety Seal: Engineered with precision-machined threads and internal gaskets to ensure an airtight connection between high-pressure bulk tanks and disposable cylinders.

Replaces / Cross-Reference Part Numbers

  • Universal 20lb to 1lb Refill Adapter
  • 90-Degree Propane Refill Elbow
  • Propane Adapter with Gauge and Valve
  • CGA600 to QCC1 Refill Converter

Compatibility & Fitment

This adapter is designed for outdoor use and is compatible with standard North American propane equipment:

  • Supply Tanks: Fits all standard 5lb to 40lb propane tanks (BBQ grill and RV cylinders) using the QCC1 / Type 1 connection.
  • Disposable Cylinders: Fits all standard 1lb / 16.4oz "camping" bottles (e.g., Coleman, Bernzomatic) using the CGA600 thread.
  • Applications: Ideal for refilling small tanks for camping stoves, portable heaters (like Mr. Heater Buddy), lanterns, and tabletop grills.

When to Replace

  • Visible Gas Leaks: Hissing sounds or the smell of propane at the connection points; check with soapy water immediately.
  • Damaged Gauge: The pressure dial is cracked, fogged, or the needle is stuck, preventing accurate monitoring of the refill process.
  • Corroded Threads: Significant green oxidation or physical damage to the brass threads that prevents a smooth, airtight connection.
  • Valve Malfunction: The control lever becomes difficult to turn or fails to stop the flow of gas completely when in the "off" position.
  • Worn Gaskets: The internal rubber seals appear dry-rotted, cracked, or missing.

Installation Tips

  • The Freezer Trick: For a more complete fill, place the empty 1lb cylinders in the freezer for 30 minutes before refilling. Keep the 20lb "donor" tank at room temperature to create a pressure differential.
  • Tank Inversion: To transfer liquid propane (rather than just vapor), you must turn the 20lb supply tank upside down during the refill process.
  • Purge Air First: Ensure the 1lb tank is empty. If the tank won't accept fuel, use a small tool to briefly depress the internal valve of the 1lb tank to release any trapped air.
  • Safety Monitoring: Always use a digital scale to weigh the 1lb tank. Never exceed a total weight of 2lbs (which includes the weight of the metal bottle and the 16oz of fuel).
  • Outdoor Use Only: Never perform a refill indoors or in an enclosed space like a garage, as propane is heavier than air and can pool at ground level.
Product image
Product image
Product image

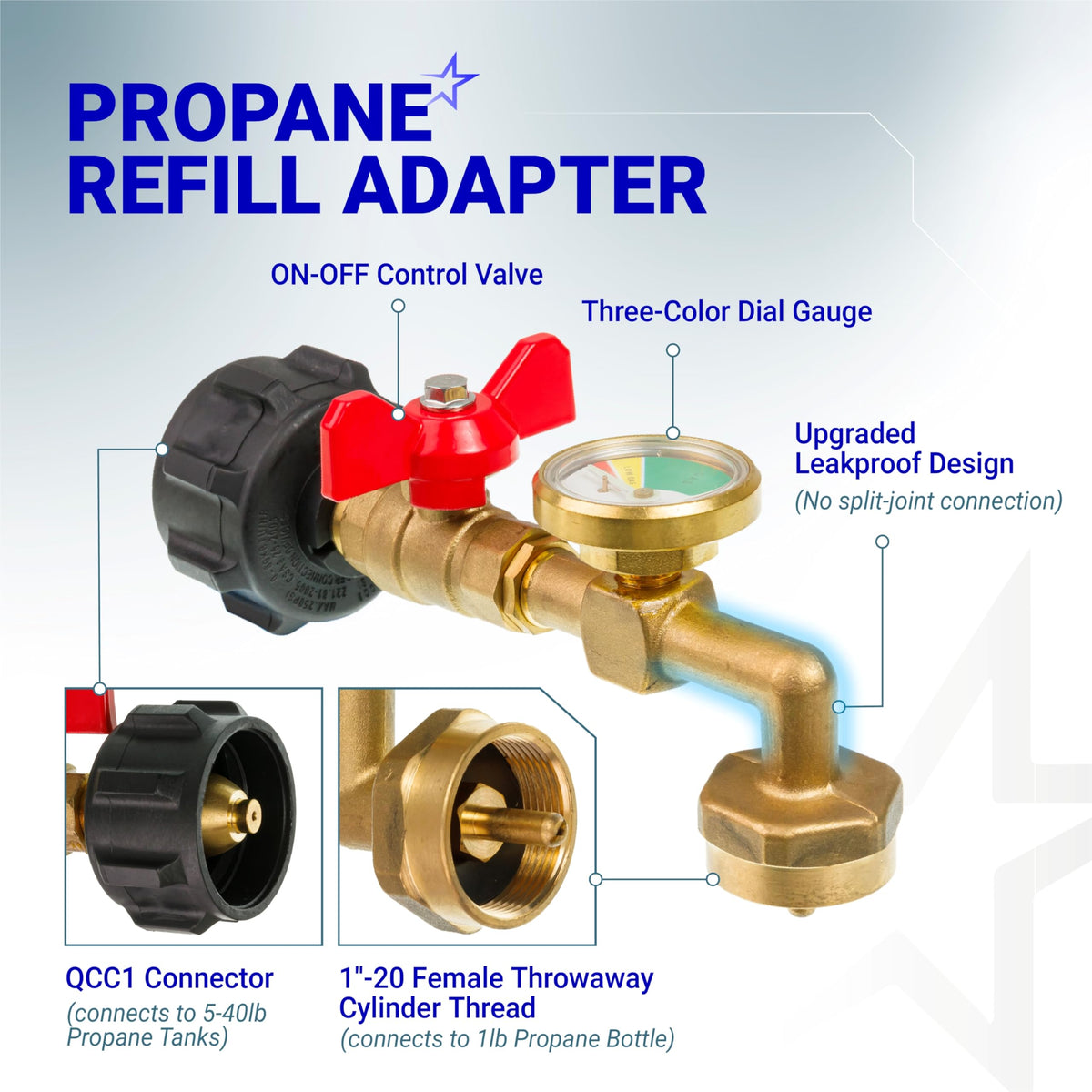

  • QCC1 / Type 1 Connector

    QCC1 / Type 1 Connector

    Made of rustless Brass & sturdy ABS Plastic handwheel | Connects to 5-40lb Propane Tank
  • 1"-20 Female Cylinder Thread

    1"-20 Female Cylinder Thread

    Made of 100% solid Brass | Connects to disposal 1lb Propane Bottle
  • On/Off Control Valve

    On/Off Control Valve

    You can easily control and halt the filling process at any moment for safety

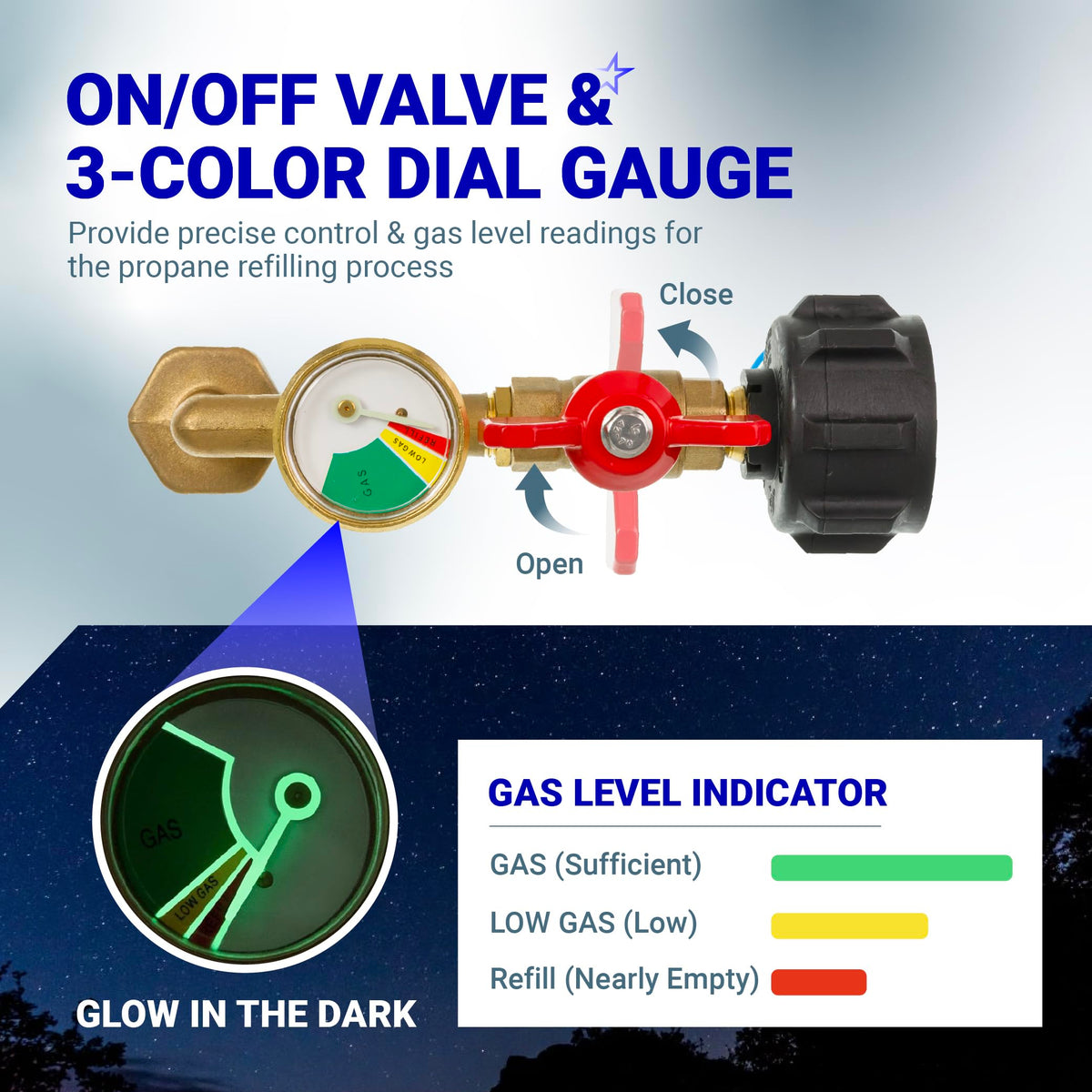

  • 3-Color Dial Gauge

    3-Color Dial Gauge

    Provide precise readings of propane levels, preventing unexpected gas shortages | The pointer can glow in the dark (Luminous Indicator)

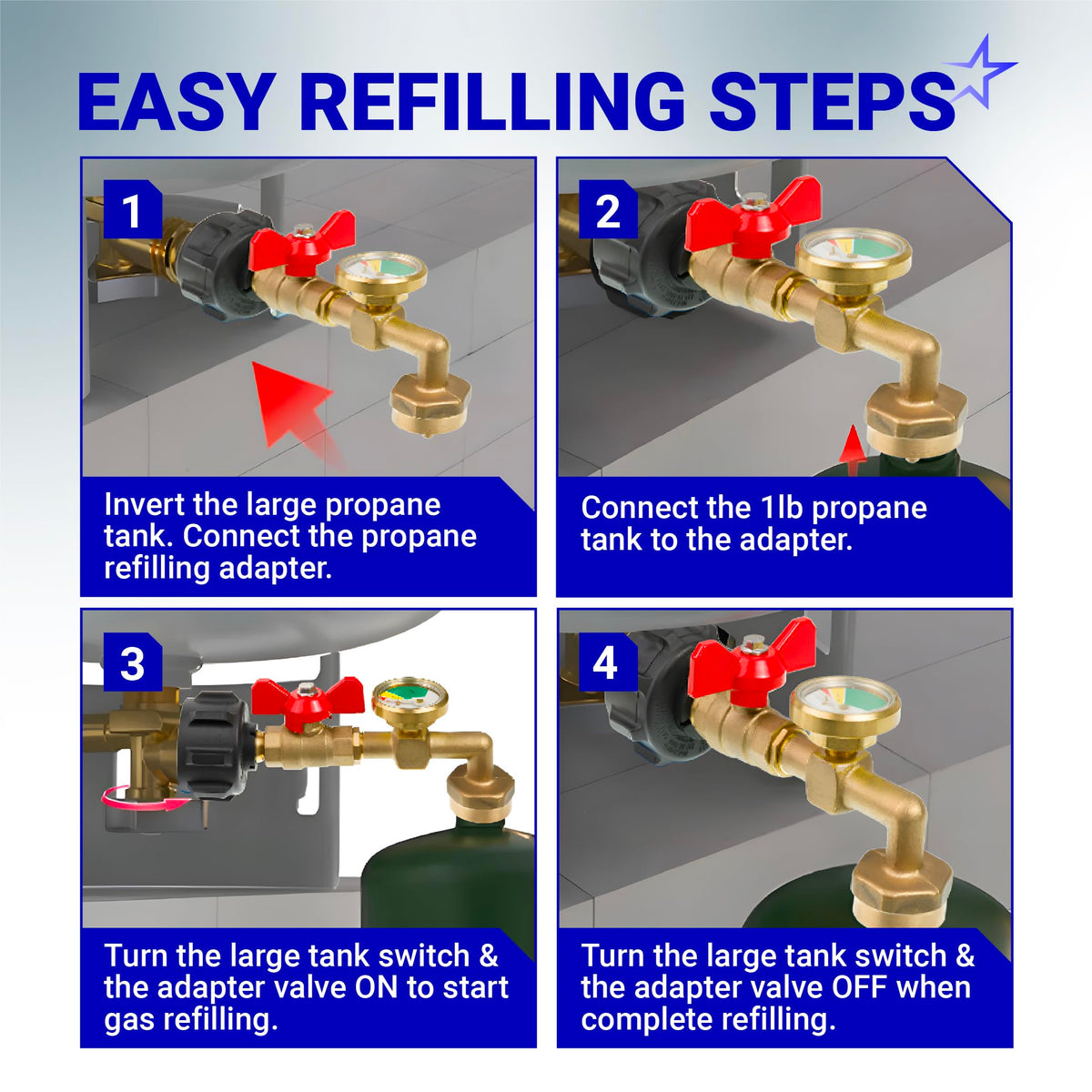

EASY REFILLING STEPS

EASY REFILLING STEPS

1. Close the valve on the large propane tank. Invert the big tank. Connect the QCC1 end of the adapter to the large propane tank; 2. Connect the other end of the adapter to the small 1lb propane tank; 3. Slowly open the main valve of the large propane cylinder, turn the adapter valve, and gas will begin to flow into the smaller cylinder; 4. Close the main valve on the large propane cylinder, then close the adapter valve to complete the refilling process.
EFFORTLESS PROPANE REFILLING

EFFORTLESS PROPANE REFILLING

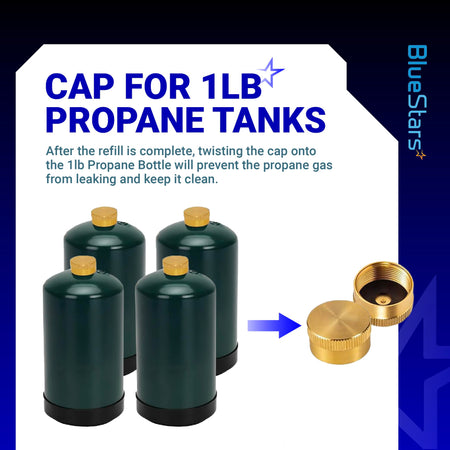

90-Degree Elbow Design enables refills in just one minute | Effortlessly refill your portable 1lb tanks instead of buying new ones | Includes 1x Bottle Cap for 1lb Propane Bottle to prevent propane leaking and keep it clean | Includes 1x Sealing Tape to wrap on the thread for airtight sealing

FAQ

This adapter is intended to connect a standard 20 lb propane cylinder to a 1 lb propane bottle for transfer use. It is commonly used with equipment that normally runs on 1 lb propane bottles, such as portable grills, camp stoves, heaters, and some RV or outdoor cooking appliances that use the same small-cylinder connection.
The built-in gauge helps you monitor pressure during setup and transfer. It can help confirm that the larger tank has pressure available and can also make it easier to identify whether the supply cylinder valve is open and delivering propane.
It is designed for the common connection style used on standard 20 lb propane tanks and 1 lb propane bottles. Because propane cylinder valve styles can vary by manufacturer, age, and region, it is best to verify your tank thread and valve type before ordering.
Typical signs include difficulty threading onto the tank, hissing at the connection point, a gauge that does not respond normally, visible wear or damage on the valve area, or repeated leaking even when connections are tightened correctly. If the brass body or threads are damaged, the adapter should be replaced rather than forced.
Setup is usually straightforward and typically takes only a few minutes. In most cases, no tools are needed if the threads are in good condition. Hand-tighten carefully, avoid cross-threading, and always check for leaks with an approved leak-detection solution before use.
Inspect the tank valves, adapter threads, and sealing surfaces for dirt, burrs, dents, or damage. Make sure both cylinders are in good condition, the larger tank has fuel, and all connections are clean and dry. Always use the adapter outdoors in a well-ventilated area, away from flames or ignition sources, and follow all local regulations and cylinder safety guidance.
The most common causes are worn or damaged threads, contamination on the sealing surfaces, impact damage from drops, overtightening, and exposure to weather over time. In many cases, connection problems are caused by damaged tank valves rather than the adapter itself, so both sides should be inspected.
