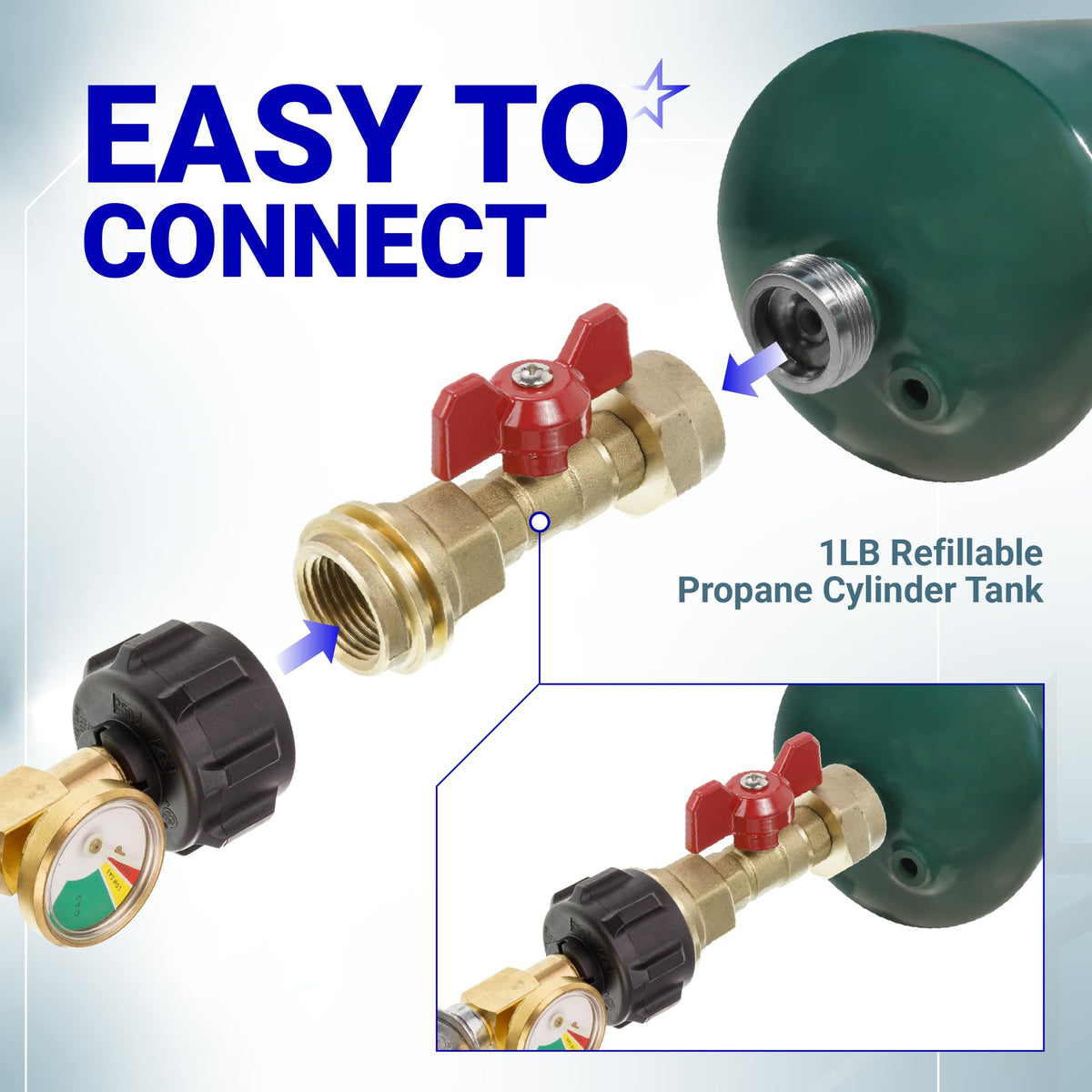

Propane tank adapter with red valve connecting a 1lb cylinder to a QCC1 gauge fitting.
Close-up views of solid brass propane tank adapter showing internal valve threads and connection points.
Comparison chart showing BlueStars propane tank adapter with control valve versus a standard adapter without a valve.
Propane tank refill adapter with red valve for 1lb cylinders shown in a lifestyle infographic for camping and heating.
Lifetime Warranty

[Lifetime Warranty] 20lb to 1lb Propane Tank Adapter with Valve - Fit 1lb / 16.4oz Disposable Throwaway Cylinder, Convert CGA600 to QCC1 Male Thread/POL Female Thread

Save 13%
0.00
$22.20
$25.53
$22.20
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

20lb to 1lb Propane Tank Adapter with Valve

Key Features

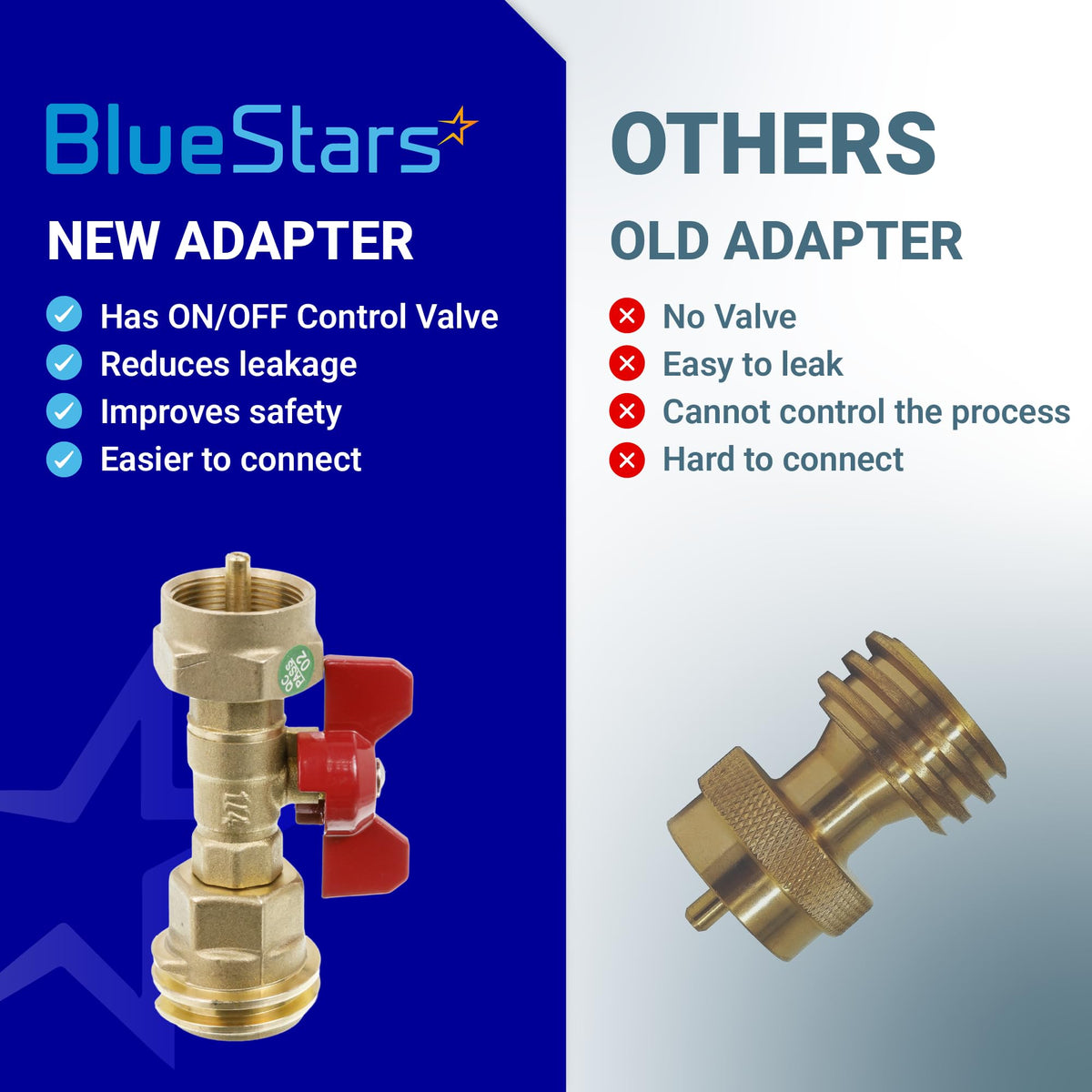

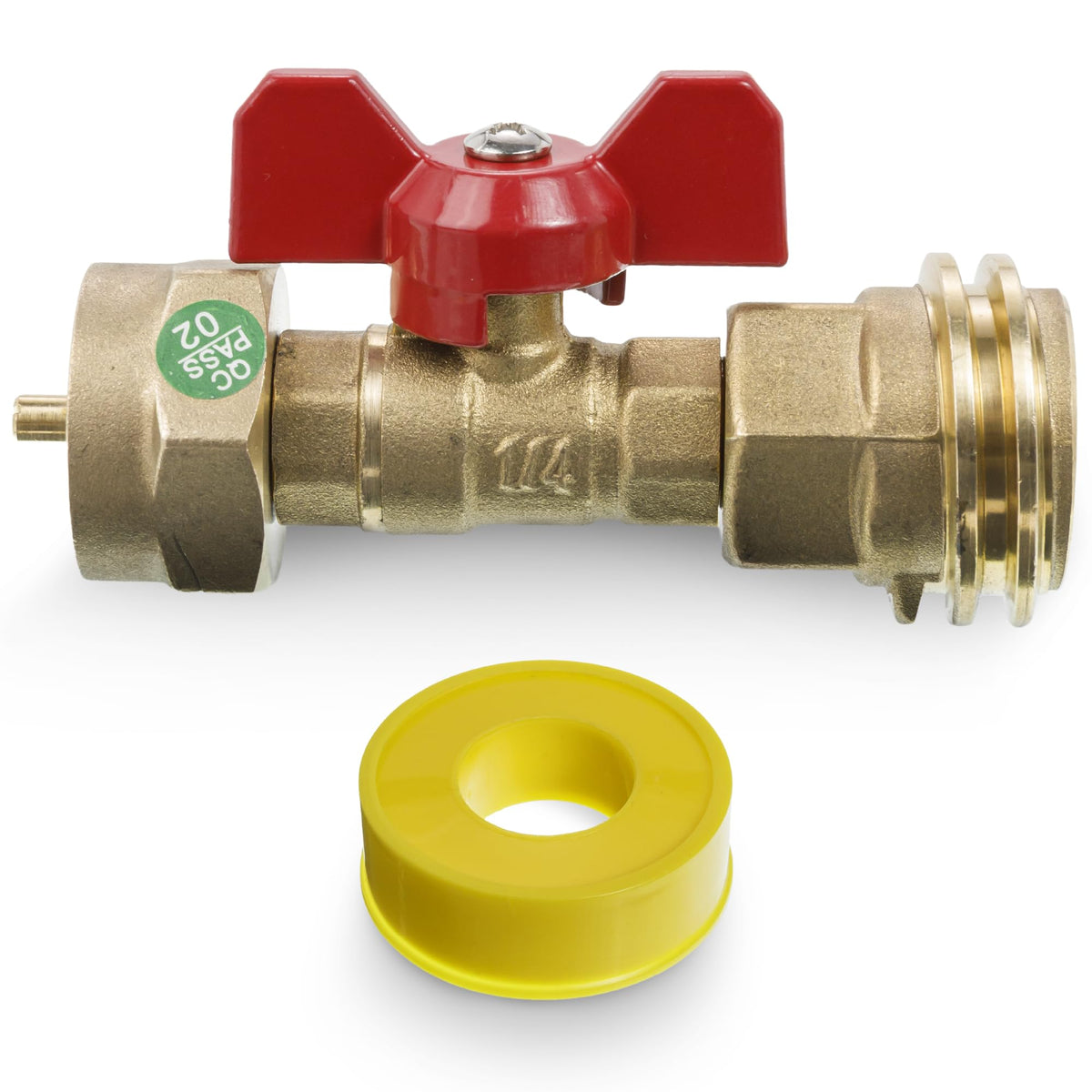

  • Integrated Control Valve: Features a built-in brass shut-off valve that allows you to start and stop the propane flow instantly, providing significantly more control and safety than basic "pass-through" adapters.

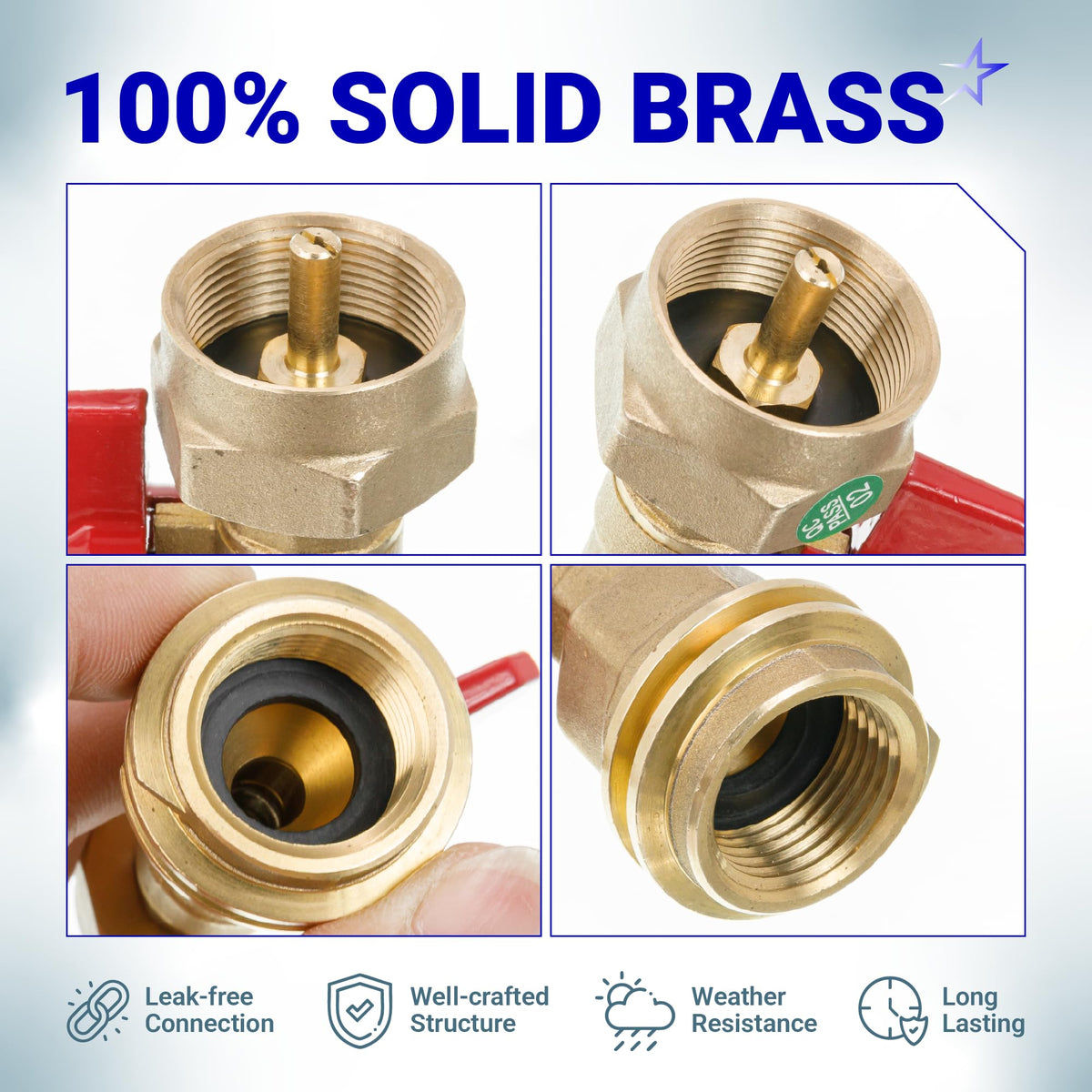

  • Solid Brass Construction: Machined from 100% heavy-duty brass, ensuring a spark-proof connection, high corrosion resistance, and a long service life for outdoor use.

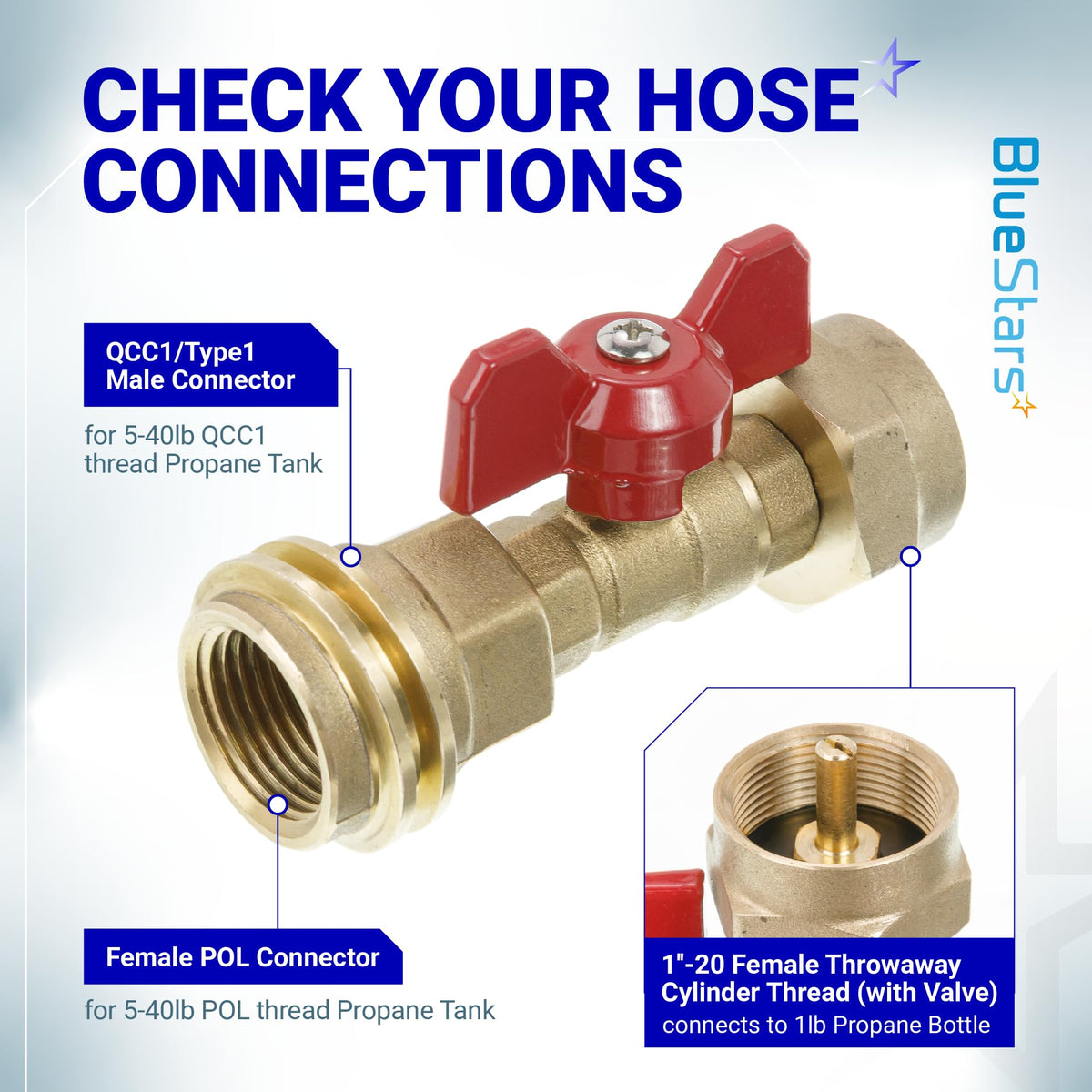

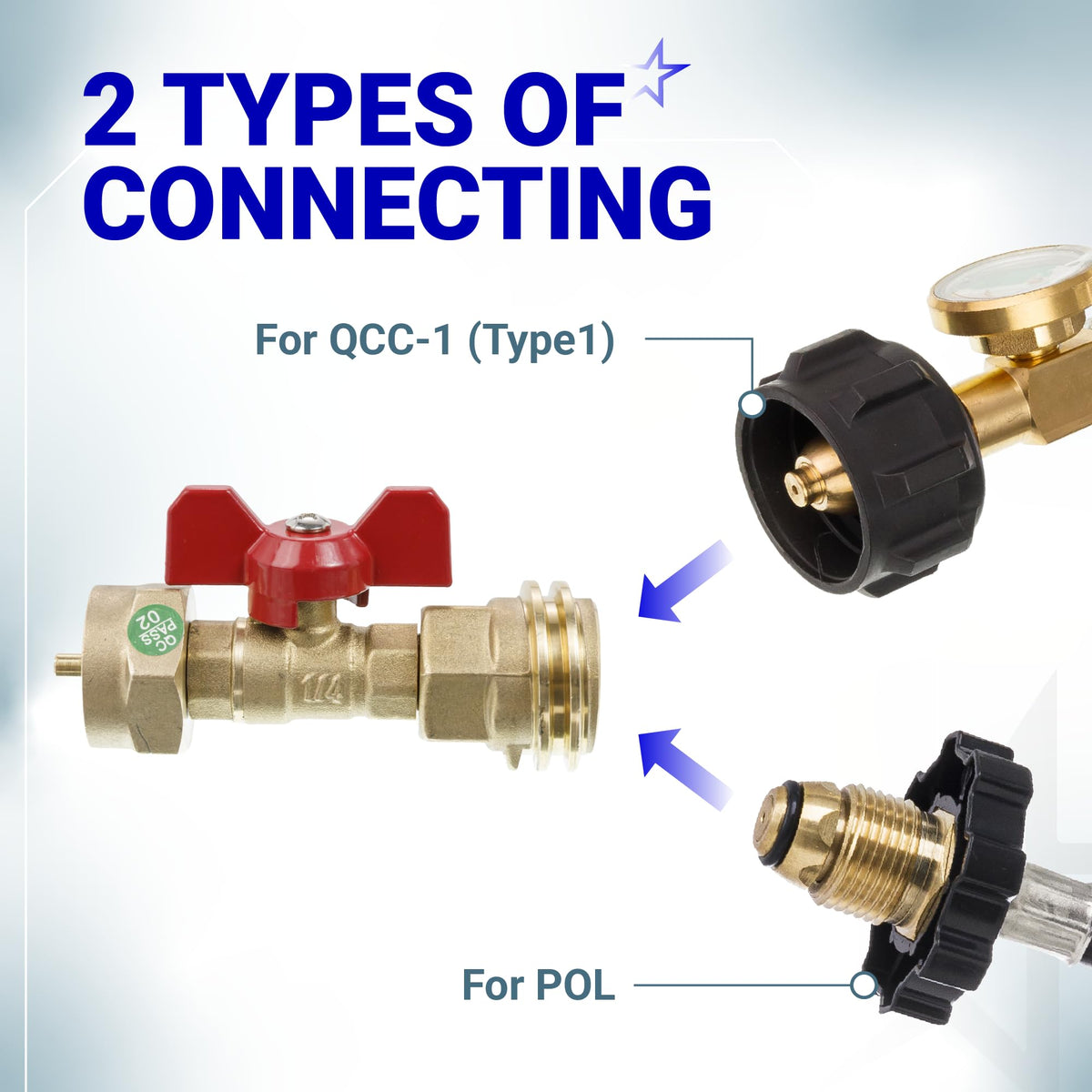

  • Universal Dual-Thread Inlet: Designed with a QCC1 / Type 1 male thread (outer) and a POL female thread (inner), allowing it to fit virtually any standard 20lb, 30lb, or 40lb propane tank.
  • Standard Disposable Outlet: Features a CGA600 connection that fits all standard 1lb (16.4oz) "camping" or "throwaway" green propane cylinders.
  • High-Pressure Safety Seal: Engineered with internal rubber gaskets and precision-cut threads to maintain a 100% airtight seal during high-pressure liquid propane transfer.

Replaces / Cross-Reference Part Numbers

  • 20lb to 1lb Propane Refill Adapter
  • QCC1 to CGA600 Converter
  • Propane Refill Valve with Shut-Off
  • Universal 1lb Cylinder Refill Tool

Compatibility & Fitment

This adapter is a universal tool for transferring fuel from bulk storage tanks to portable cylinders. Key compatibility includes:

  • Supply Tanks: Standard North American 20lb (BBQ), 30lb, and 40lb tanks (using QCC1 or POL connections).
  • Portable Cylinders: 1lb / 16.4oz disposable cylinders from brands like Coleman, Bernzomatic, and Worthington.
  • Applications: Ideal for powering portable heaters (e.g., Mr. Heater Buddy), camping stoves, lanterns, and tabletop grills without buying new bottles.

When to Replace

  • Gas Leaks: Hissing sounds or the smell of propane at the connection points; always perform a soapy water test if a leak is suspected.
  • Worn Threads: The brass threads become flattened, crossed, or stripped, preventing a secure hand-tightened connection.
  • Faulty Valve: The control lever becomes loose, stuck, or fails to completely stop the flow of gas when in the "Off" position.
  • Damaged Gaskets: The black rubber O-rings inside the fittings are cracked, dry-rotted, or missing entirely.
  • Physical Deformation: The adapter has been dropped or crushed, leading to an imbalance that prevents a flush seal.

Installation Tips

  • The Freezer Method: To achieve a "full" refill (liquid transfer), place the empty 1lb cylinders in a freezer for 30 minutes before refilling. Keep the 20lb tank in a warm area to maximize the pressure difference.
  • Invert the Tank: Propane is a liquid at the bottom of the tank. To refill a small bottle, the 20lb supply tank must be turned upside down during the transfer.
  • Hand Tighten Only: Brass is a soft metal; do not use pliers or a wrench. Hand-tightening is sufficient to engage the internal rubber seals.
  • Safety Monitoring: Use a digital scale to weigh the 1lb tank before and after. Do not exceed the original "full" weight (typically 27–30 oz total weight including the bottle). Never overfill.
  • Outdoor Use Only: Refilling propane must be done in a well-ventilated outdoor area. Propane vapor is heavier than air and can collect in low spots or garages, creating a fire hazard.

FAQ

This adapter is designed to let equipment that normally uses a 1 lb / 16.4 oz disposable propane cylinder connect to a larger 20 lb tank. It fits the small-cylinder CGA600 / 1"-20 disposable-bottle style connection on the appliance side and connects to a standard 20 lb tank valve using QCC1 / Type 1 and POL tank threads.
It is commonly used with portable propane appliances that are built for 1 lb bottles, such as camp stoves, tabletop grills, propane lanterns, heaters, and other outdoor devices that use the standard CGA600 disposable-cylinder connection. Always confirm your appliance is designed for low-pressure propane from a 1 lb cylinder connection before use.
Check both ends before ordering. Your appliance must accept a 1 lb / 16.4 oz disposable-cylinder style connection, commonly called CGA600 or 1"-20. Your larger propane tank should be a standard refillable cylinder with either external QCC1 / Type 1 threads or internal POL threads. If those connection types match, this adapter should be the correct style.
Yes. An adapter with its own valve helps control gas flow during hookup and removal. That can make it easier to connect a larger tank to a small-bottle appliance setup while reducing the chance of releasing gas when disconnecting. After installation, open the tank valve slowly and check all connections for leaks with a soap-and-water solution.
This type of adapter is useful if you already have an appliance that runs on 1 lb / 16.4 oz cylinders but want longer runtime, fewer bottle changes, or to use a standard 20 lb propane tank you already own. It is a connection conversion part, not a regulator repair part, so it is meant for matching different tank sizes rather than fixing weak flame or ignition problems caused by the appliance itself.
Installation is usually straightforward and often tool-free. Thread the adapter onto the propane tank, attach the appliance-side fitting to the adapter, and tighten securely by hand unless the equipment manufacturer specifies otherwise. Most setups take only a few minutes. Before lighting the appliance, perform a leak check on every connection.
Inspect the tank valve, adapter threads, and sealing surfaces for dirt, damage, or worn gaskets. Make sure the appliance burner controls are off before opening the propane tank. Connect everything outdoors or in a well-ventilated area, open the tank valve slowly, and test for leaks with soapy water. If bubbles form, shut off the gas and reconnect before use.
