House Parts [Lifetime Warranty] V-15-1C25 Micro Limit Switch Blade Momentary - 250VAC/125VDC 15A | Pack of 10
Pack of ten V-15-1C25 momentary micro limit switches with blade terminals.
V-15-1C25 micro limit switch with dimensions and technical specifications diagram.
V-15-1C25 micro limit switch with blade actuator shown in a promotional product graphic.
Close-up of V-15-1C25 micro limit switch showing terminal pins and material specifications.
Diagram showing NC and NO wiring installation for V-15-1C25 micro limit switch with power supply and equipment.
Collage showing various home appliances and a car interior to demonstrate the versatile compatibility of the limit switch.
Family reading a book by the fireplace with text overlay promoting precision control and reliable performance.
Pack of ten V-15-1C25 momentary micro limit switches with blade terminals.
V-15-1C25 micro limit switch with dimensions and technical specifications diagram.
V-15-1C25 micro limit switch with blade actuator shown in a promotional product graphic.
Close-up of V-15-1C25 micro limit switch showing terminal pins and material specifications.
Diagram showing NC and NO wiring installation for V-15-1C25 micro limit switch with power supply and equipment.
Collage showing various home appliances and a car interior to demonstrate the versatile compatibility of the limit switch.
Family reading a book by the fireplace with text overlay promoting precision control and reliable performance.
Lifetime Warranty

[Lifetime Warranty] V-15-1C25 Micro Limit Switch Blade Momentary - 250VAC/125VDC 15A | Pack of 10

Save 13%
0.00
$13.40
$15.41
$13.40
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

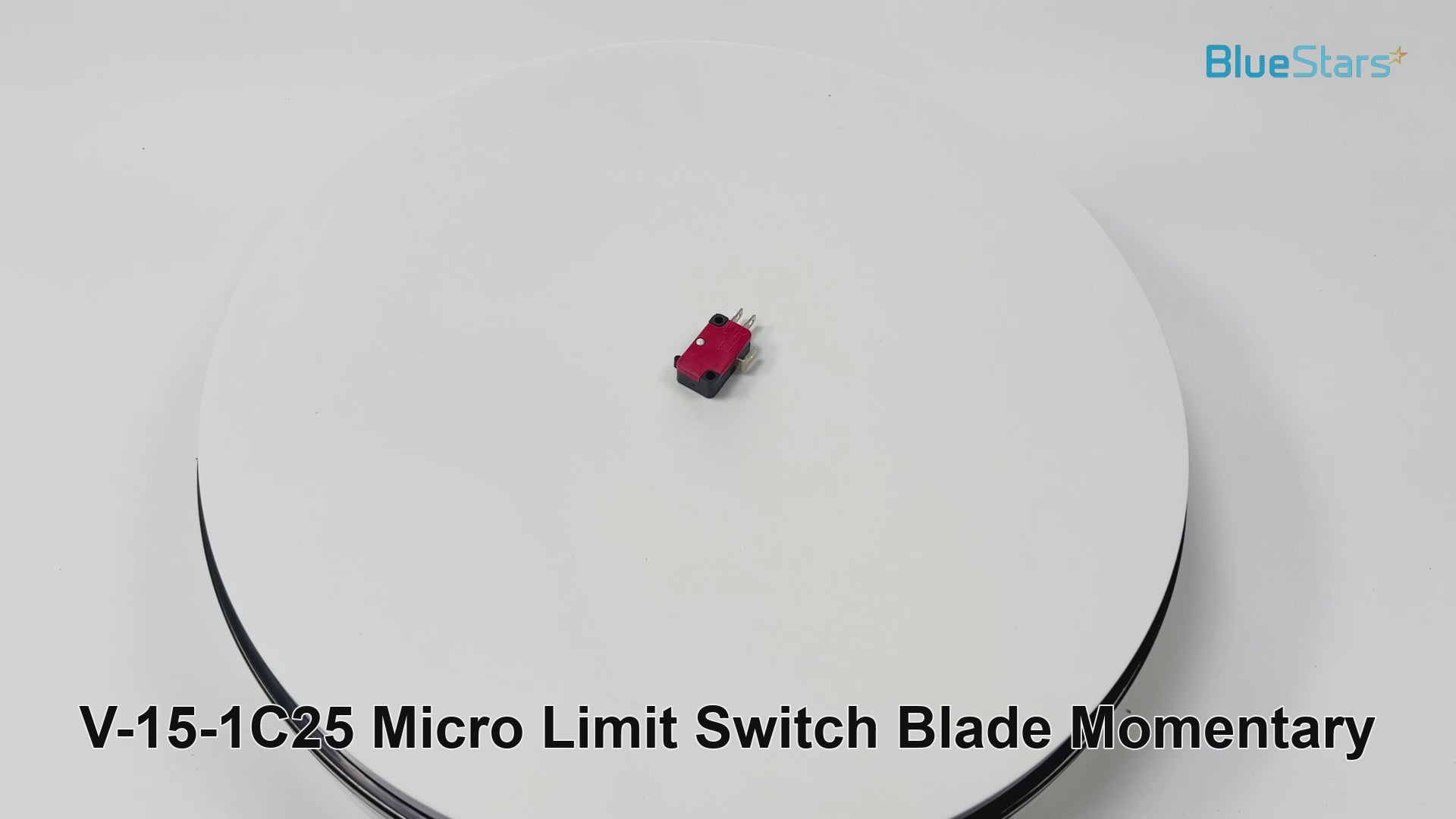

V-15-1C25 Micro Limit Switch Blade Momentary

Key Features

  • Model Number: V-15-1C25
  • Switch Type: SPDT (Single Pole, Double Throw)
  • Contact Configuration: 1 NO (Normally Open), 1 NC (Normally Closed)
  • Action Type: Momentary, snap action
  • Actuator Type: Short hinge lever
  • AC Rating: 15A, 1/2HP at 125/250VAC
  • DC Rating: 0.6A at 125VDC, 0.3A at 250VDC
  • Body Dimensions: 3.8 x 2.1 x 1cm (L*W*H)
  • Construction: Plastic body and metal components

Replaces / Cross-Reference Part Numbers

  • Direct replacement for switches marked with V-15-1C25

Compatibility & Fitment

  • Designed for a wide range of applications including:
  • Appliance controls
  • DIY electronics projects (e.g., Arduino)
  • Industrial machinery
  • General purpose electrical equipment

When to Replace

  • Switch no longer actuates or provides an audible click.
  • Circuit operates intermittently or unreliably.
  • Visible physical damage, such as a broken lever or cracked housing.
  • Continuity tests fail for Normally Open or Normally Closed positions.

Installation Tips

  • Disconnect all power to the device before beginning installation.
  • Verify the voltage and current ratings of the new switch are appropriate for the application.
  • Ensure the actuator aligns correctly with the machine's moving components.
  • Securely fasten electrical connections to the terminals.
  • Test the switch functionality before restoring full power to the equipment.
Product image 1
Product image 2
Product image 1
Product image 2
  • PRECISION CONTROL

    PRECISION CONTROL

    BlueStars's Limit switches feature 3 terminals and are primarily designed to control the movement of mechanical parts.
  • DURABLE BUILD

    DURABLE BUILD

    It is equipped with high-quality aluminum alloy and thermoplastic materials for superior conductivity and high reliability.
  • EASY TO INSTALL

    EASY TO INSTALL

    Installing a Limit Switch is easy for any DIY handyman and takes only 30 seconds.
  • SAVING SOLUTION

    SAVING SOLUTION

    BlueStars brings DIY solutions to help you deal with any trouble.
CONNECTING LIVES, ENERGIZING MOMENTS

CONNECTING LIVES, ENERGIZING MOMENTS

BlueStars - #1 source of high-quality electrical parts
Color
Red / Black / Silver
Material
Plastic / Metal
Actuator Type
Push Button (Plunger) — Momentary / Snap Action
Contact Configuration
SPDT (1NO + 1NC) — 3 Terminals
AC Rating
15A / 1/2HP / 125V & 250V AC
DC Rating
0.6A / 125V DC | 0.3A / 250V DC
Body Size (L x W x H)
28 x 16 x 10mm (1.1" x 0.63" x 0.39")
Button Height
~3mm (0.12")
Mounting Hole Diameter
~3mm (0.12")
Operation Speed
0.1mm/s – 1m/s
Operating Temperature
-25°C to +85°C
Mechanical Life
10,000,000 operations min.
Electrical Life
100,000 operations min. (full load)

FAQ

This switch is rated for 15A at 125/250VAC. For DC applications, it is rated for 0.6A at 125VDC and 0.3A at 250VDC.
This is a Single Pole Double Throw (SPDT) switch with 1 Normally Open (NO) and 1 Normally Closed (NC) contact. It features three 3/16" (4.8mm) standard male spade connectors for the common, NO, and NC terminals.
The V-15-1C25 is a pin plunger style micro switch designed for screw mounting. It is a miniature snap-action switch with a momentary actuation.
Common signs of failure include the equipment failing to start, intermittent operation, or the device remaining stuck in the 'on' or 'off' position. You can test the switch using a multimeter set to continuity mode; with the power disconnected, check for a closed circuit across the common and NO terminals when the plunger is pressed, and across the common and NC terminals when the plunger is released.
Ensure the power source is completely disconnected before beginning installation. Inspect the wiring harness for signs of heat damage, corrosion, or frayed insulation at the spade connectors. If the connectors are loose, crimp them slightly with needle-nose pliers to ensure a tight, secure fit on the new switch terminals.
