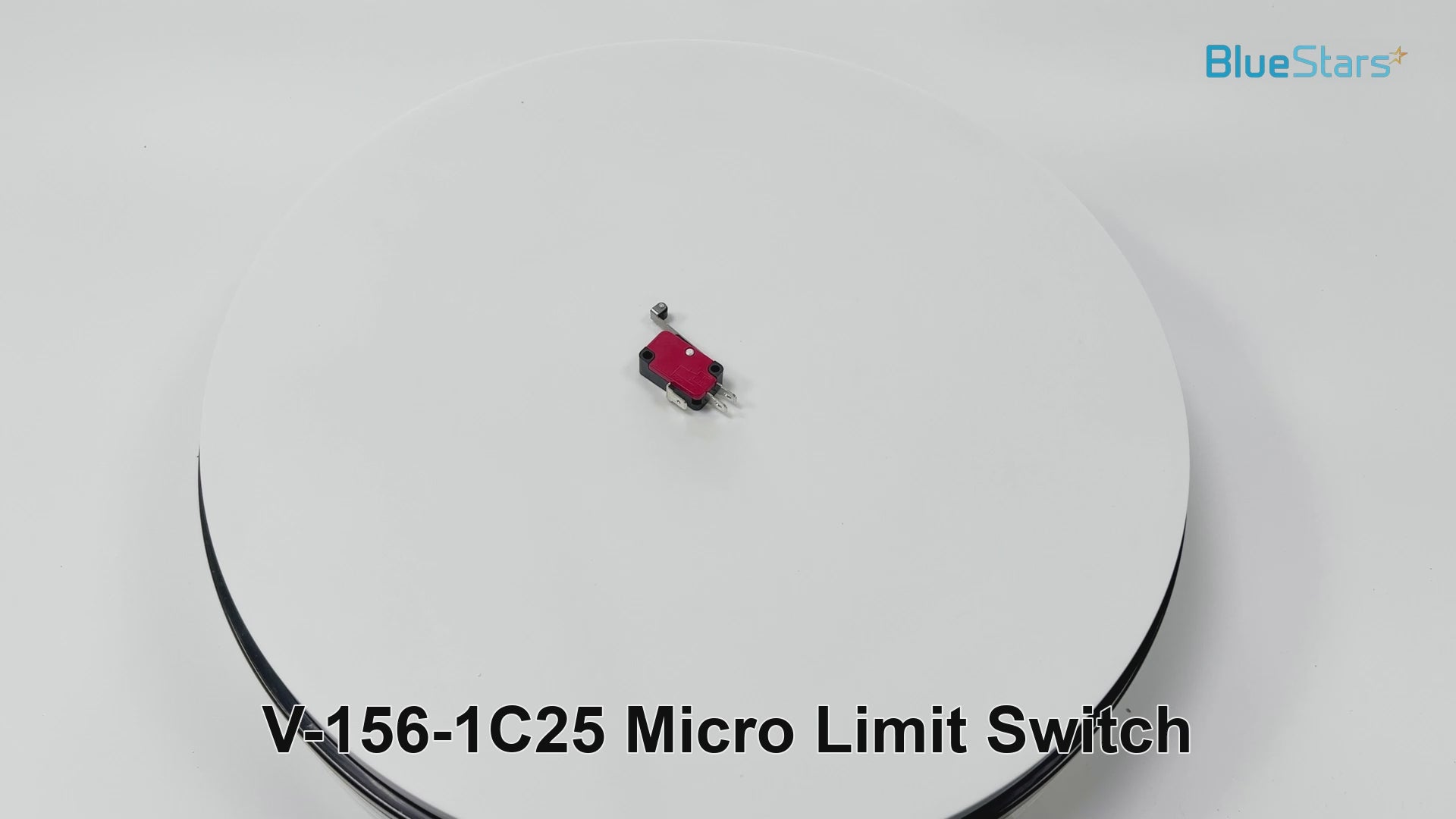

V-156-1C25 Micro Limit Switch Blade Momentary 250VAC/125VDC 15A
Key Features
- Model: V-156-1C25
- Contact Configuration: SPDT (Single-Pole, Double-Throw)
- Switch Action: Momentary
- Actuator Type: Long hinge roller lever
- Terminal Count: 3 (Common, Normally Open, Normally Closed)
- AC Rating: 15A at 125/250VAC
- DC Rating: 0.5A at 125VDC; 0.25A at 250VDC
Replaces / Cross-Reference Part Numbers
- SS-5GL2
- SS-5GL
- SHL-W155-01
- D4CC-3022
- LSE7T
- KW11-3Z-1
- KW11-7-3Z
- PC-H005-D
- ZM-V156-1C25
- TM-V156
Compatibility & Fitment
- Designed for automation, appliances, and general electrical equipment
- Suitable for controlling the movement of mechanical parts in various systems
- Compatible with electronic development boards including Arduino, ESP32, ESP8266, and Raspberry Pi
When to Replace
- Switch fails to actuate or reset consistently
- Circuit remains open or closed regardless of actuator position
- Intermittent or unreliable electrical contact during operation
- Visible signs of physical damage, arcing, or corrosion
Installation Tips
- Disconnect power from the equipment before installation.
- Ensure the actuator is correctly aligned with the moving part it is intended to contact.
- Verify wiring to the Common (C), Normally Open (NO), and Normally Closed (NC) terminals based on circuit requirements.
- Operate the switch within its specified voltage and current ratings.
- Secure the switch body to a fixed surface to prevent movement.
-
PRECISION CONTROL
BlueStars's Limit switches feature 3 terminals and are primarily designed to control the movement of mechanical parts. -
DURABLE BUILD
It is equipped with high-quality aluminum alloy and thermoplastic materials for superior conductivity and high reliability. -
EASY TO INSTALL
Installing a Limit Switch is easy for any DIY handyman and takes only 30 seconds. -
SAVING SOLUTION
BlueStars brings DIY solutions to help you deal with any trouble.
CONNECTING LIVES, ENERGIZING MOMENTS
BlueStars - #1 source of high-quality electrical parts
Color
Black
Material
Thermosetting Plastic (body) / Metal (contacts & lever)
Contact Configuration
SPDT (1NC + 1NO) — 3 Terminals
AC Rating
15A / 250V AC
DC Rating
0.6A / 125V DC | 0.3A / 250V DC
Actuator Type
Hinge Roller Lever (Long Straight) — Momentary / Snap Action
Operating Force (OF)
Max 250g
Return Force (RF)
Min 25g
Pre-Travel (PT)
Max 4.0mm
Over-Travel (OT)
Min 1.6mm
Operating Position (OP)
20.7 ±1.2mm
Operating Speed
0.1mm/s – 1m/s
Item Weight
~50g
