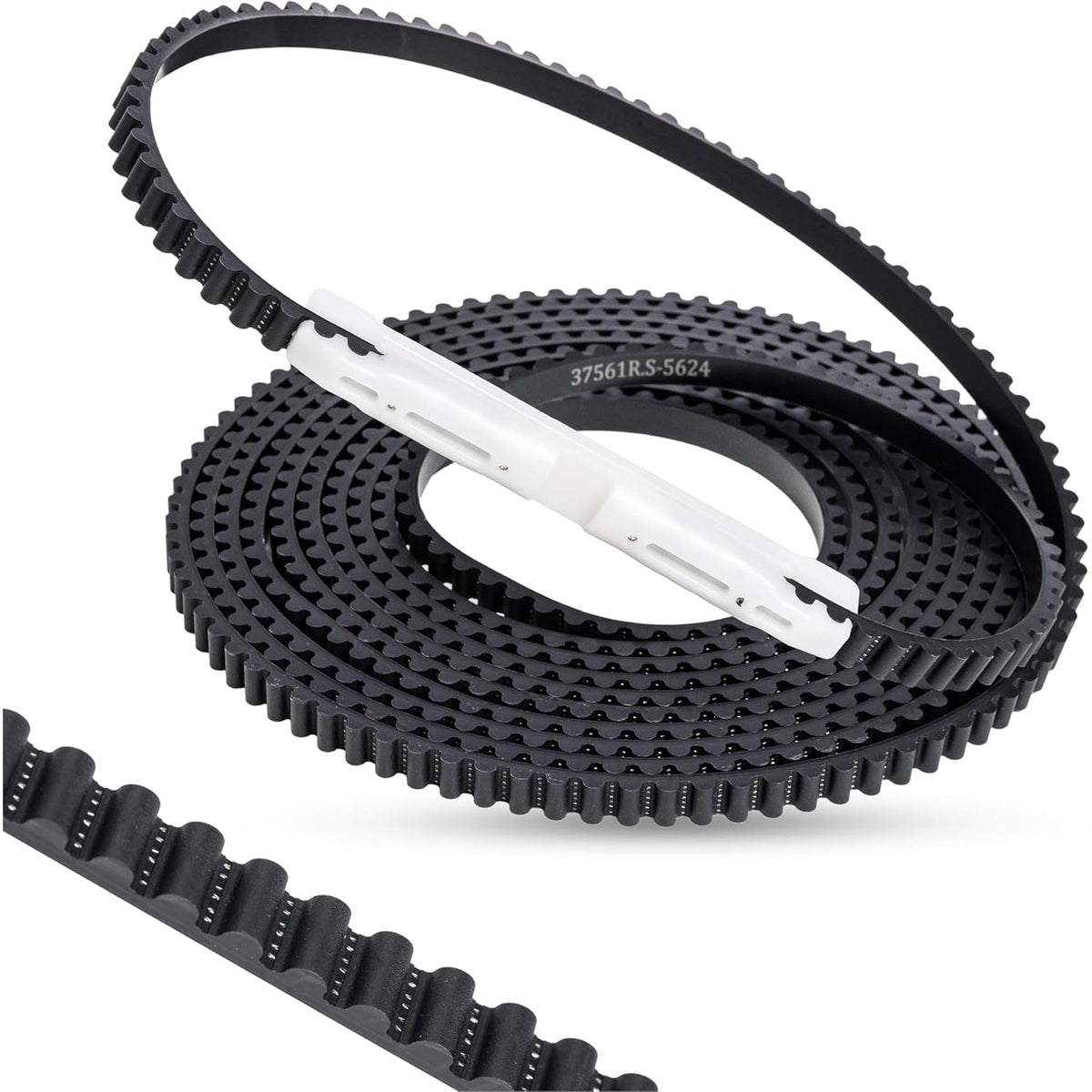

37561R.S replacement belt for 7ft garage door opener with white plastic connector and ribbed texture.

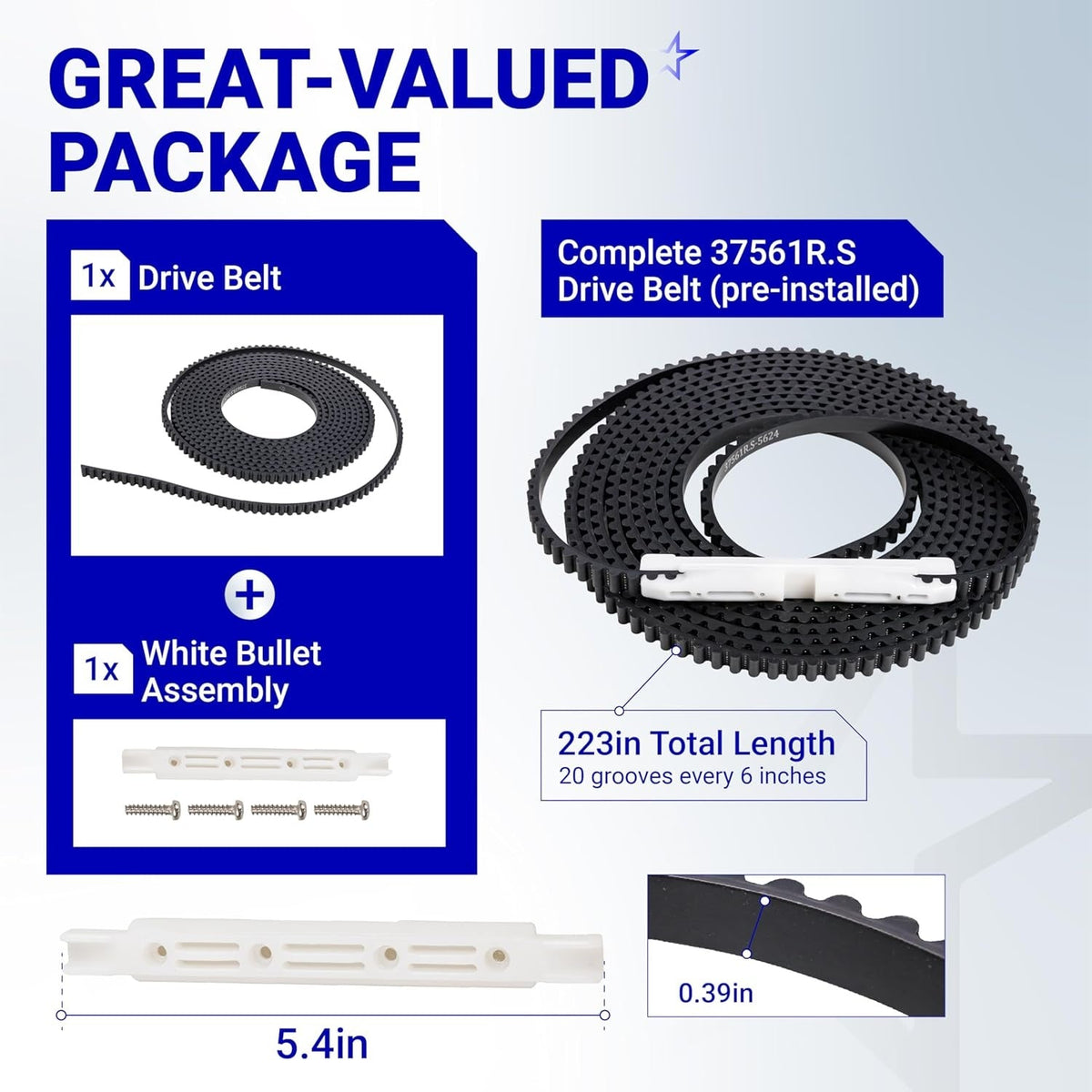

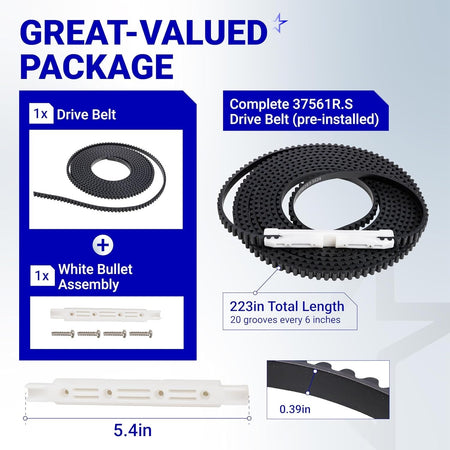

37561R.S garage door drive belt kit with pre-installed white bullet assembly and dimensions.
37561R.S replacement drive belt for 7ft garage door openers coiled with white connector.

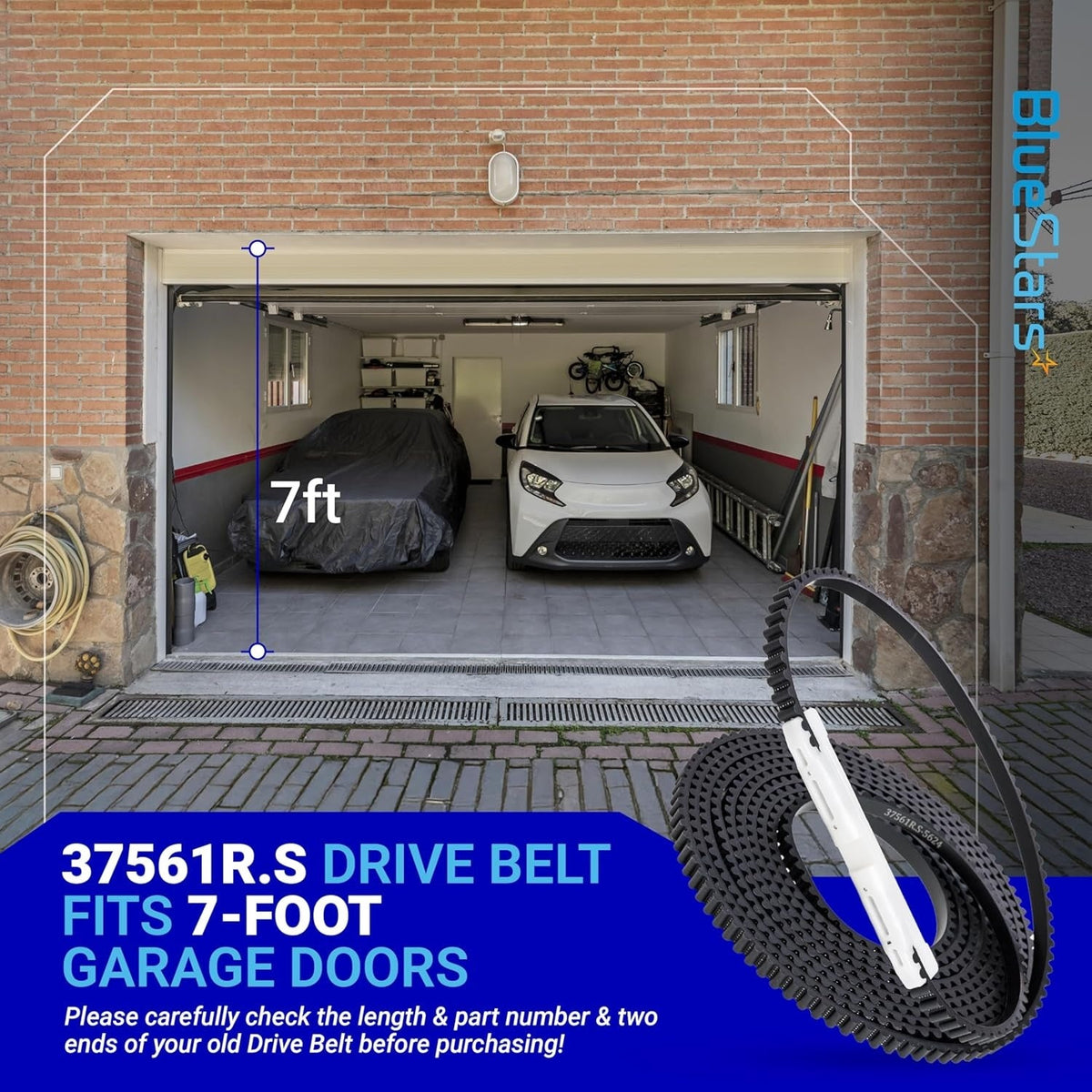

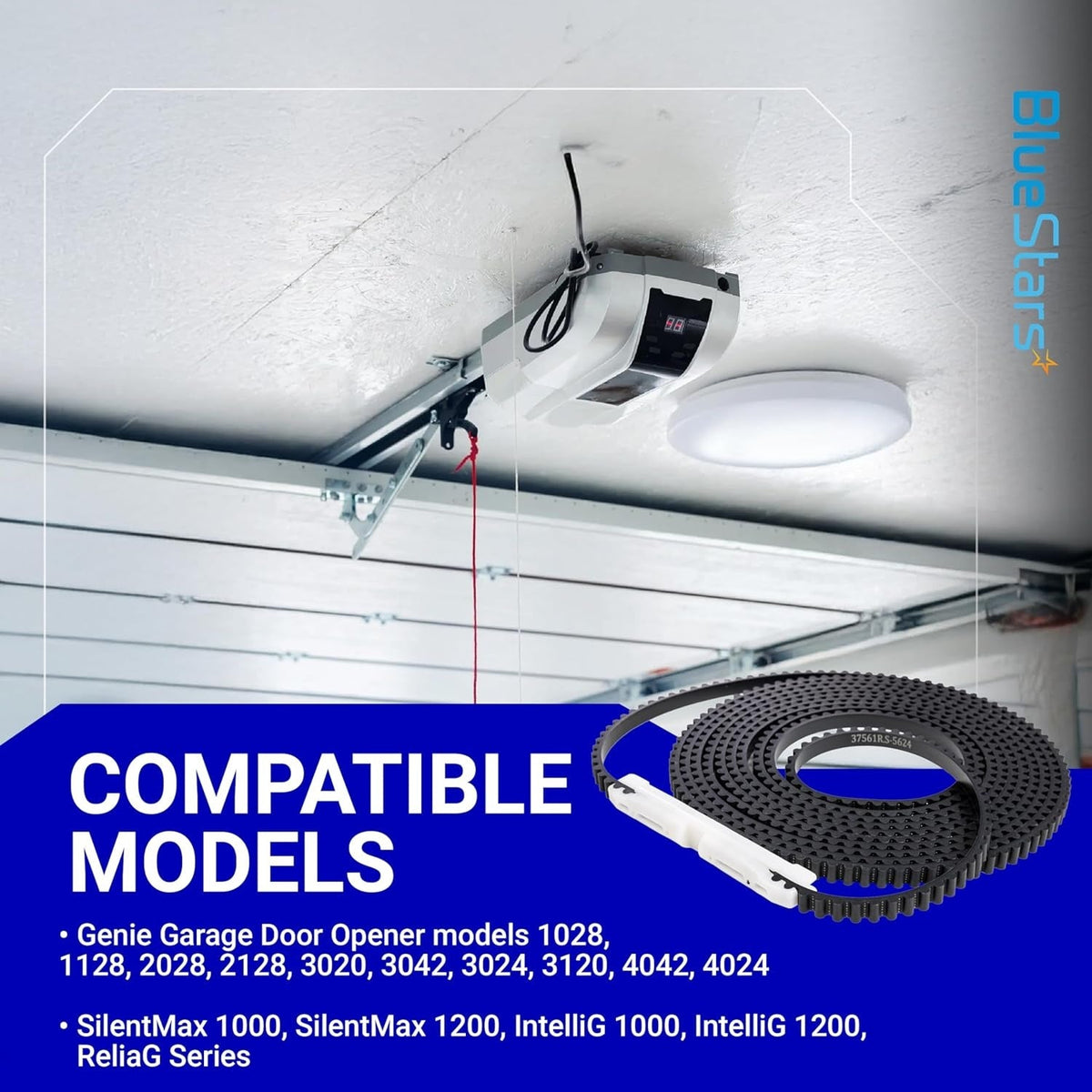

37561R.S replacement belt for 7ft garage door opener shown with compatible Genie model list.

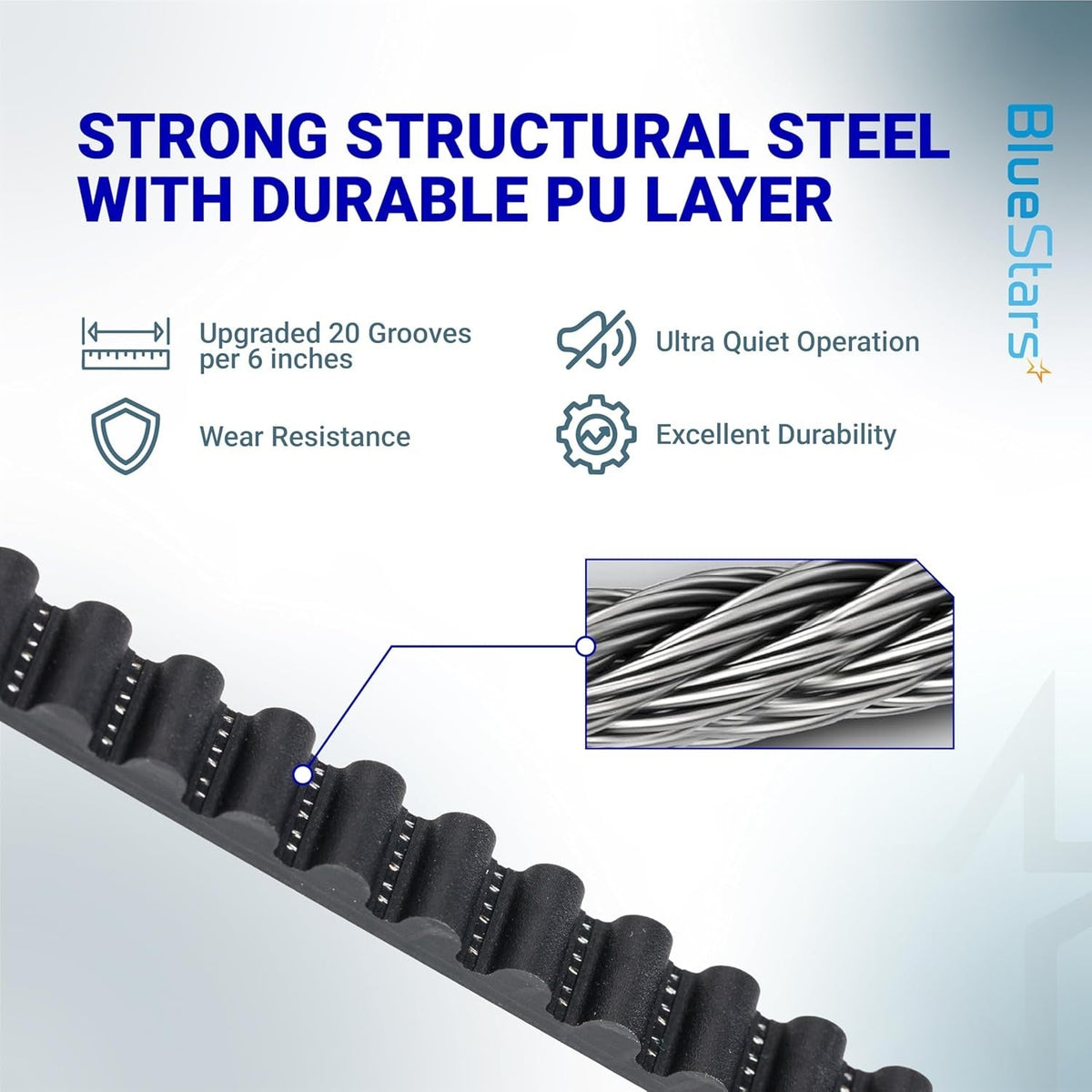

Infographic showing structural steel and PU layer construction of 37561R.S garage door belt.
Installation guide for 37561R.S garage door opener belt showing steps and component placement.
Comparison chart showing 37561R.S garage door belt noise reduction with 20 grooves per 6 inches for silent operation.
37561R.S replacement belt for 7ft garage door opener shown with a woman using a remote to open a garage door.

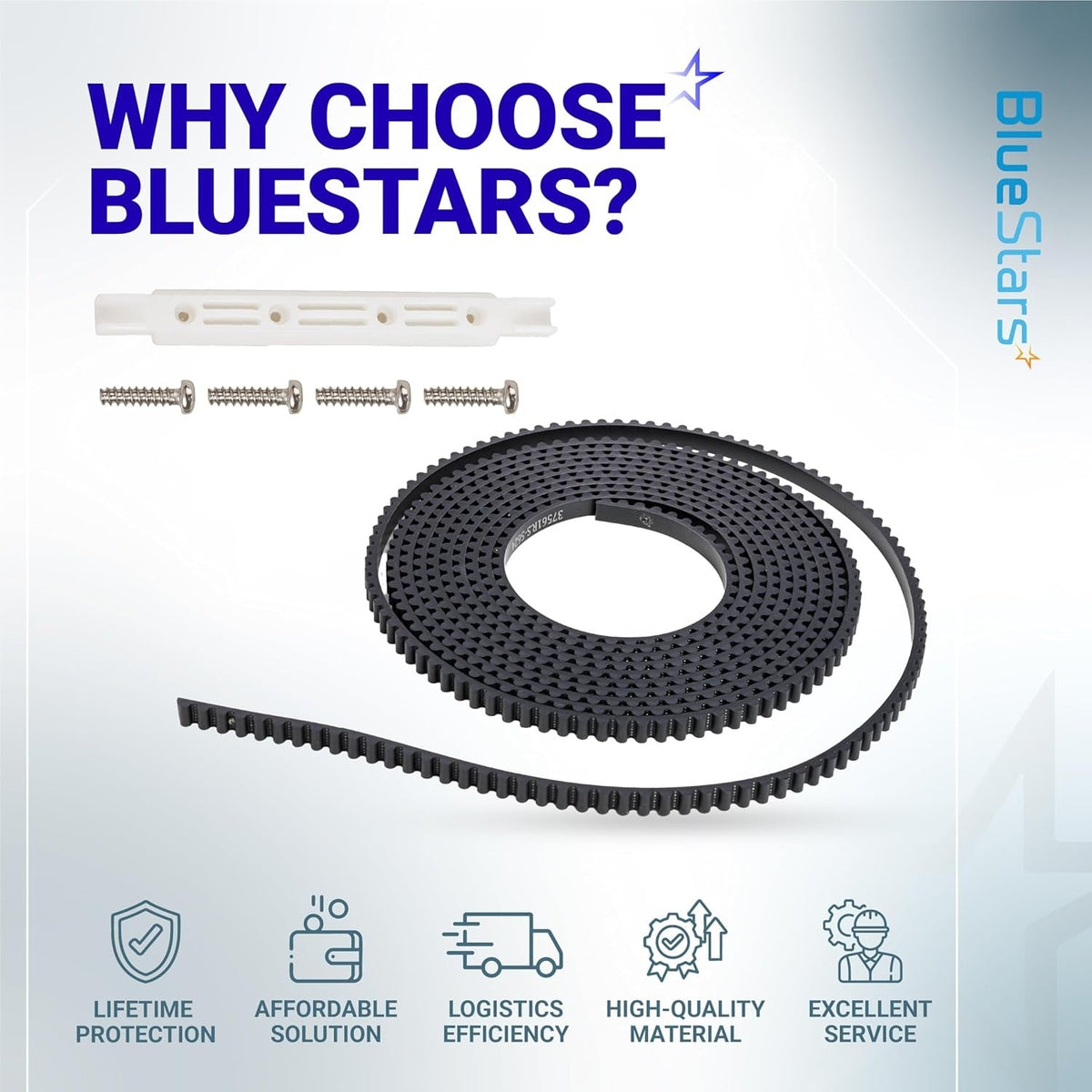

37561R.S garage door belt replacement kit with mounting bracket and screws for 7ft garage door openers.
37561R.S replacement belt for 7ft garage door opener with white plastic connector and ribbed texture.
37561R.S garage door drive belt kit with pre-installed white bullet assembly and dimensions.
37561R.S replacement drive belt for 7ft garage door openers coiled with white connector.
37561R.S replacement belt for 7ft garage door opener shown with compatible Genie model list.
Infographic showing structural steel and PU layer construction of 37561R.S garage door belt.
Installation guide for 37561R.S garage door opener belt showing steps and component placement.
Comparison chart showing 37561R.S garage door belt noise reduction with 20 grooves per 6 inches for silent operation.
37561R.S replacement belt for 7ft garage door opener shown with a woman using a remote to open a garage door.
37561R.S garage door belt replacement kit with mounting bracket and screws for 7ft garage door openers.
Lifetime Warranty

[Lifetime Warranty] 37561R.S Belt & Bullet Assembly 223" - Compatible with Genie SilentMax 1000 1200, IntelliG 1000 1200, ReliaG Belt-Drive Opener for 7 Ft Door 1028 2028 3020 3042 3024 3120

Save 13%
0.00
$70.12
$80.64
$70.12
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

37561R.S Belt & Bullet Assembly (223")

Key Features

  • Total Length: 223 inches
  • Design: 20 grooves per 6 inches for reduced operational noise
  • Application: For belt-drive garage door openers
  • Includes: 1 drive belt with pre-installed bullet assembly

Replaces / Cross-Reference Part Numbers

  • Genie: 37561R.S, GEN-37561R.S

Compatibility & Fitment

  • Door Height: Standard 7-foot residential garage doors
  • Rail Type: C-Channel belt drive rails
  • Brand: Genie
  • Genie Models: 1028, 1128, 2028, 2128, 3020, 3024, 3042, 3120, 4024, 4042
  • Genie Series: SilentMax 1000, SilentMax 1200, IntelliG 1000, IntelliG 1200

When to Replace

  • Visible damage such as fraying, cracking, or missing teeth on the belt
  • Opener motor runs but the door does not move or moves erratically
  • Excessive slack or stretching in the belt, causing slipping
  • Increased noise, grinding, or slapping sounds during operation

Installation Tips

  • Disconnect all power to the garage door opener before beginning service.
  • Release the door from the opener carriage to move it manually.
  • Loosen the belt tensioner to provide slack for removing the old belt.
  • Ensure the bullet assembly is correctly seated in the traveler/shuttle mechanism.
  • Adjust the tension of the new belt according to the manufacturer's specifications.
Product image
Product image
Product image
Product image
COMPATIBLE MODELS

COMPATIBLE MODELS

Genie Garage Door Opener models 1028, 1128, 2028, 2128, 3020, 3042, 3024, 3120, 4042, 4024. SilentMax 1000, SilentMax 1200, IntelliG 1000, IntelliG 1200, ReliaG Series. NOTE: This is a replacement part. Any brand names mentioned are used solely to indicate compatibility.
4 SIMPLE STEPS

4 SIMPLE STEPS

1. Unplug the garage door opener & shut the garage door; 2. Remove your old Drive Belt; 3. Install our new Drive Belt; 4. Plug in the garage door opener, test running & adjust the belt rail for proper performance; Please put on work gloves & safety glasses before installation.
FOLLOW THESE TIPS FOR PROPER INSTALLATION

FOLLOW THESE TIPS FOR PROPER INSTALLATION

1. Check Belt Positioning: Ensure the belt is seated correctly in the track and wrapped around all required pulleys and guide pins; 2. Align the Bullet Assembly: Make sure the bullet assembly (white plastic piece) is positioned exactly at the center alignment point; 3. Adjust for Belt Length Variance: A small length variance (±8 mm) is normal, please adjust the tensioner. If still a bit long, trim the excess end and reattach the bullet assembly.

FAQ

This belt is used on various Genie garage door openers for 7-foot-high doors that use a C-channel or belt rail system. Commonly referenced compatible models include Genie 1028, 1128, 2028, 2128, 3020, 3024, 3042, SilentMax 1000, SilentMax 1200, IntelliG 1000, and IntelliG 1200. Compatibility should be confirmed by your opener model number and rail type, since not every 7-foot Genie opener uses the same drive setup.
The primary replacement number identified for this belt assembly is 37561R.S. It is commonly described as a belt-and-bullet assembly for 7-foot Genie garage door opener rail systems. If you are replacing an existing belt, match the full part number on your original part and confirm your opener model before ordering.
Common signs include a loose or broken belt, the opener motor running while the door does not move properly, skipping or jerky door travel, abnormal slapping or rubbing noises from the rail, or visible belt wear such as fraying, cracks, or missing teeth/grooves. If the belt has separated from the bullet connection or has excessive slack that cannot be corrected with adjustment, replacement is usually needed.
37561R.S is commonly identified as a one-piece belt with the bullet attached. That matters because some Genie systems use a belt-and-bullet assembly rather than a plain belt by itself. Before ordering, compare your current part to make sure your opener uses this attached-bullet style.
Installation is usually a moderate repair for a DIYer. Expect roughly 30 to 90 minutes depending on opener layout and whether the rail has to be partially disassembled. Typical tools may include wrenches or sockets, screwdrivers, and possibly pliers. Always disconnect power to the opener before starting, and follow the opener's belt tension and rail reassembly procedure so the door travels smoothly afterward.
Before installing a new belt, inspect the rail, trolley, pulley/idler area, belt path, and mounting hardware for wear or damage. Also make sure the garage door itself moves smoothly by hand and is properly balanced, because a sticking or heavy door can overload the opener and shorten belt life. If the old belt failed prematurely, check for misalignment, seized rollers, or excessive belt tension.
This belt is intended for Genie opener setups on 7-foot-high garage doors. Some listings reference an overall belt length of about 223 inches, but the most important match points are the opener model, the 7-foot door application, and the correct Genie belt rail/C-channel configuration. Do not choose by door height alone if your opener model or rail style differs.
