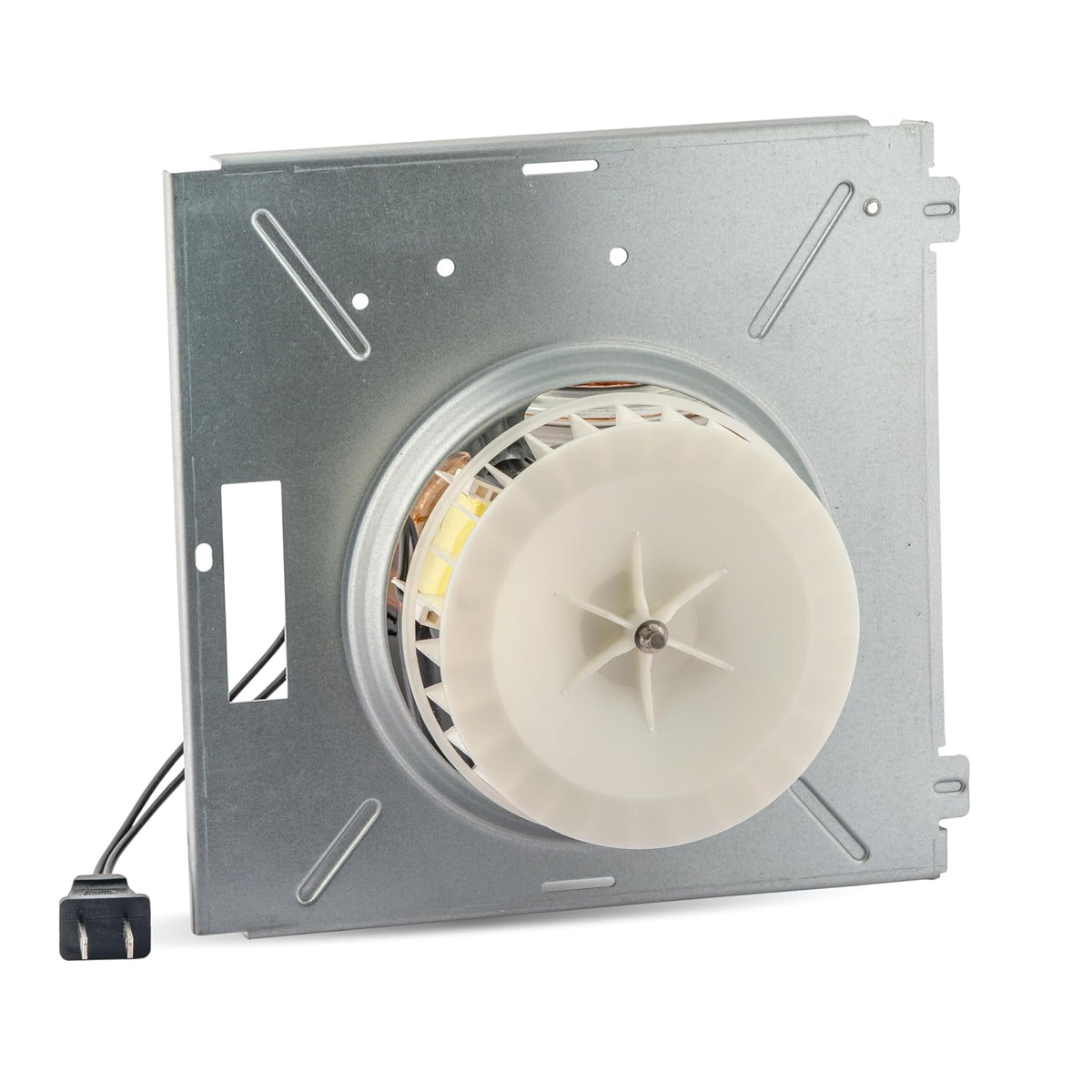

Bathroom exhaust fan motor assembly S0504B000 with attached blower wheel and metal mounting plate.

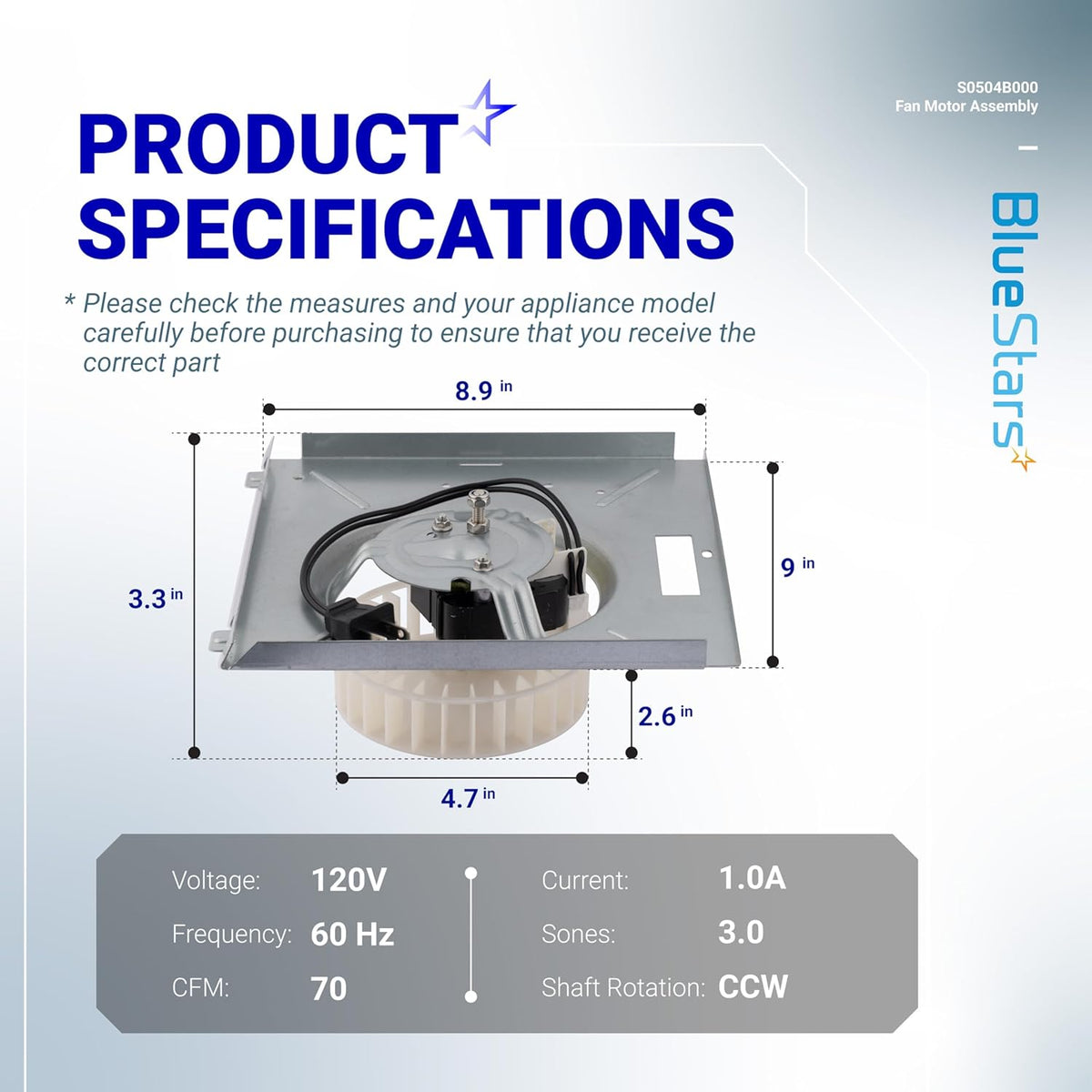

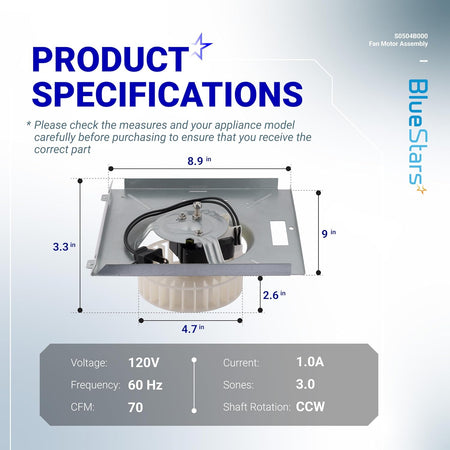

Bathroom exhaust fan motor assembly S0504B000 with technical dimension specifications and electrical ratings.

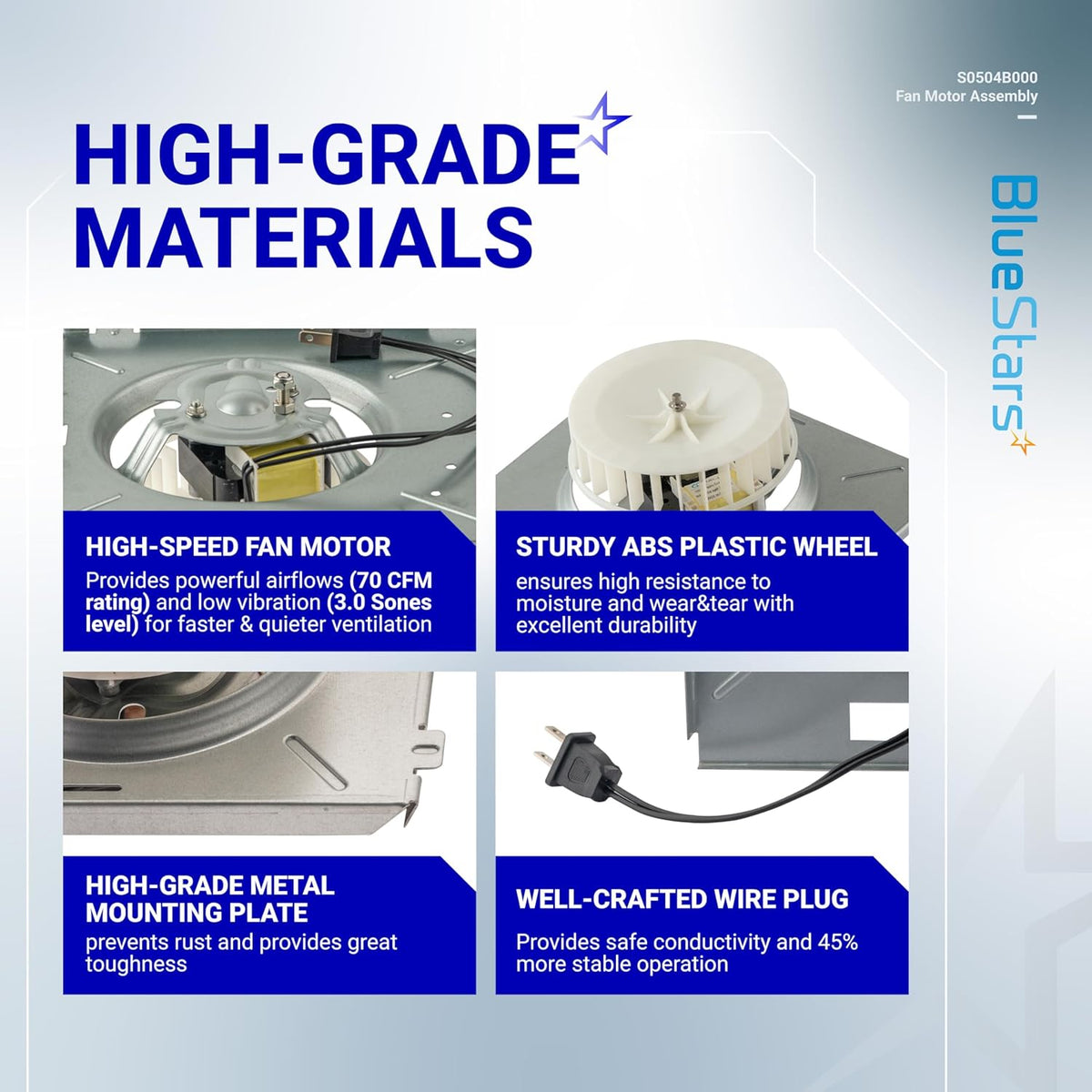

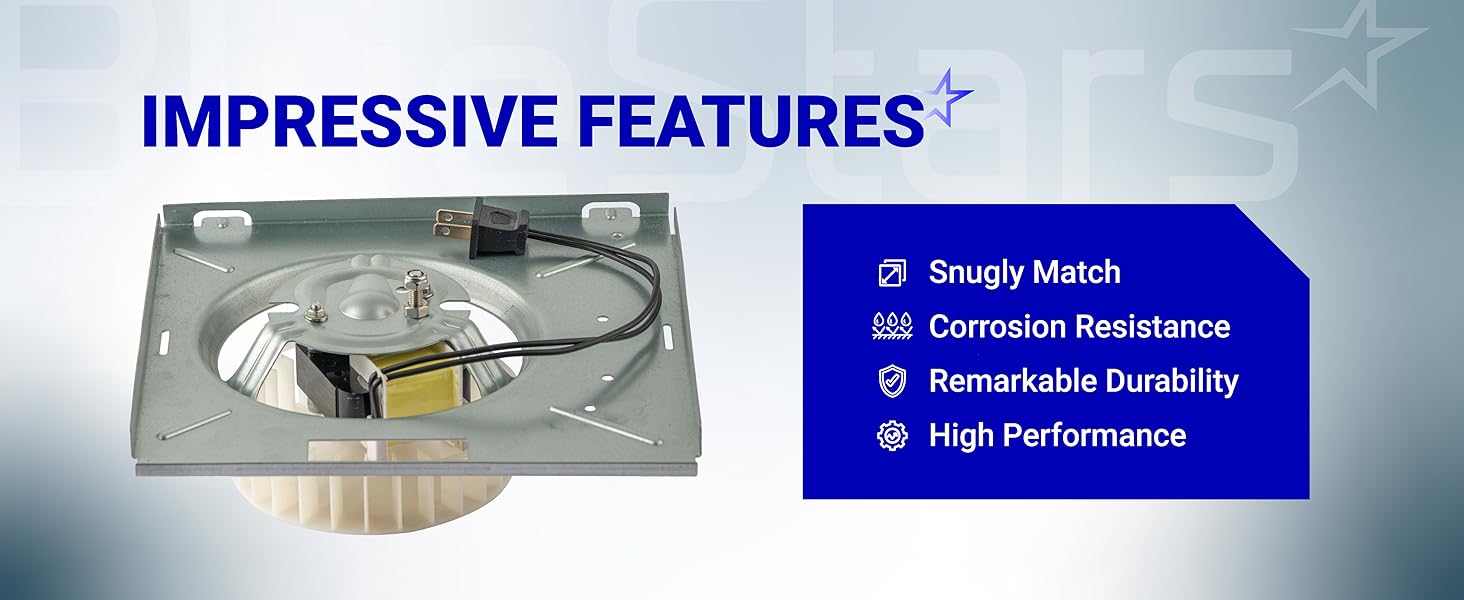

Infographic showing high-grade components of the S0504B000 bathroom exhaust fan motor assembly.

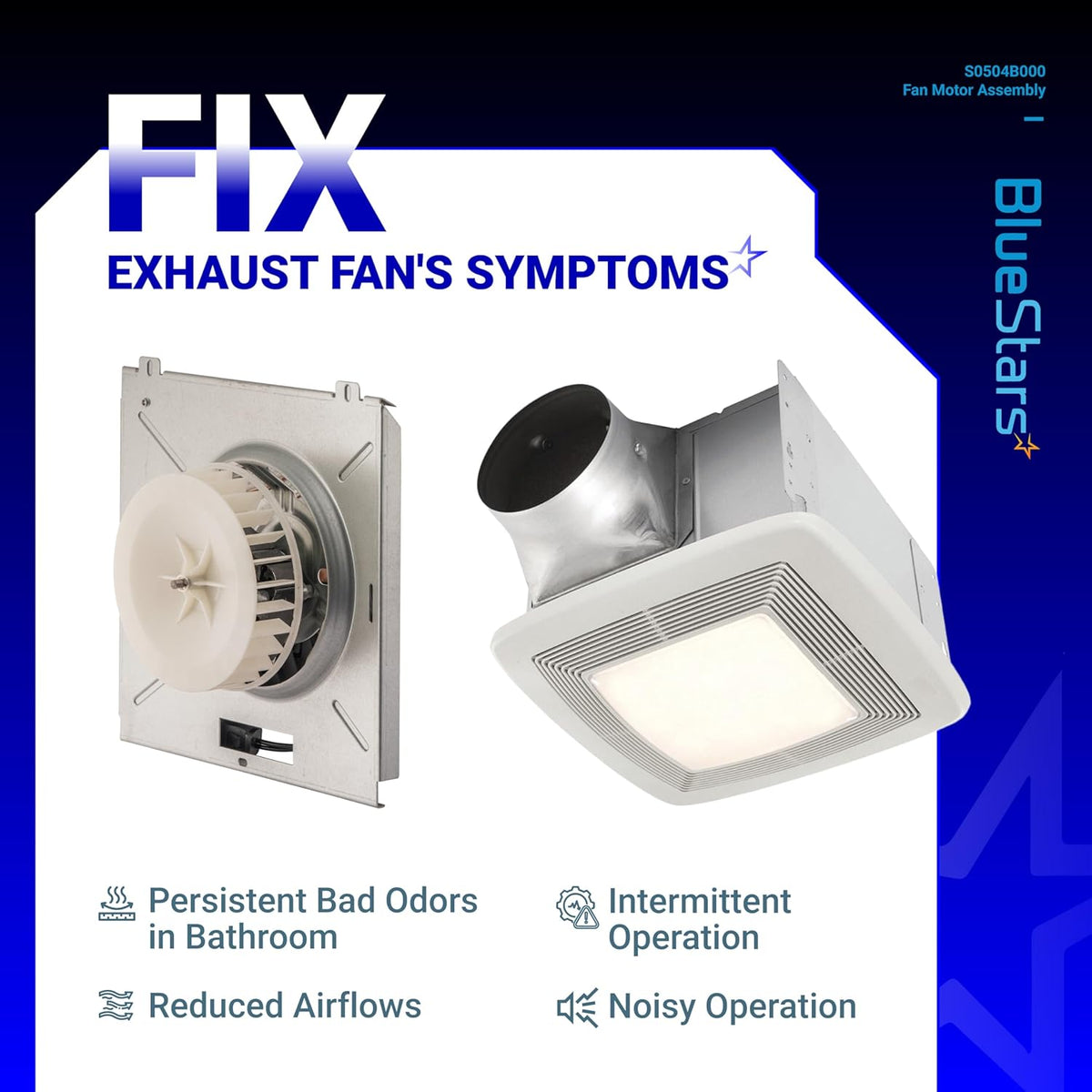

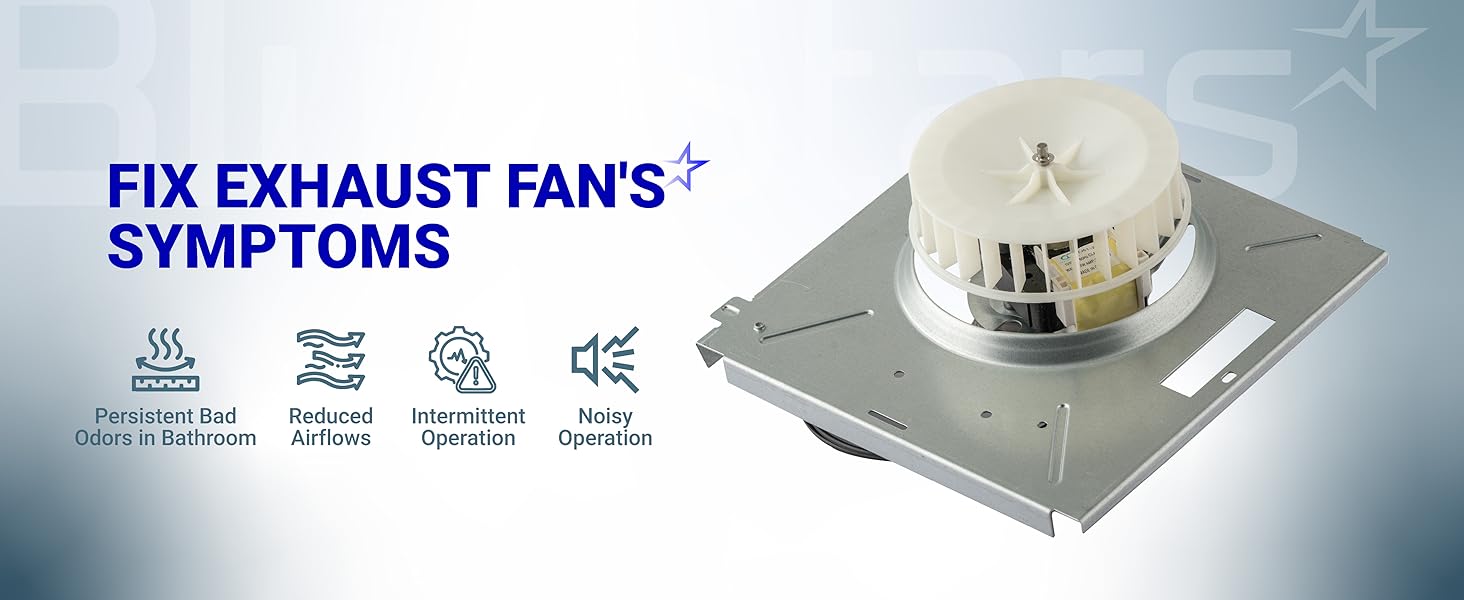

Infographic showing S0504B000 bathroom exhaust fan motor assembly and full fan unit to troubleshoot common fan symptoms.
S0504B000 bathroom exhaust fan motor assembly with blower wheel shown in a promotional product graphic.

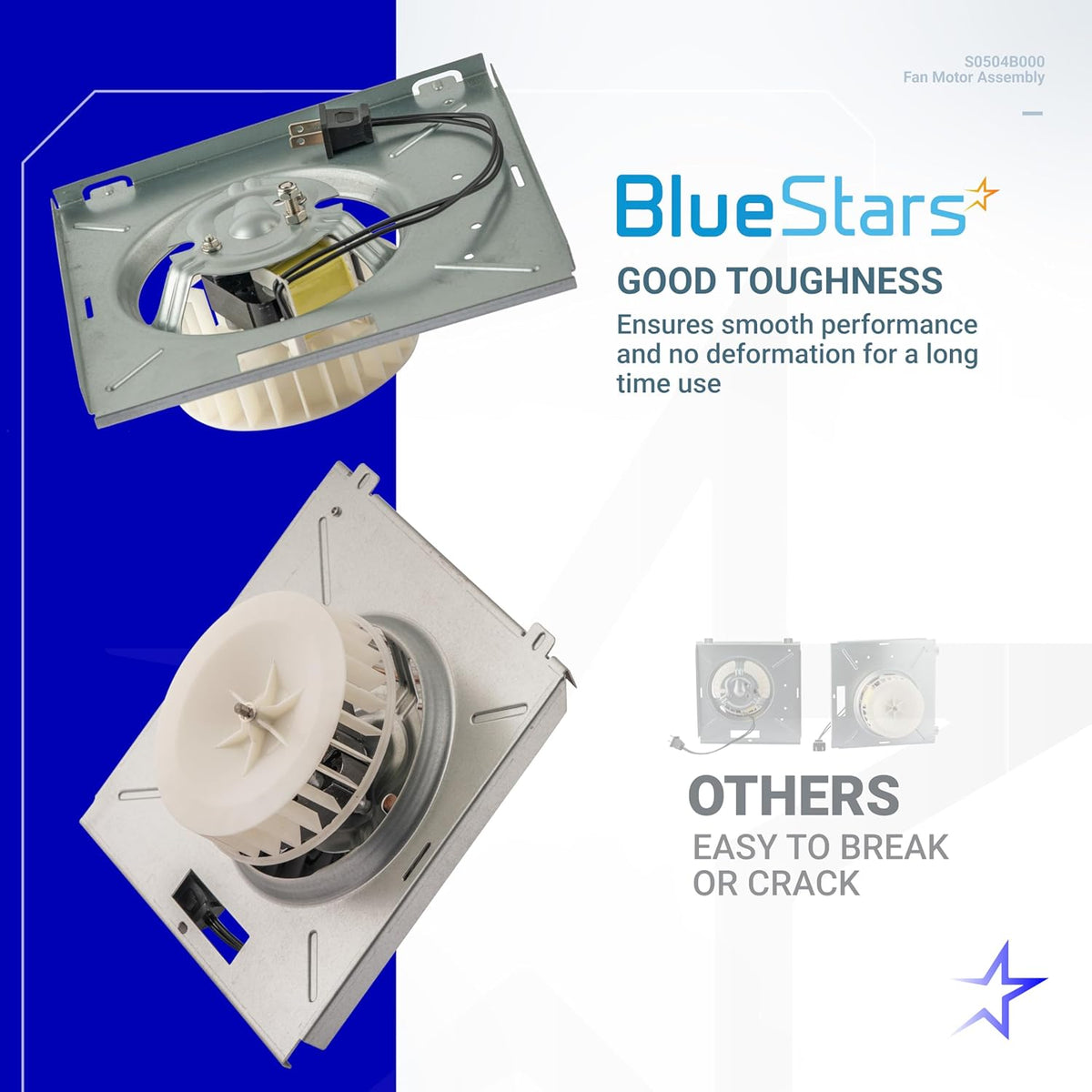

S0504B000 bathroom exhaust fan motor assembly with blower wheel and mounting plate shown from two angles.
BlueStars S0504B000 bathroom exhaust fan motor assembly with mounting plate and blower wheel.
Four-step installation guide for S0504B000 bathroom exhaust fan motor assembly.
Bathroom exhaust fan motor assembly S0504B000 with attached blower wheel and metal mounting plate.
Bathroom exhaust fan motor assembly S0504B000 with technical dimension specifications and electrical ratings.
Infographic showing high-grade components of the S0504B000 bathroom exhaust fan motor assembly.
Infographic showing S0504B000 bathroom exhaust fan motor assembly and full fan unit to troubleshoot common fan symptoms.
S0504B000 bathroom exhaust fan motor assembly with blower wheel shown in a promotional product graphic.
S0504B000 bathroom exhaust fan motor assembly with blower wheel and mounting plate shown from two angles.
BlueStars S0504B000 bathroom exhaust fan motor assembly with mounting plate and blower wheel.
Four-step installation guide for S0504B000 bathroom exhaust fan motor assembly.
Lifetime Warranty

S0504B000 Bathroom Exhaust Fan Motor Assembly

Save 13%
0.00
$51.80
$59.57
$51.80
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

S0504B000 Bathroom Exhaust Fan Motor Assembly

Key Features

  • Complete, pre-assembled unit includes motor, blower wheel, and mounting plate
  • Airflow Rating: 70 CFM
  • Electrical Rating: 120V, 1.0A
  • Power Connector: 2-prong plug
  • Cooling Method: Air-cooled

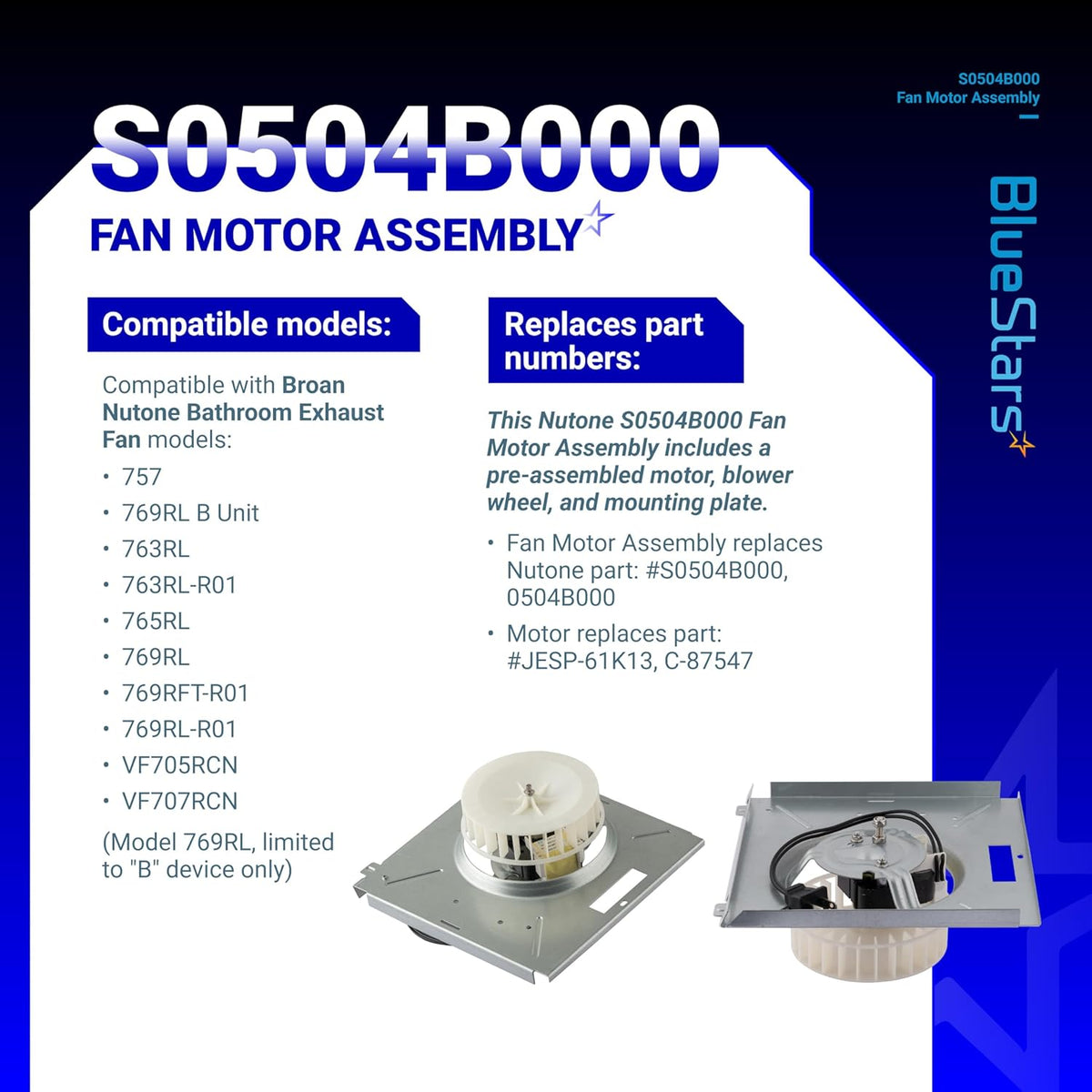

Replaces / Cross-Reference Part Numbers

  • Broan / NuTone: S0504B000, 0504B000
  • Motor Only: JESP-61K13, JESP-61K20, C-87547, S-87547000

Compatibility & Fitment

  • Designed for Broan-NuTone ventilation fans
  • Fits Models: 757, 763RLN, 765RL, 769RFT-R01, 769RL, 769RL-R01, VF707RCN

When to Replace

  • Fan motor is humming, grinding, or making excessive noise
  • Blower wheel is damaged or unbalanced
  • Fan fails to turn on or spins too slowly
  • Airflow is noticeably reduced

Installation Tips

  • Disconnect power at the circuit breaker before beginning installation
  • Confirm compatibility by checking the model number on your existing fan housing
  • Clean the fan housing and duct of any dust or debris before installing the new assembly
  • Ensure the blower wheel spins freely without obstruction after installation
Product image 1
Product image 2
Product image
Product image
Product image 1
Product image 2
  • PART NUMBERS

    PART NUMBERS

    Fan Motor Assembly replaces Nutone part: #S0504B000, 0504B000. Motor replaces part: #JESP-61K13, C-87547
  • PRODUCT SPECIFICATIONS

    PRODUCT SPECIFICATIONS

    Current: 1.0 A | Voltage: 120 V | Frequency: 60 Hz | CFM: 70 | Sones: 3.0 | Shaft Rotation: CCW
  • SAVING SOLUTION

    SAVING SOLUTION

    BlueStars brings DIY solutions to help deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

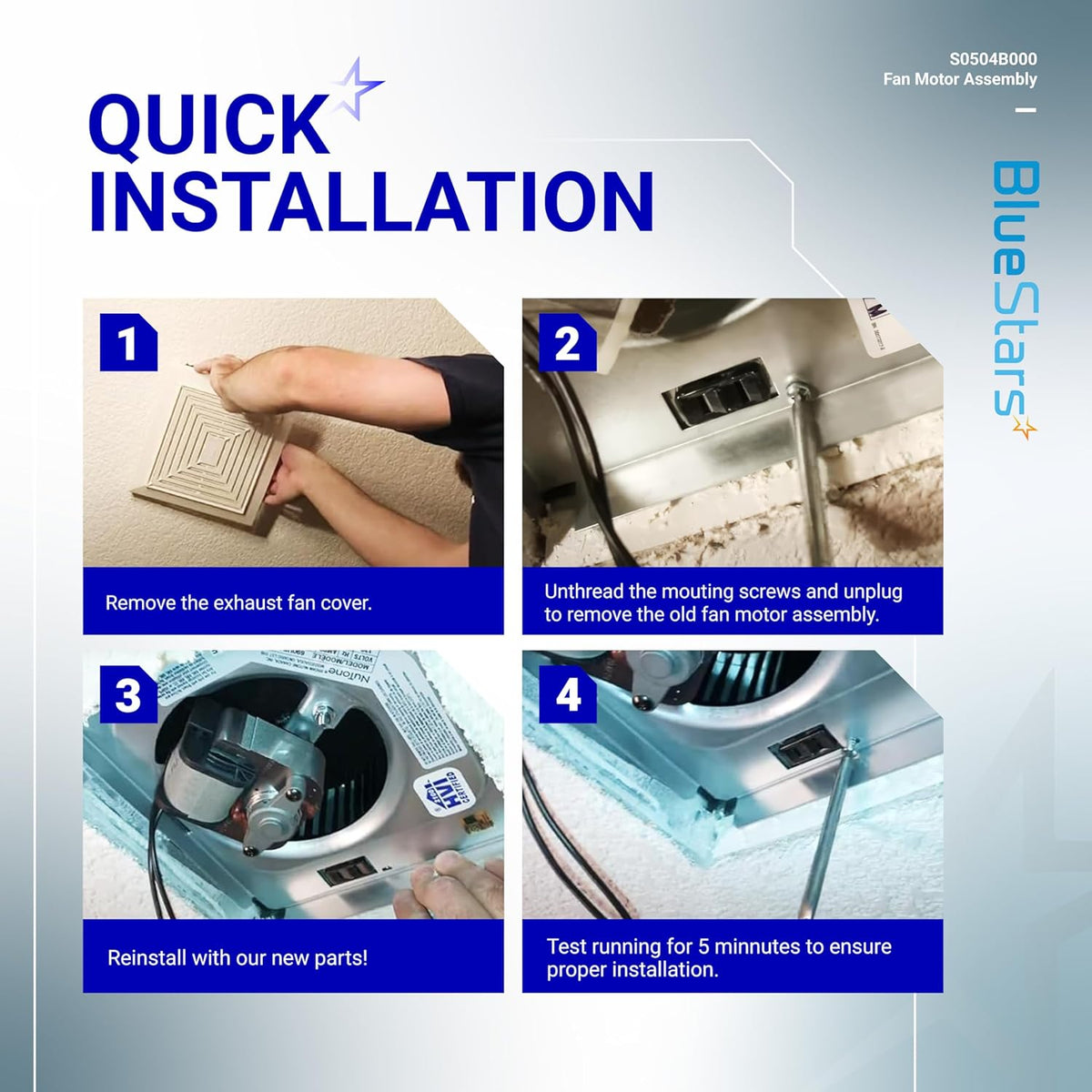

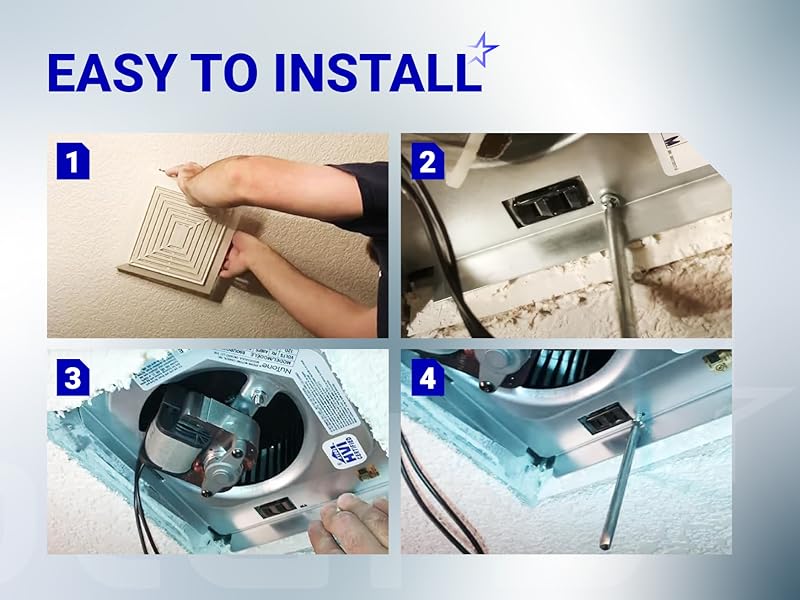

4 SIMPLE STEPS

4 SIMPLE STEPS

Please turn off the exhaust fan & Wear work gloves before installing: 1. Remove the exhaust fan cover; 2. Unthread the mouting screws and unplug to remove the old fan motor assembly; 3. Reinstall with our new parts; 4. Test running for 5 minnutes to ensure proper installation.

FAQ

This assembly is designed for use with Broan and NuTone models including 763RL, 763RLN, 763RLN-R01, 757, 751, 769RFT-R01, 769RL, 769RL-R01, VF705RCN, and VF707RCN. Please note that for model 769RL, this is specifically for the 'B' unit.
This unit replaces OEM part number S0504B000 (also referenced as 0504B000). It is also a direct replacement for motor specifications JESP-61K13, JESP-61K20, and C-87547.
This is a 70 CFM (cubic feet per minute) motor assembly operating at 120V and 1.0A. It is rated for 3000 RPM and produces approximately 3.0 sones of sound during operation.
The assembly comes pre-assembled and includes the motor, the blower wheel (fan blade), and the mounting plate. It features a standard 2-prong plug for easy electrical connection.
Installation is generally straightforward and can typically be completed in 15 to 30 minutes. Since this is a complete assembly, you do not need to disassemble the motor from the bracket; you simply unplug the old unit, remove the mounting screws, slide the old assembly out, and replace it with the new one.
Common symptoms include a loud grinding or rattling noise, the fan spinning significantly slower than usual, or the motor failing to start entirely despite the switch being in the 'on' position. If you notice the fan housing is hot to the touch or there is a burning smell, the motor should be inspected and replaced immediately.
