GE Brand [Lifetime Warranty] WR07X10097 12uF 250VAC Relay and Overload Assembly Replacement - Compatible with GE Refrigerators - Replaces 1265640 AP4300623 PS1766101 513604045
WR07X10097 refrigerator relay and overload assembly replacement part with label.
Dimensional diagram of WR07X10097 refrigerator relay and overload assembly showing 2.9 inch height and 2.1 inch width.
Graphic showing refrigerator symptoms fixed by WR07X10097 relay and overload assembly for GE refrigerators.
Close-up of WR07X10097 refrigerator relay and overload assembly showing terminal pin layout and perfect fit design.
WR07X10097 refrigerator relay and overload assembly replacement part with premium quality text overlay.
Family smiling in front of a refrigerator with text promoting BlueStars economical DIY refrigerator repair solutions.
WR07X10097 refrigerator relay and overload assembly replacement part with label.
Dimensional diagram of WR07X10097 refrigerator relay and overload assembly showing 2.9 inch height and 2.1 inch width.
Graphic showing refrigerator symptoms fixed by WR07X10097 relay and overload assembly for GE refrigerators.
Close-up of WR07X10097 refrigerator relay and overload assembly showing terminal pin layout and perfect fit design.
WR07X10097 refrigerator relay and overload assembly replacement part with premium quality text overlay.
Family smiling in front of a refrigerator with text promoting BlueStars economical DIY refrigerator repair solutions.
Lifetime Warranty

[Lifetime Warranty] WR07X10097 12uF 250VAC Relay and Overload Assembly Replacement - Compatible with GE Refrigerators - Replaces 1265640 AP4300623 PS1766101 513604045

Save 13%
0.00
$26.68
$30.68
$26.68
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

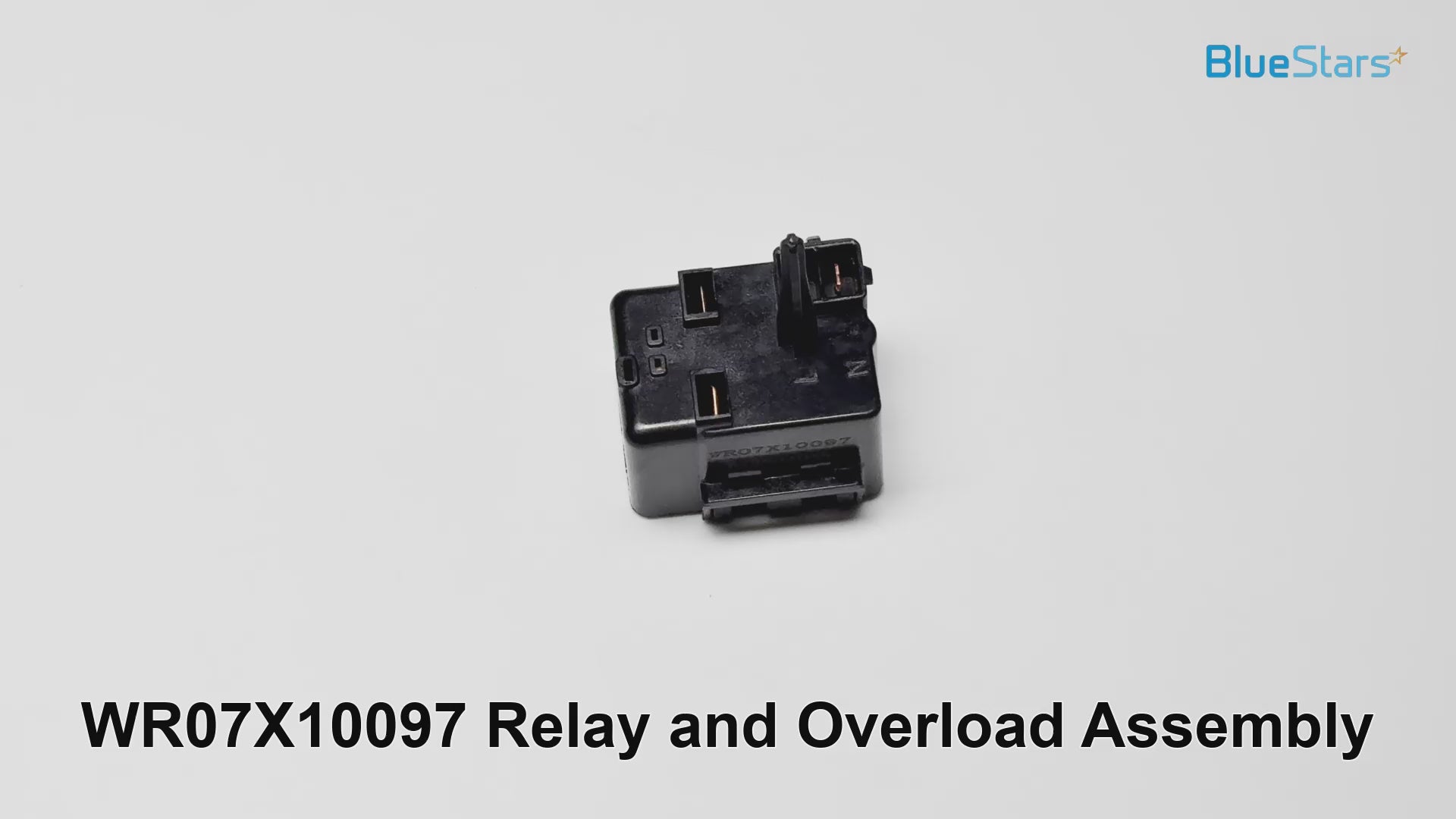

WR07X10097 Relay and Overload Assembly

Key Features

  • Combination relay and overload unit for refrigerator compressors.
  • The relay initiates the compressor's start-up cycle.
  • The overload provides thermal protection to prevent the compressor from overheating.
  • Includes brass terminal strip for secure electrical connections.

Replaces / Cross-Reference Part Numbers

  • AP4300623
  • PS1766101
  • 1265640
  • AH1766101
  • EA1766101
  • EAP1766101
  • AGE27629

Compatibility & Fitment

  • Designed as a direct replacement for specific General Electric (GE) refrigerator models.
  • Verify compatibility with your appliance's model number before ordering.

When to Replace

  • Refrigerator is not cooling correctly.
  • Compressor hums but fails to start.
  • A distinct clicking sound is heard from the compressor area at regular intervals.
  • The compressor does not run at all.

Installation Tips

  • Disconnect the refrigerator from the power supply before installation.
  • Photograph the original wiring configuration for reference during reassembly.
  • Ensure the new assembly is firmly seated on the compressor terminals.
Product image 1
Product image 2
  • PERFECT FIT

    PERFECT FIT

    BlueStars WR07X10097 Relay and Overload Assembly replaces part numbers: 1265640, AP4300623, PS1766101, 513604045, EA1766101, AH1766101.
  • PREMIUM QUALITY

    PREMIUM QUALITY

    WR07X10097 Relay and Overload Assembly is made of strong & durable materials that prevent cracking and failure during installation and use.
  • SAVING SOLUTION

    SAVING SOLUTION

    Enjoy the great feeling when your refrigerator works properly like before - BlueStars brings DIY solutions to help you deal with any trouble.
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    The WR07X10097 Relay and Overload Assembly is very simple to install. You just need basic hand tools to do.
PREMIUM QUALITY

PREMIUM QUALITY

This part is manufactured from high-grade materials that ensure high durability, long lifetime and promote efficiency
SIMPLE INSTALLATION

SIMPLE INSTALLATION

Inexpensive way to fix or repair a refrigerator. Wear work gloves to protect your hands.
ECONOMICAL DIY REPAIR

ECONOMICAL DIY REPAIR

Enjoy the comfort that our Relay and Overload Assembly brings into your refrigerator - BlueStars provides DIY solutions to help you deal with any troubles
Brand Model Number
Replaces 1265640, AH1766101, AP4300623, EA1766101, EAP1766101, PS1766101, 513604045
GE PFS22MBSABB, PFS22MBSAWW, PFS22MBSBBB, PFS22MBSBWW, PFS22MBWABB, PFS22MBWAWW, PFS22MBWB, PFS22MBWBBB, PFS22MBWBWW, PFS22MBWW, PFS22MISABB, PFS22MISAWW, PFS22MISBBB, PFS22MISBWW, PFS22MIWBBB, PFS22MIWBWW, PFS22SBSASS, PFS22SBSBSS, PFS22SBSCSS, PFS22SISASS, PFS22SISBSS, PFS22SISCSS

FAQ

This assembly replaces OEM part number WR07X10097. It also cross-references with 1265640, AP4300623, PS1766101, 513604045, AH1766101, EA1766101, and EAP1766101.
If your refrigerator compressor fails to start, makes a clicking sound, or if the refrigerator is not cooling while the compressor feels hot to the touch, the relay and overload assembly may be faulty. This component is responsible for providing the initial power boost to start the compressor motor.
Installation is typically straightforward and can often be completed in under 15 minutes. You will generally need a screwdriver to remove the access panel at the back of the refrigerator. Always ensure the refrigerator is unplugged before beginning any repair.
This part is designed for specific GE and Hotpoint refrigerator models that utilize this specific 12uF 250VAC relay configuration. Because refrigerator compressor systems vary, always verify your specific appliance model number against the part specifications before installation.
Before replacing the assembly, ensure the refrigerator is receiving power and that the thermostat or control board is calling for cooling. If the compressor is humming but not starting, or if you hear a repetitive clicking noise coming from the back of the unit, it is a strong indicator that the start relay has failed.
