[Lifetime Warranty] 3412D024-09 Gas Range Sealed Burner Head & Igniter Assembly - Compatible with Magic Chef & Maytag Ranges - Replaces 12500050 3412D018-09 - Pack of 4

Save 13%
0.00
$61.81
$71.08
$61.81
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

3412D024-09 Gas Range Sealed Burner Head & Igniter Assembly - Pack of 4

Key Features

  • Complete sealed burner head and igniter assembly

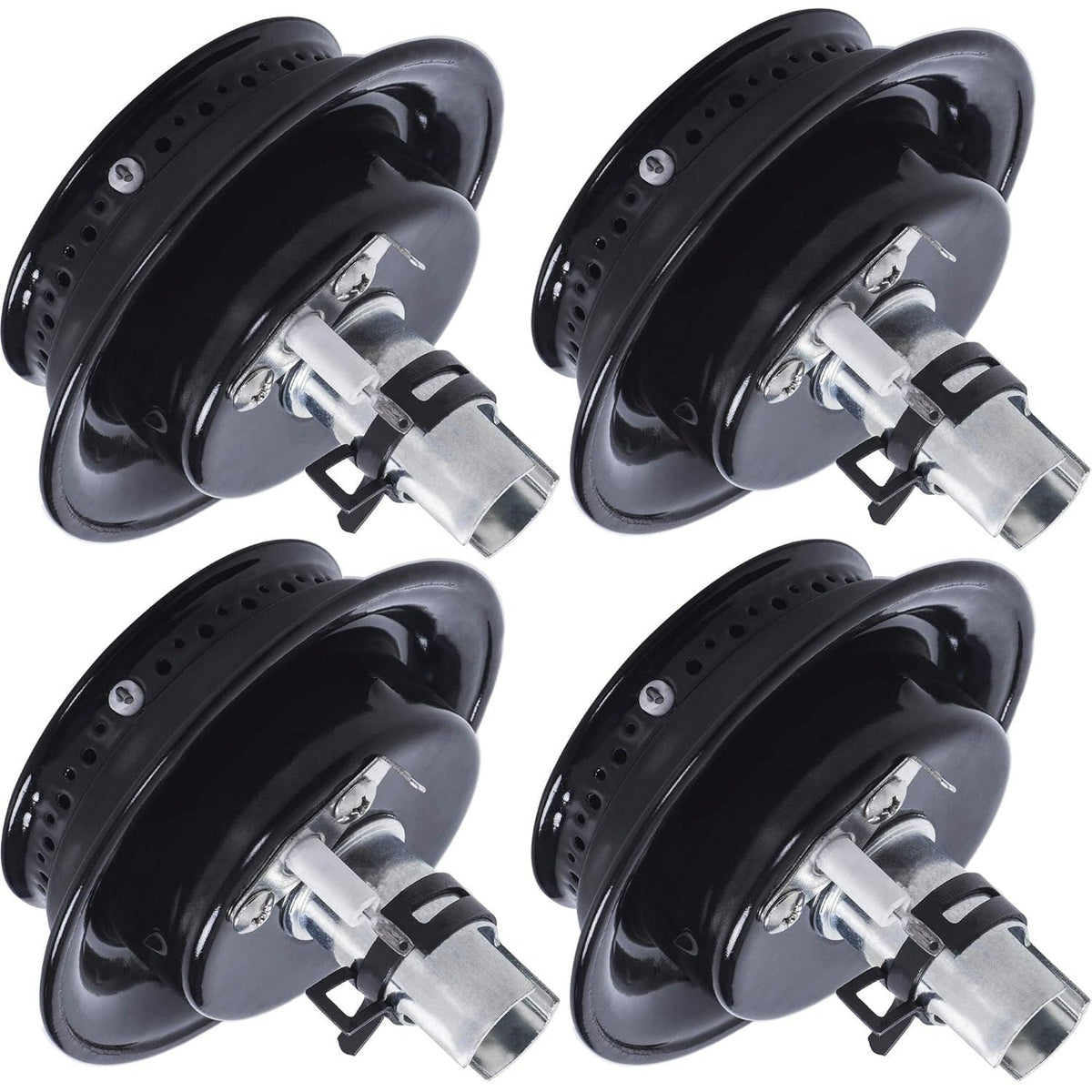

  • Package includes four burner head assemblies
  • Distributes gas for a consistent, even flame

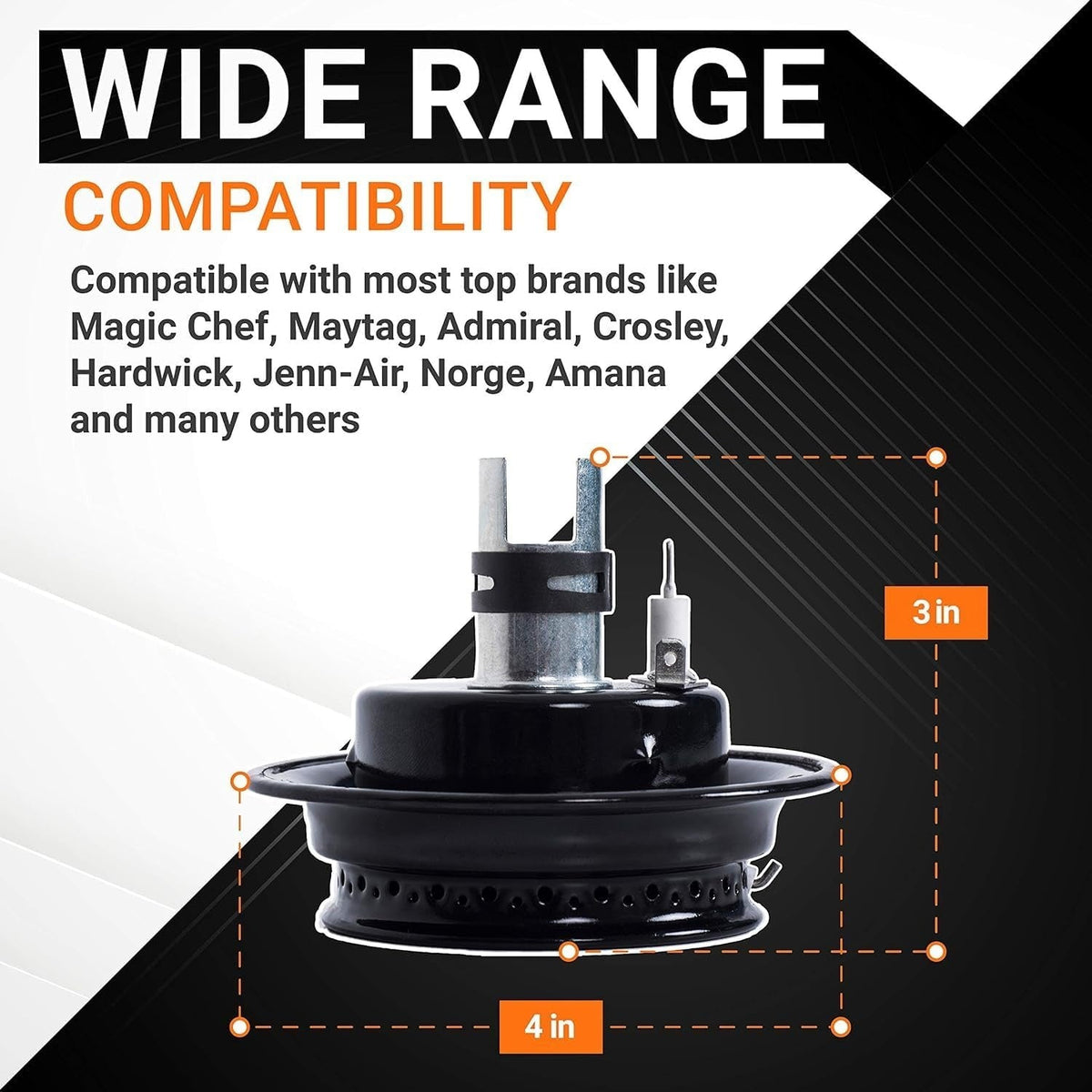

  • Approximate dimensions: 4 in. diameter x 3.25 in. length

Replaces / Cross-Reference Part Numbers

  • WP3412D024-09
  • AP6008592
  • PS11741732
  • AP4415505
  • 74003963
  • 12500050
  • 3412D018-09
  • 3412D007-09
  • 1531074
  • WP3412D024-09VP

Compatibility & Fitment

Fits specific gas range models from major brands including:

  • Admiral
  • Amana
  • Crosley
  • Hardwick
  • Jenn-Air
  • KitchenAid
  • Magic Chef
  • Maytag
  • Norge
  • Whirlpool

Note: Always verify fitment by checking your appliance's model number.

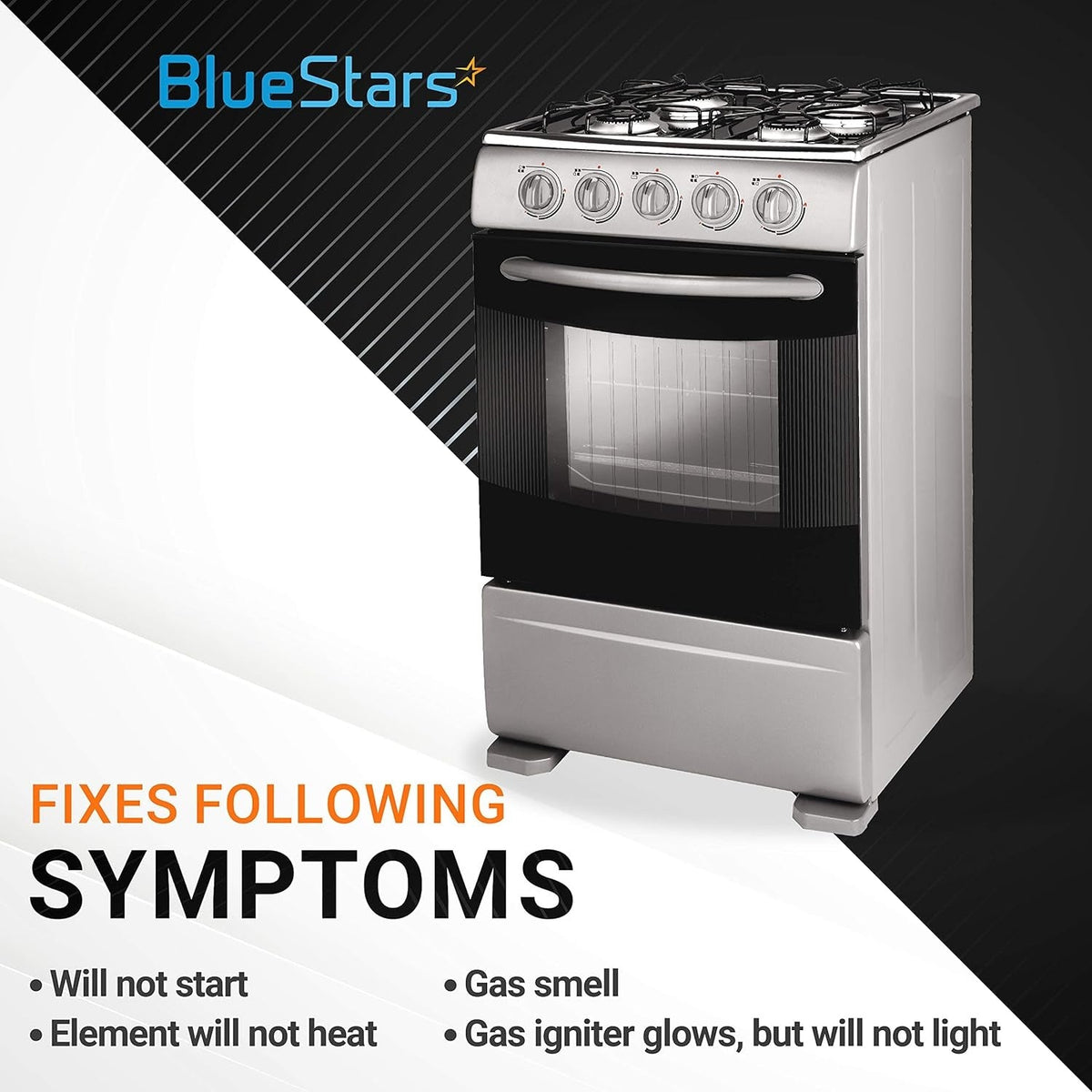

When to Replace

  • Burner fails to ignite or produces no spark.
  • Igniter sparks weakly, intermittently, or in the wrong location.
  • Flame is uneven, yellow, or noisy.
  • Visible cracks, corrosion, or blockages on the burner head.

Installation Tips

  • Disconnect the range from power and shut off the gas supply before installation.
  • Remove the burner grate and cap to access the burner head assembly.
  • Handle the ceramic portion of the new igniter with care to prevent breakage.
  • Ensure the new assembly is seated correctly before restoring power and gas.
Product image
Product image
Brand Model Number
Replaces 12500050, 1531074, 3412D007-00, 3412D007-09, 3412D014-09, 3412D015-09, 3412D016-09, 3412D017-09, 3412D018-09, 74003963, AP6008592, ER74003963, PS11741732, WP3412D024-09VP
Admiral AGR4400ADW, AGR4412ADB
Magic Chef 6458XTS, 6458XTW, 6498VRA, 6498VTA, 6498XRA, 6498XRS, 6498XRW, 6498XTA, 6498XTS, 6498XTW, 6498XVB, 6498XVS, 675AM-KSVW, 675WM-KSVW, 676AM-KSVW, 676WM-KSVW, 686AM-CKSV, 686AM-TKS, 686WM-CKSV, 686WM-TKS, 687AM-TKSAW, 687WM-TKSAW, 7458XRA, 7458XRW, 7458XTA, 7458XTW, 7458XUA, 7458XUW, 7458XVA, 7458XVW, 7498VRA, 7498XRA, 7498XRW, 7498XTA, 7498XVA, 8241RA, 8241RB, 8241RS, 8241RT, 8241RW, 8261RB, 8261RVWH, 8341VB, 8341VS, 8351VB, 8351VS, 8361RW
Magic Chef A3137XRA, A3137XRALT, A3137XRW, A3137XRWLT, A3137XUALT, A3137XUWLT, A31703PAAL, A31703PAWL, A31703SAAL, A31703SAWL, A31713XAAL, A31713XATL, A31713XAWL, A3177XRA, A3177XRW, A3277XRA, A3277XRA-N, A3277XRW, A3277XRW-N, A3478XRA, A3478XRA-N, A3478XRW, A3478XRW-N, A3488XRA, A3488XRW, A6257XRS, A6498XRS, A8241RA, A8241RA-L, A8241RS, A8241RT-L, A8241RW, A8241RW-L
Maytag CGR3742ADC, CGR4725ADC, CGR4725ADW, CGS3760ADW, CHG9800BAE, MGR4451BDW, MGR4452BDG, MGR5751BDW, MGR5775QDW
Whirlpool FCG20300AW0, FCG20700AW0, PGR4110EDB0, PGR4110EDQ0, PGR4110EDS0, PGR4110EDW0
Color
Black
Material
Metal / Plastic
Kit Contents

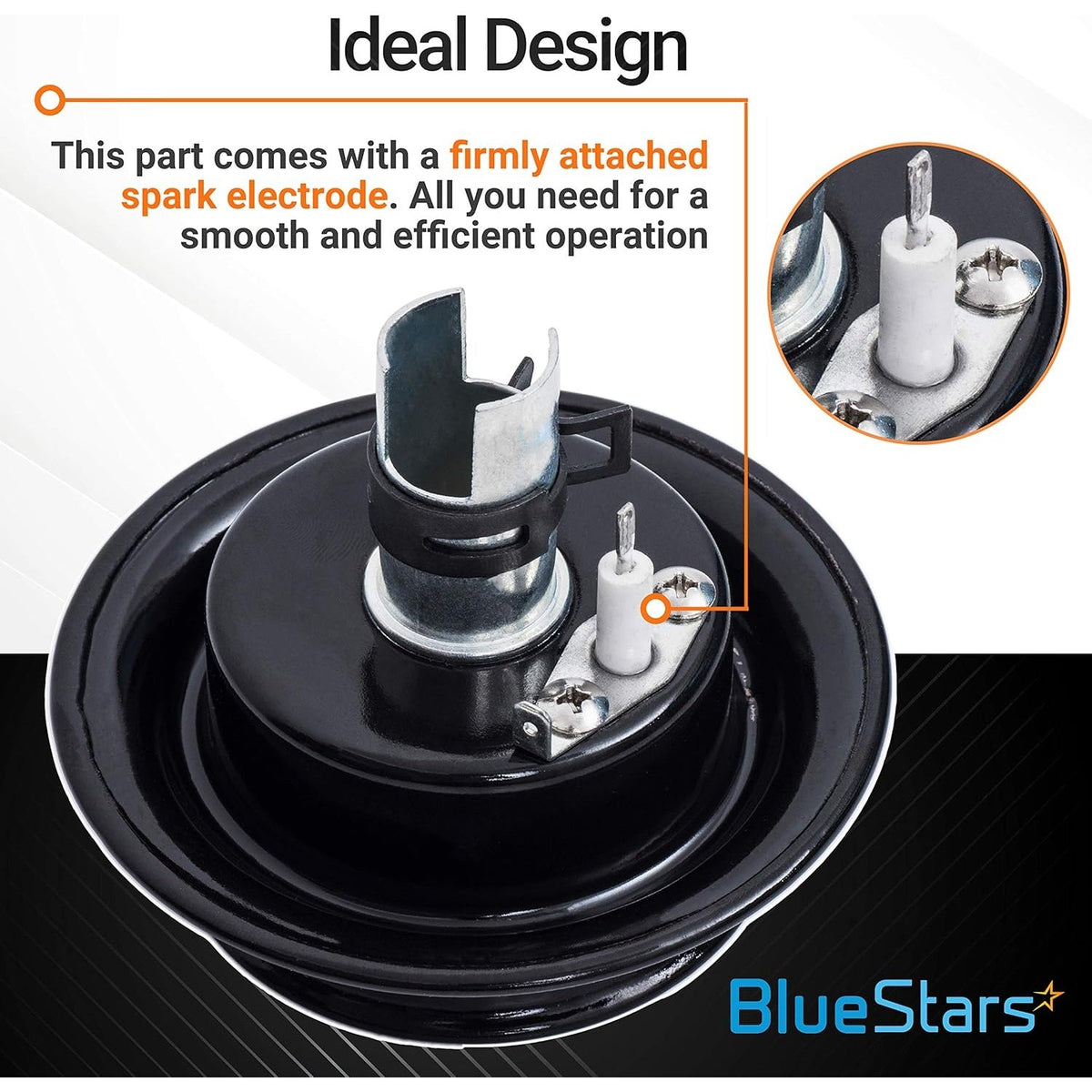

4 × Sealed Burner Head + Integrated Spark Electrode
Gasket Required
No (gasket seal no longer required per manufacturer)
Installation
Twist-Lock (90° CCW to remove / 90° CW to install)
