[Lifetime Warranty] WP8544771 Dryer Heating Element Kit 279816 Thermal Cut-Off 279973 3392519 Thermal Fuse For Kenmore Whirlpool WED9200SQ0 WED9550WW1 WED9400SW2 WED7300XW0 WED9150WW1 WED8300SW1 WED7800XW0
Save 13%
0.00
Regular price
$50.23
Regular price
$57.76
Sale price
$50.23
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number
8544771 Dryer Heating Element, 279816 Thermal Cut-Off, 279973 3392519 Dryer Thermal Fuse
Key Features
- Complete component kit for addressing common dryer heating problems.

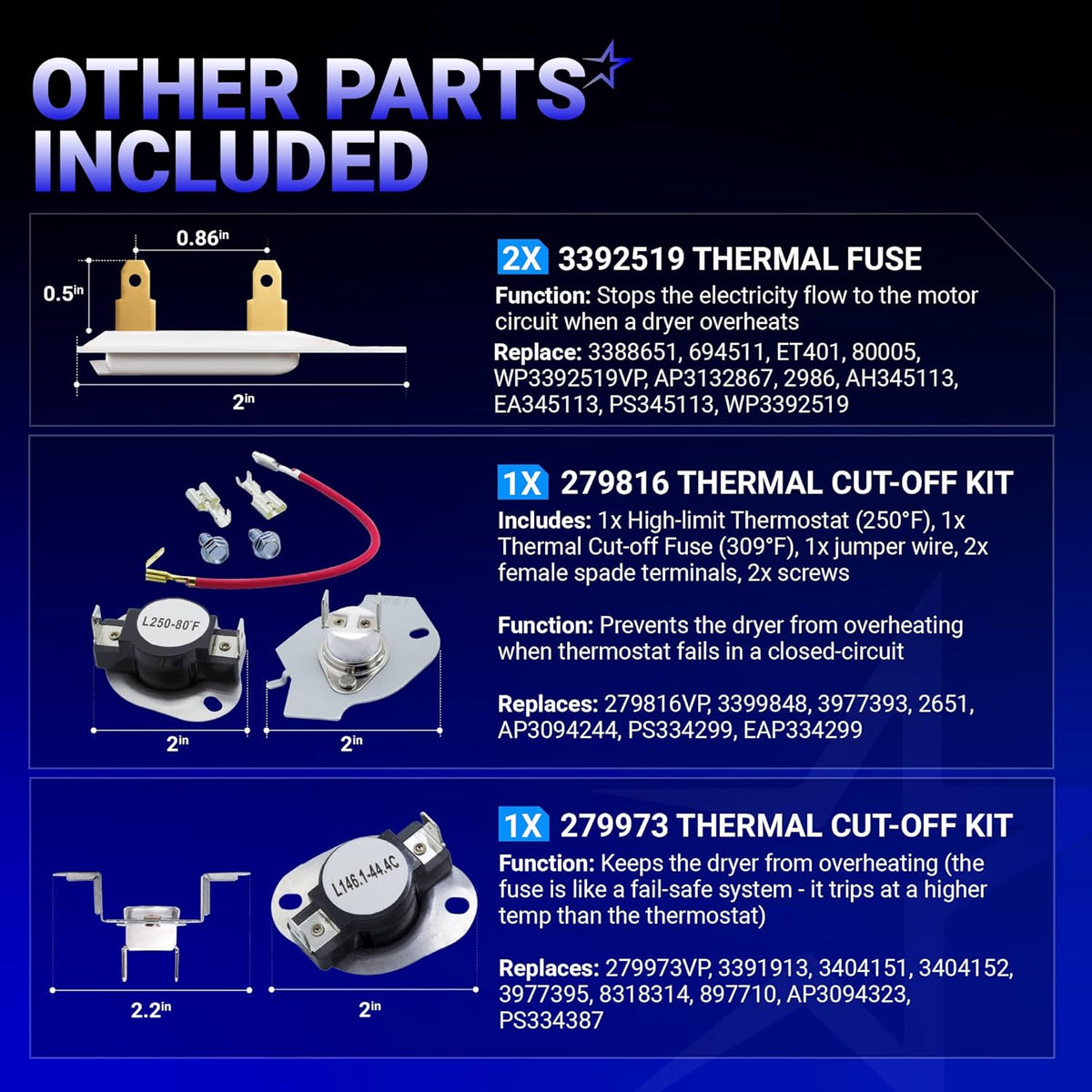

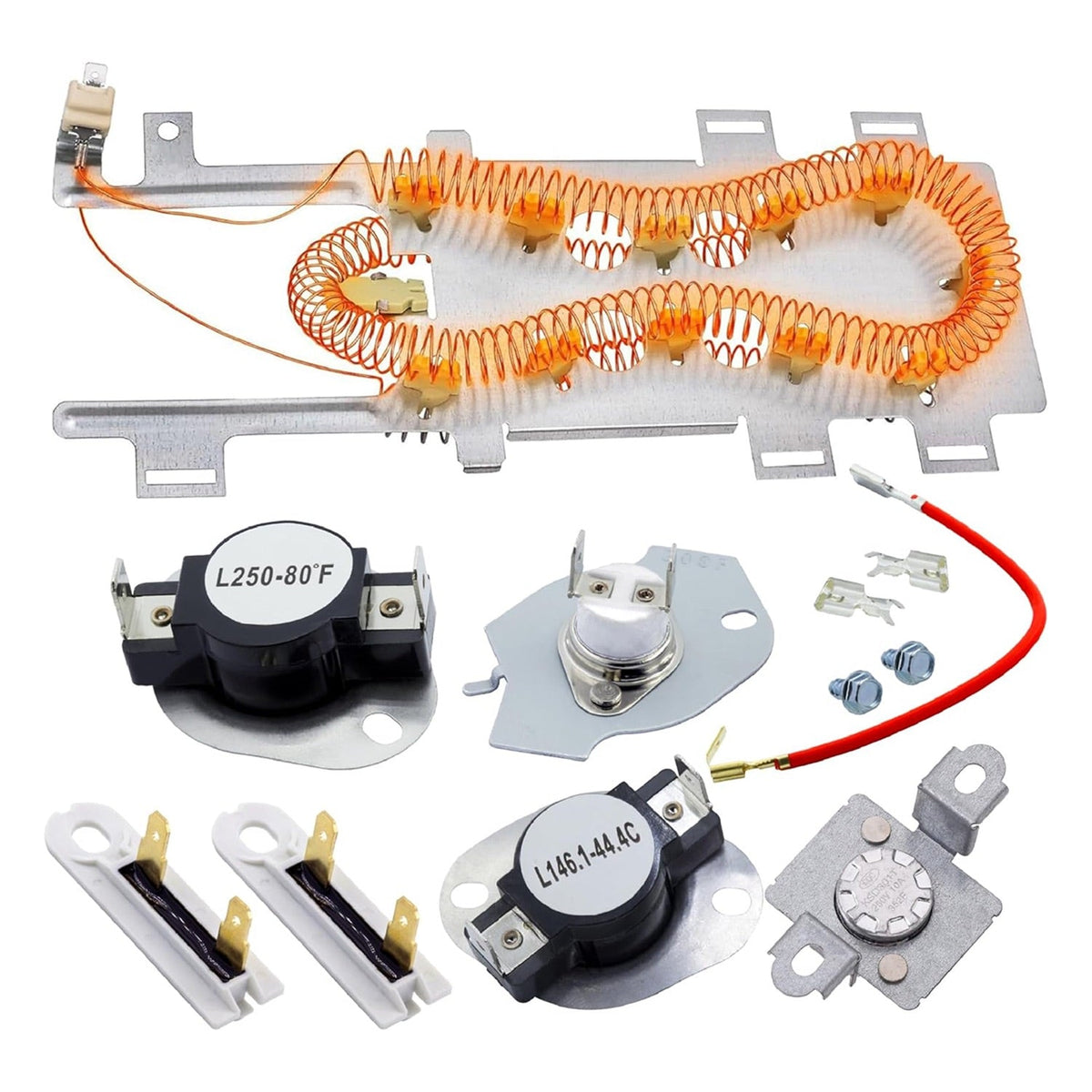

- Kit Includes:
- 1 x 8544771 Heating Element
- 1 x 279816 Thermostat and Thermal Cut-Off Kit
- 1 x 279973 Thermal Fuse
- 2 x 3392519 Thermal Fuses

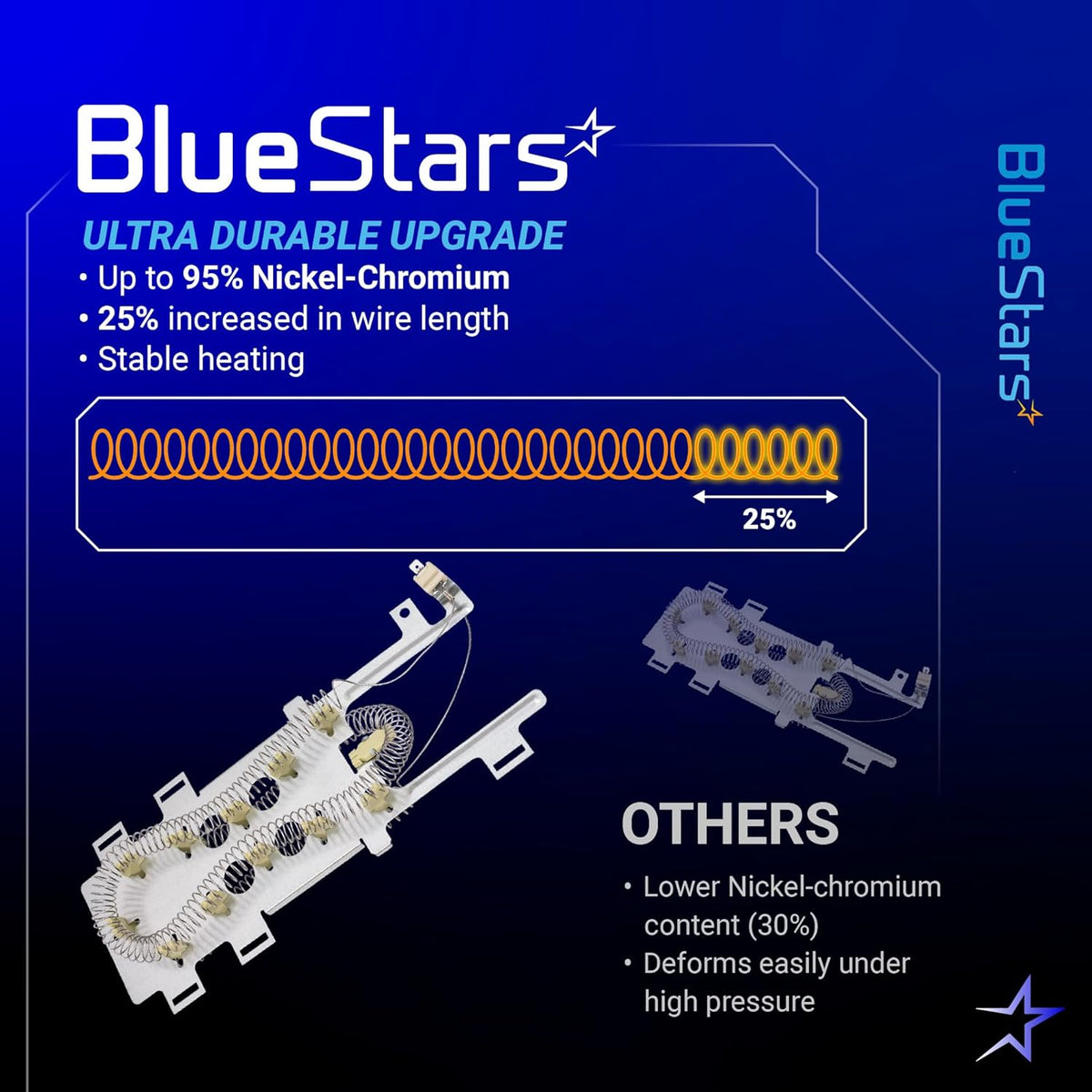

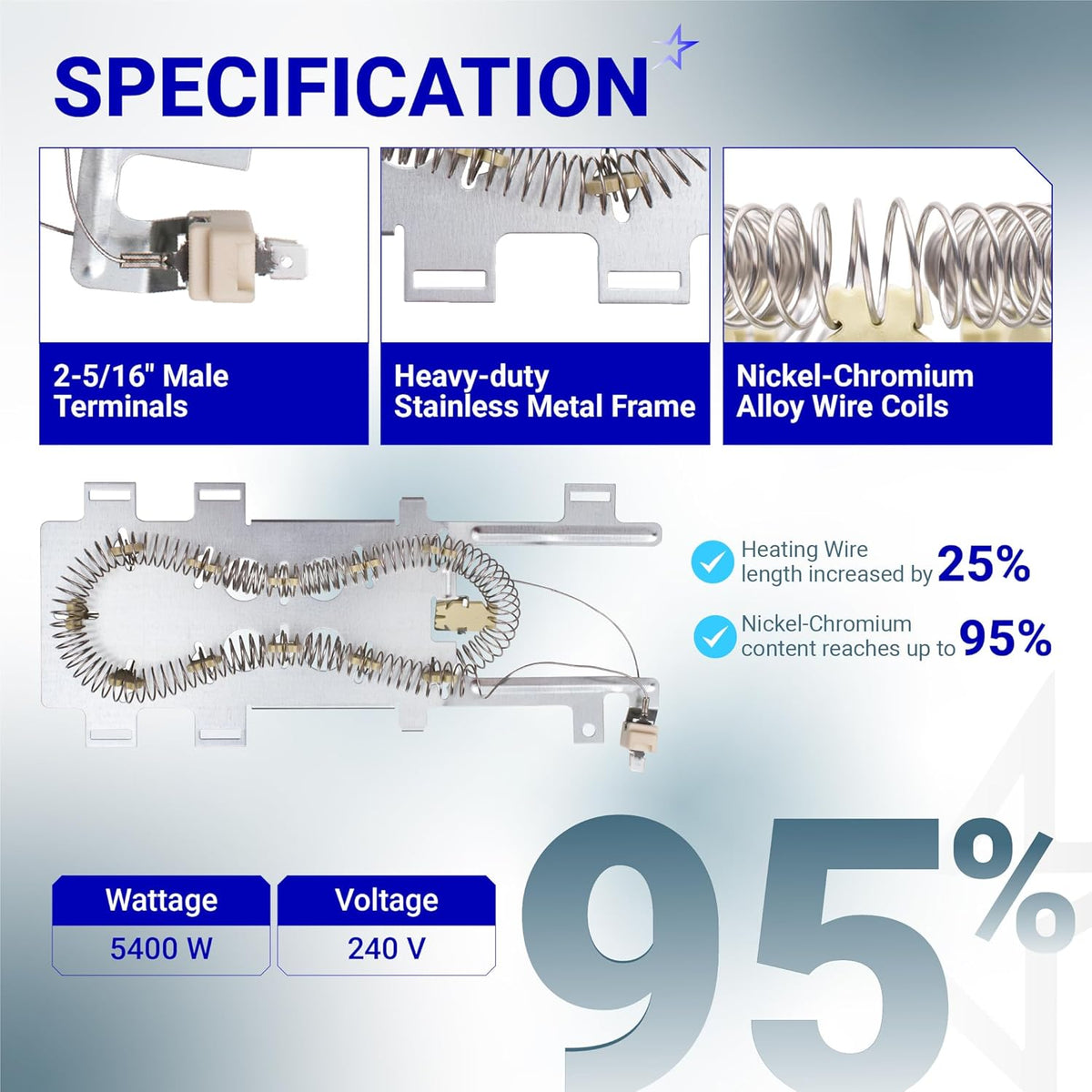

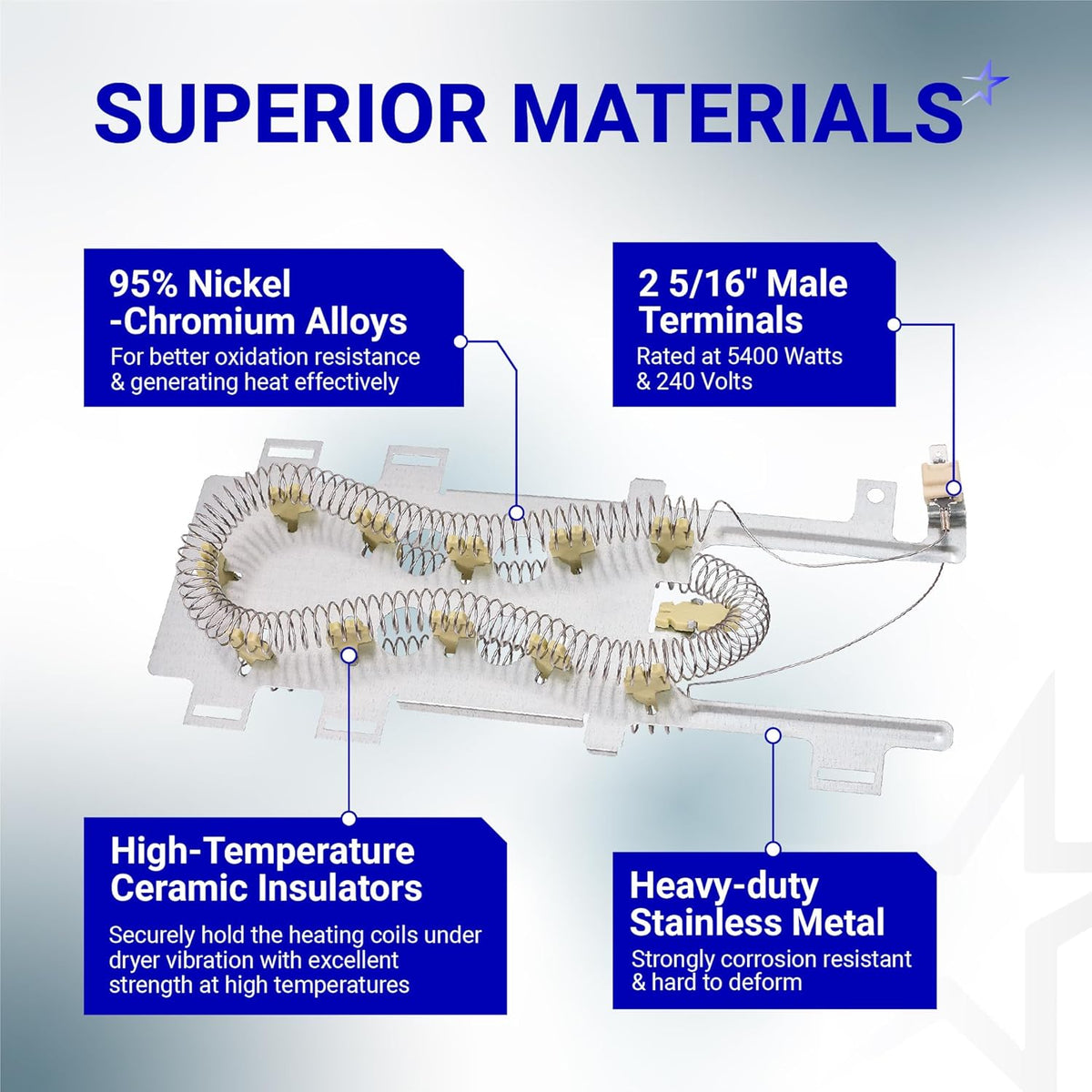

- Heating Element Specifications: 5400 Watts, 240 Volts, 5/16-inch male terminals.
- Components are manufactured to meet or exceed original equipment specifications.
Replaces / Cross-Reference Part Numbers

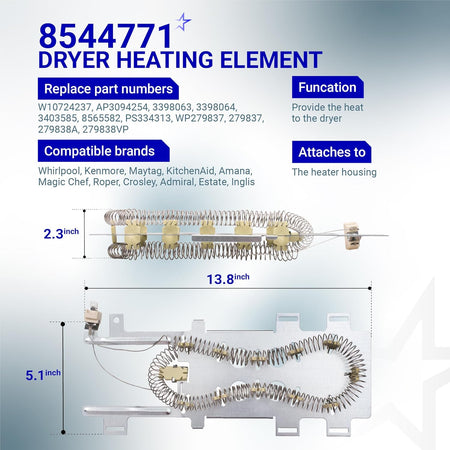

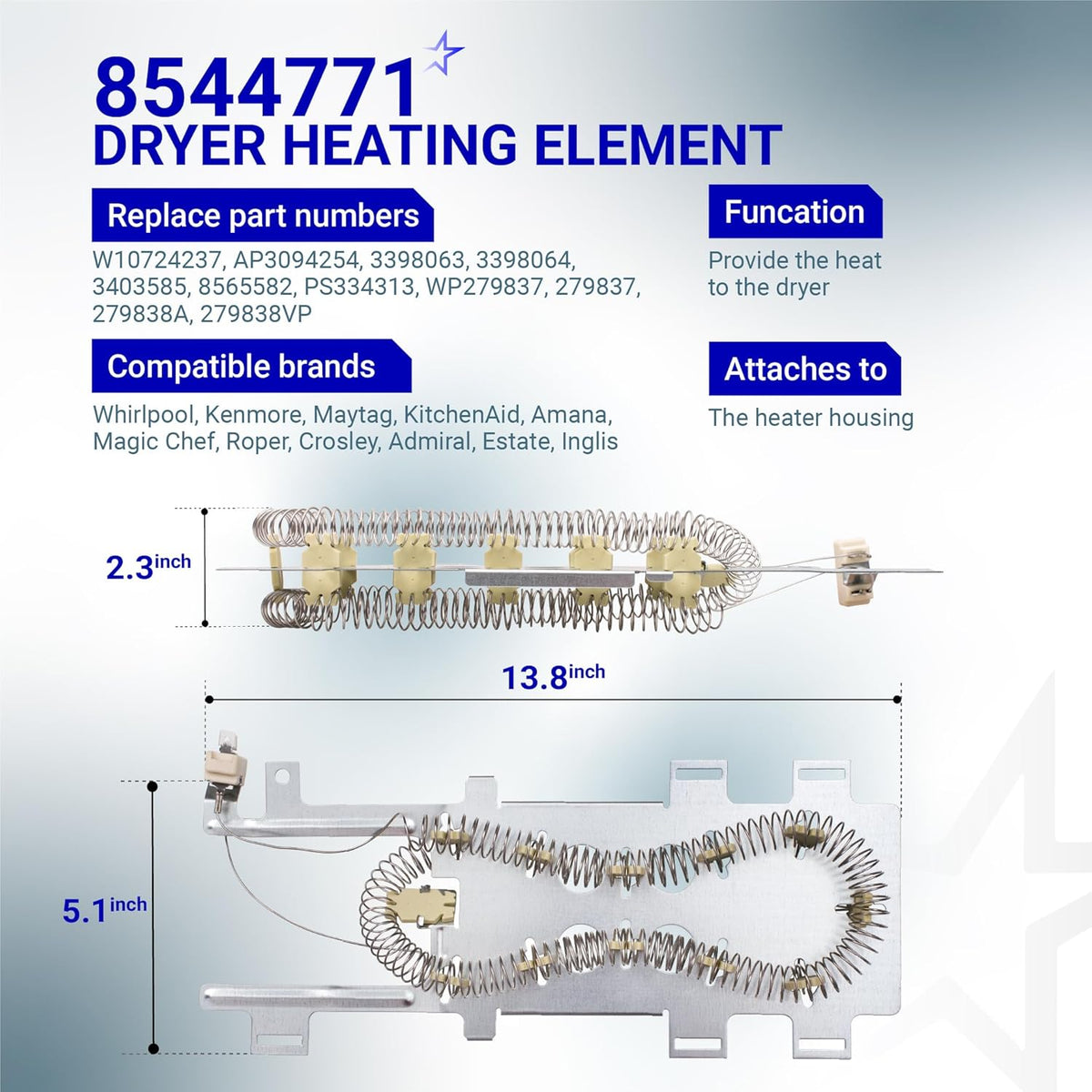

- Heating Element (8544771): WP8544771, 8544771R, W10836011, AP6013115, PS11746337.
- Thermostat Kit (279816): 3399848, 279816VP, AP3094244, PS334299.
- Thermal Fuse (279973): 3391913, 8318314, 279973VP, AP3094323, PS334387.
- Thermal Fuse (3392519): 3392519VP, 694511, AP6008325, PS11741460.
Compatibility & Fitment
- Designed for use with numerous 29-inch electric dryers from major brands including Whirlpool, Kenmore, Maytag, Amana, Roper, Estate, and KitchenAid.
- To ensure correct fitment, verify the part numbers listed on your original components before ordering.
When to Replace
- Dryer is running but not producing any heat.
- Drying cycles take significantly longer than normal.
- Appliance overheats and shuts off prematurely.
- Dryer will not start or turn on.
Installation Tips
- Always disconnect the dryer from its electrical power source before beginning any service.
- It is recommended to replace all thermal fuses and the high-limit thermostat when installing a new heating element.
- Thoroughly clean lint from the dryer's housing and exhaust vent ducting to prevent future overheating and component failure.
- Refer to your dryer's service manual for model-specific disassembly and repair instructions.

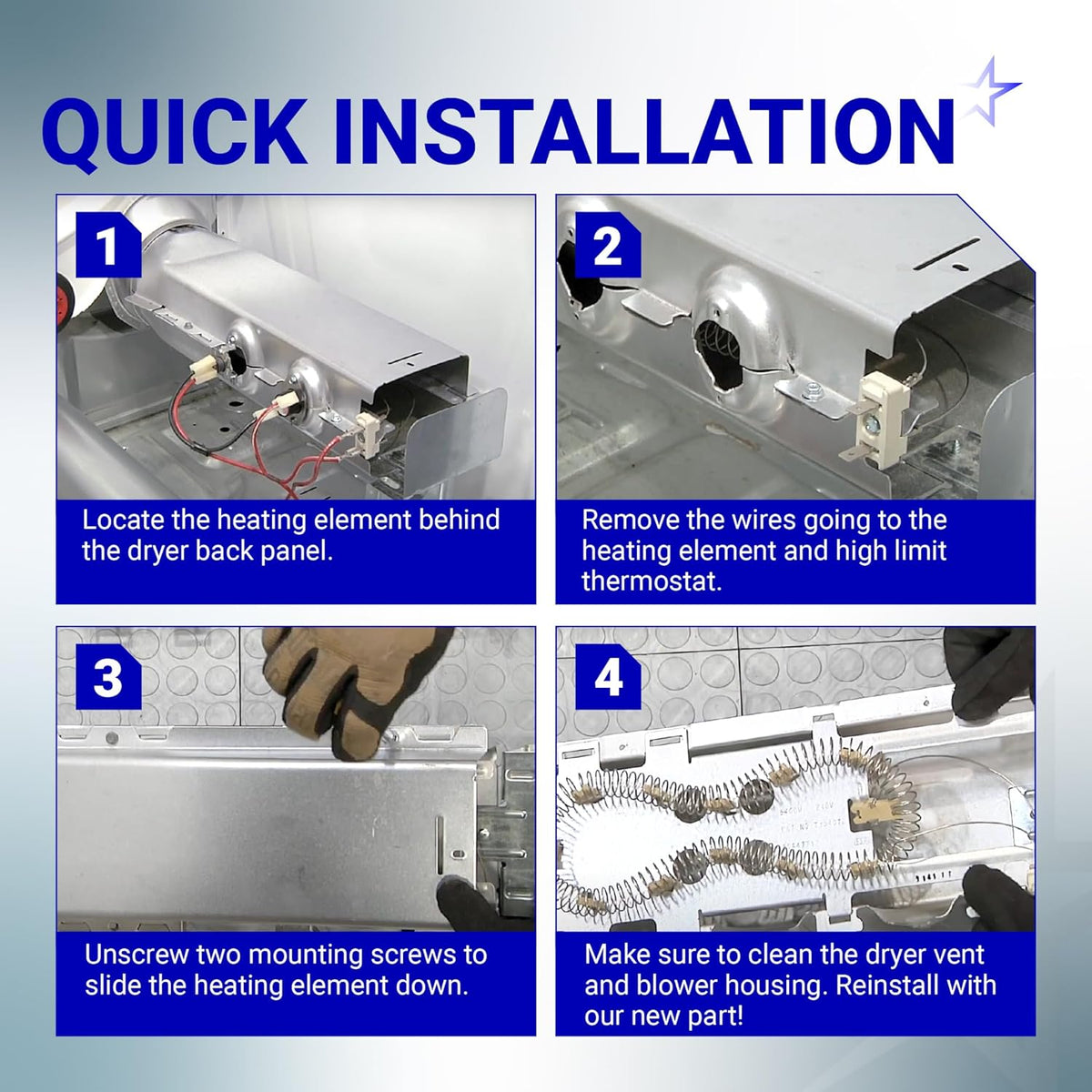

4 SIMPLE STEPS
1. Remove the dryer main top, control panel, front panel & bulkhead, and drum to reach the heating element; 2. Release wires & mounting screws to remove the hi-limit thermostat, thermal fuse,... then pull out the heater housing; 3. Remove the top half of the heater housing to discard the old heating element; 4. Make sure to clean the dryer vent and blower housing. Reinstall with our new parts!

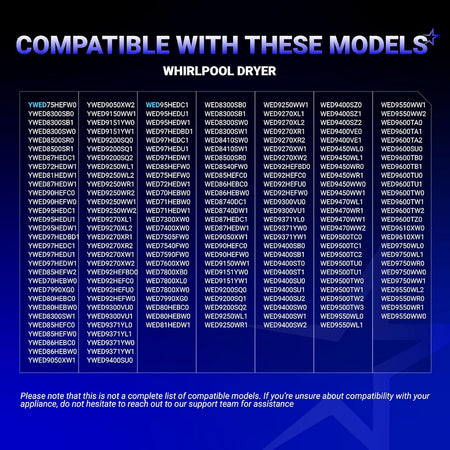

| Brand | Model Number |
|---|---|

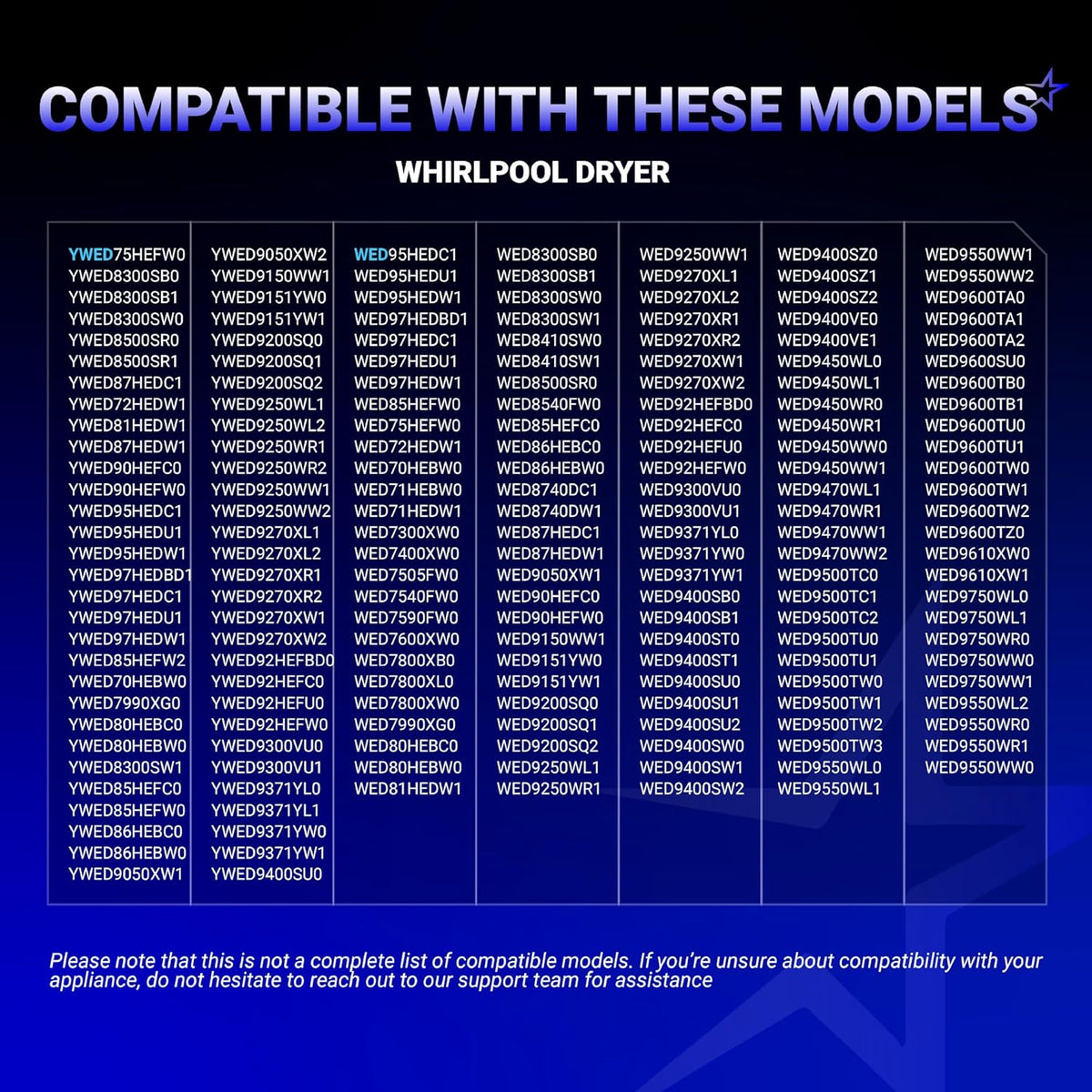

| Whirlpool | 7MWED90HEFW0, WED7300XW0, WED7400XW0, WED7505FW0, WED7590FW0, WED75HEFW0, WED7600XW0, WED7800XB0, WED7800XL0, WED7800XW0, WED7990XG0, WED72HEDW1 |
| Whirlpool | WED80HEBC0, WED80HEBW0, WED81HEDW1, WED8300SB0, WED8300SB1, WED8300SW0, WED8300SW1, WED8410SW0, WED8410SW1, WED8500SR0, WED85HEFC0, WED85HEFW0, WED86HEBC0, WED86HEBW0, WED8540FW0, WED8740DC1, WED8740DW1, WED87HEDC1, WED87HEDW1, WED88HEAC0, WED88HEAW0 |
| Whirlpool | WED9050XW1, WED90HEFC0, WED90HEFW0, WED9150WW1, WED9151YW0, WED9151YW1, WED9200SQ0, WED9200SQ1, WED9200SQ2, WED9250WL1, WED9250WR1, WED9250WW1, WED9270XL1, WED9270XL2, WED9270XR1, WED9270XR2, WED9270XW1, WED9270XW2, WED9300VU0, WED9300VU1, WED9371YL0, WED9371YW0, WED9371YW1 |
| Whirlpool | WED9400SB0, WED9400SB1, WED9400ST0, WED9400ST1, WED9400SU0, WED9400SU1, WED9400SU2, WED9400SW0, WED9400SW1, WED9400SW2, WED9450WR1, WED9470WW2, WED9500TW1, WED9500TW2, WED9500TW3, WED9550WL1, WED9550WL2, WED9550WW1, WED9600TA0, WED9600TW1, WED9600TW2, WED9750WL0, WED9750WW0, WED9750WW1 |
| Whirlpool | WED92HEFBD0, WED92HEFC0, WED92HEFU0, WED92HEFW0, WED95HEDC1, WED95HEDU1, WED95HEDW1, WED97HEDBD1, WED97HEDC1, WED97HEDU1, WED97HEDW1, YWED8300SB0, YWED8300SB1, YWED8300SW0, YWED8500SR0, YWED72HEDW1, YWED75HEFW0, YWED81HEDW1, YWED87HEDC1, YWED87HEDW1, YWED90HEFW0, YWED9270XL1, YWED9270XR1 |
| Amana | NED7500XW0, NED7500XW1, NED7500XW2, YNED7500XW0, YNED7500XW1 |
| Kenmore | 110.67032600, 110.67032601, 110.67042600, 110.67042601, 110.67052600, 110.68062800, 110.68062801, 110.68072800, 110.68072801, 110.68082701, 110.68087701, 110.68092700, 110.68092701, 110.87709700, 110.87727702, 110.87737702, 110.87872602 |

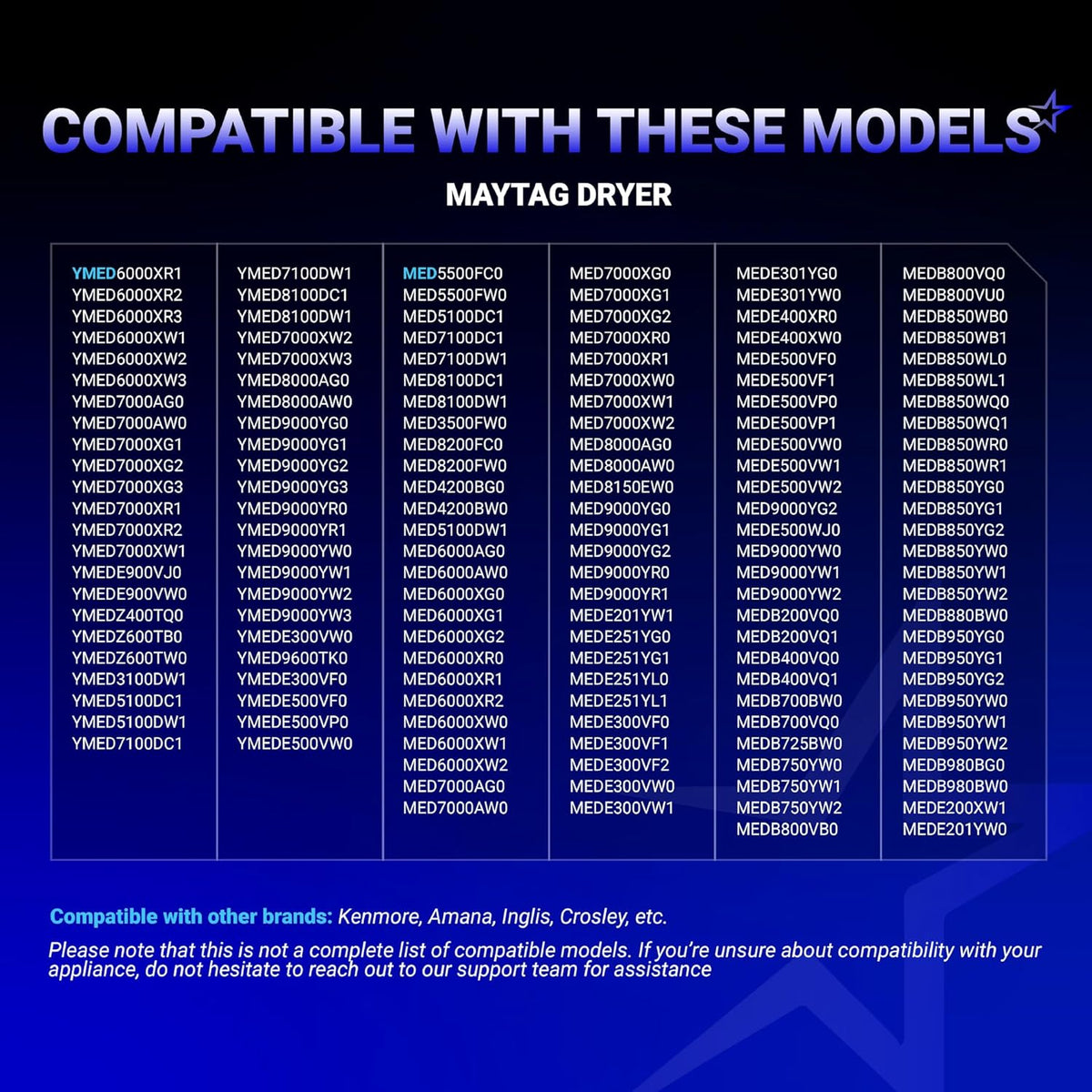

| Maytag | MED3000BW0, MED3500FW0, MED4000BW0, MED4200BG0, MED4200BW0, MED5100DC1, MED5100DW1, MED5500FC0, MED5500FW0, MED6000AG0, MED6000AW0, MED6000XG0, MED6000XG1, MED6000XG2, MED6000XR0, MED6000XR1, MED6000XR2, MED6000XW0, MED6000XW1, MED6000XW2, MED7000AG0, MED7000AW0, MED7000XG0, MED7000XG1, MED7000XG2, MED7000XR0, MED7000XR1, MED7000XW0, MED7000XW1, MED7000XW2, MED7100DC1, MED7100DW1, MED8000AG0, MED8000AW0, MED8100DC1, MED8100DW1, MED8150EW0, MED8200FC0, MED8200FW0 |
| Maytag | MED9000YG0, MED9000YG1, MED9000YG2, MED9000YR0, MED9000YR1, MED9000YW0, MED9000YW1, MED9000YW2, MEDB200VQ0, MEDB200VQ1, MEDB400VQ0, MEDB400VQ1, MEDB700BW0, MEDB700VQ0, MEDB725BW0, MEDB750YW0, MEDB750YW1, MEDB750YW2, MEDB800VB0, MEDB800VQ0, MEDB800VU0, MEDB850WB0, MEDB850WB1, MEDB850WL0, MEDB850WL1, MEDB850WQ0, MEDB850WQ1, MEDB850WR0, MEDB850WR1, MEDB850YG0, MEDB850YG1, MEDB850YG2, MEDB850YW0, MEDB850YW1, MEDB850YW2, MEDB880BW0, MEDB950YG0, MEDB950YG1, MEDB950YG2, MEDB950YW0, MEDB950YW1, MEDB950YW2, MEDB980BG0, MEDB980BW0 |
| Maytag | MEDE200XW1, MEDE201YW0, MEDE201YW1, MEDE251YG0, MEDE251YL0, MEDE300VF1, MEDE300VJ0, MEDE300VW1, MEDE500VW0, MEDE500VW1, MEDE900VJ0, MEDE900VW0, MEDE900VW1, MEDZ400TQ1, MEDZ600TB1, MEDZ600TK1, MEDZ600TW1, YMED6000AW0, YMED6000XR1, YMED6000XR2, YMED7000AG0, YMED7000AW0, YMED7000XG1, YMED7000XG2, YMED7000XR1, YMED7000XR2, YMED7000XW1, YMED7000XW2, YMED8000AG0, YMED8000AW0, YMED9000YG0, YMED9000YG1, YMED9000YG2, YMED9000YR0, YMED9000YR1, YMED9000YW0, YMED9000YW1, YMED9000YW2, YMEDE300VF0, YMEDE300VW0, YMEDE500VP0, YMEDE500VW0, YMEDE900VJ0, YMEDE900VW0, YMEDZ400TQ0, YMEDZ600TB0, YMEDZ600TW0 |
Color
As Pictured
Burner type
Coil
Fuel Type
Electric
Voltage
240 Volts
Amperage
22.5 Amps
Manufacturer
BlueStars
