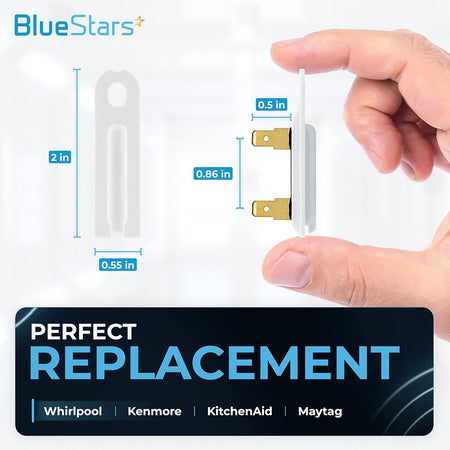

Technical diagram of 3392519 dryer thermal fuse with dimensions for Whirlpool, Kenmore, and Maytag appliances.
3392519 dryer thermal fuse replacement part with compatibility list for Whirlpool, Kenmore, and Maytag dryers.
3392519 dryer thermal fuse 196°F single blow limiter component for Whirlpool, Kenmore, and Maytag dryers.

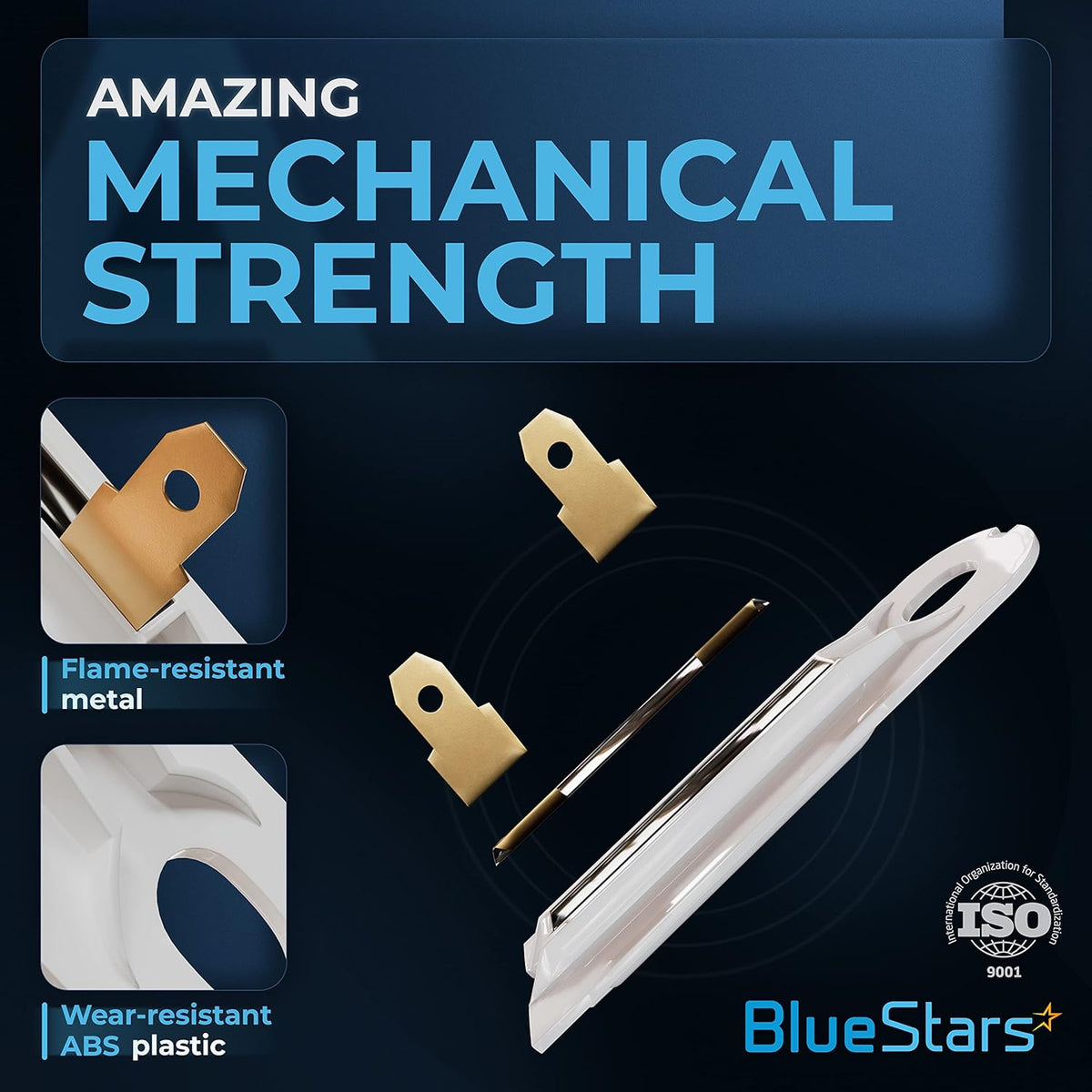

Infographic showing 3392519 dryer thermal fuse features including flame-resistant metal terminals and ABS plastic bracket.

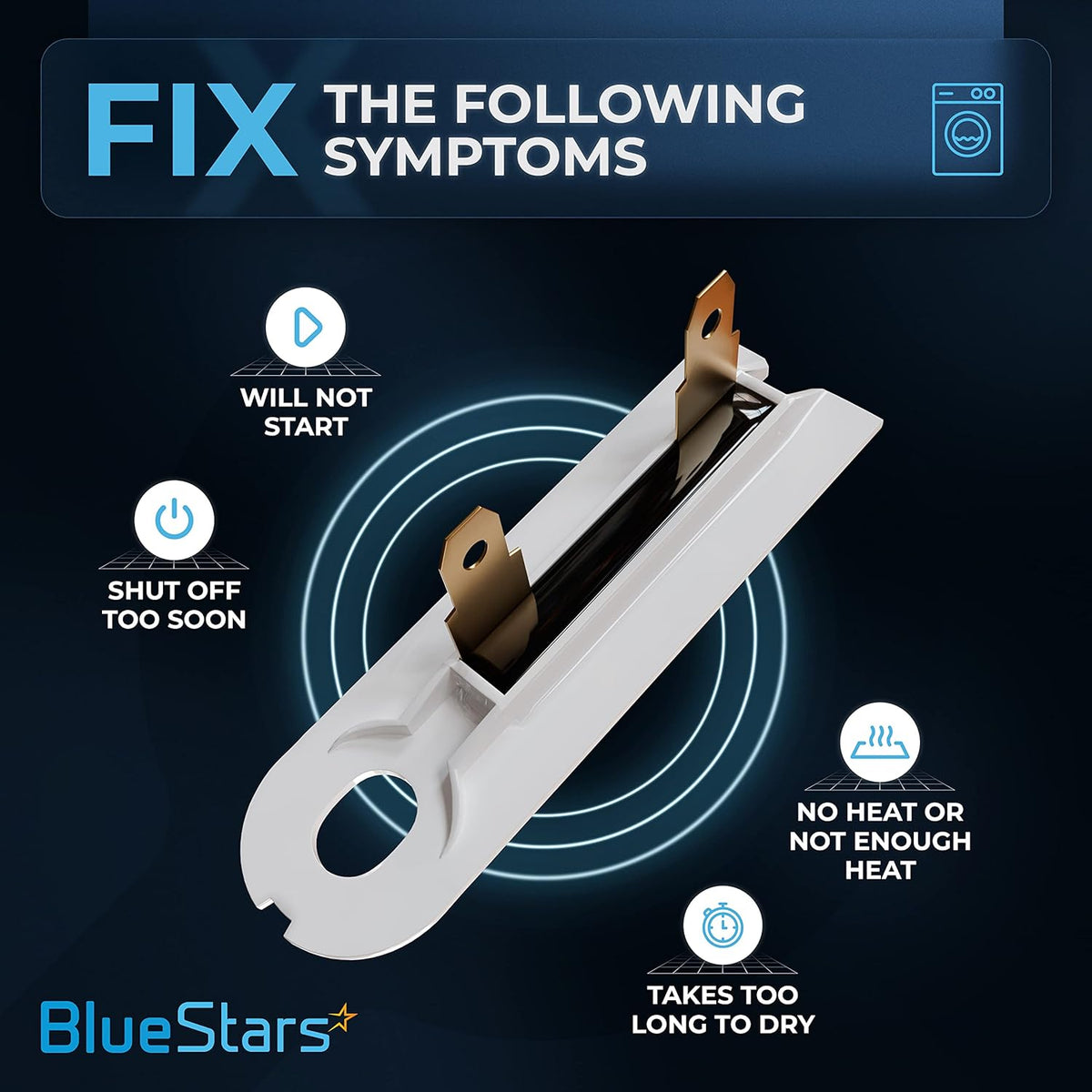

3392519 dryer thermal fuse replacement part shown with common dryer symptom troubleshooting guide.
Four-step installation guide for replacing a 3392519 dryer thermal fuse in Whirlpool and Kenmore appliances.

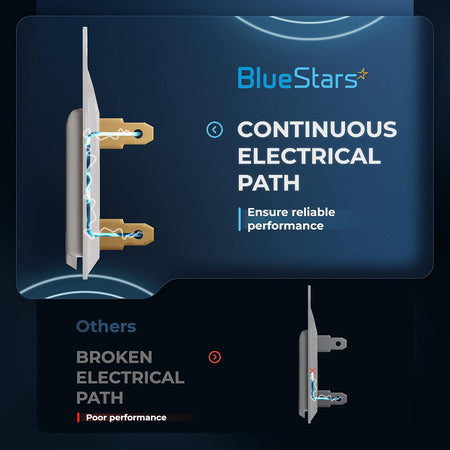

BlueStars 3392519 dryer thermal fuse comparison graphic showing durable construction versus fragile alternatives.
3392519 dryer thermal fuse replacement part with retail packaging for Whirlpool, Kenmore, and Maytag dryers.
Technical diagram of 3392519 dryer thermal fuse with dimensions for Whirlpool, Kenmore, and Maytag appliances.
3392519 dryer thermal fuse replacement part with compatibility list for Whirlpool, Kenmore, and Maytag dryers.
3392519 dryer thermal fuse 196°F single blow limiter component for Whirlpool, Kenmore, and Maytag dryers.
Infographic showing 3392519 dryer thermal fuse features including flame-resistant metal terminals and ABS plastic bracket.
3392519 dryer thermal fuse replacement part shown with common dryer symptom troubleshooting guide.
Four-step installation guide for replacing a 3392519 dryer thermal fuse in Whirlpool and Kenmore appliances.
BlueStars 3392519 dryer thermal fuse comparison graphic showing durable construction versus fragile alternatives.
Lifetime Warranty

[Lifetime Warranty] 3392519 Dryer Thermal Fuse - Fit for Whirlpool Kenmore Maytag - Replaces WP3392519 AP6008325 G4AP0500 3388651 694511 80005 WP3392519VP

Save 13%
0.00
$10.81
$12.43
$10.81
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

3392519 Dryer Thermal Fuse

Key Features

  • Single-use safety fuse designed to open at a set temperature
  • Activation Temperature: 196°F (91°C)
  • Terminals: Two 3/16 inch male spade connectors
  • Prevents overheating by interrupting the electrical circuit to the heating element or motor

Replaces / Cross-Reference Part Numbers

  • 2986
  • 3388651
  • 694511
  • 80005
  • AP6008325
  • EAP11741460
  • ET401
  • G4AP0500
  • PD00002311
  • PS11741460
  • SET401
  • TJ90SET401
  • WP3392519VP

Compatibility & Fitment

  • Designed for a wide range of electric and gas clothes dryers.
  • Compatible with many models from brands including Whirlpool, Kenmore, Maytag, KitchenAid, and Roper.
  • Verify compatibility by checking your appliance's service manual or original part number.

When to Replace

  • The dryer will not start.
  • The dryer motor runs, but the unit does not produce heat.
  • The original fuse fails a continuity test with a multimeter.

Installation Tips

  • Disconnect the dryer from its power source before starting the repair.
  • The root cause of a blown fuse is often a clogged vent; inspect and thoroughly clean the entire vent system from the dryer to the exterior exit.
  • For a complete repair, it is recommended to also test and potentially replace the high-limit thermostat at the same time.
Product image 1
Product image 2
Product image 1
Product image 2
Product image 1
Product image 2
  • WIDE COMPATIBILITY

    WIDE COMPATIBILITY

    Our Thermal Fuse fits Whirlpool, Kenmore, Maytag Washers and more
  • NON-CRACKING DESIGN

    NON-CRACKING DESIGN

    This Thermal Fuse is made of sturdy ABS platsic which is strong and wear-resistant, enhancing durability
  • BEST SOLUTION

    BEST SOLUTION

    BlueStars brings DIY solutions to help you deal with any trouble
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    Just 5 minutes of replacing to make your Dryer run like new!
4 SIMPLE STEPS

4 SIMPLE STEPS

1. Locate the thermal fuse behind the dryer back panel; 2. Remove the wires going to the two thermal fuse terminals; 3. Unscrew the mounting screw to remove the old thermal fuse; 4. Make sure to clean the dryer vent and blower housing. Reinstall with our new part!
WIDE COMPATIBILITY

WIDE COMPATIBILITY

Compatible with many top-name brands: Whirlpool, Kenmore, KitchenAid, Roper, Estate, Inglis, Maytag, Crosley, Amana, Admiral, Magic Chef
Brand Model Number
Replaces 2986, 3388651, 694511, 80005, AP6008325, EAP11741460, ET401, G4AP0500, PD00002311, PS11741460, SET401, TJ90SET401, WP3392519VP
Admiral AED4370TQ0, AED4470TQ0, AED4475TQ0, AED4475TQ1, AED4516HW0, AED4516MW0, AED4675YQ0, AED4675YQ1
Amana NED4500TQ0, NED4500VQ0, NED4600YQ0, NED4600YQ1, NED4655EW0, NED4655EW1, NED4700YQ0, NED4700YQ1, NED4705EW0, NED4705EW1, NED4800VQ0, NED4800VQ1, NED5100TQ0, NED5100TQ1, NED5200TQ0, NED5240TQ0, NED5400TQ0, NED5500TQ0, NED5800TQ0, NED7300WW0, YNED5800DW2, YNED5800HW0, YNED5800HW1, YNED5800HW2, YNED7300WW0
Kenmore 1106062110, 1107062110, 1108647100, 1108762110, 1109773701, 10688419100, 10688419300, 11060012000, 11060012001, 11060012002, 11060022010, 11060172000, 11060172001, 11060172002, 11060202990, 11060212990, 11060232000, 11060232001, 11060232002, 11060522900, 11060602990, 11060612990, 11060622990, 11060702990, 11060712990, 11060722990, 11060724990, 11060727990, 11060802990, 11060812990, 11060814990, 11060817990, 11060832990, 11060842990, 11060852990, 11060854990, 11060857990, 11061202010, 11061202011, 11061252010, 11061252011, 11061802000, 11061804000, 11061812000, 11061814000, 11062062102, 11062062103, 11062064102, 11062064103, 11062066102, 11062066103, 11062082102, 11062084102, 11062086102, 11062182102, 11062182103, 11062202100, 11062202101, 11062212100, 11062212101, 11062512100, 11062512101, 11062512102, 11062514100, 11062514101, 11062514102, 11062602100, 11062602101
KitchenAid KEYE665BAL2, KEYE665BWH2, KEYE665BWH3, KEYE670BAL2, KEYE670BAL3, KEYE670BWH2, KEYE670BWH3, KEYE677BWH2, KEYE677BWH3, KEYE678BAL0, KEYE678BAL1, KEYE679BBL0, KEYE679BBL1, KEYE770BAL2, KEYE770BWH2, KEYE777BWH2, KEYE778BAL2, KEYS677EQ0, KEYS677EQ1, KEYS677EQ2, KEYS677EZ0, KEYS677EZ1, KEYS677EZ2, KEYS700EQ0, KEYS700EQ1, KEYS700EZ0, KEYS700EZ1, KEYS700GQ0, KEYS700GT0, KEYS700GZ0, KGYS677EQ0, KGYS677EZ0, KGYS700GQ0, KGYS700GZ0, KGYS750GQ0, KGYS750GZ0
Maytag MEDC200XW0, MEDC200XW1, MEDC200XW2, MEDC200XW3, MEDC215EW0, MEDC215EW1, MEDC300BW0, MEDC400VW0, MEDC465HW0, MED5500FC1, MED5500FW1, MED5630HW0, MED5630HW1, MED5630HW2, MED6230HW0, MED6230HW1, MED6230HW2, MED6630HW0, MED6630HW2, MED8630HW0, MED8630HW1, MED8630HW2, MGDC465HW0
Whirlpool 1CWED4800DQ0, 1CWED4900DW0, 1CWED5100VQ0, 1CWED5100VQ1, 1CWED5200VQ0, 1CWED5200VQ1, 1CWED5300VW0, 1CWED5700VW0, 1CWGD4800DQ0, 1CWGD5100VQ1, 1CWGD5200VQ0, 1CWGD5200VQ1, 1CWGD5300SQ0, 7MWED5620HW0, 7MWED5620HW1, 7MWED6613HC0, 7MWED6613HC1, 7MWED6613HW0, 7MWED6613HW1, 7MWED90HEFW1, 7MWED90HEFW2, 8TCEM2760KQ0, 8TCEM2760KQ1, 8TCEP2760KQ0
Whirlpool 7MWGD1600BM2, 7MWGD1600BM3, 7MWGD1600DQ0, 7MWGD1600DQ1, 7MWGD1700AQ0, 7MWGD1705YM3, 7MWGD1705YM4, 7MWGD1705YM5, 7MWGD1730YW1, 7MWGD1730YW3, 7MWGD1730YW4, 7MWGD1730YW5, 7MWGD1750EQ0, 7MWGD1750EQ1, 7MWGD1800DM0, 7MWGD1800DM1, 7MWGD1800EM0, 7MWGD1800EM1, 7MWGD1850EI0, 7MWGD1850EI1, 7MWGD1860EM0, 7MWGD1900DW0, 7MWGD1900DW1, 7MWGD1900DW2, 7MWGD1900EW0, 7MWGD1900EW1, 7MWGD1930DM0, 7MWGD1930DM1, 7MWGD1930DM2, 7MWGD1950EI0, 7MWGD1950EI1, 7MWGD2150EN0, 7MWGD2150EN1, 7MWGD5550XW0, 7MWGD5550XW1, 7MWGD5600BW0, 7MWGD5700BC0, 7MWGD5700YW0, 7MWGD5700YW1, 7MWGD7000EW0, 7MWGD7000EW1, 7MWGD7000EW2, 7MWGD72HEDW0, 7MWGD81HEDW0, 7MWGD8300SW0, 7MWGD8300SW1, 7MWGD8500SR0, 7MWGD8500SR1, 7MWGD8500SR2, 7MWGD87HEDC0, 7MWGD9014YQ0, 7MWGD9014YQ1, 7MWGD9015YW0, 7MWGD9015YW1, 7MWGD9016YM0, 7MWGD9150XW0, 7MWGD9150XW1, 7MWGD9150XW2, 7MWGD9200TQ0, 7MWGD9200TQ1, 7MWGD9270XL0, 7MWGD9270XL1, 7MWGD9270XR0, 7MWGD9270XR1, 7MWGD9400TU0, 7MWGD9400TU1, 7MWGD9400TU2, 7MWGD95HEDU0, 7MWGD97HDBD0, 7MWGD9919EM0, 7MWGD9919EM1, 7MWGT3300EQ0, 7MWGT4027HW0, 7MWGT4027HW1
Whirlpool WED4850HW0, WED4950HW0, WED49STBW1, WED5100HC1, WED5100HC3, WED5100HW0, WED5100HW1, WED5100HW3, WED5500BW0, WED5500XL0, WED5500XW0, WED5500XW1, WED5550XW0, WED5600XW0, WED5600XW1, WED5620HW0, WED5620HW1, WED5620HW2, WED5700AC0, WED5700AC1, WED5700XL0, WED5700XW0, WED5800BC0, WED5800BW0, WED5810BW0, WED6120HC0, WED6120HC1, WED6120HC3, WED6120HW0, WED6120HW1, WED6120HW3, WED6620HC0, WED6620HC1, WED6620HC2, WED6620HW0, WED6620HW1, WED6620HW2, WED8000DW4, WED8127LC0, WED8500DC4, WED8500DR4, WED8500DW4, WED85HEFC1, WED85HEFC2, WED85HEFW2, WED8620HW0, WED8620HW1, WED8620HW2, WED90HEFC1, WED90HEFC2, WED90HEFW1, WED90HEFW2, WED92HEFBD1, WED92HEFBD2, WED92HEFC1, WED92HEFC2, WED92HEFU1, WED92HEFU2, WED92HEFW1, WED92HEFW2, WED9620HBK0, WED9620HBK1, WED9620HBK2, WED9620HC0, WED9620HC1, WED9620HC2, WED9620HW0, WED9620HW2
Whirlpool WET4024HW0, WET4124HW0, WGD4850HW0, WGD4950HW0, WGD5100HC2, WGD5100HC3, WGD5100HW1, WGD5100HW2, WGD5100HW3, WGD5620HW0, WGD5620HW1, WGD5620HW2, WGD6120HC0, WGD6120HC3, WGD6120HW0, WGD6120HW3, WGD6620HC0, WGD6620HW0, WGD6620HW3, WGD8000DW4, WGD8127LC0, WGD8500DC1, WGD8500DC2, WGD8500DC3, WGD8500DC4, WGD8500DR0, WGD8500DR1, WGD8500DR3, WGD8500DR4, WGD8500DW2, WGD8500DW3, WGD8500DW4, WGD85HEFC1, WGD85HEFW1, WGD8620HW2, WGD8620HW3, WGD87HEDC0, WGD87HEDC1, WGD87HEDW0, WGD87HEDW1, WGD88HEAC2, WGD88HEAW2, WGD9050XW3, WGD9051YW2, WGD9371YL2, WGD9371YW2, WGD9620HC3, WGD90HEFC1, WGD90HEFW1, WGD92HEFBD1, WGD92HEFU1, WGD92HEFW1, WGD96HEAW2, YWED4850HW0, YWET4024HW0, YMEDC465HW0
Color
White
Material
Metal / Plastic
Trip Temperature
196°F / 91°C (Non-Resettable)
Terminal Size
3/16 inch spade (x2)
Product Dimensions
3/4 x 9/16 x 2 inches

FAQ

This thermal fuse is commonly used on dryers from Whirlpool, Kenmore, and Maytag. Compatibility depends on the dryer's model number and original fuse part number, so the safest match is to verify your existing part number or check your model's parts diagram before ordering.
This fuse replaces part numbers 3392519, WP3392519, AP6008325, G4AP0500, 3388651, 694511, 80005, WP3392519VP, ET401, and PS11741460.
The 3392519 thermal fuse is a safety device that cuts power to the motor circuit if the dryer overheats. If the fuse opens, the dryer may stop running or fail to start, depending on the model.
Typical symptoms include a dryer that will not start, a dryer that suddenly stopped mid-cycle, or a unit that appears to have power but will not run. Because this fuse is part of the overheat protection system, a blown fuse often points to an airflow problem rather than just a failed fuse by itself.
The most common cause is overheating from restricted airflow. Check for a clogged lint screen housing, blocked or crushed vent hose, lint buildup inside the cabinet, or a damaged blower wheel. On this fuse family, the fuse opens at approximately 196°F (91°C), so recurring failures usually mean the underlying airflow issue was not corrected.
For many dryers, this is a straightforward repair that takes about 15 to 45 minutes. You typically need a screwdriver or nut driver and a multimeter if you want to confirm the old fuse is open. Always disconnect power first, access the fuse housing, transfer the wires to the new fuse, and reassemble the dryer. Fuse location varies by model, so check your model-specific service layout before starting.
Before installing the replacement, inspect and clean the full vent path from the dryer to the exterior outlet, check the blower wheel for damage or obstruction, and remove lint buildup from internal air passages. It is also a good idea to test the old fuse with a multimeter for continuity so you know the fuse is actually the failed component.
