[Lifetime Warranty] 1123 080 1802 Recoil Starter Assembly - Compatible with Stihl 021 023 025 MS210 MS230 MS250 Chainsaw - Replaces 11230801802 1123-080-1802

1123 080 1802 Recoil Starter Assembly

Key Features

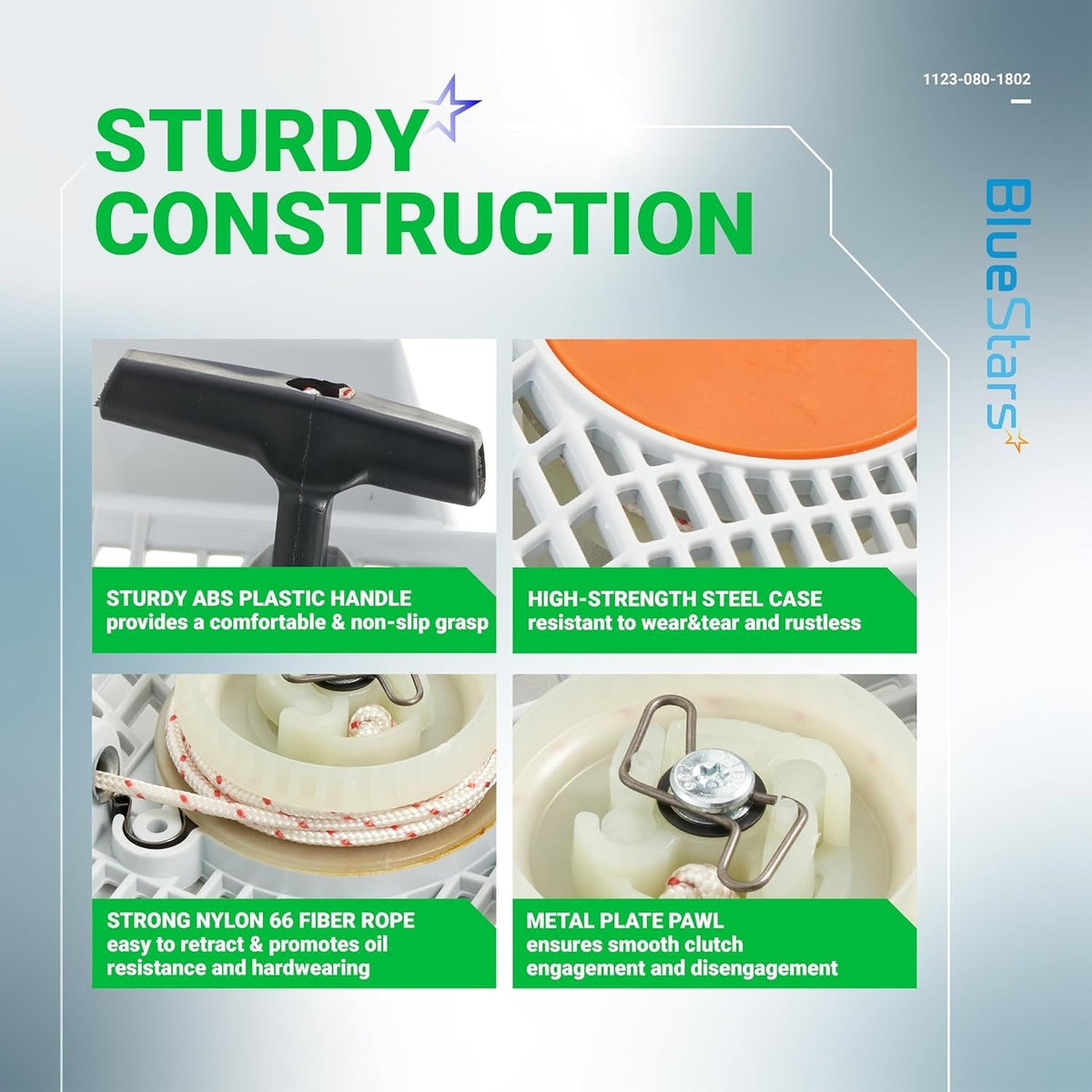

• High-Impact Polymer Housing: Manufactured from reinforced PA66 nylon to withstand the high temperatures and mechanical stress of heavy-duty chainsaw operation.

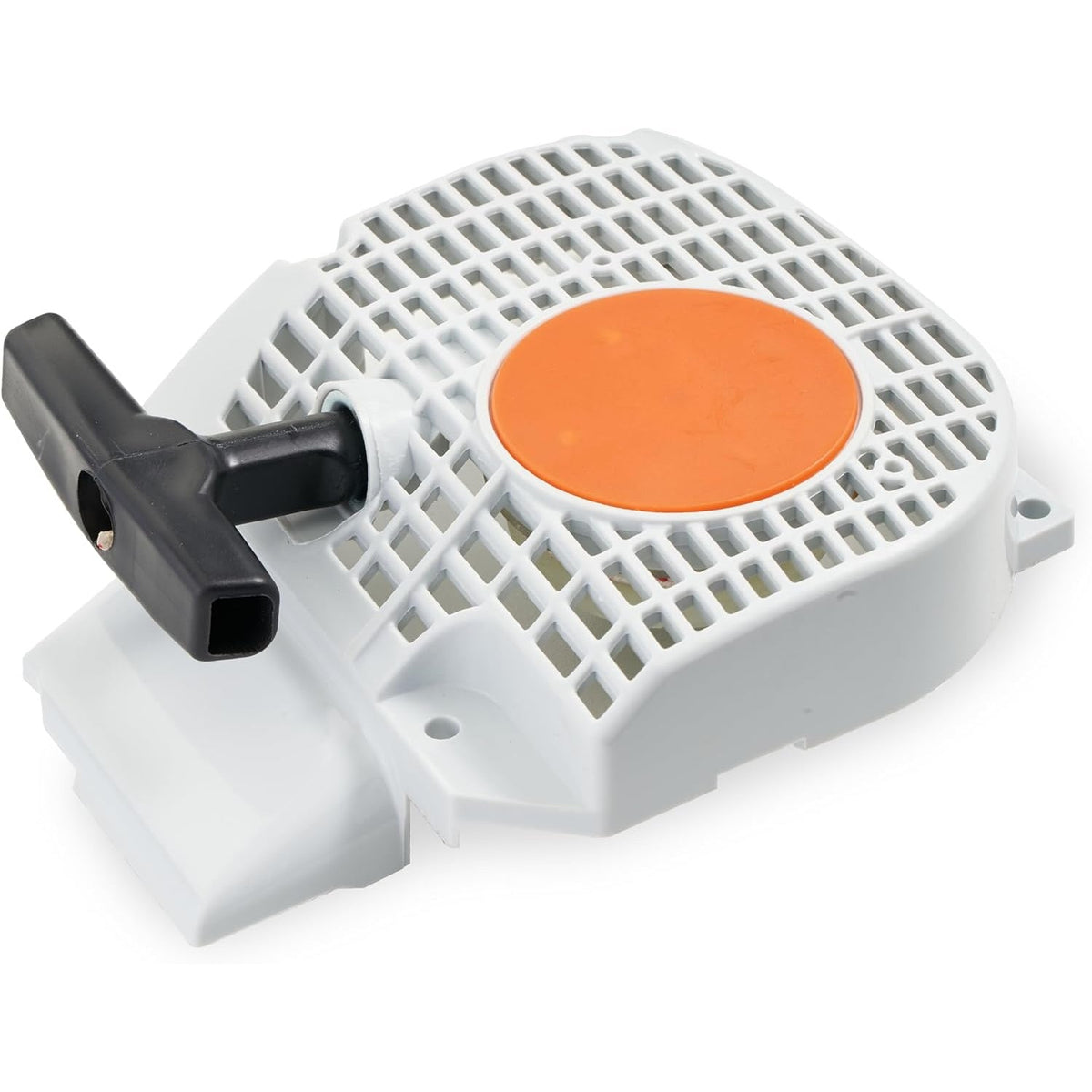

• Complete "Drop-In" Solution: This is a fully assembled unit including the housing, pulley, recoil spring, high-tensile pull rope, and ergonomic "ElastoStart" style handle.
• Heavy-Duty Recoil Spring: Features a precision-wound steel spring designed to provide consistent tension and rapid rope retraction over thousands of start cycles.
• Industrial-Grade Pull Rope: Equipped with a multi-strand braided nylon rope that resists fraying and snapping, even during high-compression cold starts.

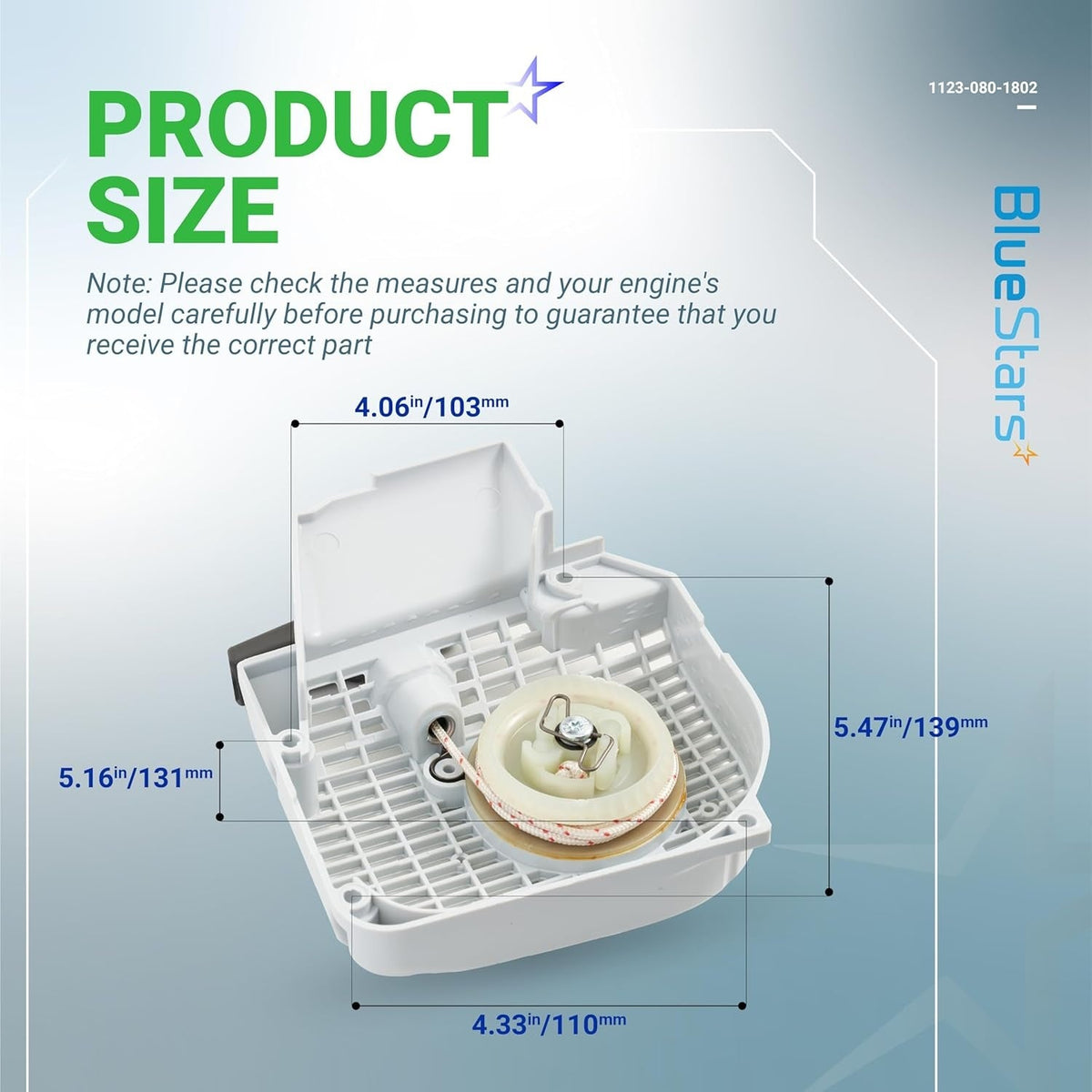

• OEM-Spec Mounting: Engineered to the exact 4-bolt mounting pattern of the original Stihl 1123 series, ensuring a perfect fit without housing gaps or alignment issues.

Replaces / Cross-Reference Part Numbers

• 1123-080-1802
• 1123-080-2104
• 1123-080-2115
• 1123-080-2100
• 11230801802

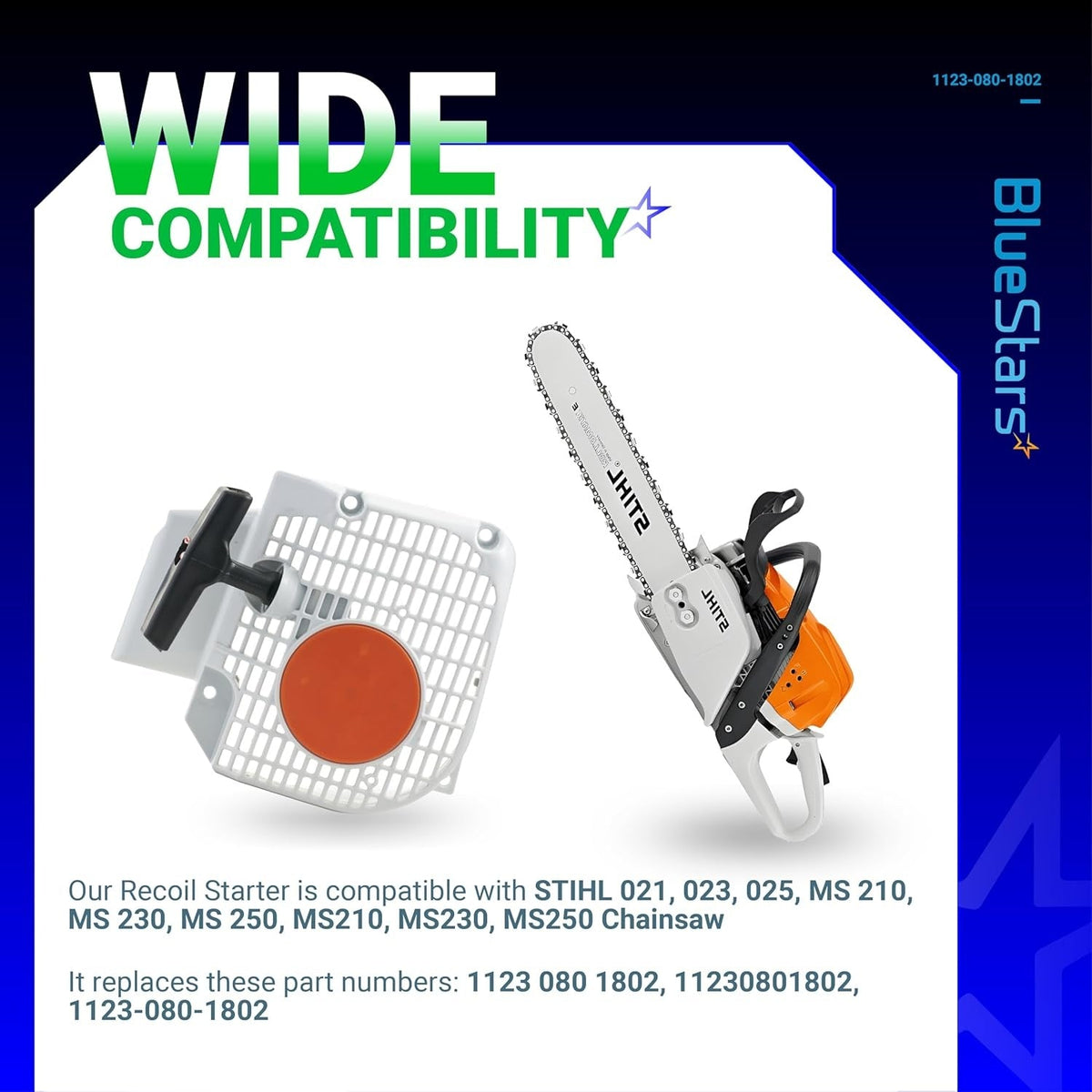

Compatibility & Fitment

This starter assembly is the standard replacement for the popular Stihl "1123" engine platform. Key compatible models include:

• Stihl MS Series: MS210, MS210C, MS230, MS230C, MS250, MS250C.
• Stihl 0-Series: 021, 023, 025.
• Note: Not compatible with "Easy2Start" (ErgoStart) dual-spring systems unless specifically converted. This is the standard single-spring recoil design.

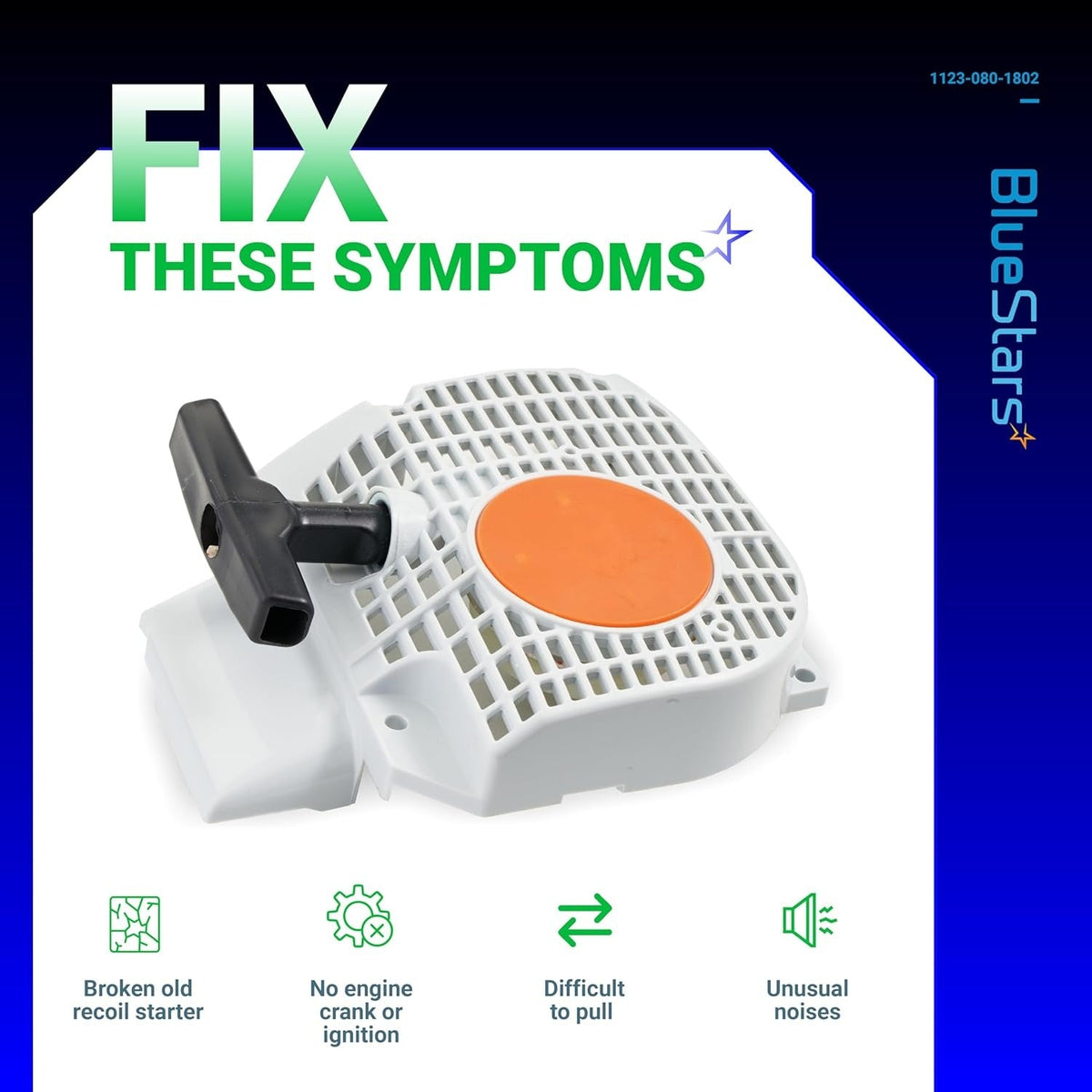

When to Replace

• Rope Won't Retract: The internal recoil spring has snapped or become unhooked, leaving the pull rope hanging loosely from the saw.
• Grinding/Slipping: The starter "dogs" (pawls) or the plastic pulley are worn down, causing the starter to spin without engaging the engine flywheel.
• Cracked Housing: The orange plastic casing is cracked around the mounting bolts or the rope exit, leading to pulley misalignment and frequent rope breakage.
• Total Mechanical Jam: The internal pulley has melted or shattered due to friction heat, making it impossible to pull the starter cord.
• Frayed or Snapped Rope: While the rope can be replaced individually, a complete assembly is recommended if the internal pulley and spring are also showing significant wear.

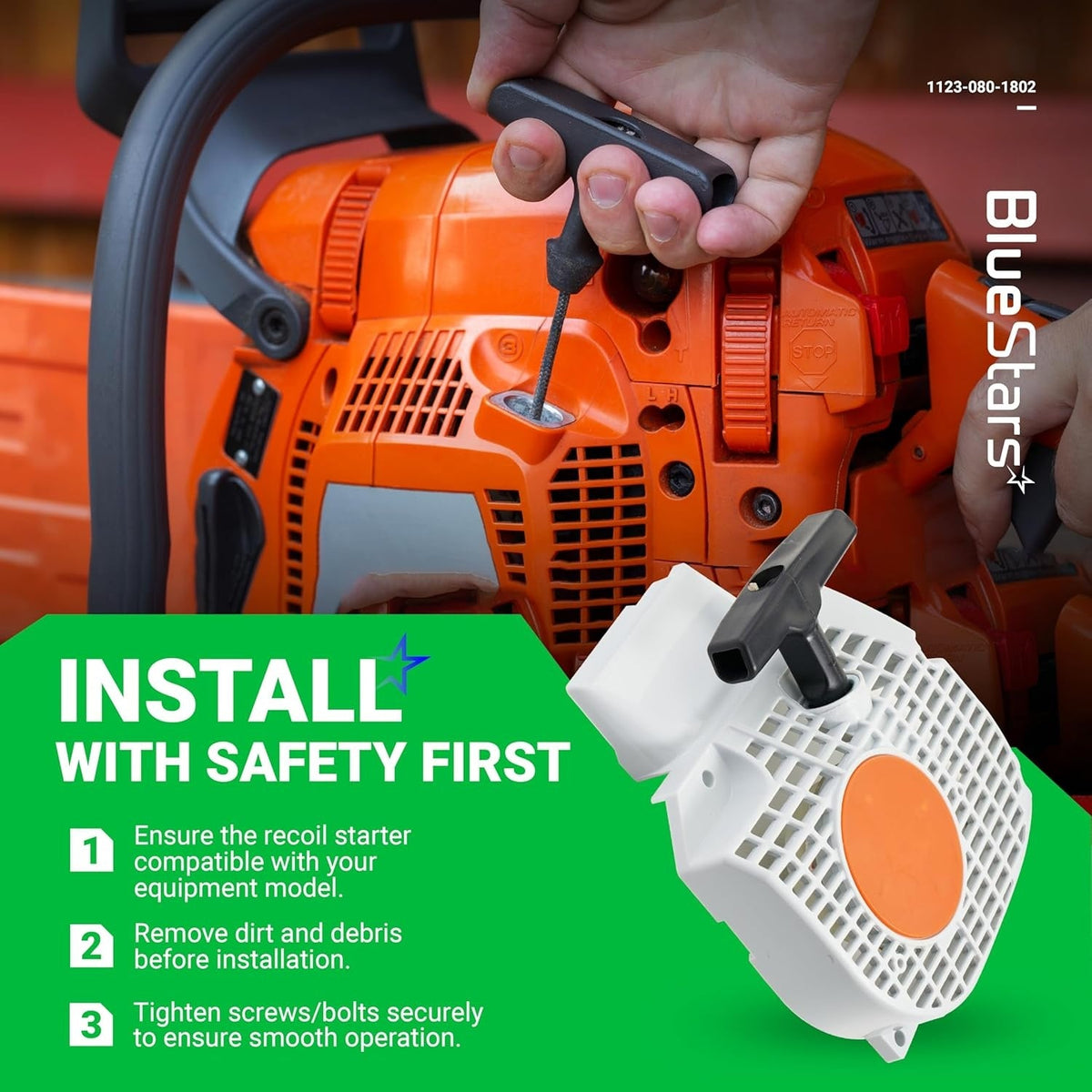

Installation Tips

• Clear the Flywheel: Before bolting on the new assembly, use a brush or compressed air to remove sawdust and wood chips from the flywheel fins. Debris here can cause the new starter to jam.
• Hand-Start the Bolts: Always start the 4 mounting screws by hand. These screws thread into the plastic engine shroud; using an impact driver immediately can strip the threads.
• Check the Pawls: Ensure the plastic pawls (starter dogs) on your flywheel are moving freely. If they are stuck with sap or dirt, the new recoil starter will not engage the engine.
• The "First Pull" Rule: After installation, pull the handle slowly until you feel the starter engage the engine, then give it a short, sharp tug. Avoid pulling the rope to its absolute maximum length, as this puts undue stress on the spring.
• Grease Sparingly: Most modern starters are designed to run dry. If you must lubricate, use a tiny amount of dry silicone spray. Avoid heavy grease, as it will attract sawdust and create a "grinding paste."
