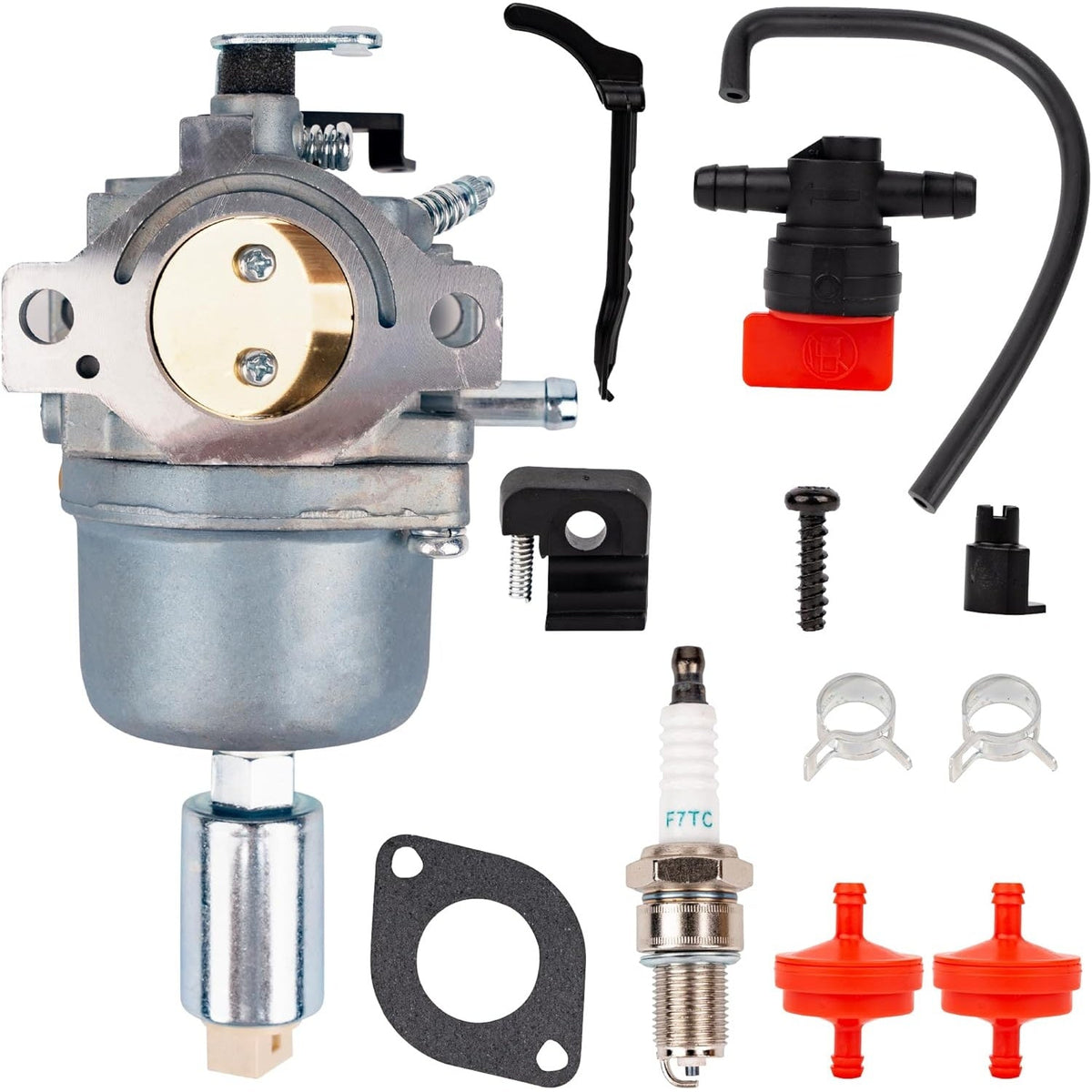

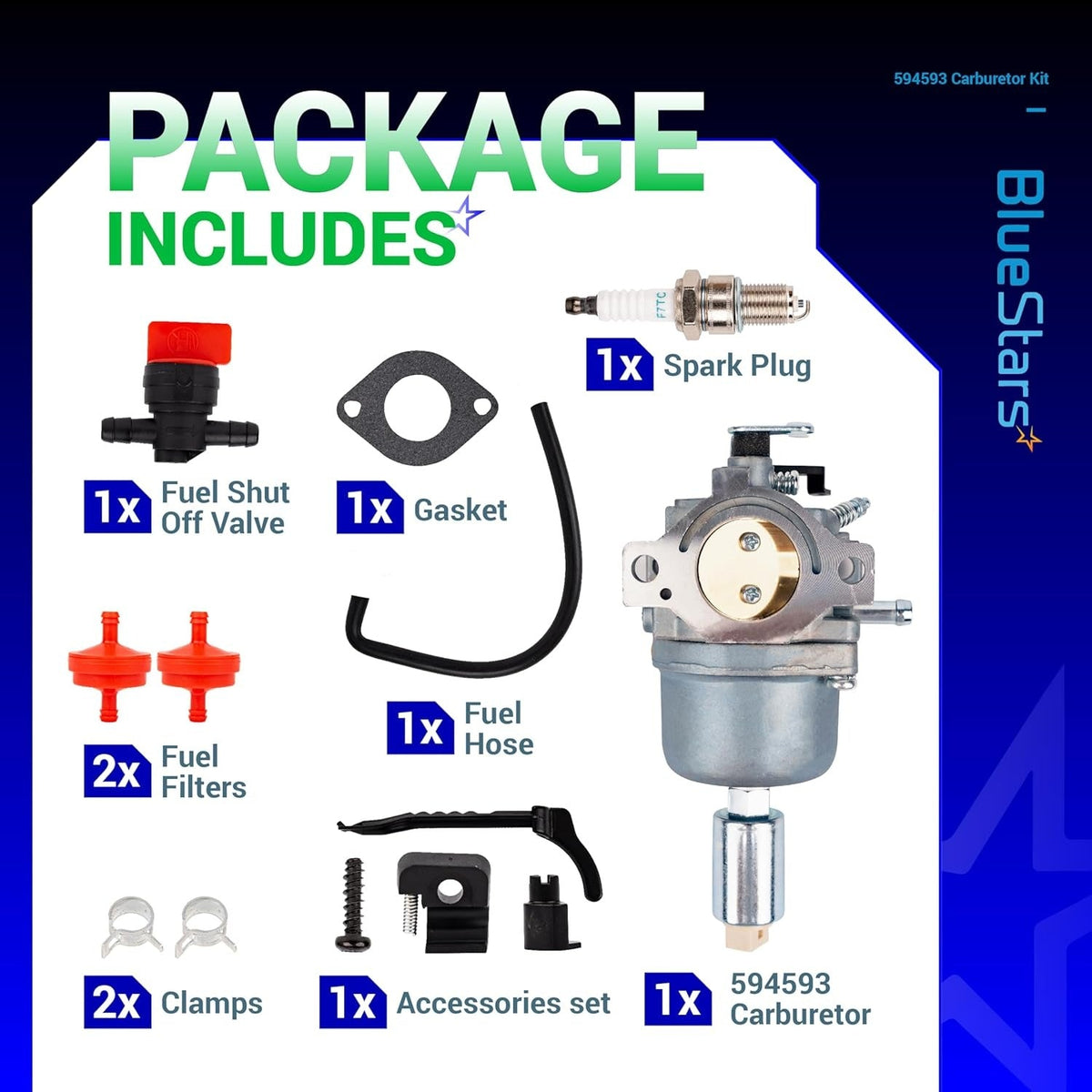

594593 carburetor kit components including carburetor, fuel filters, shut-off valve, spark plug, hose, and accessories.

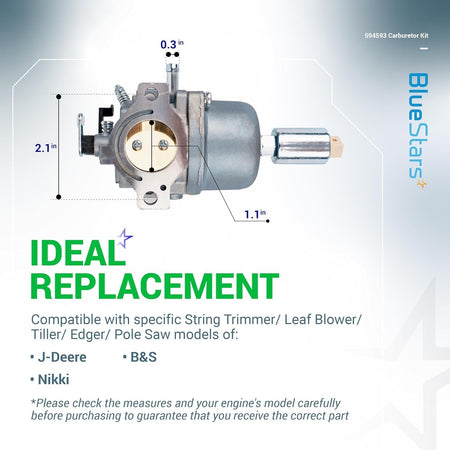

594593 carburetor replacement for John Deere lawn tractors with labeled dimensions for compatibility verification.
594593 carburetor replacement for John Deere lawn tractors with compatibility and part number reference chart.

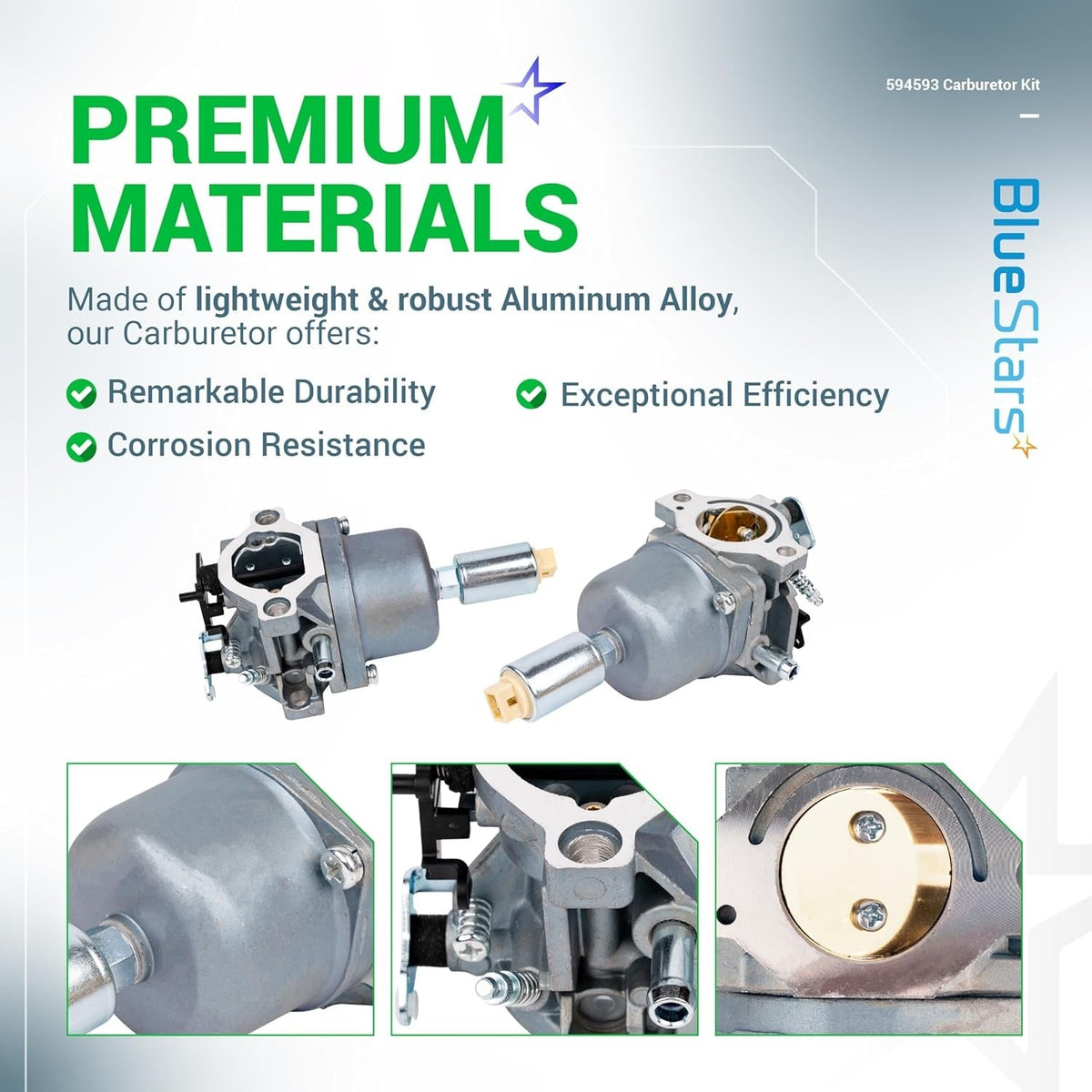

594593 aluminum alloy carburetor for John Deere lawn tractors with close-up detail views of components.
594593 carburetor kit for John Deere lawn tractors shown with symptoms of engine starting and idling issues.
Mechanic holding a 594593 carburetor with easy installation instructions for John Deere lawn tractors.

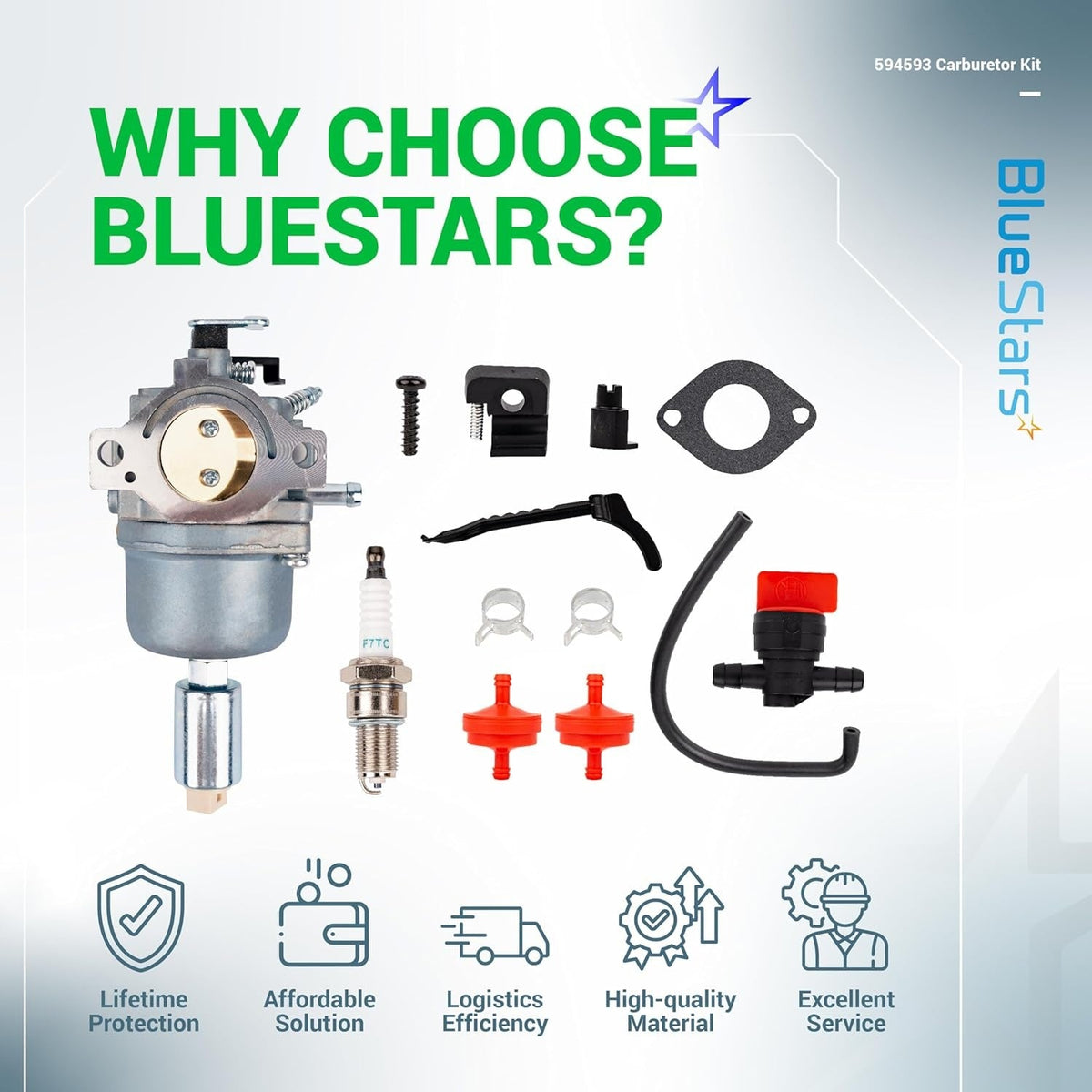

594593 carburetor kit components including carburetor, spark plug, fuel filters, and hardware for John Deere lawn tractors.

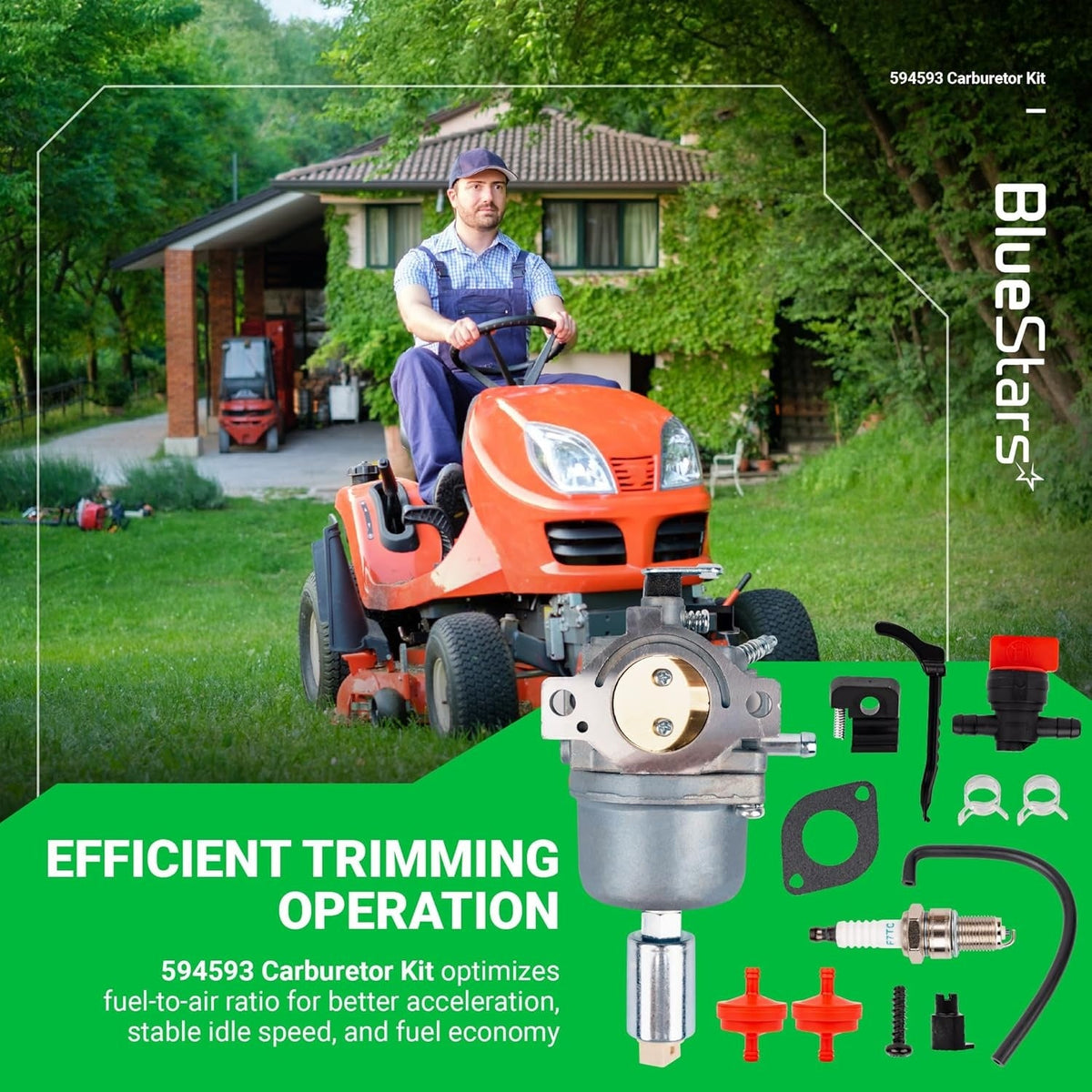

594593 carburetor replacement kit with fuel filter, spark plug, gasket, and fuel line for John Deere lawn tractors.
594593 carburetor kit with fuel filter, spark plug, and gaskets for John Deere lawn tractors.
594593 carburetor kit components including carburetor, fuel filters, shut-off valve, spark plug, hose, and accessories.

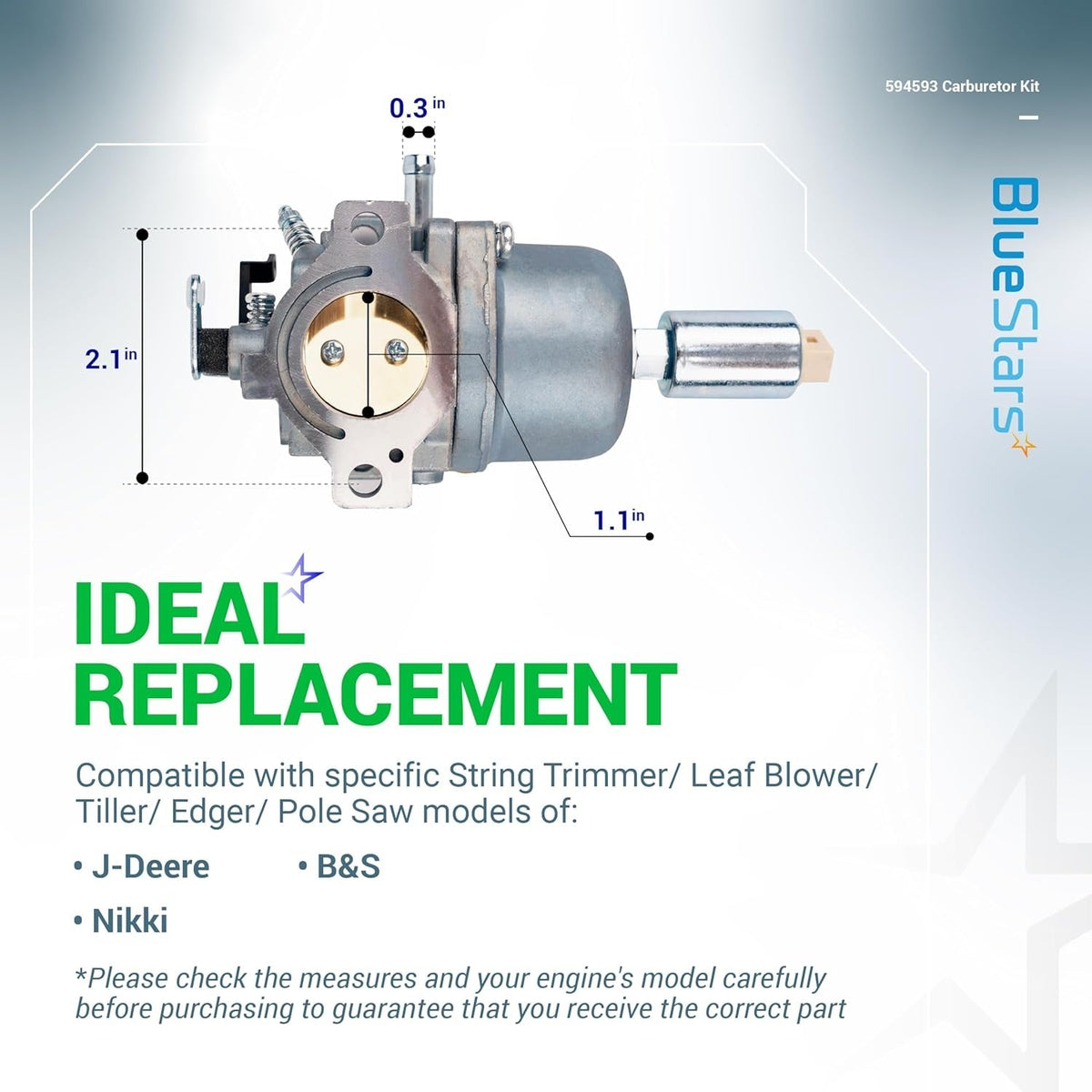

594593 carburetor replacement for John Deere lawn tractors with labeled dimensions for compatibility verification.

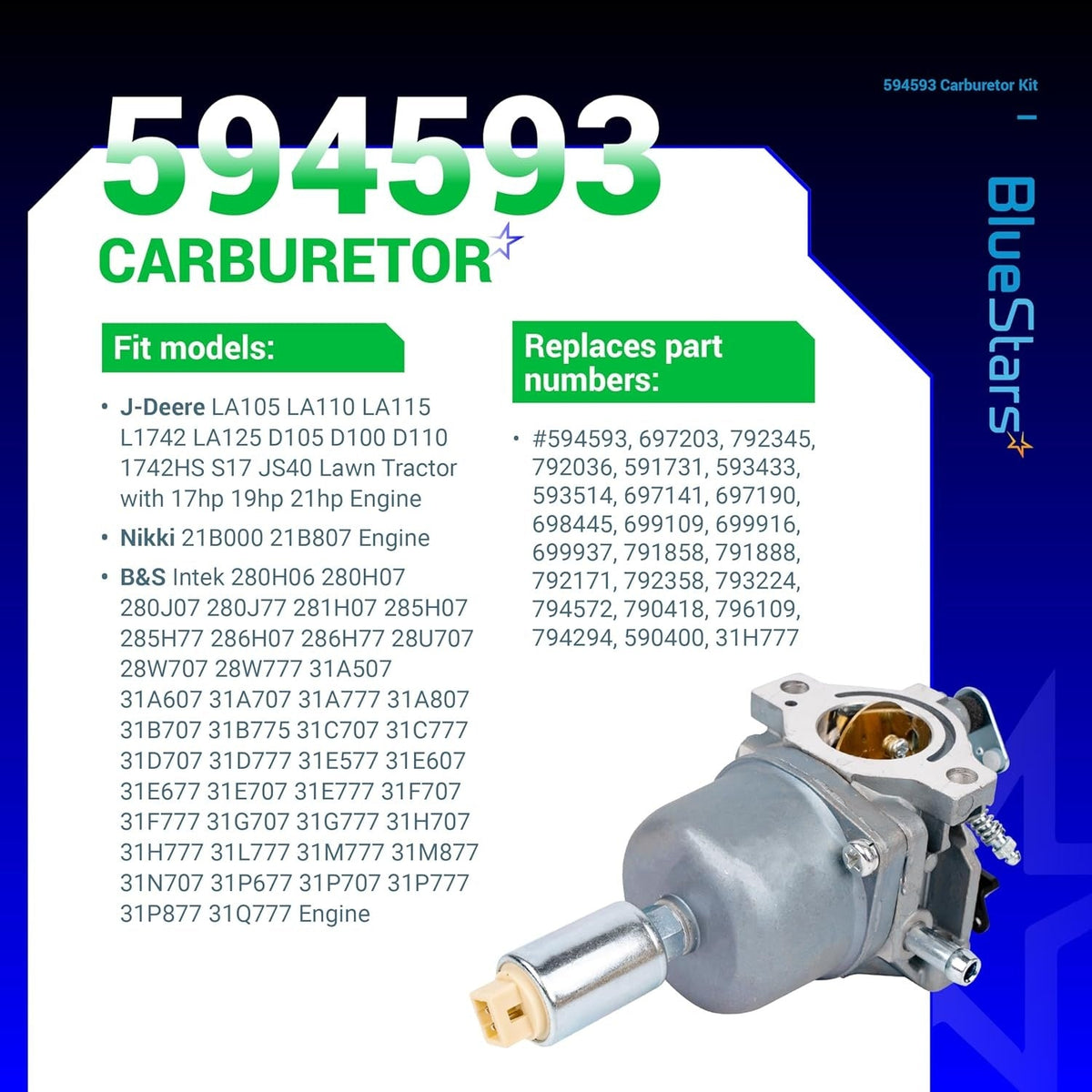

594593 carburetor replacement for John Deere lawn tractors with compatibility and part number reference chart.
594593 aluminum alloy carburetor for John Deere lawn tractors with close-up detail views of components.
594593 carburetor kit for John Deere lawn tractors shown with symptoms of engine starting and idling issues.
Mechanic holding a 594593 carburetor with easy installation instructions for John Deere lawn tractors.
594593 carburetor kit components including carburetor, spark plug, fuel filters, and hardware for John Deere lawn tractors.
Lifetime Warranty

[Lifetime Warranty] 594593 Carburetor Kit - Compatible with John Deere LA105 D110 D105 LA115 D100 LA110 LA125 697203 JS40 L1742 1742HS S17 Lawn Tractor 17HP 19HP 21HP Nikki 697203 792036 792345 591731 796109 31H777 590400

Save 13%
0.00
$32.23
$37.06
$32.23
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

594593 Carburetor

Key Features

  • Genuine Briggs & Stratton OEM component
  • Regulates the flow of fuel and air into the engine
  • Pre-calibrated for direct installation
  • Designed for single-cylinder Intek engines from 14.5HP to 21HP

Replaces / Cross-Reference Part Numbers

  • 591731
  • 594601
  • 594605
  • 794572
  • 796109

Compatibility & Fitment

  • Fits select Briggs & Stratton Intek engines (14.5HP - 21HP)
  • Direct replacement for specific Nikki and Walbro carburetors on these engines
  • Confirmed fit for models such as the Craftsman T130 lawnmower
  • Used on various equipment from brands including John Deere

When to Replace

  • Engine fails to start, hunts, or surges
  • Engine runs rough or stalls under load
  • Excessive black smoke emitted from the exhaust
  • Fuel is leaking from the carburetor body or bowl
  • Noticeable decrease in engine power and efficiency

Installation Tips

  • Disconnect the spark plug wire for safety before beginning work.
  • Shut off the fuel supply or clamp the fuel line to prevent spills.
  • Photograph or note the orientation of linkages and springs before removal.
  • Always use new gaskets during installation to ensure a proper seal.
  • After installation, check for fuel leaks before starting the engine.
Product image 1
Product image 2
Product image 1
Product image 2
Product image 3
Product image 4
  • COMPATIBLE MODELS

    COMPATIBLE MODELS

    Compatible with specific Lawn Tractor & Engine models of J-Deere, Nikki, B&S
  • PART NUMBERS

    PART NUMBERS

    Replaces #594593, 697203, 792345, 792036, 591731, 593433, 593514, 697141, 697190, 698445, 699109, 699916, 699937, 791858, 791888, 792171, etc
  • FIX ENGINE'S SYMPTOMS

    FIX ENGINE'S SYMPTOMS

    Popping/ banging/ sneezing sounds | Engine won't start | Idling issues | Excessive exhaust | Carburetor floods
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
EASY INSTALLATION

EASY INSTALLATION

1. Turn off the fuel valve. Drain the fuel tank; 2. Remove the air filter cover, air filter, and air filter housing; 3. Disconnect the fuel lines. Remove the linkage from the carburetor; 4. Discard your old carburetor. Reinstall with our new part!
Brand Model Number
Replaces Part Number: 591731, 593433, 593514, 594593, 697141, 697190, 698445, 699109, 699916, 699937, 791858, 791888, 792171, 792358, 793224, 794572, 790418, 796109, 794294
John Deere LA105, LA110, LA115, L1742, LA125, D105, D100, D110, 1742HS, S17, JS40 Lawn Tractor w/ 17HP, 19HP, 21HP Engine
Nikki 21B000, 21B807 Engine
Intek 280H06, 280H07, 280J07, 280J77, 281H07, 285H07, 285H77, 286H07, 286H77, 28U707, 28W707, 28W777, 31A507, 31A607, 31A707, 31A777, 31A807, 31B707, 31B775, 31C707, 31C777, 31D707, 31D777, 31E577, 31E607, 31E677, 31E707, 31E777, 31F707, 31F777, 31G707, 31G777, 31H707, 31H777, 31L777, 31M777, 31M877, 31N707, 31P677, 31P707, 31P777, 31P877, 31Q777
Manufacturer
‎BlueStars
Brand
‎BlueStars
Model
‎594593 Carburetor Kit
Item Weight
‎1.08 pounds
Package Dimensions
‎7.09 x 3.46 x 3.03 inches
Manufacturer Part Number
‎594593 697203 792036 792345

FAQ

This kit is designed for a wide range of equipment, including John Deere models LA105, D110, D105, LA115, D100, LA110, LA125, JS40, L1742, 1742HS, and S17. It is also compatible with various engines requiring Briggs & Stratton part 594593.
This unit replaces OEM part number 594593. It also cross-references with a large number of parts, including 591731, 796109, 697203, 792036, 792345, 590400, 593514, 791888, 792358, 793224, 794572, 699937, 697190, 697141, 792171, 791858, 698445, 790418, 594591, 593433, 796078, 699916, 594605, 594601, 591351, and 591951.
You likely need a replacement if your engine is experiencing rough idling, frequent stalling, hard starting, or surging while under load. These issues are often caused by internal clogs or worn-out components within the carburetor that cannot be resolved by simple cleaning.
The most common cause of failure is the use of ethanol-blended fuels. Ethanol attracts moisture and can leave behind gummy deposits or varnish when the equipment sits unused for extended periods. This residue clogs the small internal passages and jets, preventing the engine from receiving the proper air-fuel mixture.
Installation typically involves turning off the fuel supply and draining the tank, removing the air filter housing, disconnecting the fuel lines, and detaching the throttle linkage. Once the old carburetor is removed, install the new unit using the provided gaskets to ensure an airtight seal. Always ensure the fuel lines are secure and free of cracks before restarting the engine.
It is highly recommended to replace the fuel filter and inspect your fuel lines for any signs of dry rot or cracking. Additionally, check the condition of your air filter; if it is dirty or restricted, it will prevent the new carburetor from performing correctly.
