WPW10448876 Washer Water Level Pressure Switch

WPW10448876 Washer Water Level Pressure Switch

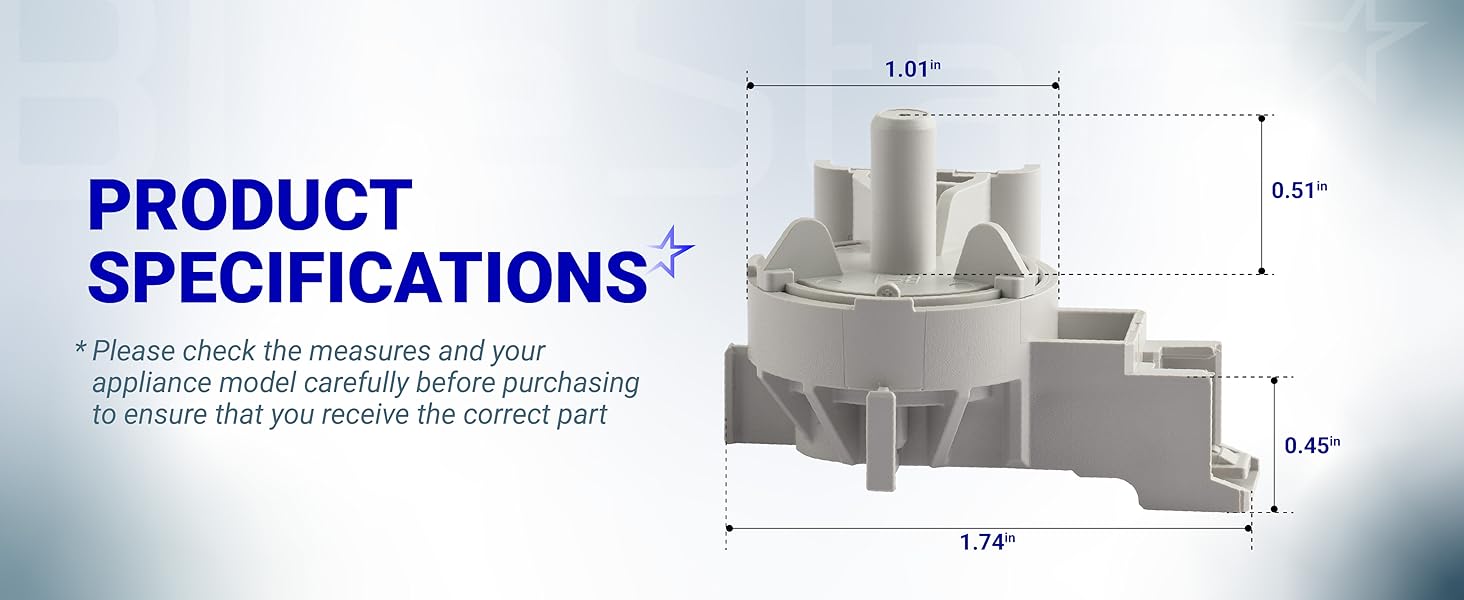

Part Type: Washer Water Level Pressure Switch

The WPW10448876 Washer Water Level Pressure Switch is a genuine replacement part that monitors and controls the water level inside your washing machine. It signals the control board to fill or stop filling the washer based on the correct water level, ensuring optimal washing performance and preventing overflow.

Key Features

• Accurately detects and maintains the correct water level during wash and rinse cycles.
• Direct-fit OEM replacement for dependable compatibility and function.
• Durable construction ensures long-lasting use and consistent performance.
• Easy installation — connects directly to the washer’s pressure hose and wiring harness.
• Helps improve washing efficiency and water usage control.

Replaces / Cross-Reference Part Numbers

• Replaces: W10448876, PS11754529, AP6021509, WPW10448876VP, and equivalent part numbers.

Compatible Models

• Compatible with select Whirlpool, Kenmore, Maytag, and Amana top-load washer models.
• Always verify your model number before ordering to ensure proper fit.

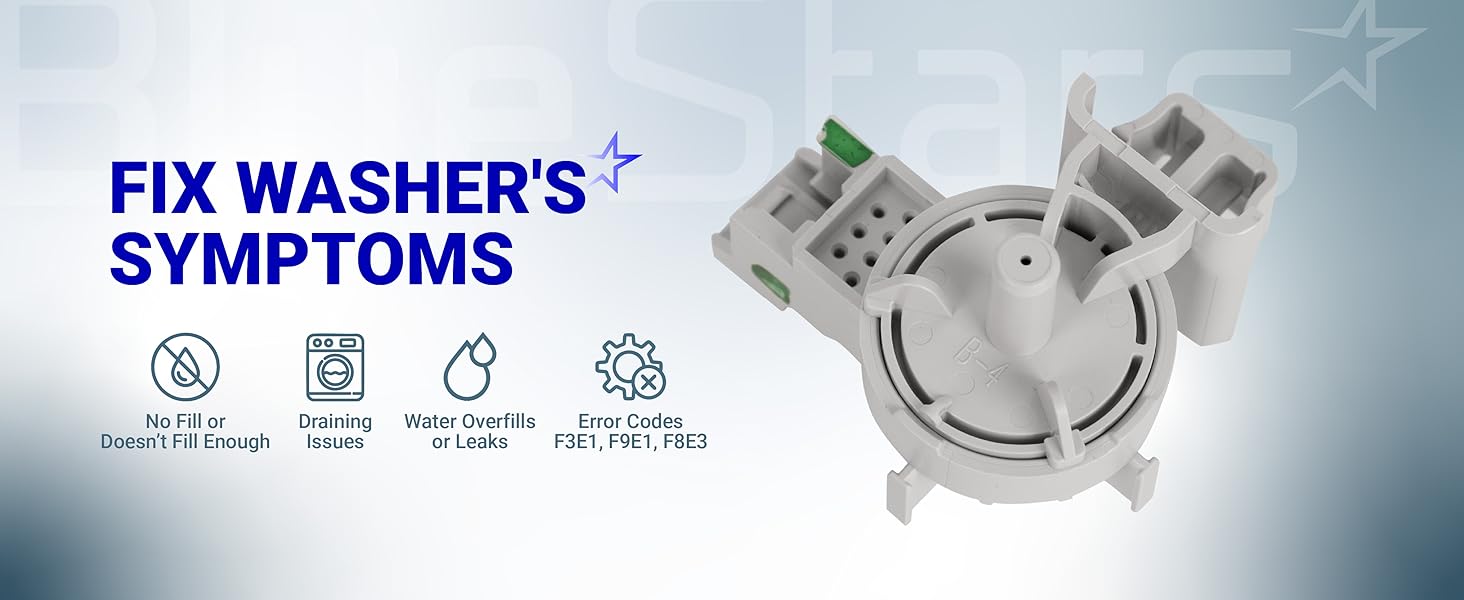

When to Replace

• Washer overfills or doesn’t fill correctly.
• Water doesn’t stop running after reaching proper level.
• Washer won’t advance through wash cycles.

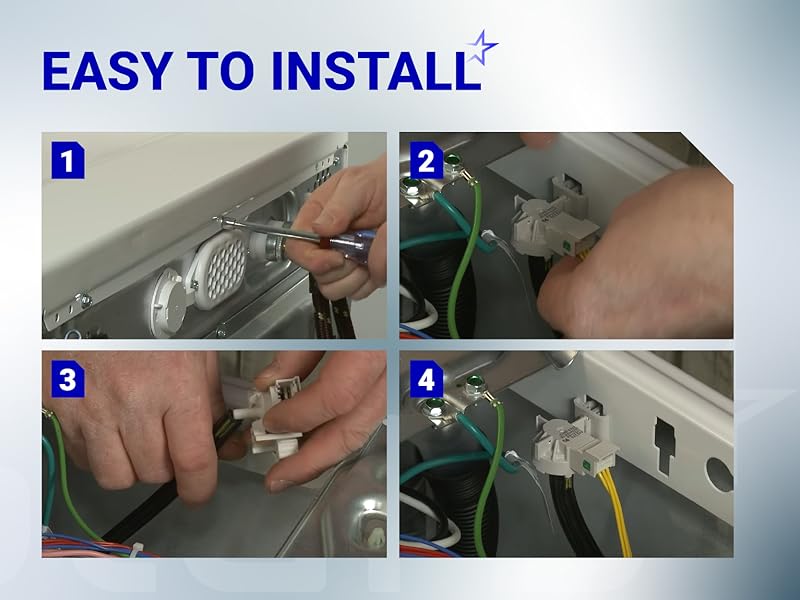

Installation Tips

1. Unplug the washer and disconnect water supply before starting.
2. Locate and remove the old pressure switch from under the control panel.
3. Disconnect the pressure hose and wire harness carefully.
4. Install the new switch, reconnect hose and wires, and reassemble the control panel.
5. Run a test cycle to verify proper water level sensing.
