Lifetime Warranty
[Lifetime Warranty] 2188830 Refrigerator Compressor Relay & Overload Replacement - Compatible with Whirlpool & Kenmore Refrigerators - Replaces 2220475 PS993073 2188829 1177466
Save 13%
0.00
Regular price
$14.96
Regular price
$17.20
Sale price
$14.96
Fast delivery
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

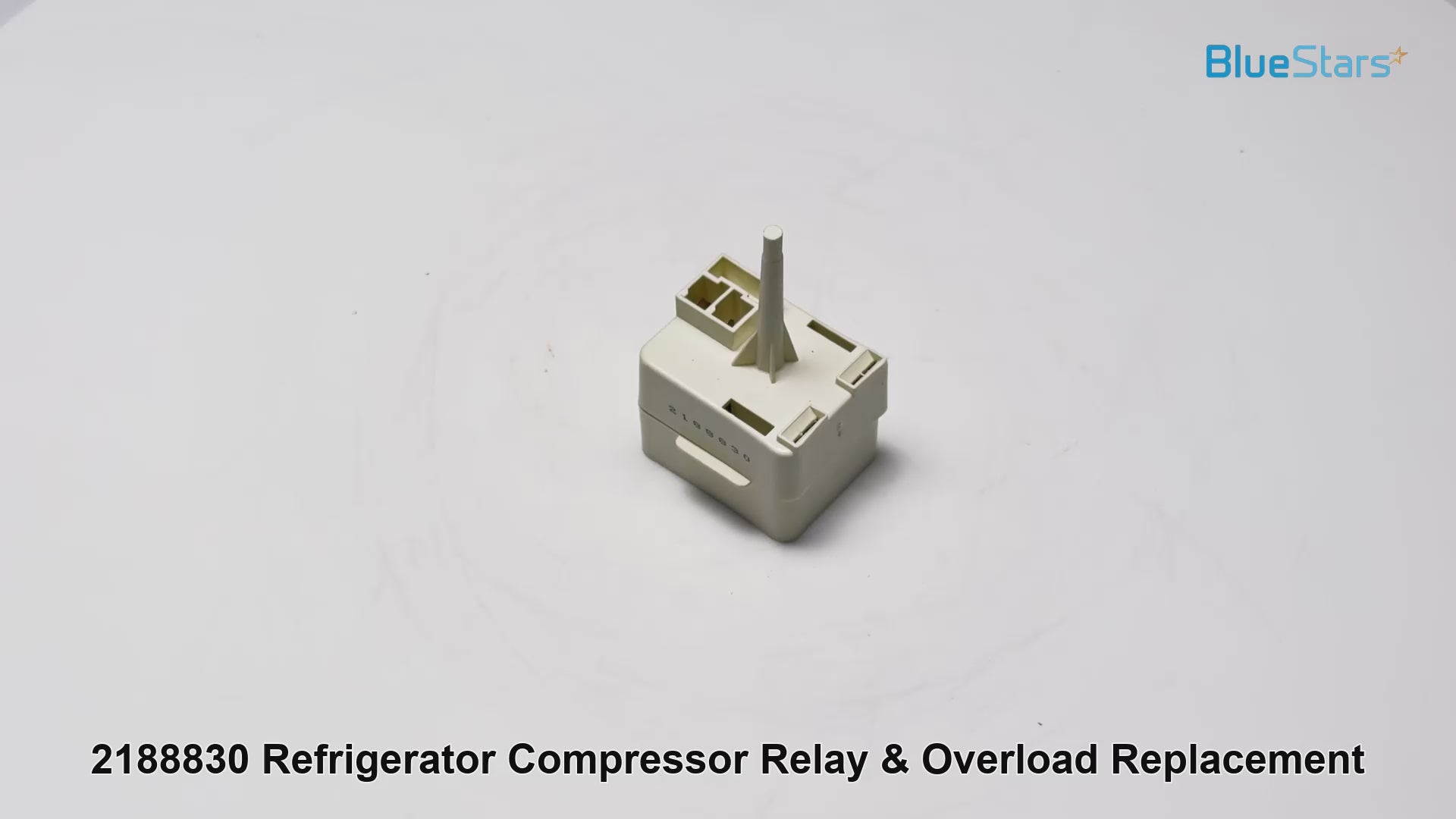

2188830 Refrigerator Compressor Relay & Overload
Key Features
- Combines the start relay and overload protector into a single assembly.
- Initiates the compressor motor's start winding.
- Protects the compressor from damage due to overheating or excessive current draw.
- Direct replacement for specified OEM part numbers.

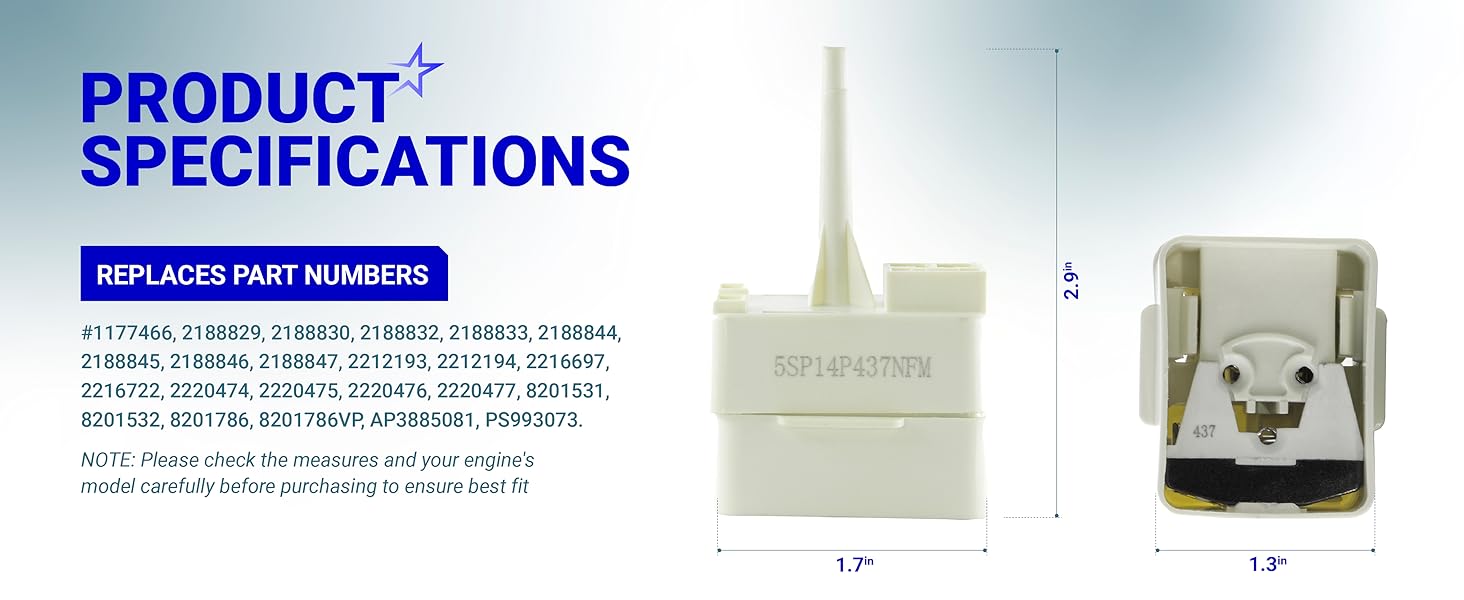

Replaces / Cross-Reference Part Numbers
- 8201786
- AP3885081
- PS993073
- 1177466
- 2188829
- 2212194
- 2220475
- 2216697
- AH993073
- OLK1786
Compatibility & Fitment
- Designed for various refrigerator models from brands including Whirlpool, Kenmore, Roper, and KitchenAid.
- Confirm fitment by cross-referencing your appliance's original part number.
When to Replace
- Refrigerator is not cooling, but lights are on.
- A clicking sound is heard from the compressor area every few minutes.
- The compressor is unusually hot to the touch but does not run.
- The compressor attempts to start but shuts off immediately.
Installation Tips
- Disconnect the refrigerator from the power source before beginning any repairs.
- Take a picture of the original wiring connections before removing the old part.
- Ensure the new relay and overload assembly is securely seated on the compressor pins.
- Wear safety gloves to protect your hands during installation.
-
WIDE COMPATIBILITY
Compatible with many models of Whirlpool, Kenmore, Roper, Crosley, Estate, Inglis refrigerators. -
FIX THESE SYMPTOMS
Will not start | Freezer section too warm | Fridge too warm | Freezer are too warm. -
BEST SOLUTION
Great feeling when your refrigerator is repaired and works efficiently - Enjoy worthy savings by replacing the superior yet affordable part yourself! -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
LONG-LASTING SOLUTION
Made of sturdy & waterproof ABS Plastic that contains no BPA material with a non-cracking design
WORK LIKE A CHARM
It has a well-crafted & reliable design that fits and works like a charm under daily frequent use.
4 INSTALLATION STEPS
1. Unplug the fridge and remove the lower rear access panel | 2. Remove the retaining clip, then pull the old relay assembly straight off the compressor pins | 3. Firmly push the new relay assembly onto the compressor pins | 4. Reconnect the wires, secure the retaining clip, and replace the access panel.
| Brand | Model Number |
|---|---|
| Replaces | 1177466, 2188829, 2188832, 2188833, 2188844, 2188845, 2188846, 2188847, 2198830, 2212193, 2212194, 2216697, 2216722, 2220474, 2220475, 2220476, 2220477, 5SP14P437NFM, 8201531, 8201532, 8201786, 8201786VP, AH993073, AP3885081, EA993073, PS993073, TJ2188830 |
| Kenmore | 106.52574200, 10641012100, 10641012101, 10641014100, 10641014101, 10641212100, 10641212101, 10641214100, 10641214101, 10641512100, 10641512101, 10641514100, 10641514101, 10641519100, 10641519101, 10644252400, 10644252401, 10644253400, 10644253401 |
| KitchenAid | KSRA22KNSS00, KSRA22KNSS01, KSRA25FKSS00, KSRA25ILSS01, KSRA25ILSS03, KSRB25FKSS01, KSRB25FKSS03, KSRG22FKBL17, KSRG22FKBL18, KSRG22FKBT17, KSRG22FKBT18, KSRG22FKSS17, KSRG22FKSS18, KSRG25FKSS04, KSRG25FKSS05, KSRS25IKBL01, KSRS25IKSS01, KSRS25IKWH01, KSRS25ILBL02, KSRS25ILSS02, KSRS25ILSS03, KSRS27IKSS01 |
| Whirlpool | CS22AFXKQ01, CS22AFXKT01, CS25AFXKQ01, CS25AFXKQ02, CS25AFXKQ03, CS25AFXKT00, CS25AFXKT01, ED0GTKXKQ00, ED0GTKXKQ01, ED0GTQXKQ00, ED0GTQXKQ01, ED2FHAXSB00, ED2FHAXSB01, ED2FHAXSB03, ED2FHAXSL00, ED2FHAXSL01, ED2FHAXSL02, ED2FHAXSL03, ED2FHAXSQ00, ED2FHAXSQ01, ED2FHAXSQ03, ED2FHAXST00, ED2FHAXST01, ED2FHAXST03, ED2FHEXNB00, ED2FHEXNL00, ED2FHEXNQ00, ED2FHEXNS00, ED2FHEXNT00, ED2GHEXNB00, ED2GHEXNL00, ED2GHEXNQ00, ED2GHEXNT00, ED2LHAXMB11, ED2LHAXML11, ED2LHAXMQ11, ED2LHAXMT11, ED2NHAXNB01, ED2NHAXNB02, ED2NHAXNL01, ED2NHAXNL02, ED2NHAXNQ01, ED2NHAXNQ02, ED2NHAXNT01, ED2NHAXNT02, ED2NHEXNB00, ED2NHEXNL00, ED2NHEXNQ00, ED2NHEXNT00, ED2PHEXMQ00, ED2PHEXNQ00, ED2PHEXNT00, ED2SHAXML12, ED2FHEXNS00 |
| Whirlpool | ED5CHQXKB03, ED5CHQXKQ03, ED5FHEXMB00, ED5FHEXMQ00, ED5FHEXNB00, ED5FHEXNL00, ED5FHEXNQ00, ED5FHEXNS00, ED5FHEXNT00, ED5FHEXSS00, ED5FHGXKQ00, ED5FHGXKQ02, ED5FTGXKQ00, ED5FTGXKQ01, ED5FTGXKQ02, ED5GHEXNL00, ED5GHEXNQ00, ED5GHGXMB00, ED5GHGXMQ00, ED5GTGXNQ00, ED5GTNXMQ00, ED5JHGXRB00, ED5JHGXRQ00, ED5NHGXMQ00, ED5PHAXMB00, ED5PHAXMQ00, ED5PHEXMB00, ED5PHEXMQ00, ED5PHEXNL00, ED5PHEXRB00, ED5PHEXRQ00, ED5PHEXRL00, ED5RHEXNL00, ED5RHEXNL03, ED5RHGXMQ00, ED5THAXMS00, ED5VHGXMB10, ED5VHGXMB11, ED5VHGXML10, ED5VHGXMQ00, ED5VHGXMQ10, ED20TKXFN06, ED20TKXFT06, ED20TKXFW06 |
| Whirlpool | ES2FHAXSA00, ES2FHAXSA01, ES2FHAXSB00, ES2FHAXSB01, ES2FHAXSL01, ES2FHAXSQ00, ES2FHAXSQ01, GD2SHKXKQ02, GD5SHAXKB00, GD5SHAXLB02, GD5SHAXLQ01, GD5SHAXLQ02, GD5SHAXLT02, GD5SHAXKQ00, GD5SHAXKT00, GD5SHGXKQ01, GD5THGXKS02, GD5THGXKS03, GS2SHKXNQ00, GS5SHGXKS00, GS6SHAXKB01, GS6SHAXKQ01, GS6SHAXKS01, GS6SHAXLB02, GS6SHAXLB03, GS6SHAXLS03, INQ225300, RS25AEXLQ00, RS25AGXNQ00, SS25AFXMQ00, SS25AFXMQ01, TS25AFXKQ03, TS25AFXKQ04 |
