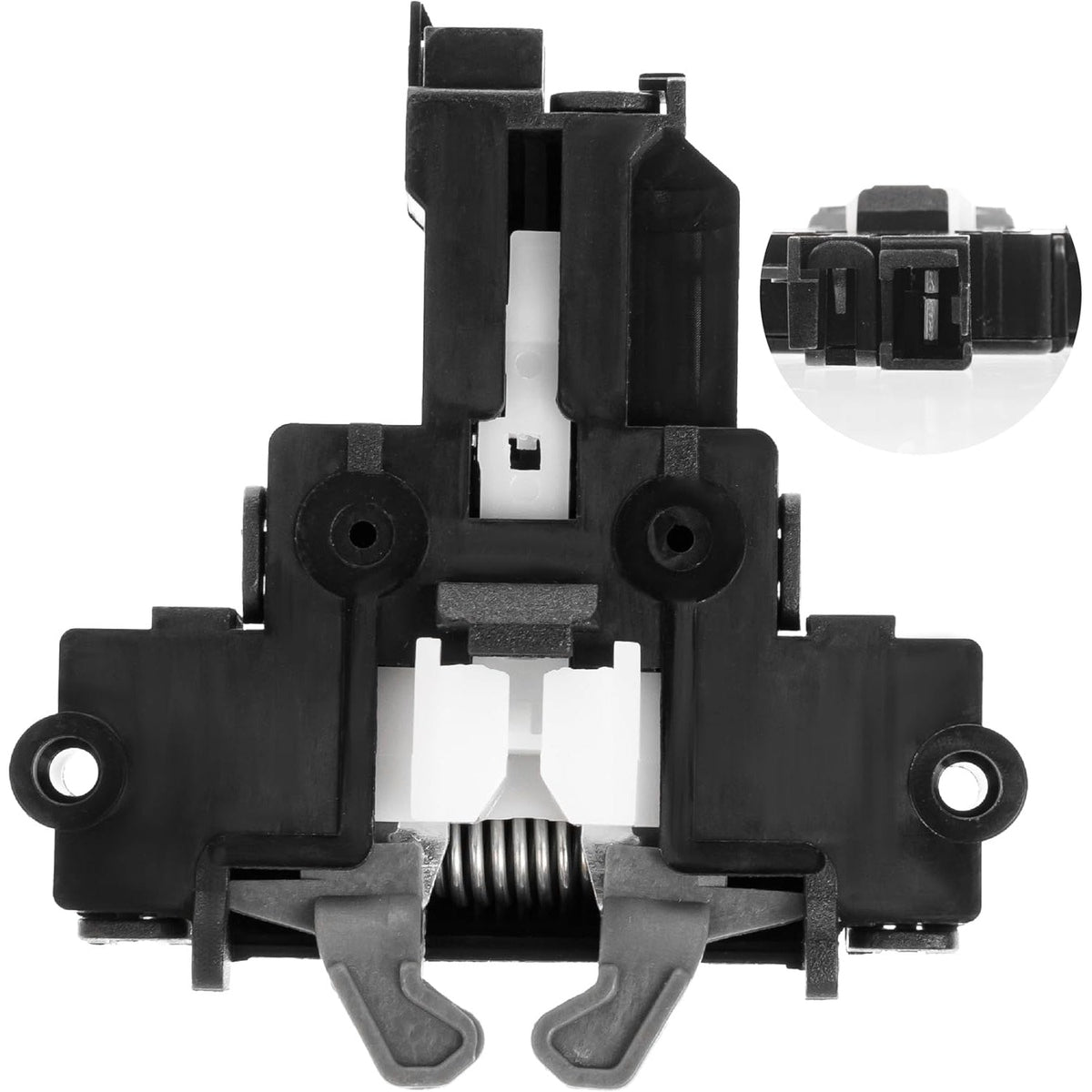

WD01X29878 dishwasher door latch assembly with close-up view of the electrical connector for GE Hotpoint dishwashers.

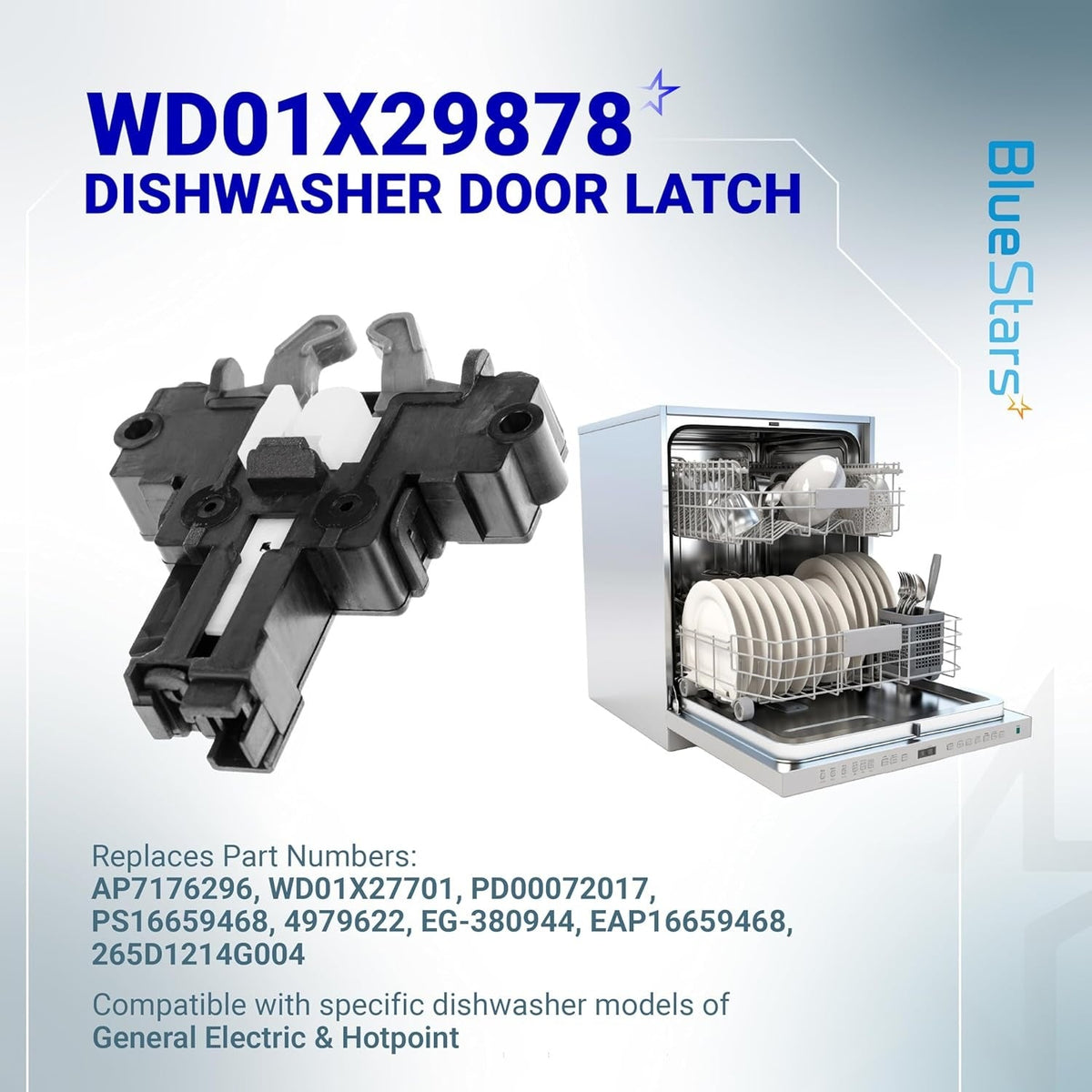

WD01X29878 dishwasher door latch replacement part for GE and Hotpoint dishwashers shown with product information.

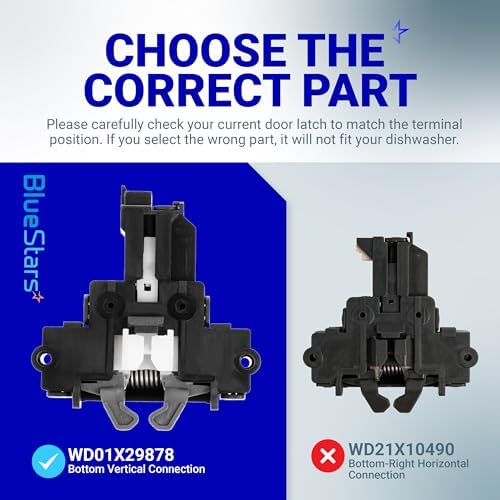

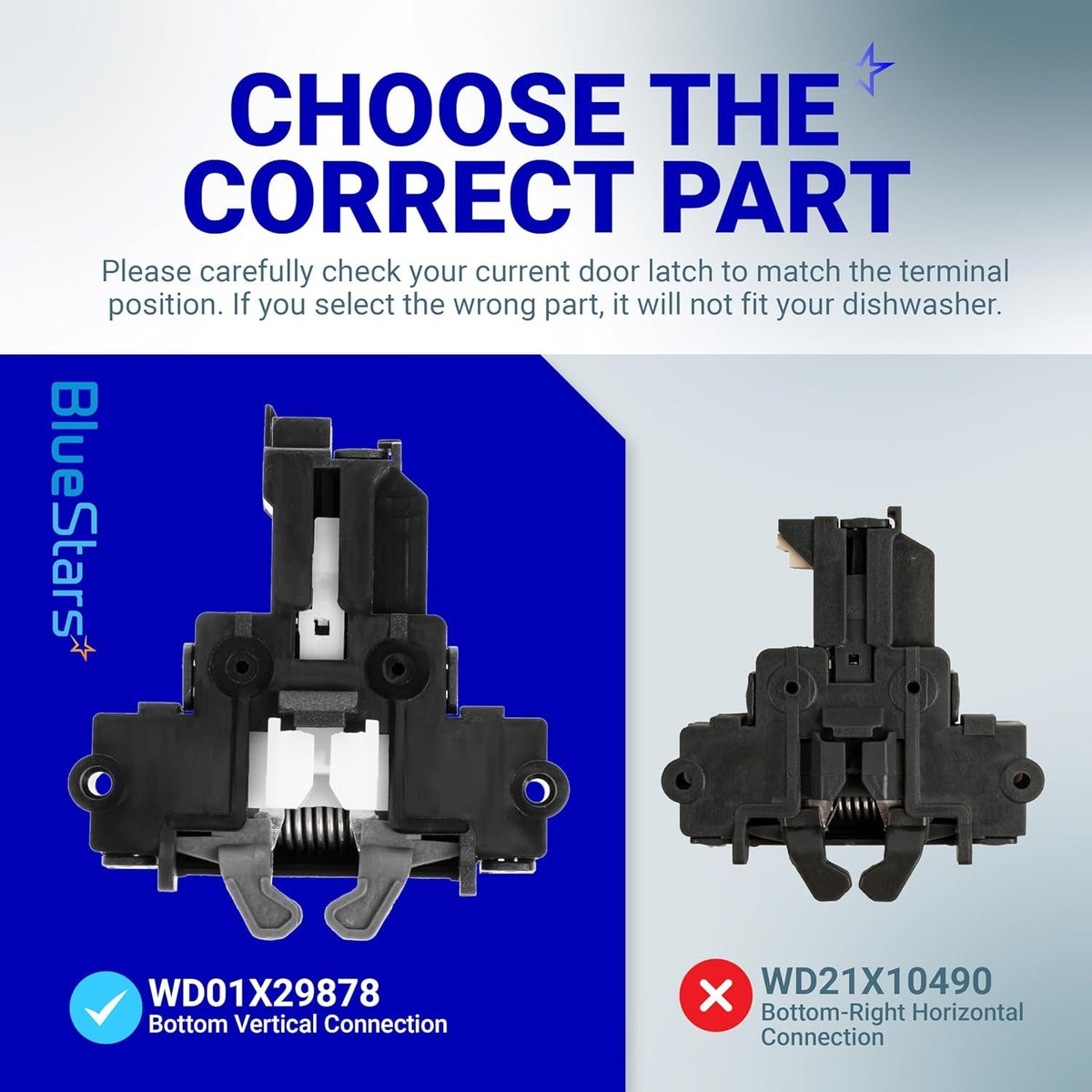

Comparison chart showing WD01X29878 dishwasher door latch with vertical connection versus WD21X10490 horizontal model.

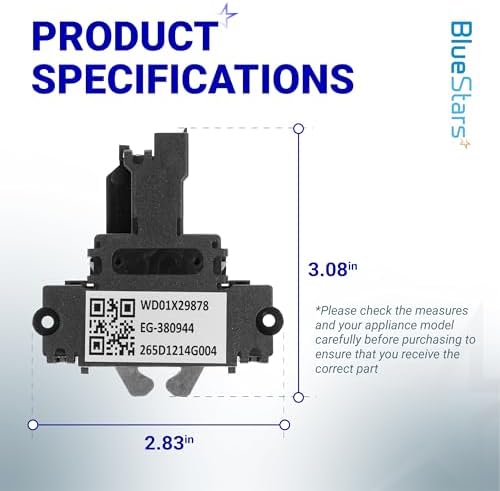

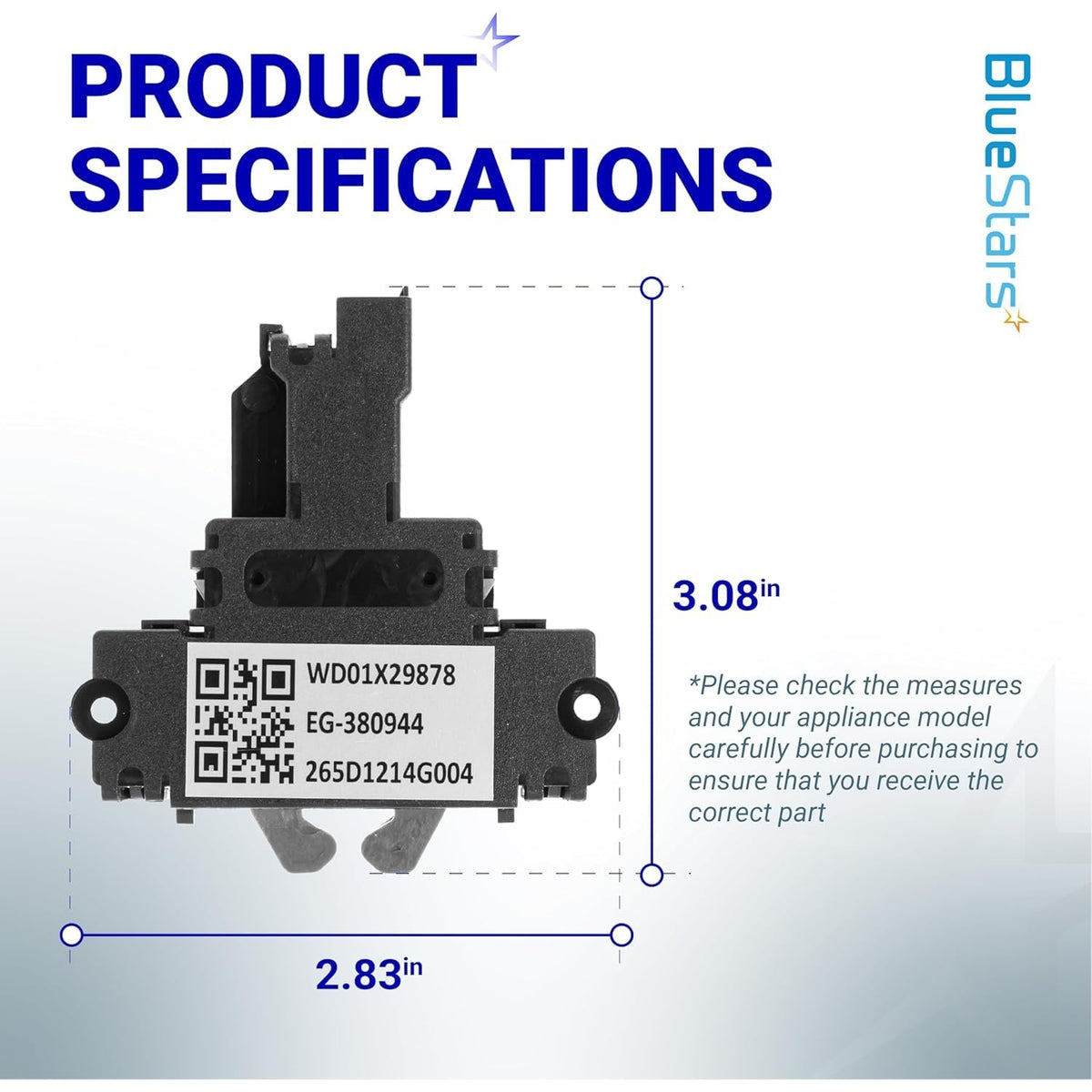

WD01X29878 dishwasher door latch showing product dimensions and specifications label.

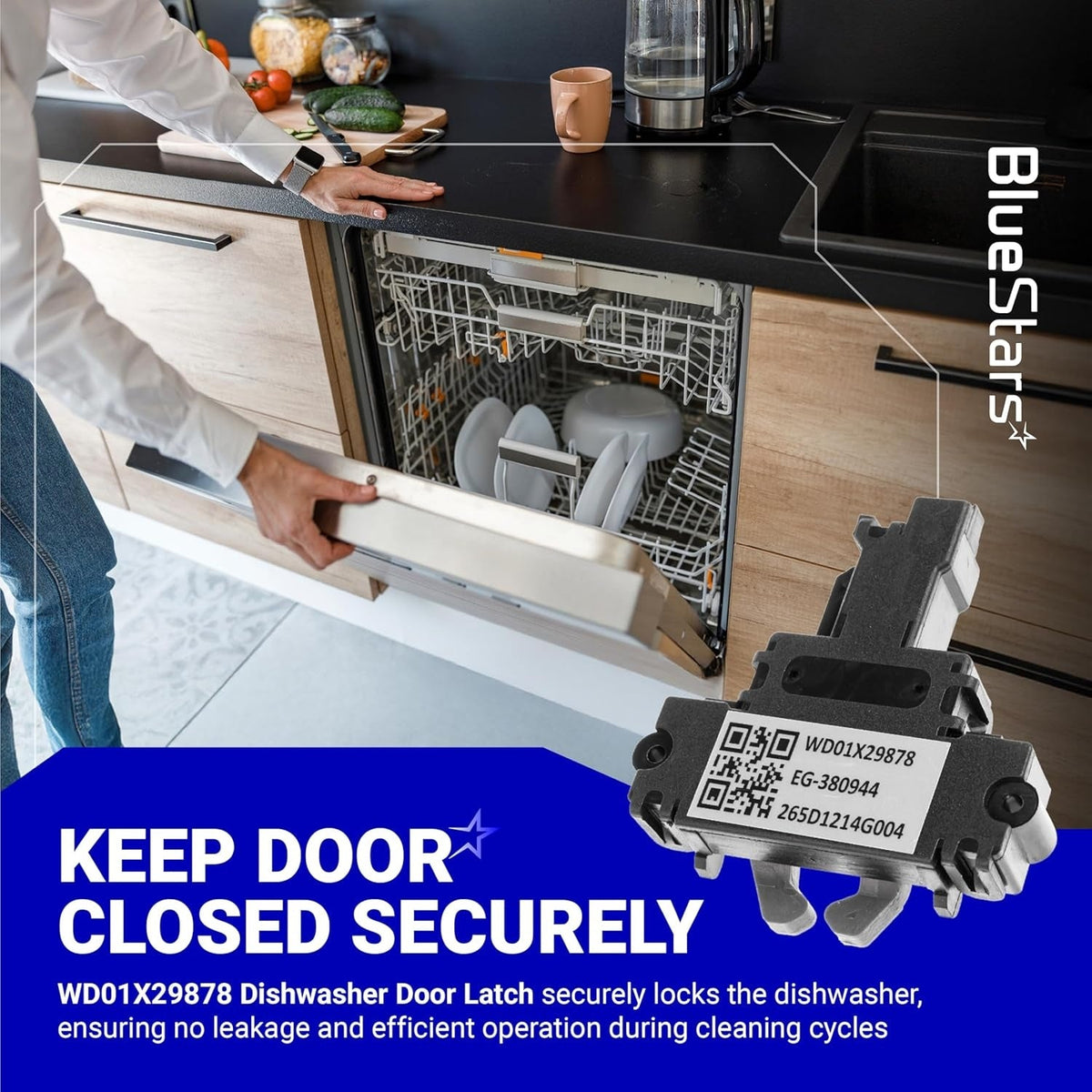

WD01X29878 dishwasher door latch replacement part shown with product label and kitchen installation context.

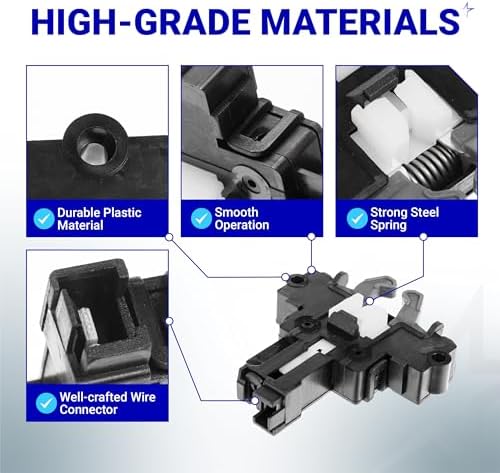

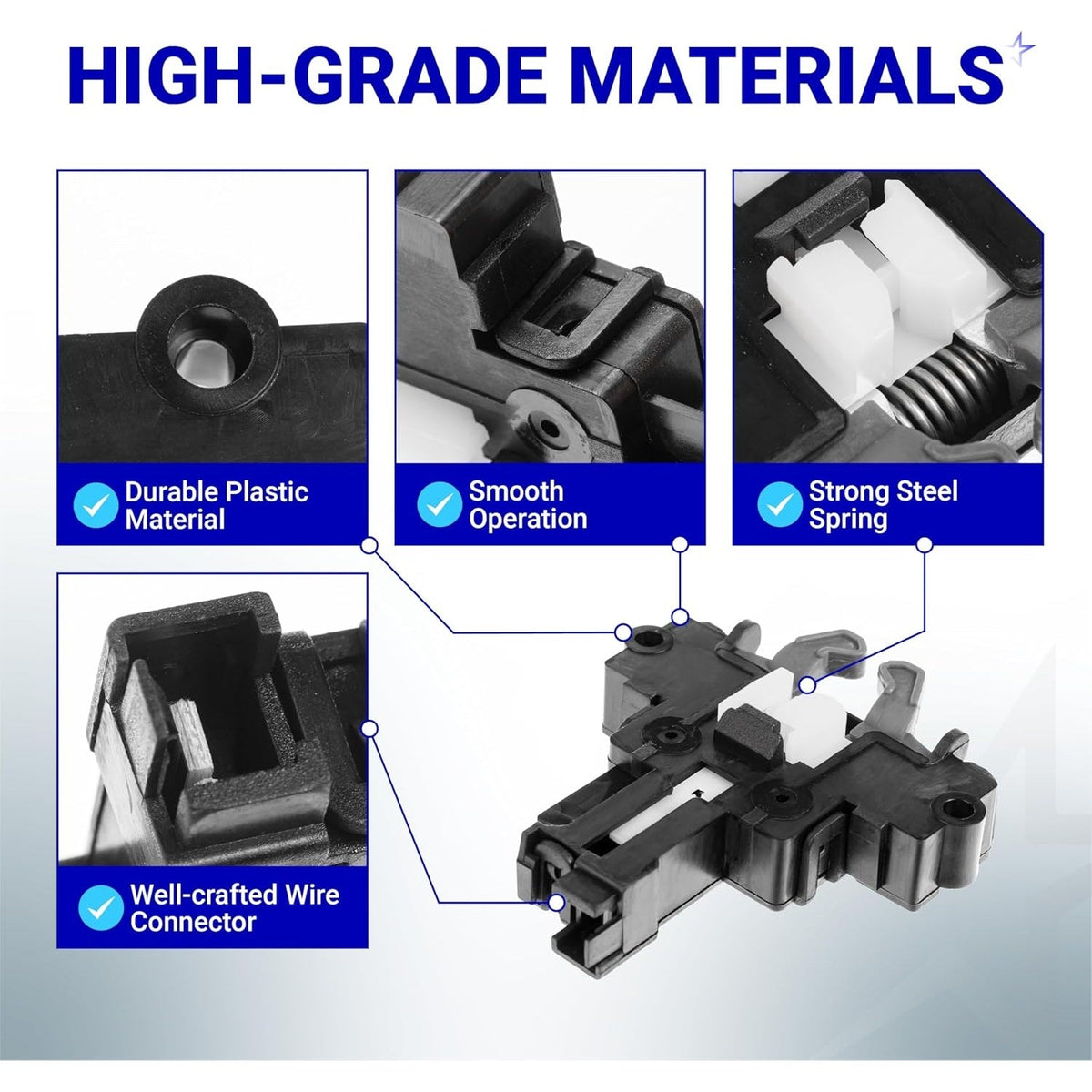

Infographic showing high-grade materials and construction details of the WD01X29878 dishwasher door latch.
WD01X29878 dishwasher door latch replacement part shown with a woman loading a dishwasher in a kitchen setting.
Installation guide for WD01X29878 dishwasher door latch showing a technician using a drill to replace the part.

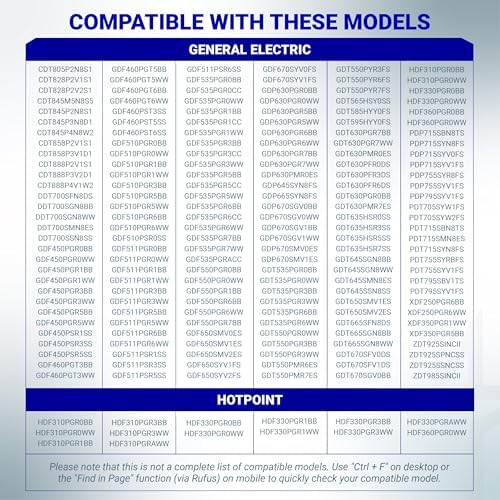

Compatibility chart for WD01X29878 dishwasher door latch listing GE and Hotpoint model numbers.
WD01X29878 dishwasher door latch assembly with close-up view of the electrical connector for GE Hotpoint dishwashers.
WD01X29878 dishwasher door latch replacement part for GE and Hotpoint dishwashers shown with product information.
Comparison chart showing WD01X29878 dishwasher door latch with vertical connection versus WD21X10490 horizontal model.
WD01X29878 dishwasher door latch showing product dimensions and specifications label.
WD01X29878 dishwasher door latch replacement part shown with product label and kitchen installation context.
Infographic showing high-grade materials and construction details of the WD01X29878 dishwasher door latch.
WD01X29878 dishwasher door latch replacement part shown with a woman loading a dishwasher in a kitchen setting.
Installation guide for WD01X29878 dishwasher door latch showing a technician using a drill to replace the part.
Compatibility chart for WD01X29878 dishwasher door latch listing GE and Hotpoint model numbers.
Lifetime Warranty

[Lifetime Warranty] WD01X29878 Dishwasher Door Latch - Compatible with GE Hotpoint Dishwasher - Replaces WD01X27701 4979622 PD00072017 AP7176296 PS16659468 EAP16659468 265D1214G004 EG-380944

Save 13%
0.00
$19.73
$22.69
$19.73
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

WD01X29878 Dishwasher Door Latch

Key Features

  • Secures the dishwasher door, ensuring a tight seal during operation.
  • Includes the integrated door switch that signals the control board when the door is closed.
  • Prevents the dishwasher from starting if the door is not properly latched.

Replaces / Cross-Reference Part Numbers

  • WD01X29878
  • WD01X27701
  • AP7176296

Compatibility & Fitment

  • Fits select dishwasher models from General Electric (GE), Hotpoint, and other GE-affiliated brands.
  • Verify compatibility by matching your appliance model number with this part number.

When to Replace

  • Dishwasher door will not close or latch securely.
  • Dishwasher fails to start, and control panel indicates a door-open error.
  • The existing latch is physically damaged, cracked, or broken.
  • The unit stops mid-cycle with a door-related fault.

Installation Tips

  • Disconnect the dishwasher from power and water sources before beginning installation.
  • Access the latch assembly by removing the inner door panel screws.
  • Photograph the wiring connections on the old switch before disconnecting to ensure correct reassembly.
  • Refer to your dishwasher's service manual for specific disassembly instructions.
Product image
Product image
Product image
Product image
  • WIDE COMPATIBILITY

    WIDE COMPATIBILITY

    Compatible with specific dishwasher models of General Electric & Hotpoint (detailed list in the table below)
  • PREMIUM QUALITY

    PREMIUM QUALITY

    Our Dishwasher Door Latch is manufactured from high-grade materials, meeting or exceeding standards for durability and efficient performance
  • SAVING SOLUTION

    SAVING SOLUTION

    BlueStars brings DIY solutions to help deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility
4 SIMPLE STEPS

4 SIMPLE STEPS

Please unplug the dryer & wear work gloves before installing: 1. Pull your dishwasher out a few inches away | 2. Disconnect the wire harness from the old door latch | 3. Unscrew two mounting screws from the latch bottom to lift it off the tub | 4. Reinstall with our new part

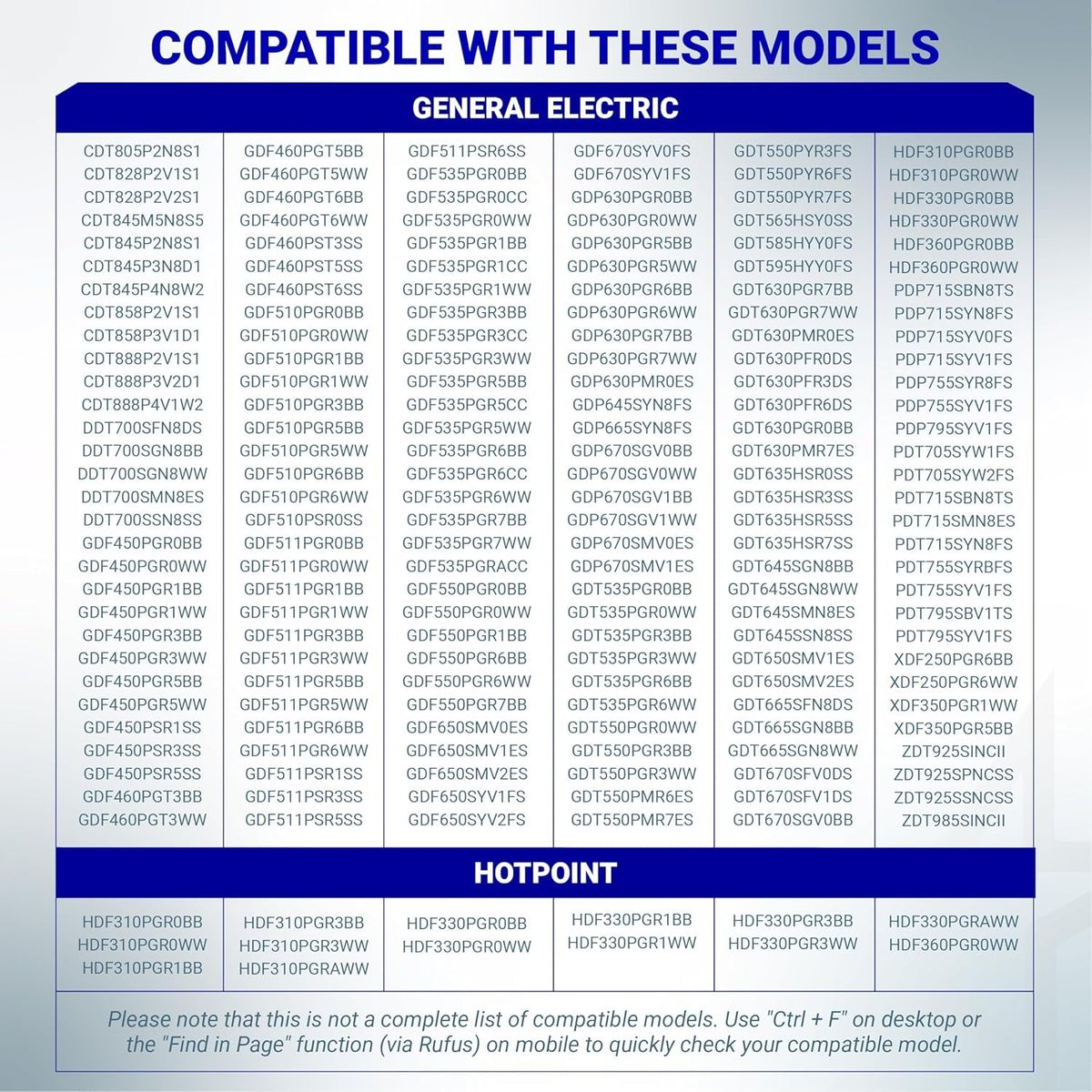

Brand Model Number
Replaces AP7176296, WD01X27701
GE CDP888M5V1S5, CDT805P2N8S1, CDT828P2V1S1, CDT828P2V2S1, CDT828P2V3S1, CDT845M5N8S5, CDT845P2N8S1, CDT845P3N8D1, CDT845P4N8W2, CDT858P2V1S1, CDT858P2V3S1, CDT858P3V1D1, CDT858P3V3D1, CDT858P4V1W2, CDT858P4V3W2, CDT888P2V1S1, CDT888P3V2D1, CDT888P4V1W2
GE DDT700SFN8DS, DDT700SGN8BB, DDT700SGN8WW, DDT700SMN8ES, DDT700SSN8SS
GE GDF450PGR5BB, GDF450PGR5WW, GDF450PGR6BB, GDF450PGR6WW, GDF450PSR5SS, GDF450PSR6SS, GDF460PGT5BB, GDF460PGT5WW, GDF460PGT6BB, GDF460PGT6WW, GDF460PST5SS, GDF460PST6SS, GDF510PGR5BB, GDF510PGR5WW, GDF510PGR6BB, GDF510PGR6WW, GDF510PSR5SS, GDF510PSR6SS, GDF511PGR5BB, GDF511PGR5WW, GDF511PGR6BB, GDF511PGR6WW, GDF511PSR5SS, GDF511PSR6SS, GDF535PGR5BB, GDF535PGR5CC, GDF535PGR5WW, GDF535PGR6BB, GDF535PGR6CC, GDF535PGR6WW, GDF535PSR5SS, GDF535PSR6SS
GE GDF550PGR3BB, GDF550PGR3WW, GDF550PGR6BB, GDF550PGR6WW, GDF550PGR7BB, GDF550PGR7WW, GDF550PMR3ES, GDF550PMR6ES, GDF550PMR7ES, GDF550PSR3SS, GDF550PSR6SS, GDF550PSR7SS, GDF650SMV0ES, GDF650SMV1ES, GDF650SMV3ES, GDF650SYV0FS, GDF650SYV1FS, GDF650SYV3FS, GDF670SYV0FS, GDF670SYV1FS, GDF670SYV3FS
GE GDP630PGR3BB, GDP630PGR3WW, GDP630PGR5BB, GDP630PGR5WW, GDP630PGR6BB, GDP630PGR6WW, GDP630PGR7BB, GDP630PGR7WW, GDP630PSR3SS, GDP630PSR5SS, GDP630PSR6SS, GDP630PSR7SS

FAQ

WD01X29878 is used on select GE and Hotpoint dishwashers. Compatibility is model-specific, so the safest check is to match your dishwasher's full model number and confirm the original latch part number before ordering.
This door latch cross-references to WD01X29878 and replaces WD01X27701, 4979622, PD00072017, AP7176296, PS16659468, EAP16659468, 265D1214G004, and EG-380944.
A failed latch can cause the door not to close fully, not lock securely, pop open, or prevent the dishwasher from starting because the control does not detect a closed door. It can also cause intermittent start issues if the latch engages inconsistently.
On many GE and Hotpoint dishwashers, this is a moderate repair that usually takes about 15 to 30 minutes. You typically need a screwdriver to remove the inner door panel, access the latch area, transfer the wiring connector, and reinstall the new latch. Always disconnect power to the dishwasher before servicing.
Before replacing the latch, inspect the door strike, latch mounting area, and inner door panel alignment. If the dishwasher door is sagging, misaligned, or not closing evenly, the latch may not be the only issue. Also check for cracked plastic around the latch area or loose screws that could keep the latch from engaging properly.
Door latches commonly fail from repeated opening and closing, worn internal locking parts, heat exposure, or misalignment that puts extra stress on the latch. If the door has been slammed or forced shut against obstructed racks, that can also shorten latch life.
