Dishwasher Parts WD08X10057 Dishwasher Door Gasket Seal & WD8X227 & WD8X228 Tub Corner Baffle

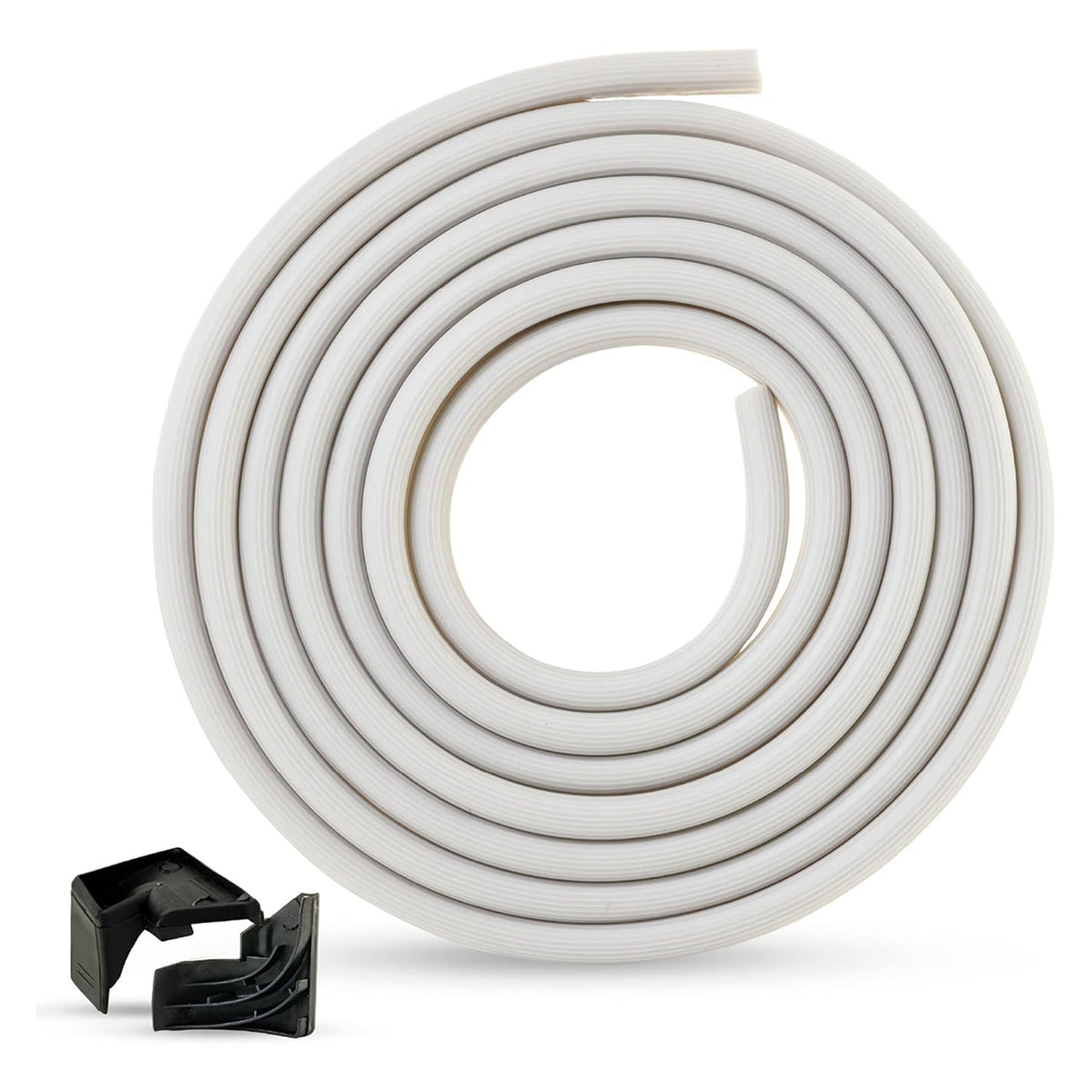

White dishwasher door gasket seal coiled with two black tub corner baffles for GE, Kenmore, and Hotpoint dishwashers.
WD08X10057 dishwasher door gasket seal and tub corner baffle kit for GE, Kenmore, and Hotpoint dishwashers.

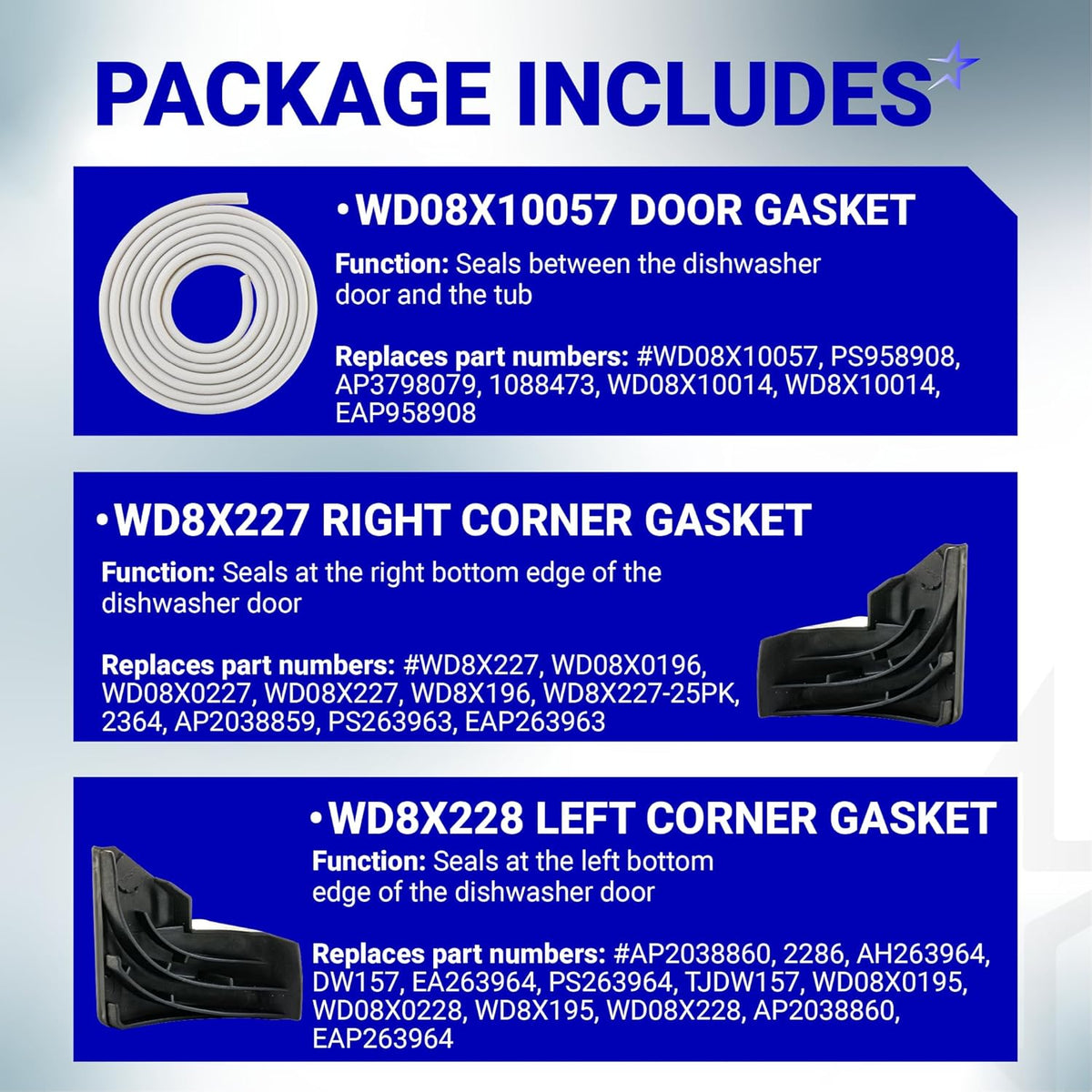

Infographic showing WD08X10057 dishwasher door gasket and WD8X227, WD8X228 corner baffle replacement parts.

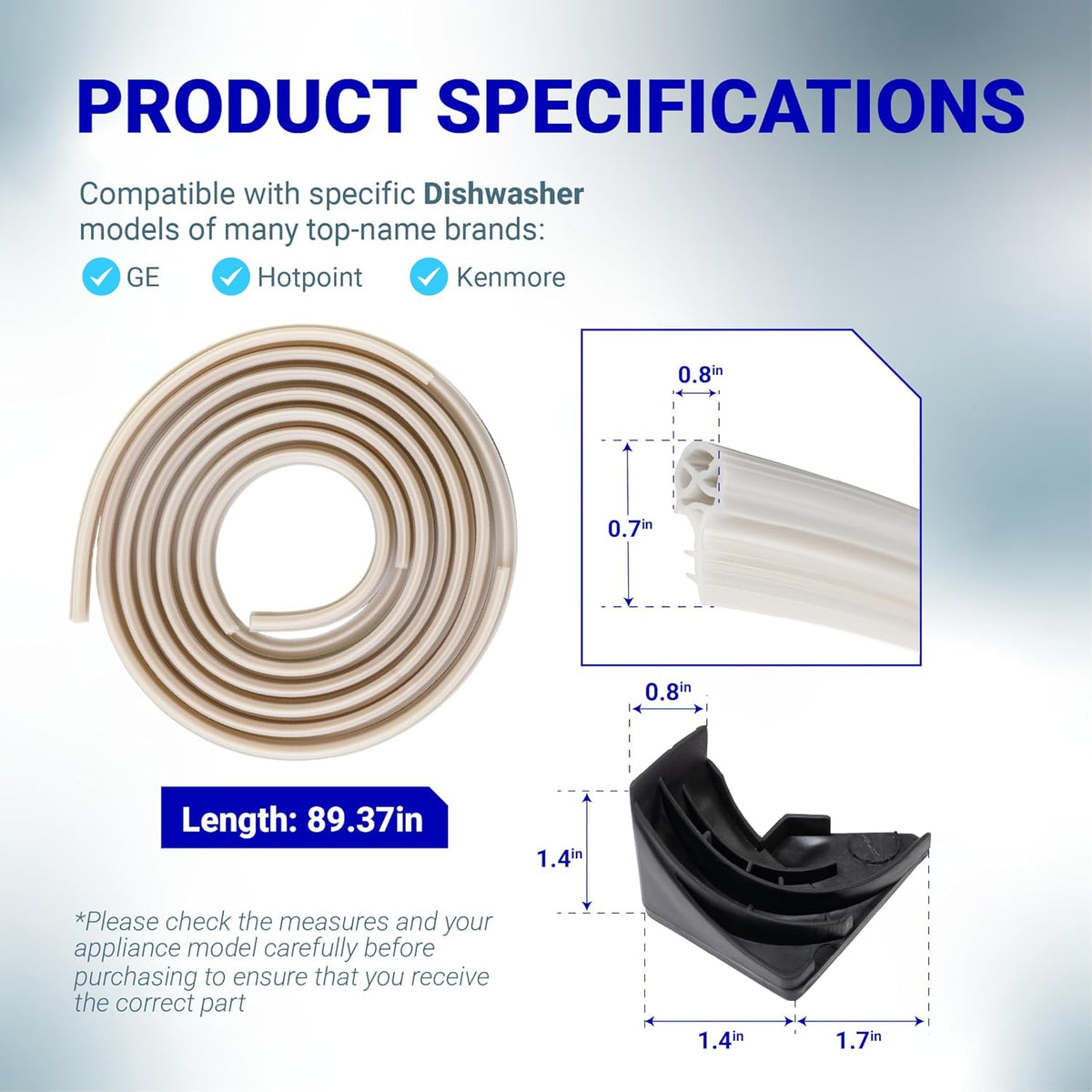

Specification chart for WD08X10057 dishwasher door gasket seal and tub corner baffles with dimensions.

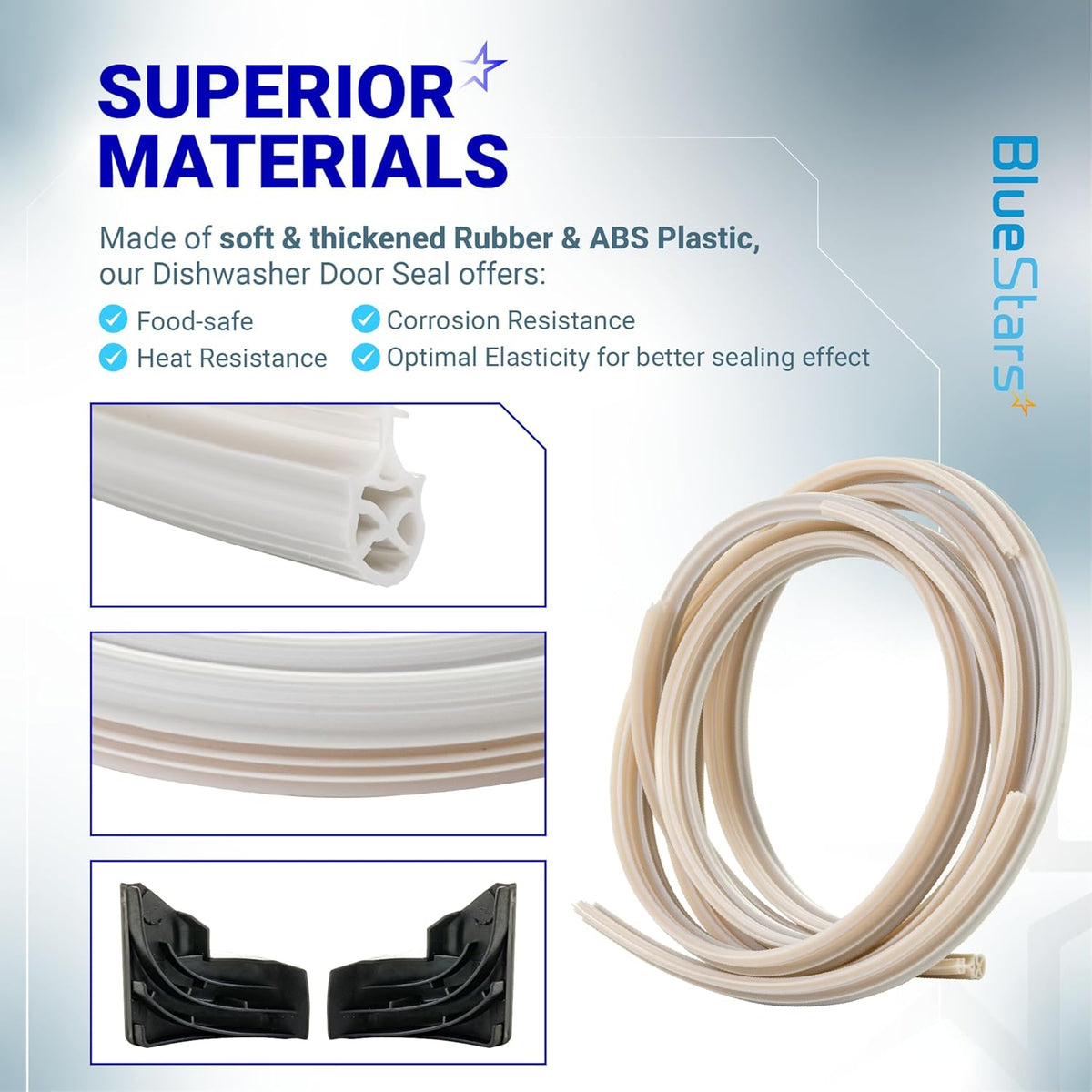

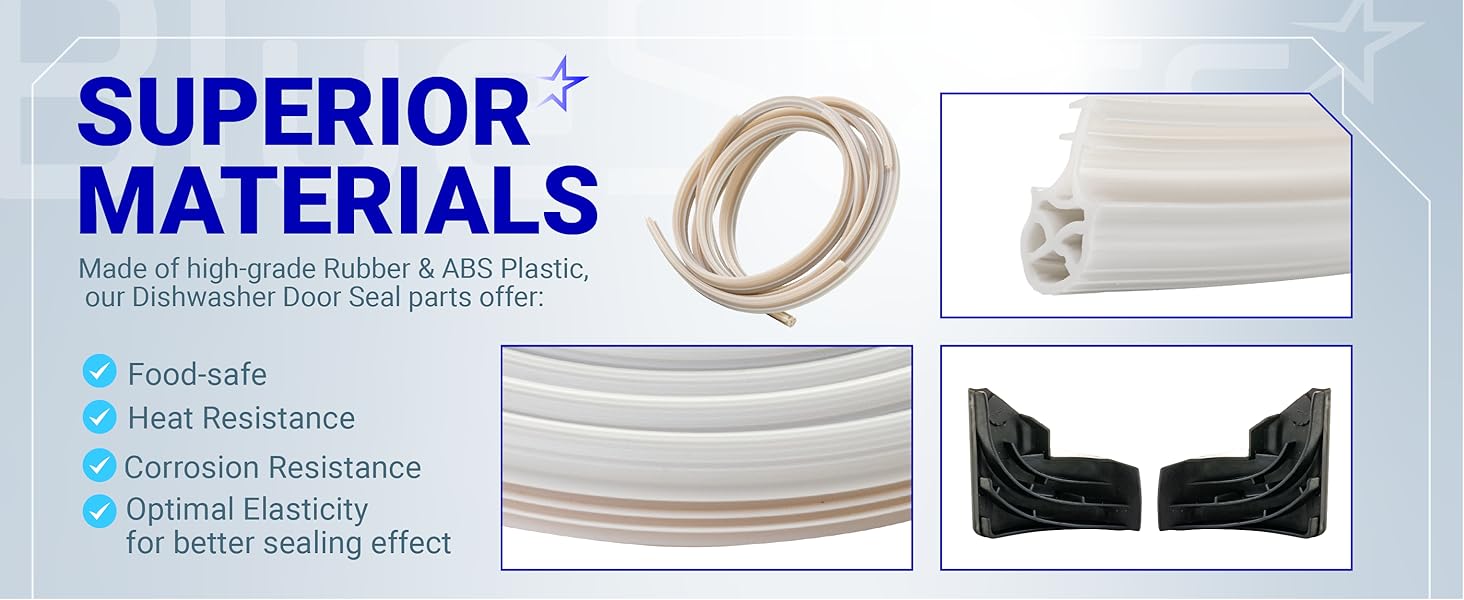

WD08X10057 dishwasher door gasket seal and tub corner baffles with material and feature infographic.

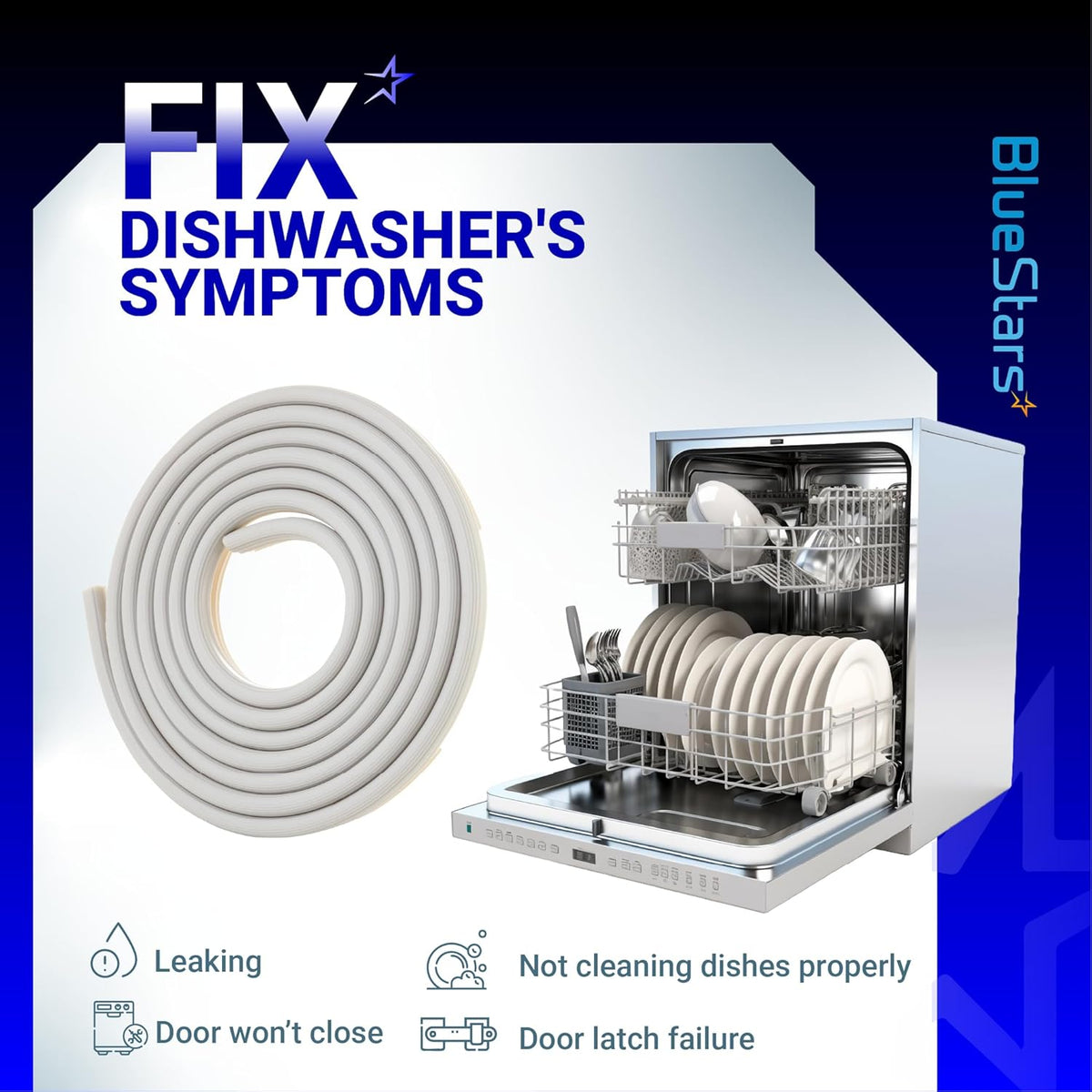

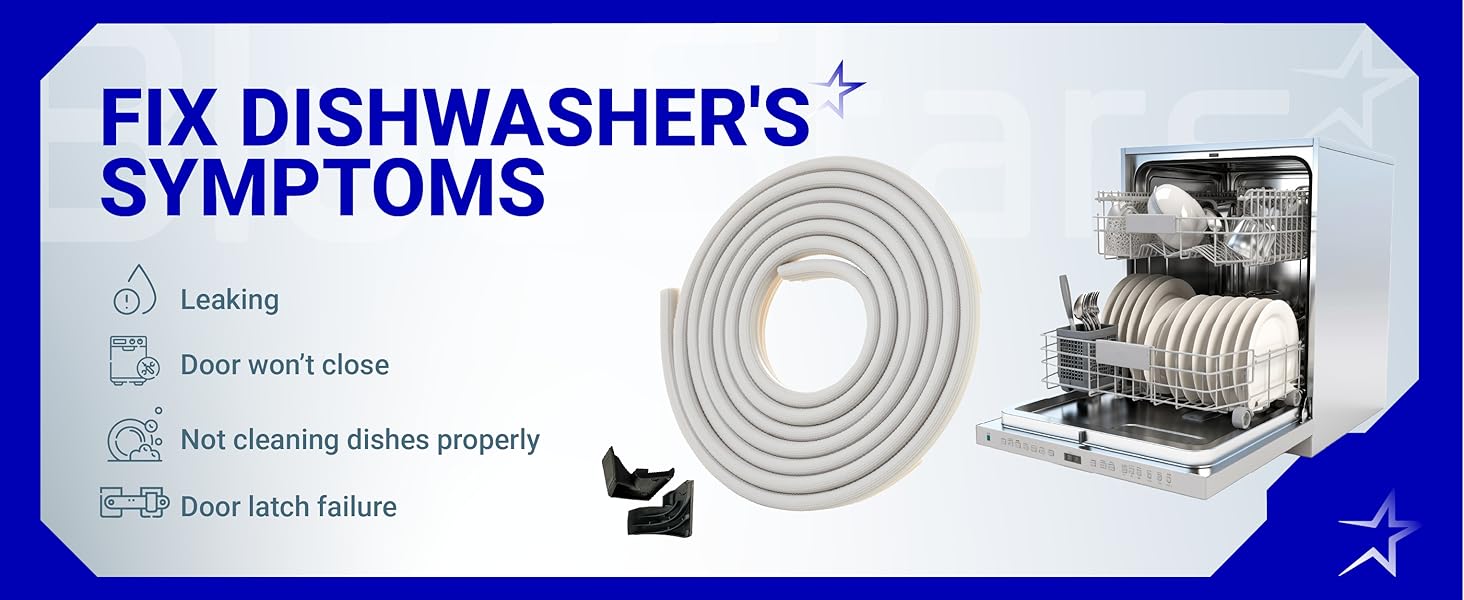

WD08X10057 dishwasher door gasket seal coiled with dishwasher illustration showing common repair symptoms.

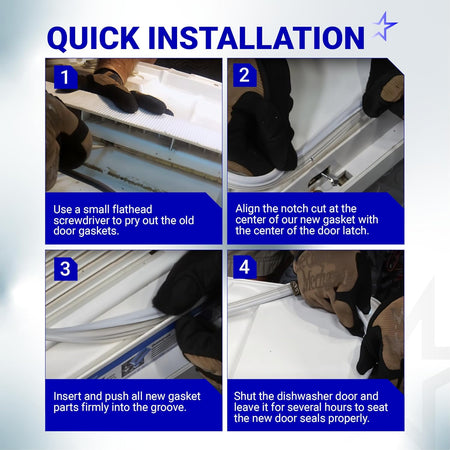

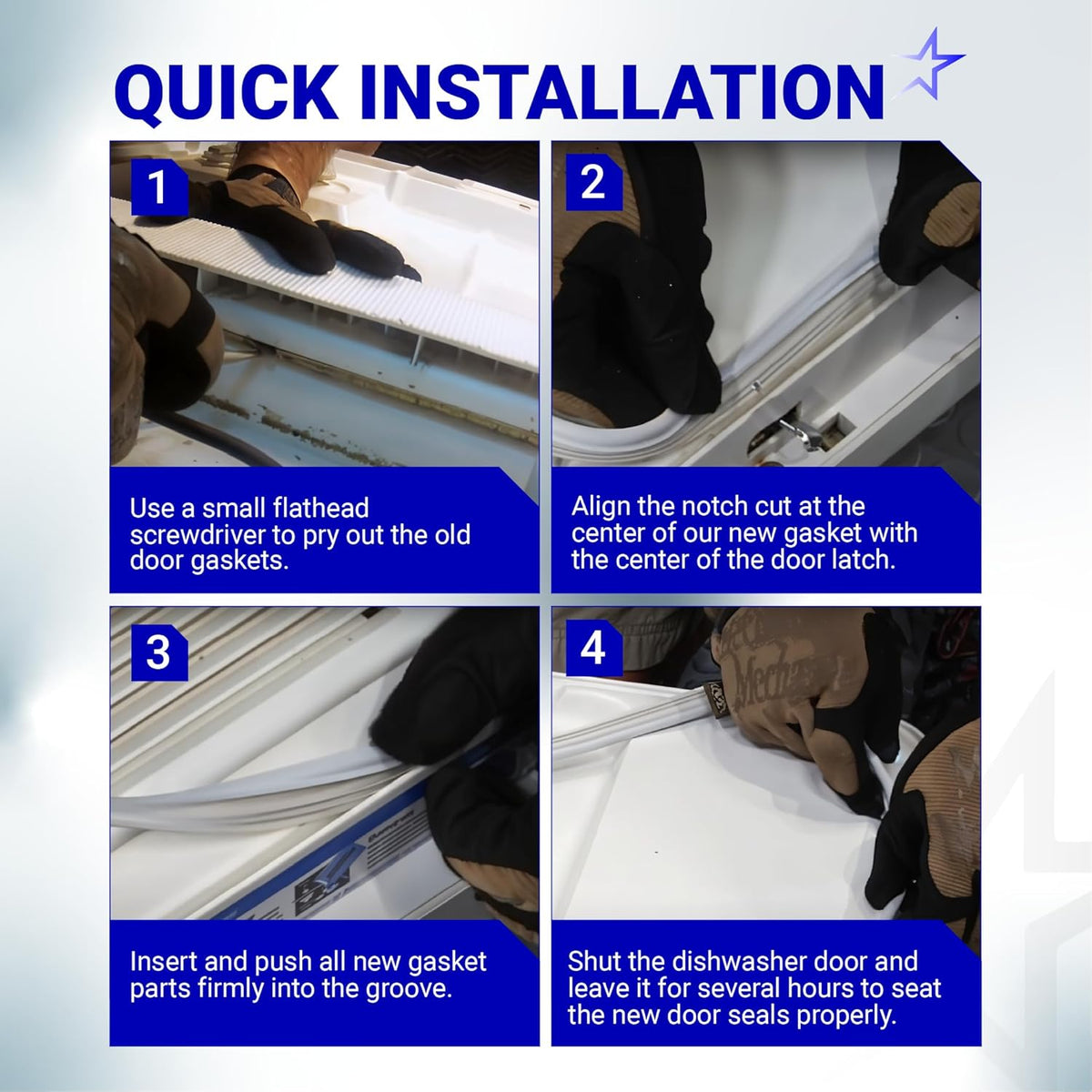

Four-step installation guide for WD08X10057 dishwasher door gasket seal replacement.

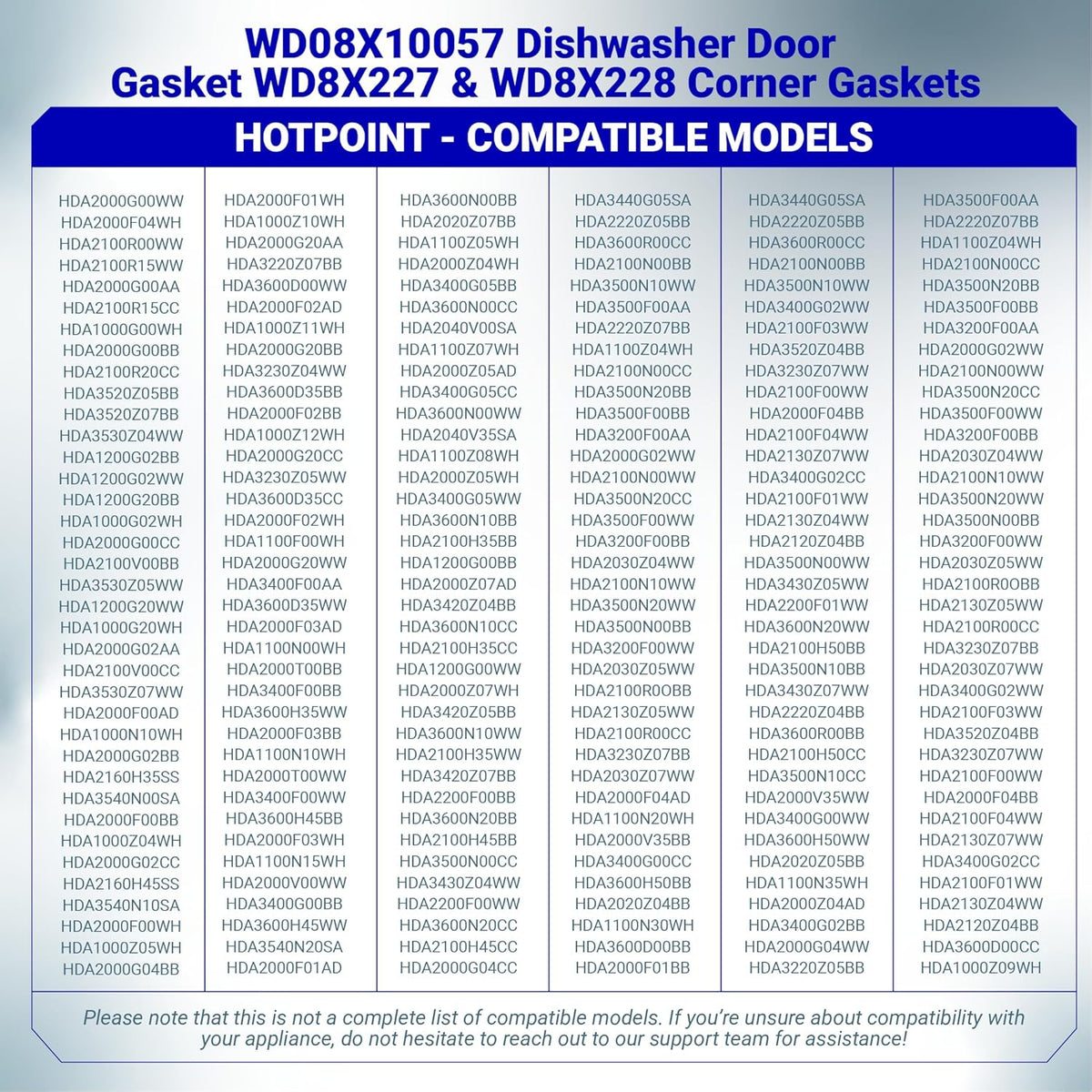

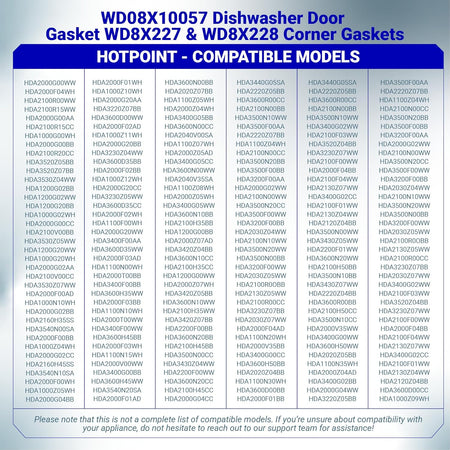

Compatibility chart for WD08X10057 dishwasher door gasket and corner baffle kit for Hotpoint models.
White dishwasher door gasket seal coiled with two black tub corner baffles for GE, Kenmore, and Hotpoint dishwashers.
WD08X10057 dishwasher door gasket seal and tub corner baffle kit for GE, Kenmore, and Hotpoint dishwashers.
Infographic showing WD08X10057 dishwasher door gasket and WD8X227, WD8X228 corner baffle replacement parts.
Specification chart for WD08X10057 dishwasher door gasket seal and tub corner baffles with dimensions.
WD08X10057 dishwasher door gasket seal and tub corner baffles with material and feature infographic.
WD08X10057 dishwasher door gasket seal coiled with dishwasher illustration showing common repair symptoms.
Four-step installation guide for WD08X10057 dishwasher door gasket seal replacement.
Compatibility chart for WD08X10057 dishwasher door gasket and corner baffle kit for Hotpoint models.
Lifetime Warranty

WD08X10057 Dishwasher Door Gasket Seal & WD8X227 & WD8X228 Tub Corner Baffle

Save 13%
0.00
$36.20
$41.63
$36.20
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

WD08X10057 Dishwasher Door Gasket Seal with WD8X227 & WD8X228 Tub Corner Baffle

Key Features

  • Precision-Molded EPDM Rubber: The WD08X10057 main door seal is manufactured from high-grade EPDM rubber, designed to maintain its flexibility and compression through thousands of high-heat "Sanitize" and "Heated Dry" cycles.
  • Triple-Point Leak Protection: This comprehensive kit includes both the perimeter door gasket and the critical left (WD8X228) and right (WD8X227) lower corner tub baffles to prevent water from splashing out of the bottom corners.
  • Enhanced Steam Barrier: Specifically engineered to create a watertight and steam-tight seal between the dishwasher door and the tub, preventing moisture from damaging your kitchen cabinets and countertops.
  • Friction-Fit Installation: The main gasket features a standardized T-shaped base designed to press-fit into the dishwasher's tub channel without the need for messy adhesives or special tools.
  • Anti-Microbial Construction: The non-porous rubber material resists the growth of mold, mildew, and bacteria, helping to eliminate "dishwasher smells" and maintain a hygienic wash environment.

Replaces / Cross-Reference Part Numbers

  • Main Gasket: WD08X10057, WD08X10044, WD08X10047.
  • Corner Baffles: WD8X227 (Right), WD8X228 (Left).
  • Industry Standards: PS958908, EAP958908.

Compatibility & Fitment

This gasket and baffle kit is the standard replacement for most GE-manufactured plastic tub dishwashers produced over the last 20 years. Key compatible brands include:

  • GE (General Electric): Fits hundreds of GSD, GHD, GDW, and GSM series models (e.g., GHD1106F00WW, GHD3515F00AA, GHD3525F00BB).
  • Hotpoint: Compatible with various HDA, HDB, and HLD series budget-friendly dishwashers.
  • Kenmore (363 Series): Fits many 363-prefix models produced by GE for Sears (e.g., 363.14352101).
  • Note: Specifically for Plastic Tub dishwashers. If you have a stainless steel tub GE model (PDT or GDT series), your door seal will be a different part number (e.g., WD08X23476).

When to Replace

  • Water Leaking from Bottom Corners: Small puddles forming on the floor at the front-left or front-right of the dishwasher, often caused by missing or cracked corner baffles (WD8X227/WD8X228).
  • Steam Escaping from Door: Visible steam rising from the top or sides of the door during the wash or dry cycle, which can warp wooden countertops over time.
  • Visible Gasket Damage: The rubber seal looks cracked, brittle, flattened, or has visible chunks missing from the perimeter.
  • Door "Feeling" Loose: The door closes too easily without the usual resistance, indicating the gasket has lost its compression and is no longer creating a tight seal.
  • Mildew Build-up: Excessive black mold or slime growing inside the gasket folds that cannot be cleaned, leading to persistent odors.

Installation Tips

  • The "Warm Soak" Trick: Before installing, soak the new WD08X10057 rubber gasket in a sink of warm water for 10-15 minutes. This makes the rubber more pliable and helps remove any kinks from shipping.
  • Clean the Channel: After pulling out the old gasket, use a small brush and a mixture of vinegar and water to thoroughly clean the tub channel. Any grit or old soap left behind will prevent the new seal from seating correctly.
  • Find the Center: Fold the new gasket in half to find the midpoint. Start by pressing the midpoint into the top-center of the dishwasher tub channel and work your way down the sides evenly.
  • Corner Baffle Alignment: The baffles (WD8X227/228) snap into the lower corners of the tub frame. Ensure they are pushed all the way in; if they are loose, water will bypass the door seal.
  • The "24-Hour" Set: After installation, close the dishwasher door and leave it latched for at least 24 hours without running a cycle. This allows the new gasket to "take a set" and conform perfectly to the door's shape.
Product image 1
Product image 2
Product image 1
Product image 2
Product image 3
  • WIDE COMPATIBILITY

    WIDE COMPATIBILITY

    Compatible with many models of Whirlpool, Amana, Kenmore, Kitchen Aid, Maytag, JennAir, and Ikea dishwashers
  • DURABLE MATERIAL

    DURABLE MATERIAL

    This Drain Pump is made of upgraded high-quality ABS Plastic for reliable performance
  • BEST SOLUTION

    BEST SOLUTION

    Enjoy the great feeling when your dishwasher is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble
  • SIMPLE INSTALLATION

    SIMPLE INSTALLATION

    This Drain Pump is designed to be easily removed and replaced, allowing for quick and convenient maintenance

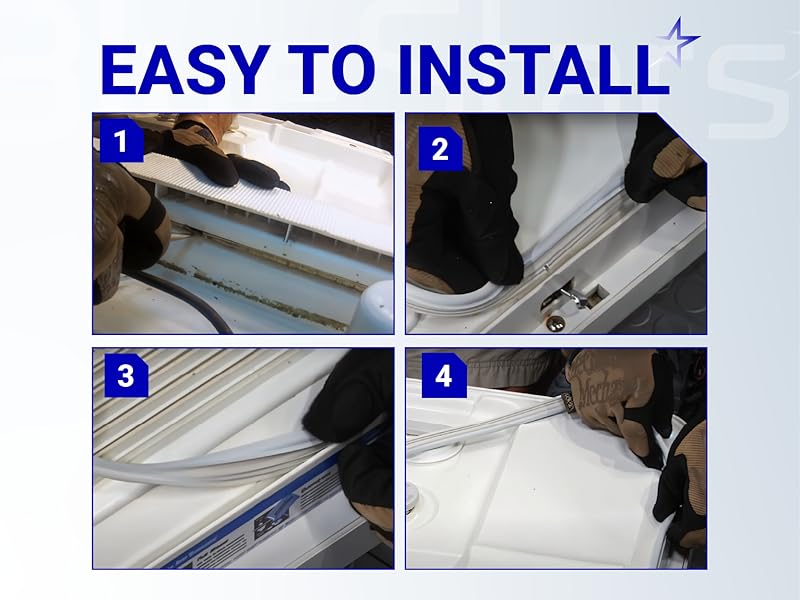

Easy To Install

Easy To Install

1. Use a small flathead screwdriver to pry out the old door gaskets; 2. Align the notch cut at the center of our new gasket with the center of the door latch; 3. Insert and push all new gasket parts firmly into the groove; 4. Check if the door can close and seal properly. Shut the dishwasher door and leave it for several hours to seat the new door seals properly.
Brand Model Number
Hotpoint HDA2000G00WW, HDA2000F04WH, HDA2100R00WW, HDA2100R15WW, HDA2000G00AA, HDA2100R15CC, HDA1000G00WH, HDA2000G00BB, HDA2100R20CC, HDA3520Z05BB, HDA3520Z07BB, HDA3530Z04WW, HDA1200G02BB, HDA1200G02WW, HDA1200G20BB, HDA1000G02WH, HDA2000G00CC, HDA2100V00BB, HDA3530Z05WW, HDA1200G20WW, HDA1000G20WH, HDA2000G02AA, HDA2100V00CC, HDA3530Z07WW, HDA2000F00AD, HDA1000N10WH, HDA2000G02BB, HDA2160H35SS, HDA3540N00SA, HDA2000F00BB, HDA1000Z04WH, HDA2000G02CC, HDA2160H45SS, HDA3540N10SA, HDA2000F00WH, HDA1000Z05WH, HDA2000G04BB
Hotpoint HDA2000F01WH, HDA1000Z10WH, HDA2000G20AA, HDA3220Z07BB, HDA3600D00WW, HDA2000F02AD, HDA1000Z11WH, HDA2000G20BB, HDA3230Z04WW, HDA3600D35BB, HDA2000F02BB, HDA1000Z12WH, HDA2000G20CC, HDA3230Z05WW, HDA3600D35CC, HDA2000F02WH, HDA1100F00WH, HDA2000G20WW, HDA3400F00AA, HDA3600D35WW, HDA2000F03AD, HDA1100N00WH, HDA2000T00BB, HDA3400F00BB, HDA3600H35WW, HDA2000F03BB, HDA1100N10WH, HDA2000T00WW, HDA3400F00WW, HDA3600H45BB, HDA2000F03WH, HDA1100N15WH, HDA2000V00WW, HDA3400G00BB, HDA3600H45WW, HDA3540N20SA, HDA2000F01AD
Hotpoint HDA3600N00BB, HDA2020Z07BB, HDA1100Z05WH, HDA2000Z04WH, HDA3400G05BB, HDA3600N00CC, HDA2040V00SA, HDA1100Z07WH, HDA2000Z05AD, HDA3400G05CC, HDA3600N00WW, HDA2040V35SA, HDA1100Z08WH, HDA2000Z05WH, HDA3400G05WW, HDA3600N10BB, HDA2100H35BB, HDA1200G00BB, HDA2000Z07AD, HDA3420Z04BB, HDA3600N10CC, HDA2100H35CC, HDA1200G00WW, HDA2000Z07WH, HDA3420Z05BB, HDA3600N10WW, HDA2100H35WW, HDA3420Z07BB, HDA2200F00BB, HDA3600N20BB, HDA2100H45BB, HDA3500N00CC, HDA3430Z04WW, HDA2200F00WW, HDA3600N20CC, HDA2100H45CC, HDA2000G04CC
Hotpoint HDA3440G05SA, HDA2220Z05BB, HDA3600R00CC, HDA2100N00BB, HDA3500N10WW, HDA3500F00AA, HDA2220Z07BB, HDA1100Z04WH, HDA2100N00CC, HDA3500N20BB, HDA3500F00BB, HDA3200F00AA, HDA2000G02WW, HDA2100N00WW, HDA3500N20CC, HDA3500N00BB, HDA3200F00BB, HDA2030Z04WW, HDA2100N10WW, HDA3500N20WW, HDA3500N00BB, HDA3200F00WW, HDA2030Z05WW, HDA2100R0OBB, HDA2130Z05WW, HDA2100R00CC, HDA3230Z07BB, HDA2030Z07WW, HDA2000F04AD, HDA1100N20WH, HDA2000V35BB, HDA3400G00CC, HDA3600H50BB, HDA2020Z04BB, HDA1100N30WH, HDA3600D00BB, HDA2000F01BB
Hotpoint HDA3440G05SA, HDA2220Z05BB, HDA3600R00CC, HDA2100N00BB, HDA3500N10WW, HDA3400G02WW, HDA2100F03WW, HDA3520Z04BB, HDA3230Z07WW, HDA2100F00WW, HDA2000F04BB, HDA2100F04WW, HDA2130Z07WW, HDA3400G02CC, HDA2100F01WW, HDA2130Z04WW, HDA2120Z04BB, HDA3500N00WW, HDA3430Z05WW, HDA2200F01WW, HDA3600N20WW, HDA2100H50BB, HDA3500N10BB, HDA3430Z07WW, HDA2220Z04BB, HDA3600R00BB, HDA2100H50CC, HDA3500N10CC, HDA2000V35WW, HDA3400G00WW, HDA3600H50WW, HDA2020Z05BB, HDA1100N35WH, HDA2000Z04AD, HDA3400G02BB, HDA2000G04WW, HDA3220Z05BB
Hotpoint HDA3500F00AA, HDA2220Z07BB, HDA1100Z04WH, HDA2100N00CC, HDA3500N20BB, HDA3500F00BB, HDA3200F00AA, HDA2000G02WW, HDA2100N00WW, HDA3500N20CC, HDA3500F00WW, HDA3200F00BB, HDA2030Z04WW, HDA2100N10WW, HDA3500N20WW, HDA3500N00BB, HDA3200F00WW, HDA2030Z05WW, HDA2100R0OBB, HDA2130Z05WW, HDA2100R00CC, HDA3230Z07BB, HDA2030Z07WW, HDA3400G02WW, HDA2100F03WW, HDA3520Z04BB, HDA3230Z07WW, HDA2100F00WW, HDA2000F04BB, HDA2100F04WW, HDA2130Z07WW, HDA3400G02CC, HDA2100F01WW, HDA2130Z04WW, HDA2120Z04BB, HDA3600D00CC, HDA1000Z09WH
Kenmore 36314081992, 36314239100, 36314487100, 36315165795, 36315461794, 36314081993, 36314251100, 36314489100, 36315171000, 36315465793, 36314081994, 36314252100, 36314572000, 36315179000, 36315465794, 36314151000, 36314254100, 36314573000, 36315212100, 36315465795, 36314152000, 36314259100, 36314577000, 36315219100, 36315222100, 36315479000, 36314159000, 36314387000, 36314582100, 36315229100, 36315482000, 36314181200, 36314389000, 36314584100, 36315272100, 36315489000
Kenmore 36314181202, 36314391991, 36314587100, 36315279100, 36315651891, 36314191991, 36314391992, 36314589100, 36315282100, 36315651892, 36314191992, 36314391993, 36314395991, 36314673100, 36315312100, 36315655891, 36314192991, 36314395992, 36314674100, 36315314100, 36315655892, 36314192992, 36314395993, 36314679100, 36315319100, 36315655893, 36314192993, 36314398991, 36314772100, 36315322100, 36315658891, 36314194991, 36314398992, 36314773100, 36315324100, 36315658892
Kenmore 36315658893, 36314194993, 36314471793, 36314779100, 36315452990, 36315672000, 36314195991, 36314471794, 36315121100, 36315452991, 36315677000, 36314195992, 36314475793, 36315129100, 36315452992, 36315679000, 36314195993, 36314475794, 36315161792, 36315459990, 36316129100, 36314231100, 36314478794, 36315161793, 36315161794, 36315459992, 36316179100, 36314234100, 36314482100, 36315165793, 36315461792, 36316212100, 36314238100, 36314484100, 36315165794, 36315461793, 36316219100, 36316222100
Kenmore 36314032000, 36314039000, 36314071794, 36314074792, 36316229100, 36314032001, 36314039001, 36314072793, 36314074793, 36314031000, 36314074794, 36314031001, 36314038001, 36314071793, 36314072795, 36314075792, 36314075793, 36314075794, 36314038000, 36314071792, 36314072794, 36315459991, 36316171100, 36314232100, 36314478795, 36314194992, 36314398993, 36314774100, 36315329100, 36314672100, 36315289100, 36315651893, 36314191993, 36315472000
GE GSD1000G20WW, GSD1900J01WH, GSD1900J04WH, GSD1900J20WH, GSD1300N00BB, GSD1300N00WW, GSD1300N10BB, GSD1300N10WW, GSD1300N15WW, GSD1300N20WW, GSD1300N30WW, GSD1300N35WW, GSD1100G20WW, GSD1100N00WW, GSD1100N10WW, GSD1200G20BB, GSD1200G20WW, ADW1100N10WW, GSC3500N10WW, GSC3500D00WW, GSC3500D35BB, GSC3500D35WW, GSC3500D45BB, GSC3500D45WW, GSC3500D50BB, GSC3500D50WW, GSC3500N00BB, GSC3500N00WW, GSC3500N10BB, GSC3500N15BB, GSC3500N15WW, GSC3500R00BB, GSC3500R00WW, GSC3500R15BB, GSC3500R15WW, GSC3500R20BB, GSC3500R20WW, GSC3500V00BB
GE GSD2301R00WW, GSD2301R15BB, GSD2301V00WW, GSD2301V35BB, GSD2340R00SA, GSD2340R15SA, GSD2340R20SA, GSD2340V35SA, GSD2350R00CS, GSD2350R15CS, GSD2350R20CS, GSD2350V00CS, GSD2350V35CS, GSD4060J00SS, GSD3360N20SS, GSD3200J00BB, GSD4030Z07WW, MSD2100R20WW, MSD2100V35WW, MSD2100V45WW, MSD2100V50WW, ADW1000K00BB, ADW1000K00WW, ADW1100N00BB, ADW1100N00WW, ADW1100N10BB, ADW1100N15BB, ADW1100N15WW, ADW1100N20BB, ADW1100N20WW, ADW1100N30BB, ADW1100N30WW, ADW1100N35BB, ADW1100N35WW, GSD4000J00WW, GSD2100N00WW, GSD2100R15BB
GE GSD2101V50WW, GSD2110C04AA, GSD2110C05AA, GSD2110C07AA, GSD2120C04BB, GSD2120C05BB, GSD2120C07BB, GSD2130C04WW, GSD2130C05WW, GSD2130C07WW, GSD3600G00BB, GSD3660G00SS, GSD4060N10SS, GHD1106F00WW, GHD3515F00AA, GHD3525F00BB, GHD3535F00WW, GHD5015F00AA, GHD5015F01AA, GHD5025F00BB, GHD5025F01BB, GHD5035F00WW, GHDA350N00BB, GHDA350N00WW, GHDA350N10BB, GHDA350N10WW, GHDA350N20BB, GHDA350N20WW, GHDA356N00SS, GHDA356N20SS, EDW1500G00WW, EDW1500J00BB, EDW1500J00CC, EDW1500J00WW
GE EDW3000G00BB, EDW3000G01CC, EDW3000G01WW, EDW3000G02BB, EDW3000G03WW, EDW3060G02SS, EDW3060G03SS, GSC3200F00BL, GSC3200F01BL, GSC3200G00BB, GSC3200G00WW, GSC3200G01BB, GSC3200G01WW, GSC3200J01BB, GSC3200J01WW, GSC3200Z02BL, GSC3230Z02WW, GSC3230Z03WW, GSC3400F00BL, GSC3400G00BB, GSC3400G00WW, GSC3400G01WW, GSC3400J00BB, GSC3400J00WW, GSC3400Z03BL, GSD1920C04BB, GSD1920C05BB, GSD1920C07BB, GSD2000F00AD, GSD2000F00WH, GSD2000F01AD, GSD2000F02WH, GSD2000F03WH, GSD2000G00AA, GSD2000G02AA
GE GSD2200Z07AD, GSD2201F00WH, GSD2201G02WW, GSD2201G05WW, GSD2201G20WW, GSD2220Z04BB, GSD2220Z05BB, GSD2220Z07BB, GSD2221F00BB, GSD2230Z04WW, GSD2230Z05WW, GSD2230Z07WW, GSD2231F00WW, GSD2400N00BB, GSD2400N10CC, GSD2400N10WW, GSD2422F00BB, GSD2432F00WW, GSD2600G00BB, GSD2600G05WW, GSD2600G20BB, GSD2615F00AA, GSD2625F00BB, GSD2635F00WW, GSD2700G00WW, GSD2700G02BB, GSD2700G20BB, GSD2700N00BB, GSD2700N10CC, GSD2700N10WW, GSD3100N00BB, GSD3100N00WW, GSD3115F00AA

FAQ

The most common sign is water leaking from the bottom or sides of the dishwasher door during a cycle. You should also inspect the seal for visible signs of wear, such as cracking, tearing, shrinking, or if the rubber has become brittle and no longer maintains a firm contact with the tub frame.
This gasket replaces OEM part numbers WD08X10057, WD08X10014, WD8X10014, PS958908, AP3798079, EAP958908, and 1088473.
This kit is compatible with various dishwasher models manufactured by GE, Kenmore, and Hotpoint. Because these brands share many internal components, this seal is designed to fit a wide range of units that utilize the standard tub-edge mounting configuration.
This kit includes the main dishwasher door gasket seal, along with the WD8X227 right-side tub corner baffle and the WD8X228 left-side tub corner baffle. These corner baffles are critical for ensuring a watertight seal at the bottom corners of the door where leaks most frequently occur.
Installation is generally straightforward and can typically be completed in 15 to 30 minutes. You do not need specialized tools, though a pair of needle-nose pliers can be helpful for removing the old gasket. Ensure the door frame is clean and free of food debris or old adhesive residue before pressing the new gasket into the channel.
Start by installing the gasket at the top center of the door and work your way down both sides evenly to ensure the seal is not stretched or bunched. Once installed, close the door and let it sit for a few hours to allow the gasket to conform to the shape of the tub. If you notice a small gap at the bottom center, you may also need to check if your specific model requires the separate WD08X10015 bottom insert.
