809006501 Dishwasher Bottom Door Gasket for Frigidaire Kenmore Electrolux Dishwashers

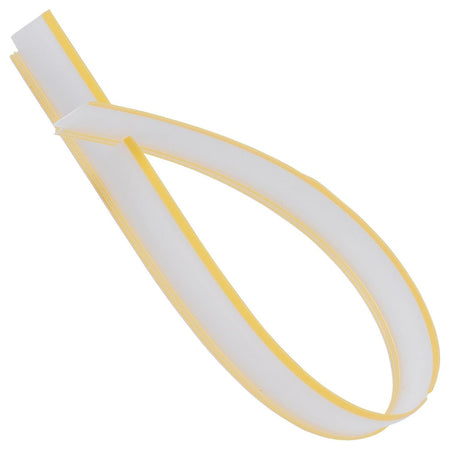

809006501 / 154576501 Dishwasher Bottom Door Gasket Seal

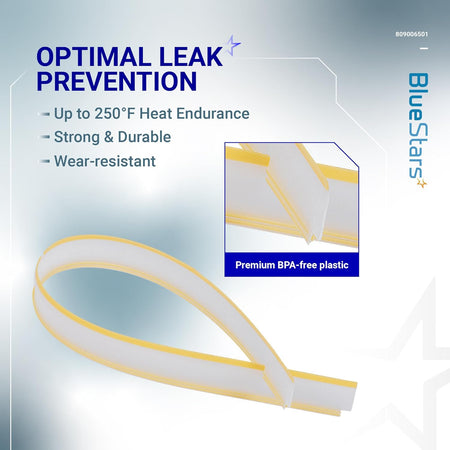

Key Features

• Critical Lower Leak Protection: Specifically designed to bridge the gap at the bottom of the dishwasher door where the tub meets the hinge area, creating a primary splash barrier against pressurized water during the wash cycle.
• High-Flex EPDM Rubber: Manufactured from premium, heat-resistant EPDM rubber that maintains its "memory" and elasticity through thousands of "Sanitize" and "Heated Dry" cycles without becoming brittle or cracking.
• Precision Flap Geometry: Features a specialized molded "lip" or flap that deflects water back into the tub sump, preventing it from seeping over the threshold and onto your kitchen floor.
• Anti-Microbial Construction: The non-porous rubber material resists the accumulation of food particles, grease, and black mold, which are common at the base of the door and can cause persistent "old food" odors.

Replaces / Cross-Reference Part Numbers

• AP5809675
• PS9495545
• 154576501
• 154759101
• 154297601
• 154297602
• 154297603
• 154588201
• 3290453
• EAP9495545

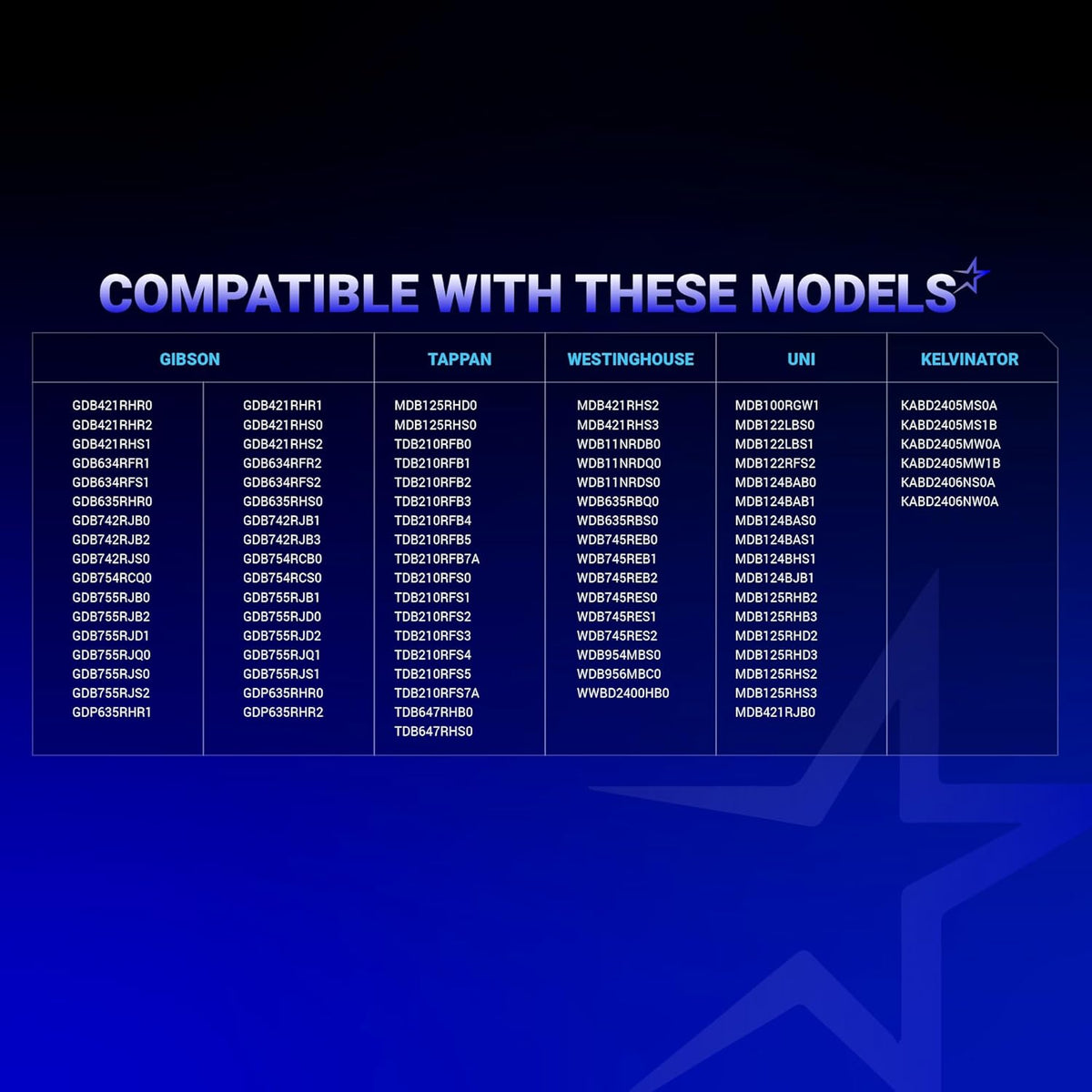

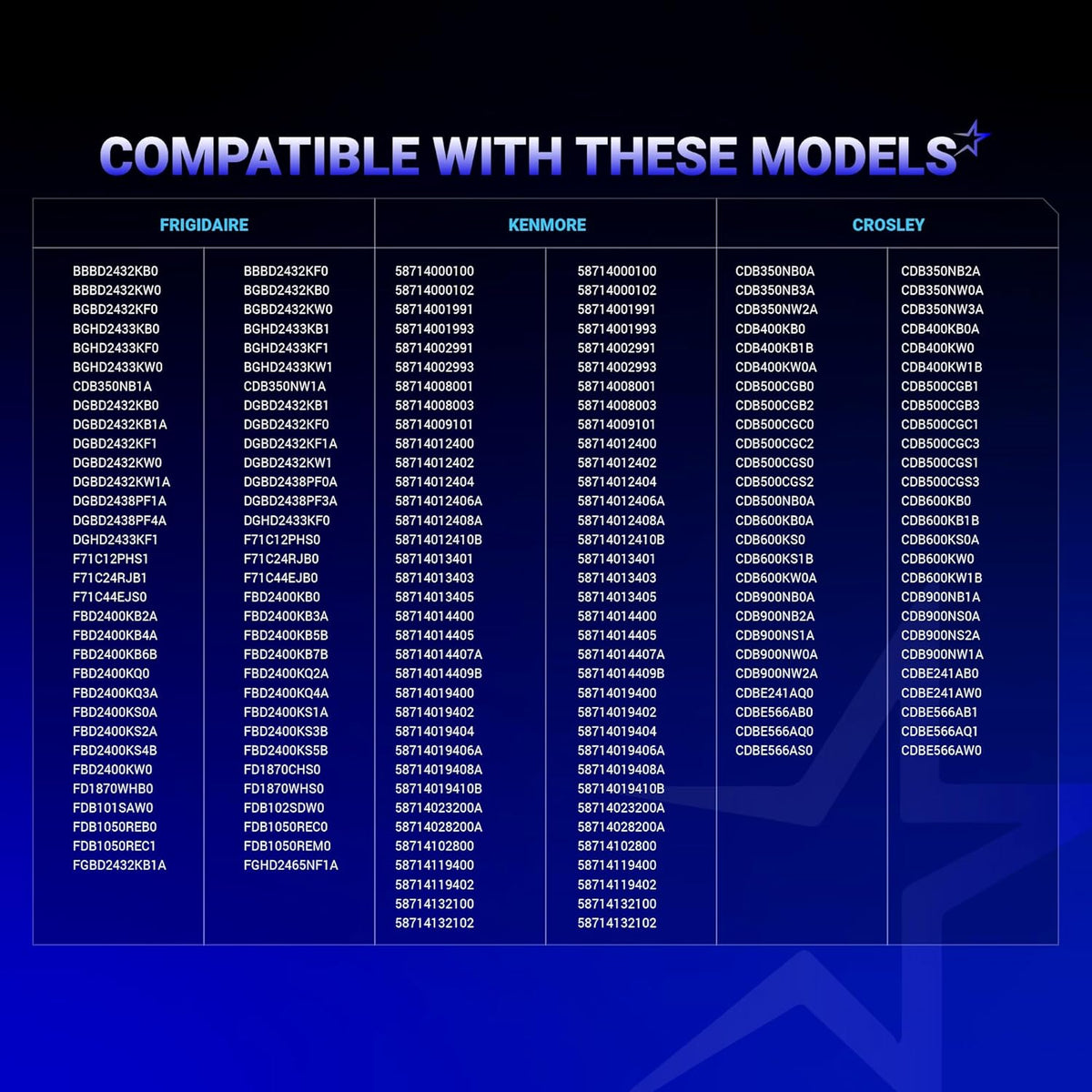

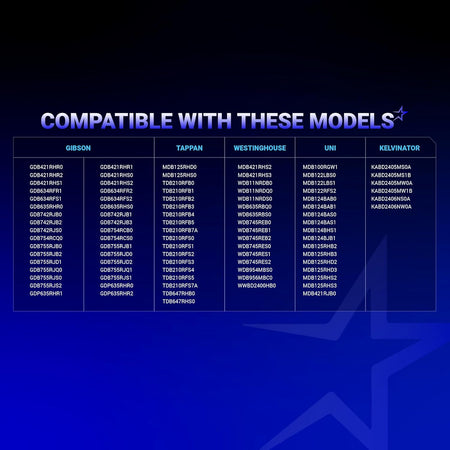

Compatibility & Fitment

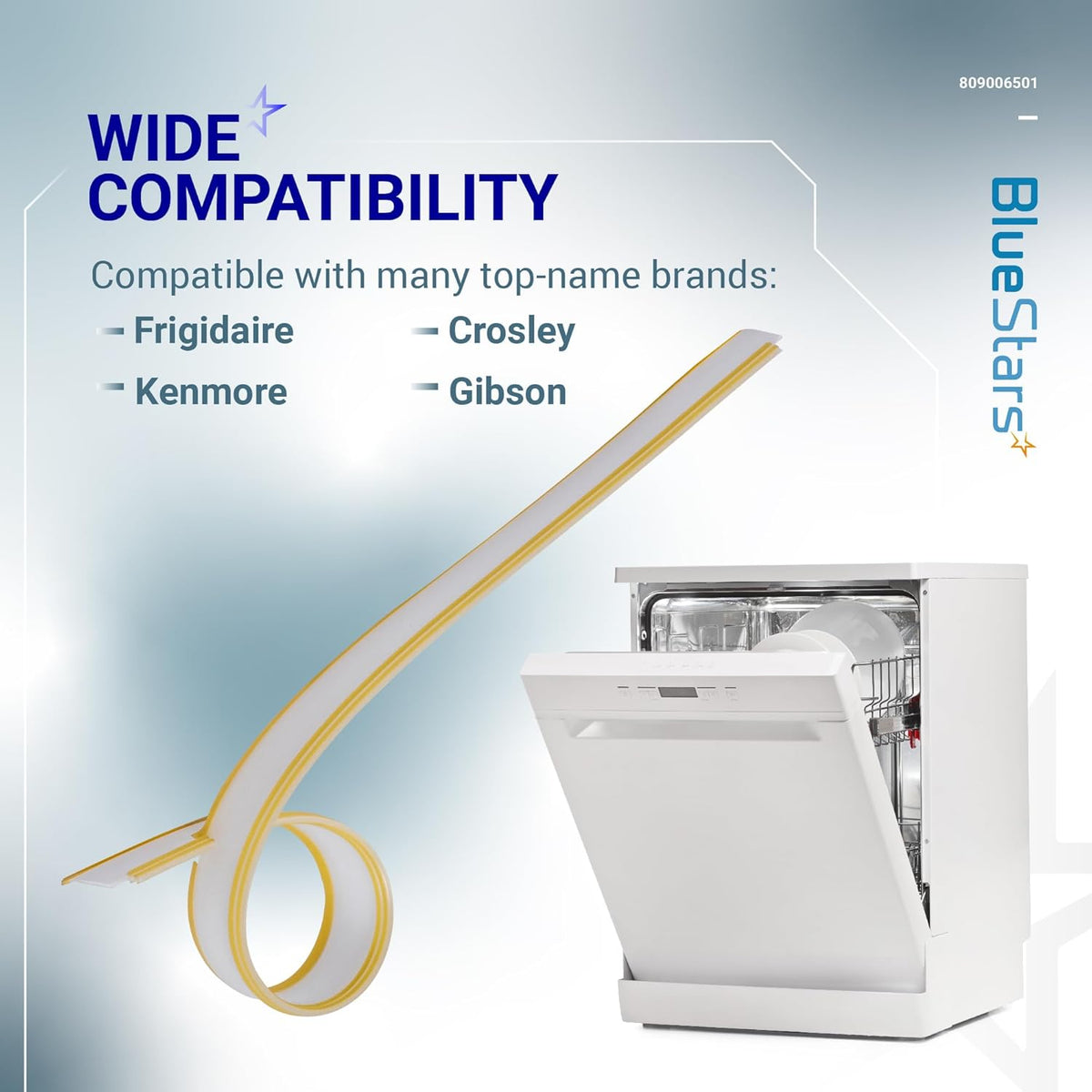

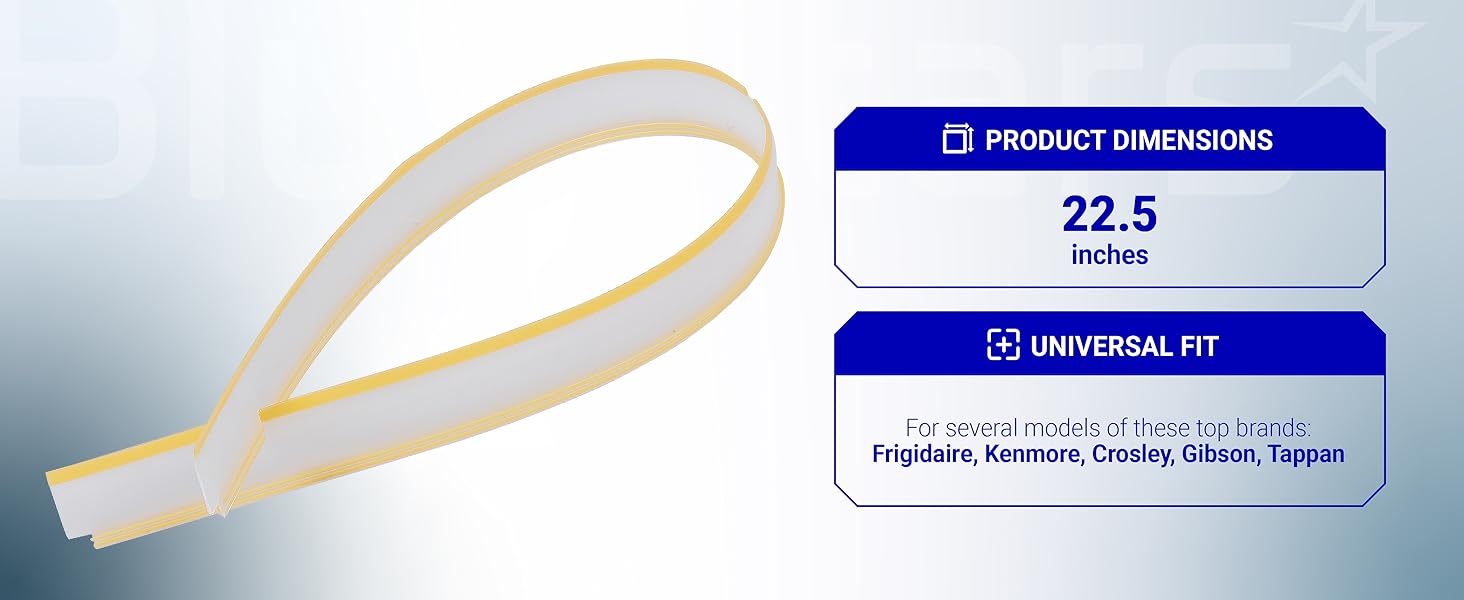

This bottom door seal is the standard replacement for the lower threshold of most Frigidaire-manufactured dishwashers produced over the last 15 years. Key compatible brands include:

• Frigidaire / Frigidaire Gallery: Fits hundreds of FFBD, FGBD, FGID, and LFBD series models (e.g., FFBD2406NW, FGBD2434PF, FGID2466QF).
• Electrolux: Compatible with various EDW and EID series units utilizing the 154576501 style.
• Kenmore (587 Series): Fits many 587-prefix models produced by Frigidaire for Sears (e.g., 587.15112401, 587.15263900).
• Tappan, Crosley, & White-Westinghouse: Direct fit for dozens of budget-friendly tall-tub models utilizing this specific bottom seal.
• Note: This is the Bottom Door Gasket. It is located at the very base of the door. It is not the "U-shaped" perimeter gasket that goes around the top and sides of the tub.

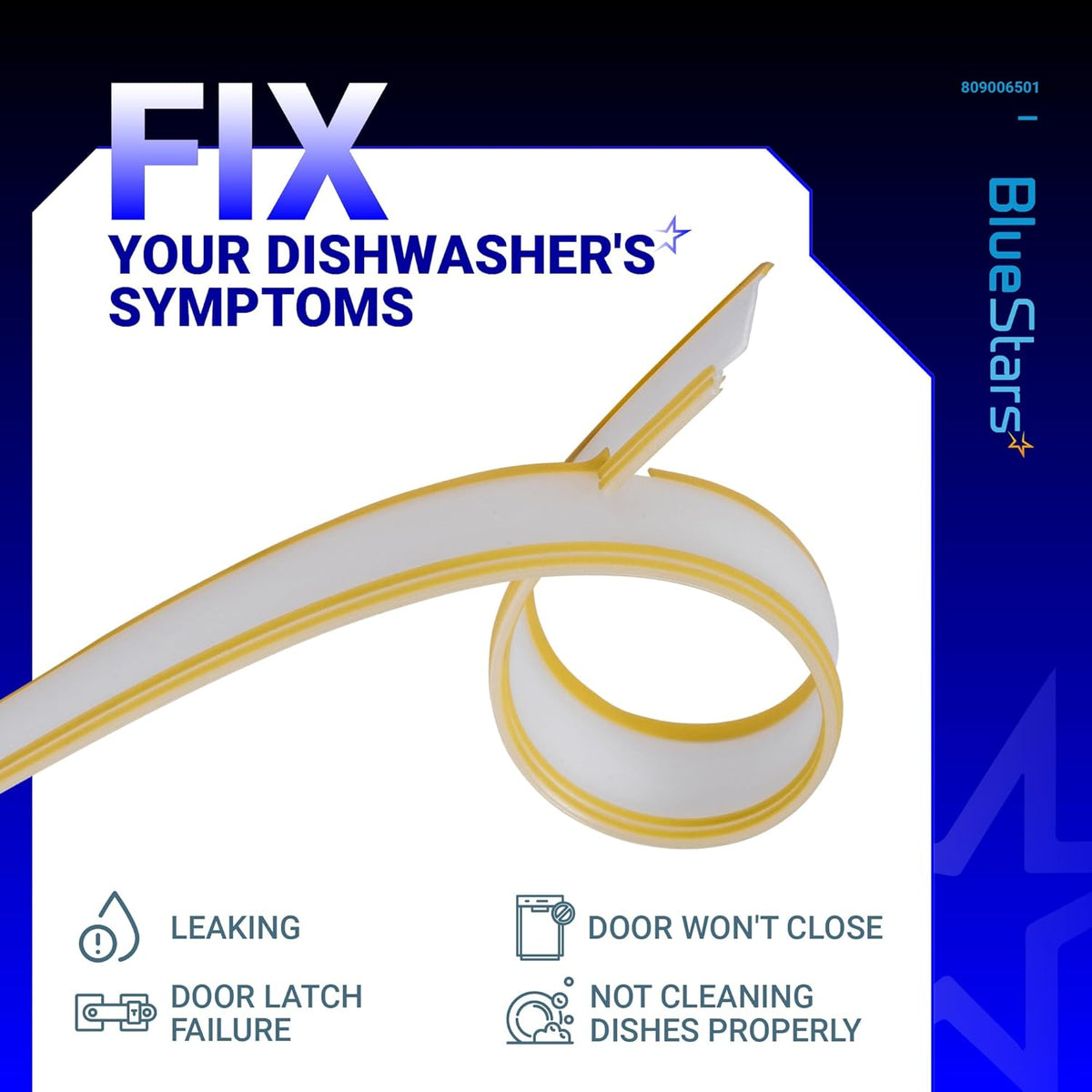

When to Replace

• Water Leaking from Bottom of Door: Small puddles forming on the floor directly beneath the center or corners of the door, typically starting 5-10 minutes into the wash cycle.
• Visible Tearing or Shredding: The rubber flap looks chewed, has chunks missing, or has pulled away from the metal door frame.
• Brittle or Hard Rubber: The seal feels "stony" or "plasticky" rather than flexible, preventing it from conforming to the tub threshold when the door is closed.
• Persistent Odors: Heavy black mold or slime buildup on the gasket that cannot be cleaned off, indicating the rubber has become porous.
• Rust on Kickplate: You notice rust or water spots on the metal kickplate (toe kick) directly below the door.

Installation Tips

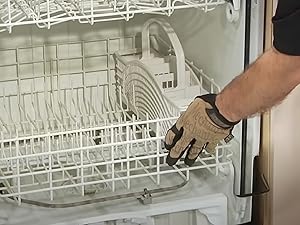

• No Specialized Tools Required: This is a mechanical "press-fit" or "slide-in" repair. Open the dishwasher door fully and remove the lower dish rack for better access.

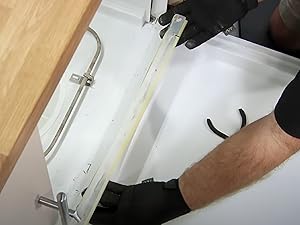

• Clean the Mounting Surface: After removing the old 809006501 gasket, use a damp cloth and white vinegar to thoroughly clean the metal door edge. Removing old soap scum and grit is essential for a watertight seal.

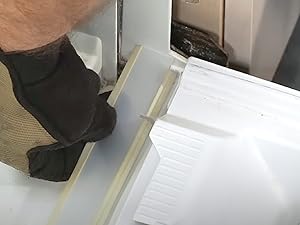

• The "Soapy Water" Trick: Apply a small amount of liquid dish soap to the mounting "rib" of the new gasket. This helps it slide into the narrow metal channel on the door much easier.
• Orientation: Ensure the "flap" or "lip" of the gasket is pointing inward toward the dishwasher tub. If installed backward, it will actually funnel water out of the machine.
• Check the Main Gasket: While replacing the bottom seal, inspect your 5304525218 Tub Perimeter Gasket. If the side seals are also flattened, replacing the bottom gasket alone may not stop all leaks.
