A small leak under your washer can quietly turn into hidden water damage, especially in an upstairs laundry room. If the leak happens overnight, it may warp the floor, damage the subfloor, stain the ceiling below, and even create an insurance headache. Knowing how to install washer drain pan properly is a simple way to protect your floors, walls, and home structure. In this guide, BlueStars Parts will walk you through each step to install it safely and prepare the right parts before you start.
|
Key Takeaways Installing a washer drain pan is a simple DIY project that helps protect your floor from leaks and overflow damage. To install a washer drain pan, turn off the water and power, position the pan on a level surface, connect the drain fitting, place the washer inside the pan, and test the setup for leaks.
|
1. Washer Drain Pan Installation Checklist
A washer drain pan helps catch leaks or overflow from the washing machine and directs water toward a drain, reducing the risk of floor, ceiling, or wall damage. Most installations involve positioning the pan under the washer and connecting the pan fitting to a suitable drainage system.
1.1 Tools You Need to Install Washer Drain Pan
| Tool / Item | Requirement | Purpose |
|---|---|---|
| Washer drain pan | Required | Collects water from leaks, overflows, or appliance failures. |
| Drain fitting or adapter | Required for drain line installations | Connects the drain pan to a drain line or floor drain. |
| Adjustable wrench | Required | Tightens hose connections and drain fittings. |
| Level | Required | Ensures the drain pan sits flat and drains properly. |
| Towels or bucket | Recommended | Catches water remaining in the hoses during installation. |
| Work gloves | Optional | Protects your hands while moving the washer. |
| Appliance dolly or furniture sliders | Optional | Makes it easier and safer to move the washer. |
| PVC cutter, primer, and cement | Only needed for PVC drain modifications | Used when installing or modifying PVC drain piping. |
1.2 Before You Start Checklist
Before installing a washing machine drain pan, run through this quick checklist to prevent spills, electrical hazards, hose damage, and floor scratches.
-
Unplug the washer: Turn off the machine and disconnect the power cord before moving it.
-
Shut off the water: Close both hot and cold water valves to prevent leaks.
-
Prepare towels or a bucket: Keep them nearby to catch leftover water from the hoses.
-
Check the drain path: Make sure the drain hose, floor drain, or drain pipe is ready before lifting the washer into place.
-
Clear and inspect the floor: The area should be clean, stable, and level so the pan can sit properly.
-
Move the washer safely: Use two people, furniture sliders, or an appliance dolly to avoid injury and floor damage.
Take a few minutes to properly prepare the appliance and the surrounding area (Source: Bluestars Parts)
2. How to Install Washer Drain Pan Step by Step
Installing a washer drain pan is a straightforward DIY task, but getting each step right is what makes the difference between a reliable setup and a future water damage problem. So before you pick up any tools, read through all eight steps below to understand what's involved and prepare accordingly.
Step 1: Turn off the washer water supply and unplug the machine
Turn off the water supply hoses at the wall, unplug the machine, and disconnect the supply hoses and drain hose. Place a bucket underneath this area and have a towel ready for any residual water left in the hoses that may drain out. Work slowly and make sure both the hot and cold supply valves are fully closed before proceeding.
Safety Warning: Never skip this step, even if the job seems quick. A washing machine that is still plugged in or connected to a live water supply is a serious electrical and flooding hazard the moment hoses are disturbed. Always cut power and water first, no exceptions.
Turn off the water supply hoses at the wall, unplug the machine (Source: Bluestars Parts)
Step 2: Move the washer away from the wall
Carefully move your washing machine a small distance from its original spot to uncover your laundry room's floor drain. You may want to incorporate the aid of a second person to help you lift your washing machine onto a dolly so that it can be easily moved. Make sure the disconnected hoses are tucked out of the way to avoid tripping hazards as you maneuver the machine.
Washing machines are very heavy, and this should be done with the assistance of a second person. Trying to move it alone risks both back injury and potential damage to the machine and the floor. Take your time, a few extra minutes here prevents a lot of problems later.
Step 3: Position the drain pan on a flat, level surface
Place the drain pan on the floor so the drain outlet lines up with the floor or wall drain opening. If the pan does not come with a pre-cut drain hole, drill one according to the manufacturer’s instructions before connecting the drain line.
Use a level to make sure the pan sits completely flat before moving on. This matters because water always follows gravity: if the pan tilts away from the drain opening, water may pool on one side instead of flowing into the drain, making the overflow protection less effective.
Use a spirit level to confirm the pan sits completely flat before moving on (Source: Bluestars Parts)
Step 4: Connect the drain fitting, washer, and locknut
Slide one O-ring onto the PVC bushing, then insert the bushing through the drain pan hole from the outside. The threaded side should point inside the pan, with the O-ring sitting between the bushing collar and the outside wall of the pan.
Next, place the second O-ring over the threads inside the pan. Add the locknut and hand-tighten it first to keep the fitting straight. Then use pliers to tighten it slightly until the O-rings compress and create a watertight seal.
Tip: Do not overtighten the locknut. Too much pressure can crack the pan wall or damage the fitting threads, which may cause leaks later.
Step 5: Attach the drain line to a floor drain or approved outlet
Connect the washer drain pan fitting to a floor drain or approved outlet using a suitable pipe or hose. Keep this pan drain line sloped toward the drain and make sure it is not kinked, crushed, or twisted.
Do not mix up the two drain lines:
-
Pan drain line: Carries water only if leaks or overflow enter the drain pan.
-
Washer drain hose: Carries wastewater out of the washer during each wash cycle and should stay connected to the standpipe, laundry sink, or dedicated washer drain outlet.
If the washer drain hose needs extra reach, use the 6-Foot Universal Dishwasher & Washing Machine Drain Hose for shorter setups or the 10 Feet Universal Dishwasher & Washing Machine Drain Hose when the outlet is farther away. Secure the hose with the WH16X513 Washer Drain Hose Clip Replacemen to help prevent it from slipping out during a cycle.
WH16X513 Washer Drain Hose Clip Replacement (Source: Bluestars Parts)

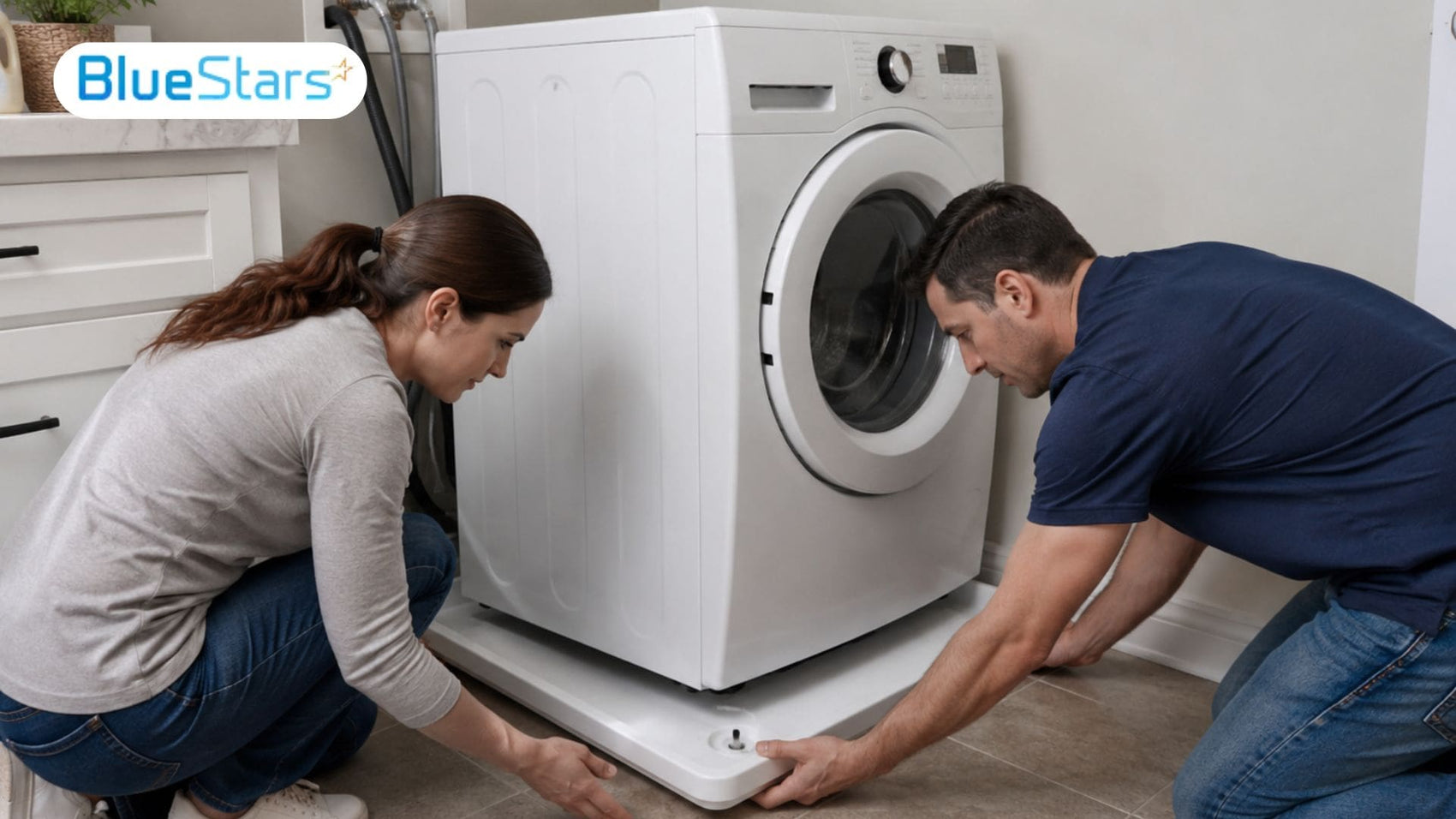

Step 6: Lift the washer and place it carefully inside the pan
There are 3 ways to get the washer into the pan, depending on how many people you have and what equipment is available:
-
Two-person lift (simplest method): Two people on either side lift the washer a few inches off the ground while a third person slides the pan underneath, then lower the washing machine back down inside the pan.
-
Using moving straps: These straps are more ergonomic for lifting heavy objects, minimizing back injuries. They utilize leverage to reduce the force required to lift the machine. Tilt the washer back slightly to run the straps underneath.
-
Using a ramp method: Move the washer out of the way, place the pan where desired, then use wooden planks assembled into an I-beam with a ramp to slide the washer up and over into the pan.
CAUTION: Never drag the washer across the pan edge, though this can crack the drain pan, damage the drain fitting, or loosen the connection, which may cause leaks later. Once the washer is inside the pan, make sure all four feet sit flat with no rocking. An uneven washer can vibrate during the spin cycle and gradually shift the pan out of position.
Step 7: Reconnect hoses, power, and water supply
Reconnect the hot and cold water supply hoses to the correct wall valves, then reattach the washer drain hose to its original standpipe, laundry sink, or dedicated washer drain outlet. This washer drain hose is different from the drain line connected to the washer drain pan, which only carries away water if leaks or overflow enter the pan.
Before pushing the washer fully back into place, check that the hoses have enough slack, the drain hose is not kinked, and the power cord is not pinched behind the machine. Once everything is positioned correctly, plug the washer back in and turn the water supply on slowly.
Reconnect the drain hose to the back of the machine and plug the power cord back in (Source: Bluestars Parts)
Step 8: Test for leaks around the pan and drain connection
Turn the water supply back on slowly and inspect all connection points before running a full cycle. Check the hose fittings at the wall, the hose connections behind the washer, and the drain fitting on the pan.
Look for signs of a real leak, such as slow drips, pooled water around the pan outlet, or moisture forming under the hose fittings. If you see light “sweating” on cold water lines, wipe the area dry and check again after a few minutes. If water reappears from a fitting, tighten or adjust the connection before using the washer.
3. Common Washer Drain Pan Installation Mistakes
Even a good-quality washer drain pan may fail to protect your laundry area if it is installed incorrectly. A proper installation should keep the pan level, centered, correctly connected to drainage, and large enough to contain water from minor leaks or overflow.
3.1 Choosing a drain pan that is too small
Choosing a washer drain pan that is too small can make the washer sit unevenly or leave too little room to catch leaks properly. Before installation, measure the washer’s width and depth, then compare them with the pan dimensions to make sure the washer fits securely with enough clearance around the sides.
3.2 Skipping the drain connection
A washer drain pan without a working drain connection only acts like a shallow bucket. It may catch a small leak, but if a hose bursts or water builds up quickly, the pan can overflow and still damage the floor, ceiling, or walls. Connect the pan to a floor drain, drain line, or approved outlet whenever possible, especially for upstairs laundry rooms.
Connect the pan to a floor drain, drain line, or approved outlet whenever possible (Source: Bluestars Parts)
3.3 Installing the pan on an uneven floor
Installing the pan on an uneven floor can stop water from flowing toward the drain opening. If the pan tilts the wrong way, water may pool in one corner or spill over the edge instead of draining properly. Before placing the washer inside, clean the floor, check that the surface is stable, and use a level to confirm the pan sits flat.
3.4 Damaging washer hoses when moving the machine
Moving the washer too quickly can kink, loosen, tear, or pull the supply and drain hoses out of position. Before moving the machine, unplug it, shut off the water supply, and disconnect hoses if needed. Keep towels or a bucket nearby for leftover water, and use another person, furniture sliders, or an appliance dolly to avoid damaging the washer, floor, or plumbing connections.
Before moving the machine, unplug it, shut off the water supply (Source: Bluestars Parts)
3.5 Ignoring leaks after installation
Do not assume the job is finished as soon as the washer is placed in the pan. After installation, reconnect the hoses carefully, run a short test cycle, and check around the pan, drain fitting, hose connections, and water supply lines for slow drips, loose fittings, or pooled water. Catching a small leak early helps prevent water damage later.
A proper installation should keep the pan level correctly connected to drainage (Source: Bluestars Parts)
4. FAQs
4.1 Can a washer drain pan prevent flooding?
A washer drain pan can help catch small leaks, drips, or minor overflow, especially when it is connected to a working drain. However, it cannot fully stop a major flood from a burst supply hose or heavy pressurized leak. For better protection, use the drain pan with secure hoses, regular leak checks, and a water leak detector if possible.
4.2 Do upstairs washers need drain pans?
Yes, a drain pan is strongly recommended for upstairs washers. Even a slow leak can damage flooring, subflooring, ceilings, and walls below before you notice it. A properly installed pan with a drain connection gives your laundry area an extra layer of protection.
4.3 How to get a washer into a drain pan?
Yes, a drain pan is strongly recommended for upstairs washers. Even a slow leak can damage flooring, subflooring, ceilings, and walls below before you notice it. A properly installed pan with a drain connection gives your laundry area an extra layer of protection.
4.4 Can I install a drain pan without a floor drain?
Yes, but the protection will be limited. Without a floor drain or approved outlet, the pan only catches a small amount of water and can overflow during a larger leak. If your laundry area has no drain, consider adding a leak detector or asking a plumber about safe drainage options.
4.5 What size drain pan do I need for a washing machine?
Measure the washer’s base and choose a drain pan with at least 1 inch of clearance on each side. The pan should fit the washer securely without forcing the feet against the raised edges. Also check that the pan’s drain outlet lines up with your floor drain or planned drainage route.
Learning how to install washer drain pan properly is a simple but important step to help protect your laundry area from leaks, overflow, and costly water damage. By choosing the right pan size, securing the drain connection, and checking for leaks after installation, you can keep your washing machine setup safer and more reliable. For dependable washer replacement parts and maintenance solutions, visit BlueStars Parts to find the right products for your appliance needs.
